Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 25 illustrations

Illustrations

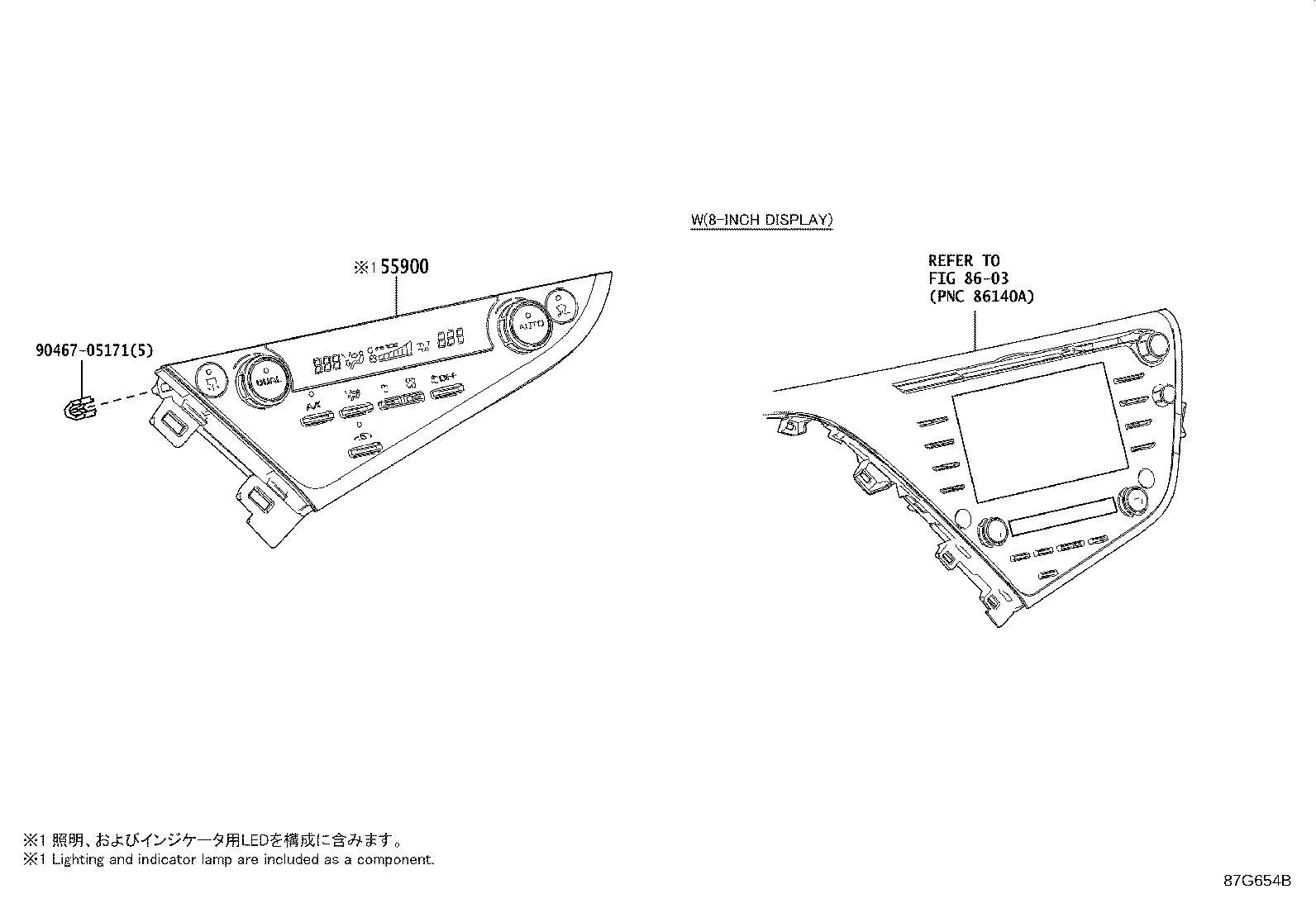

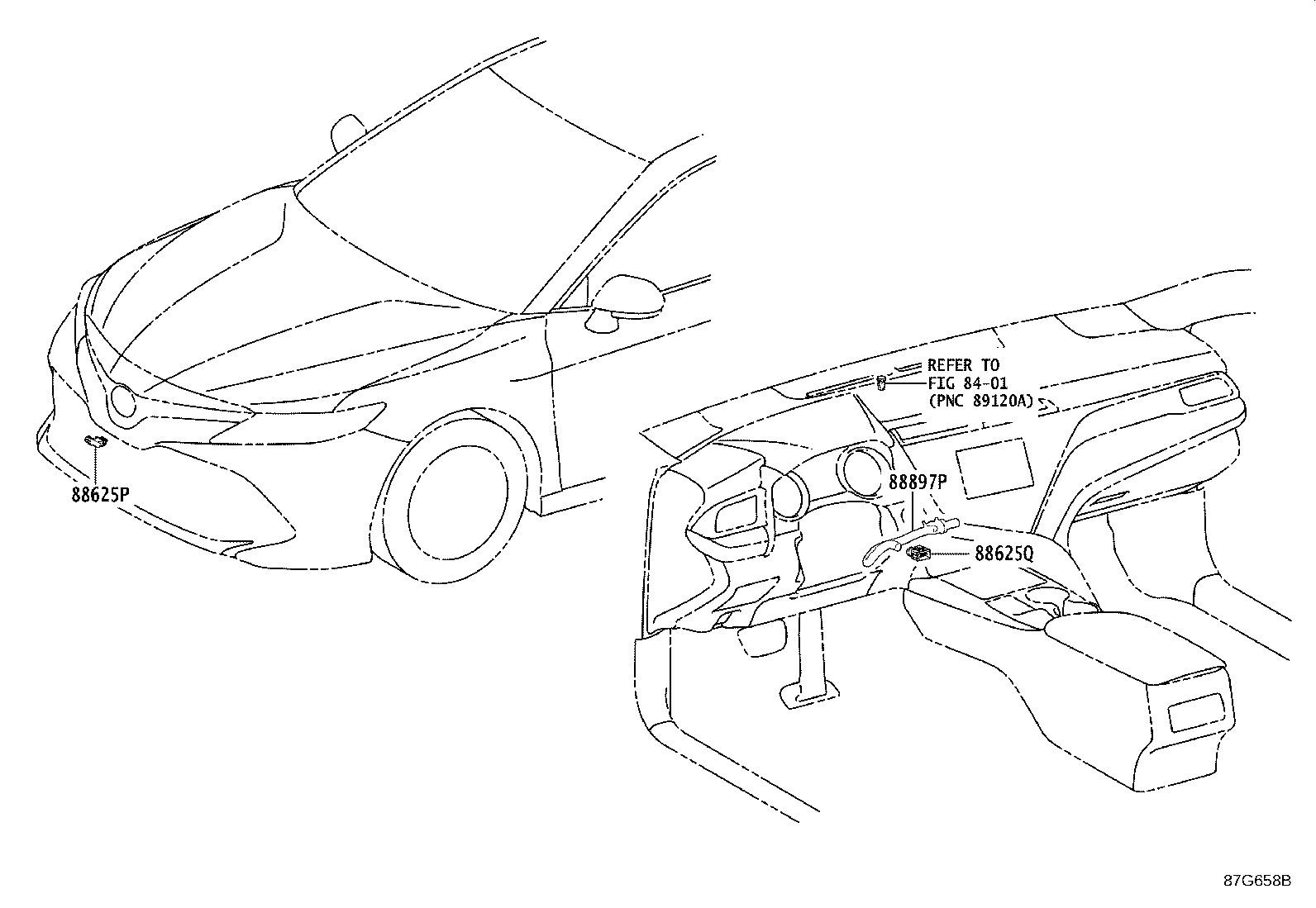

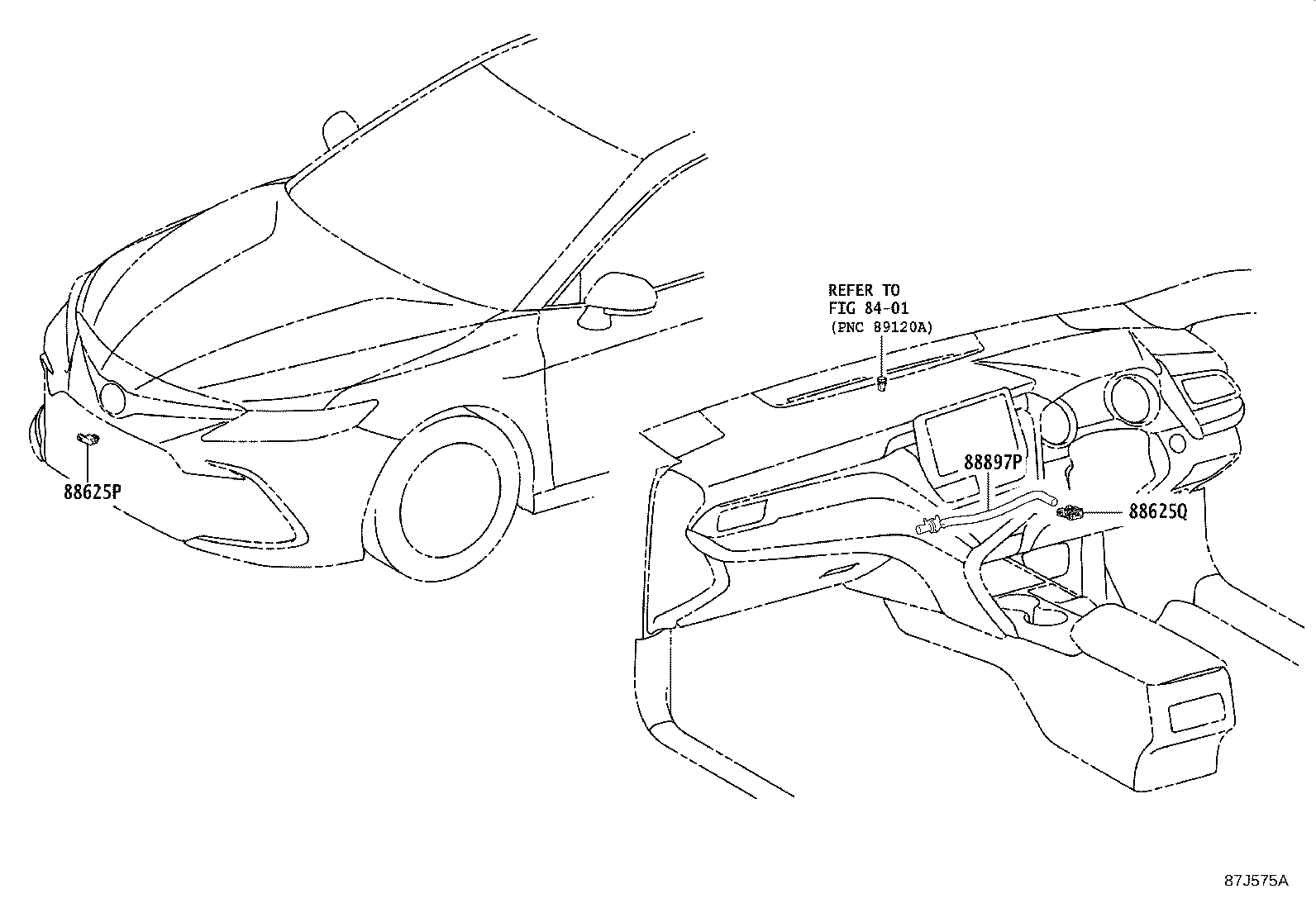

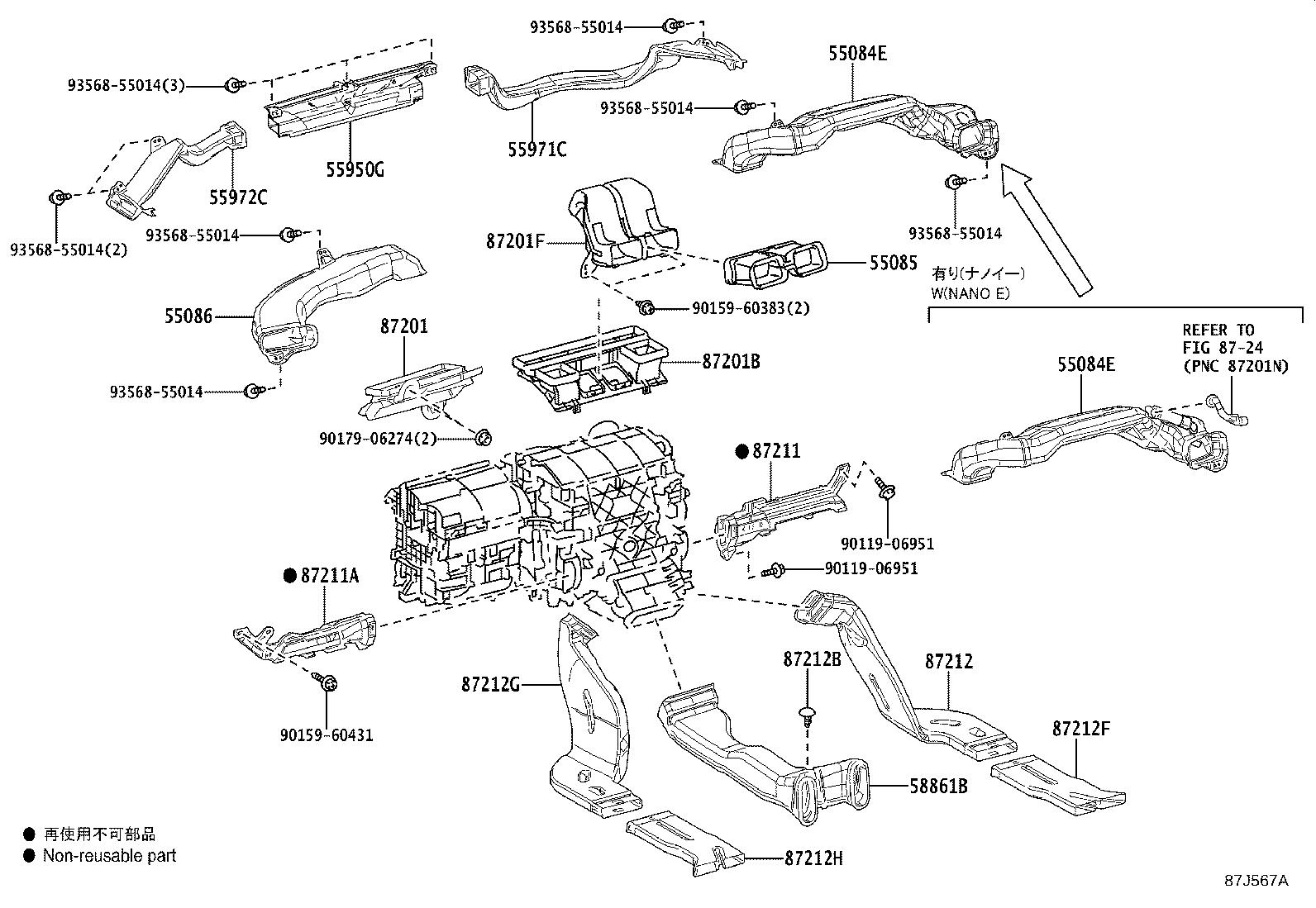

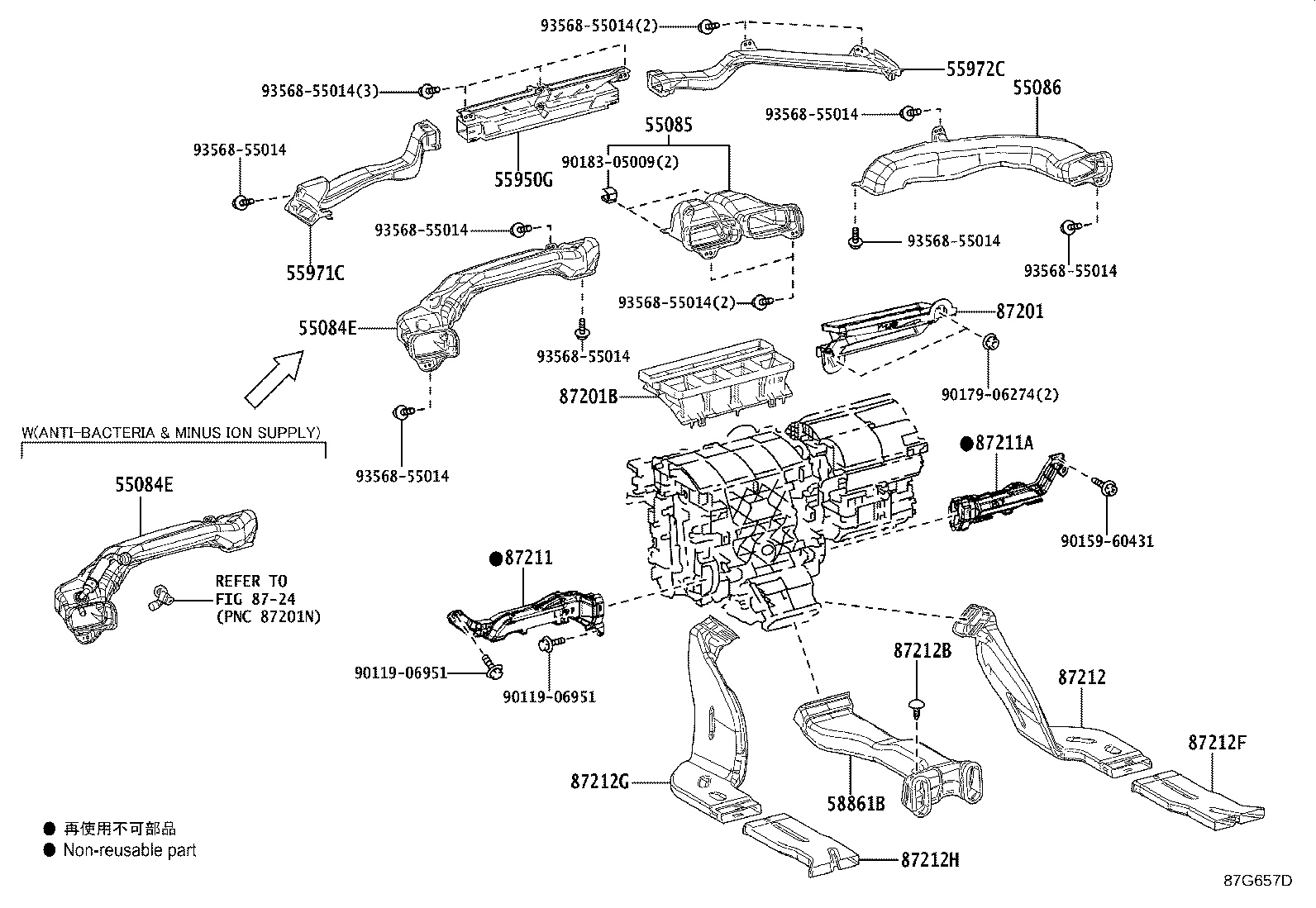

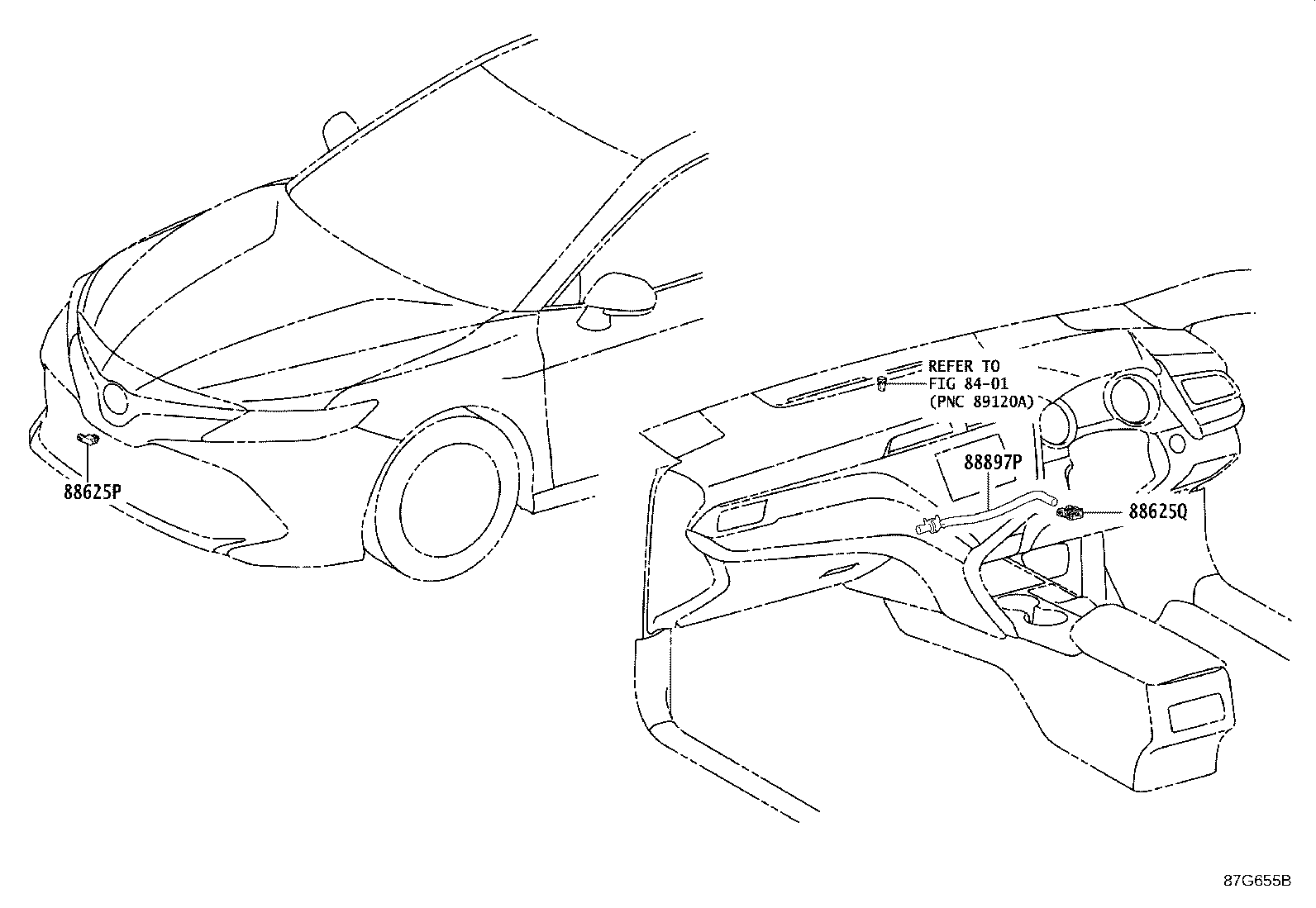

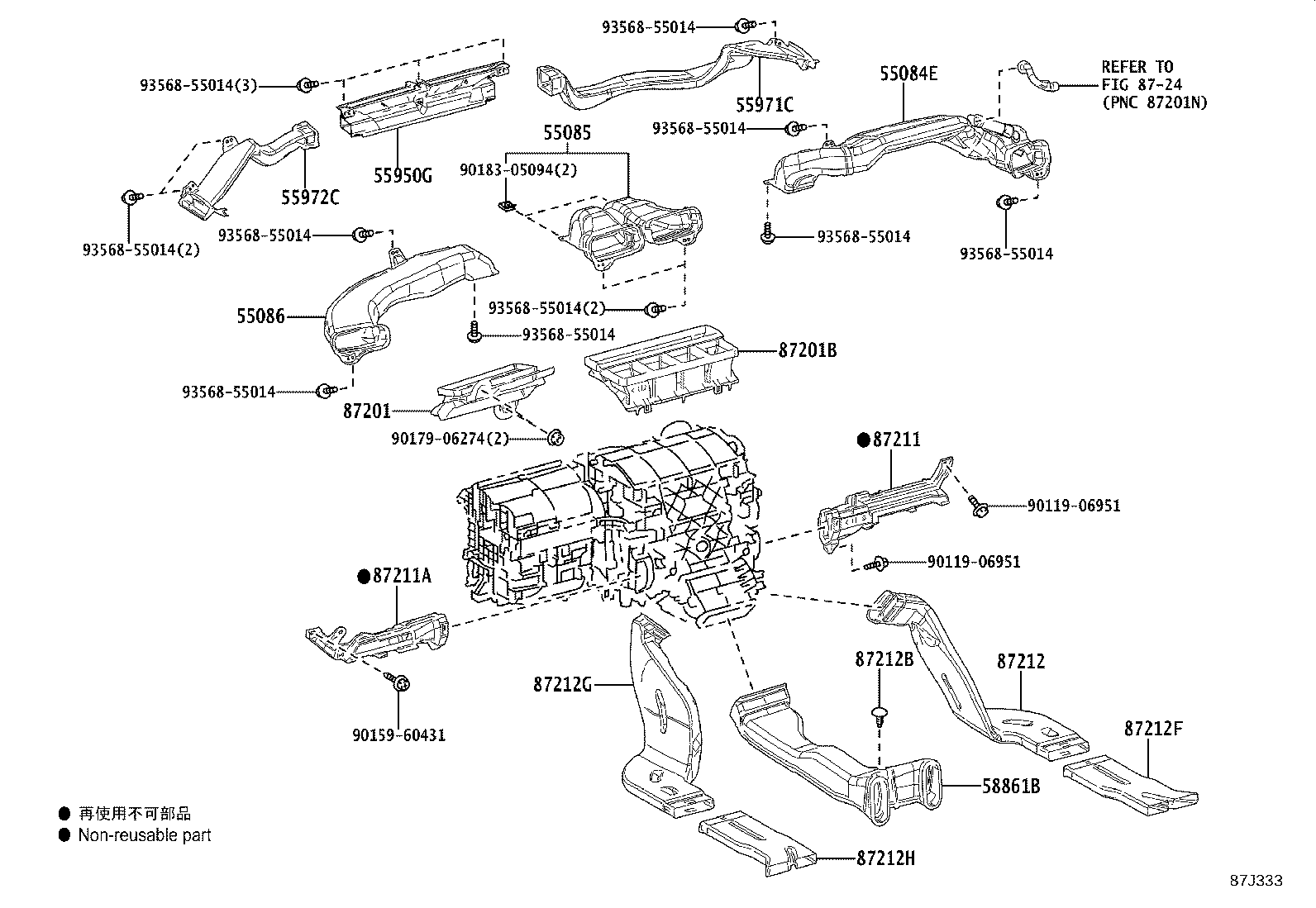

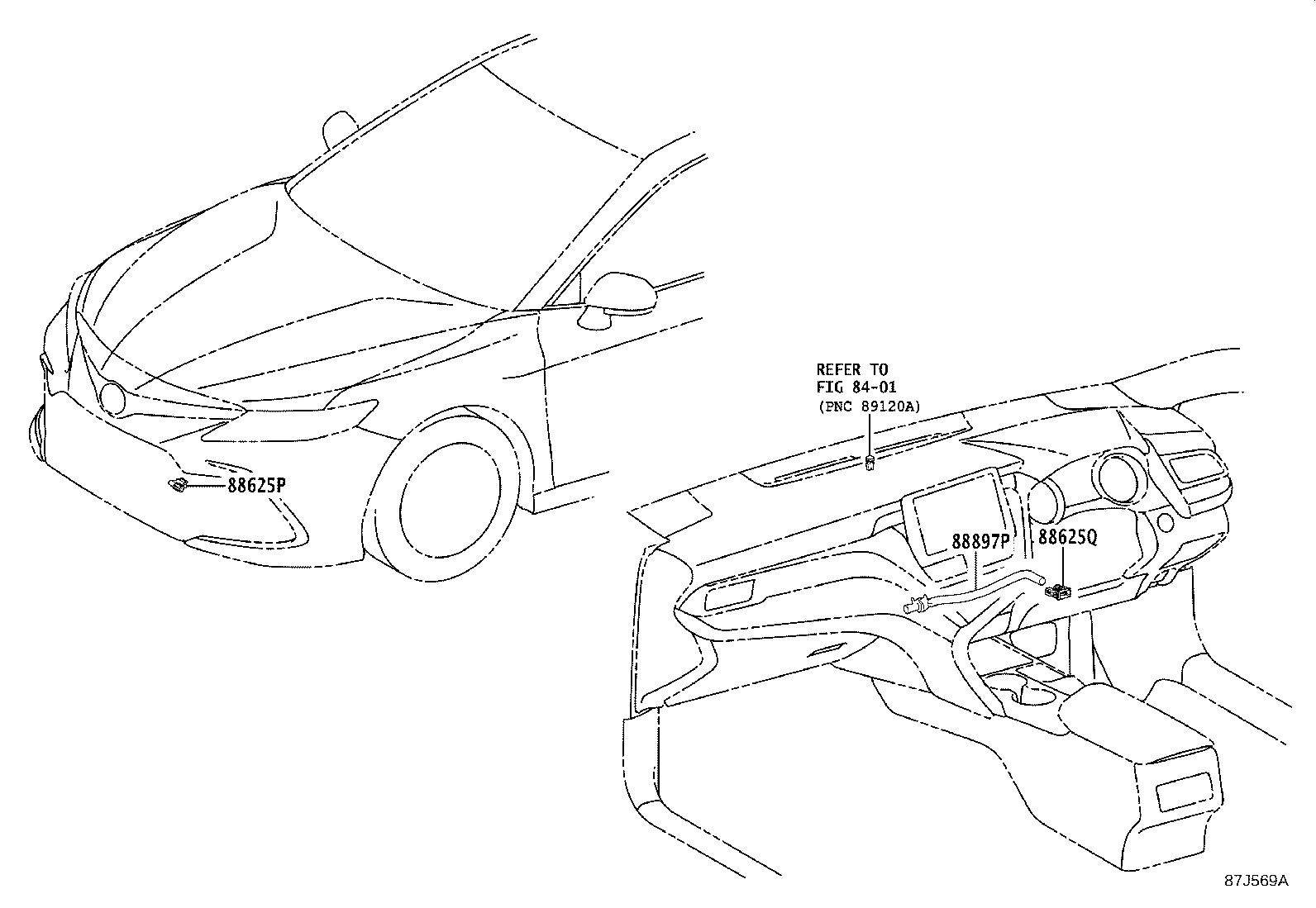

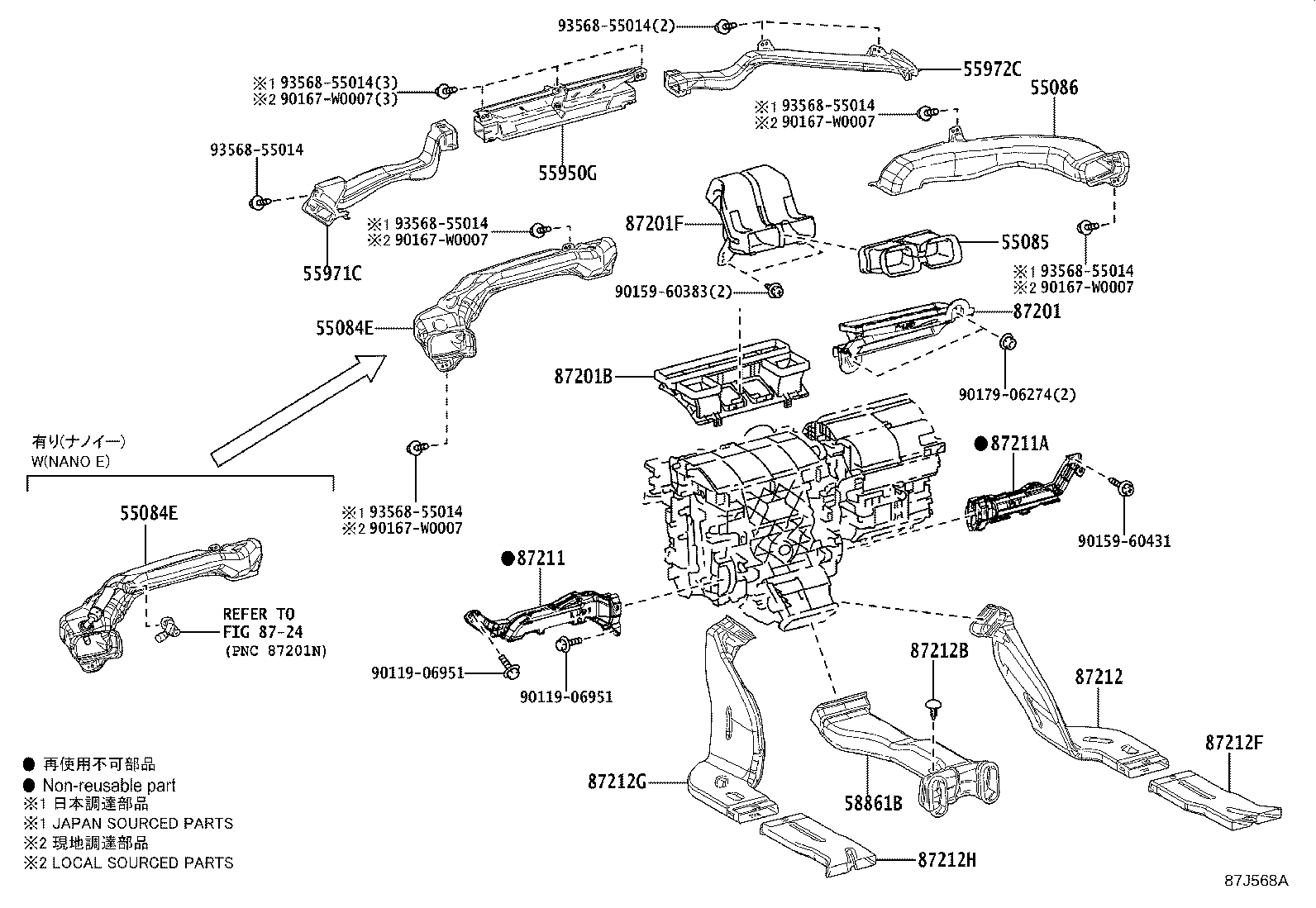

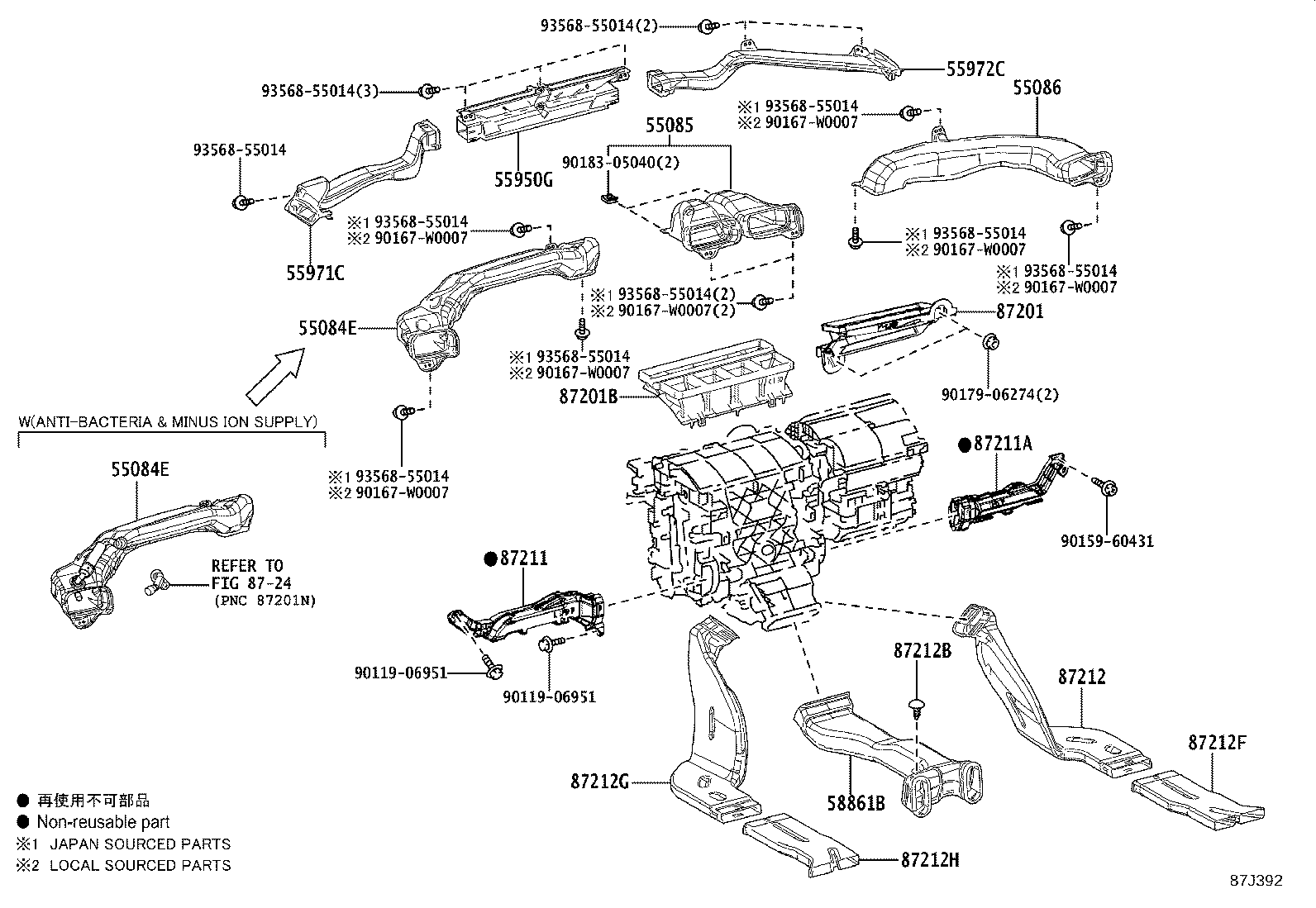

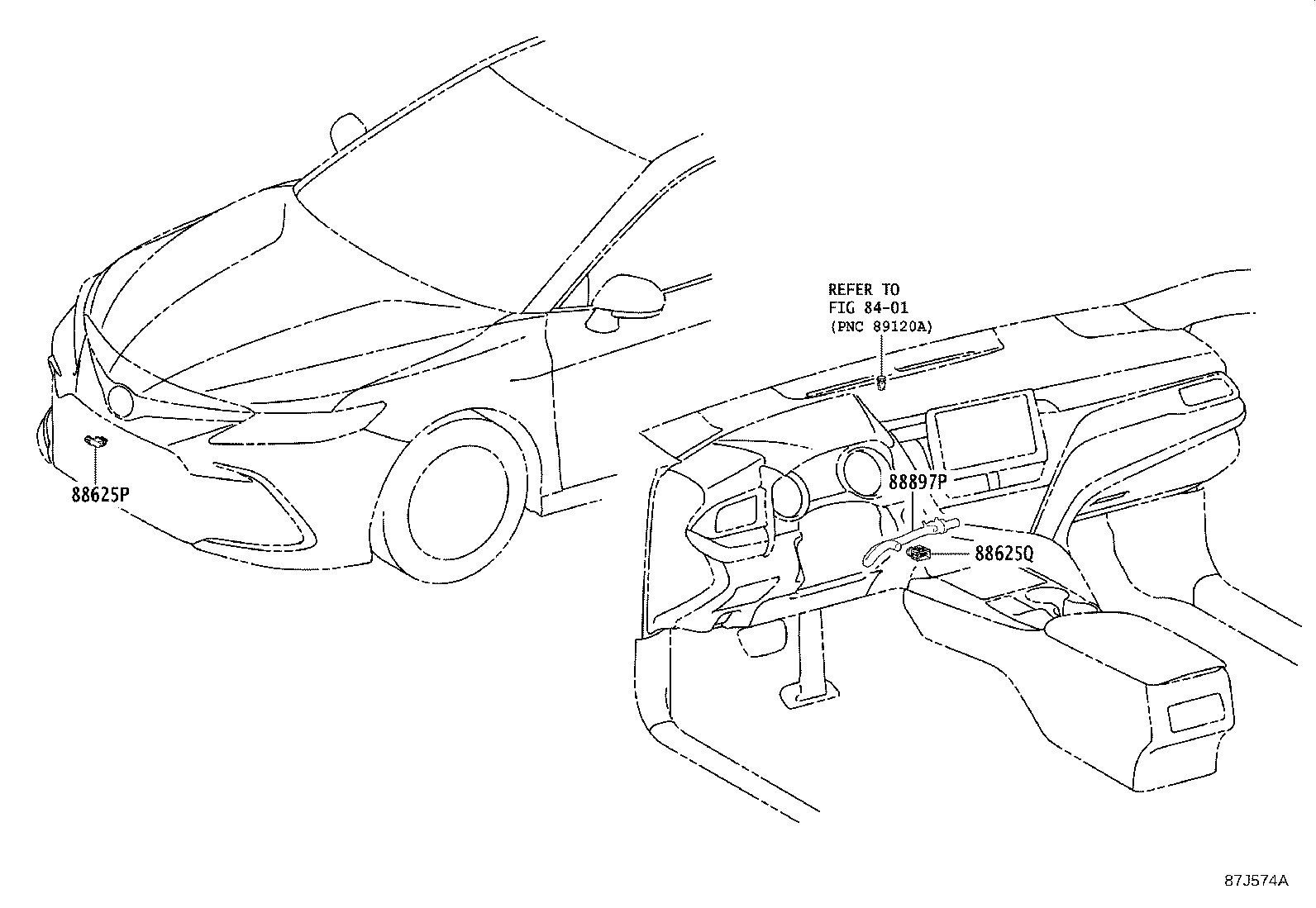

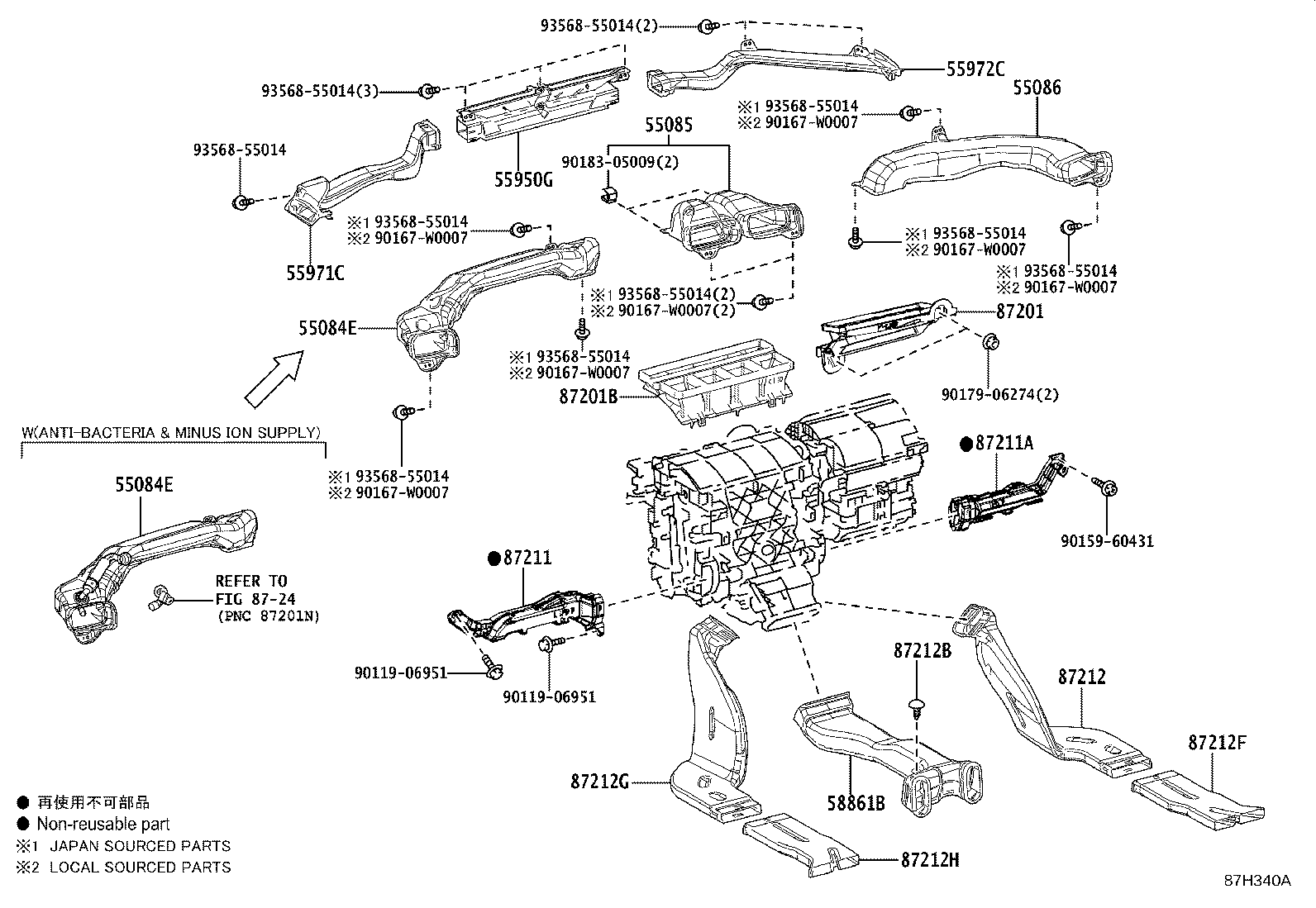

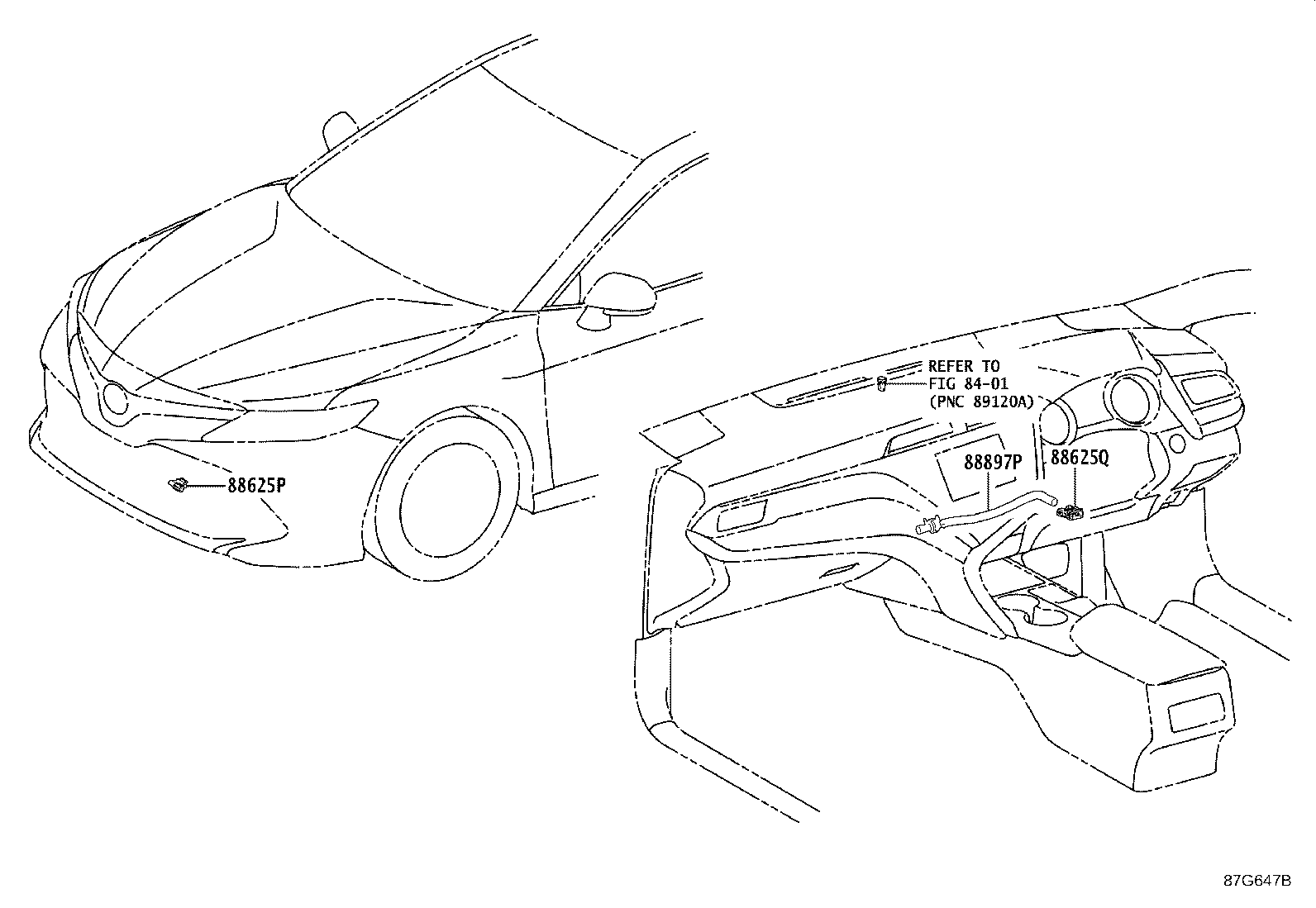

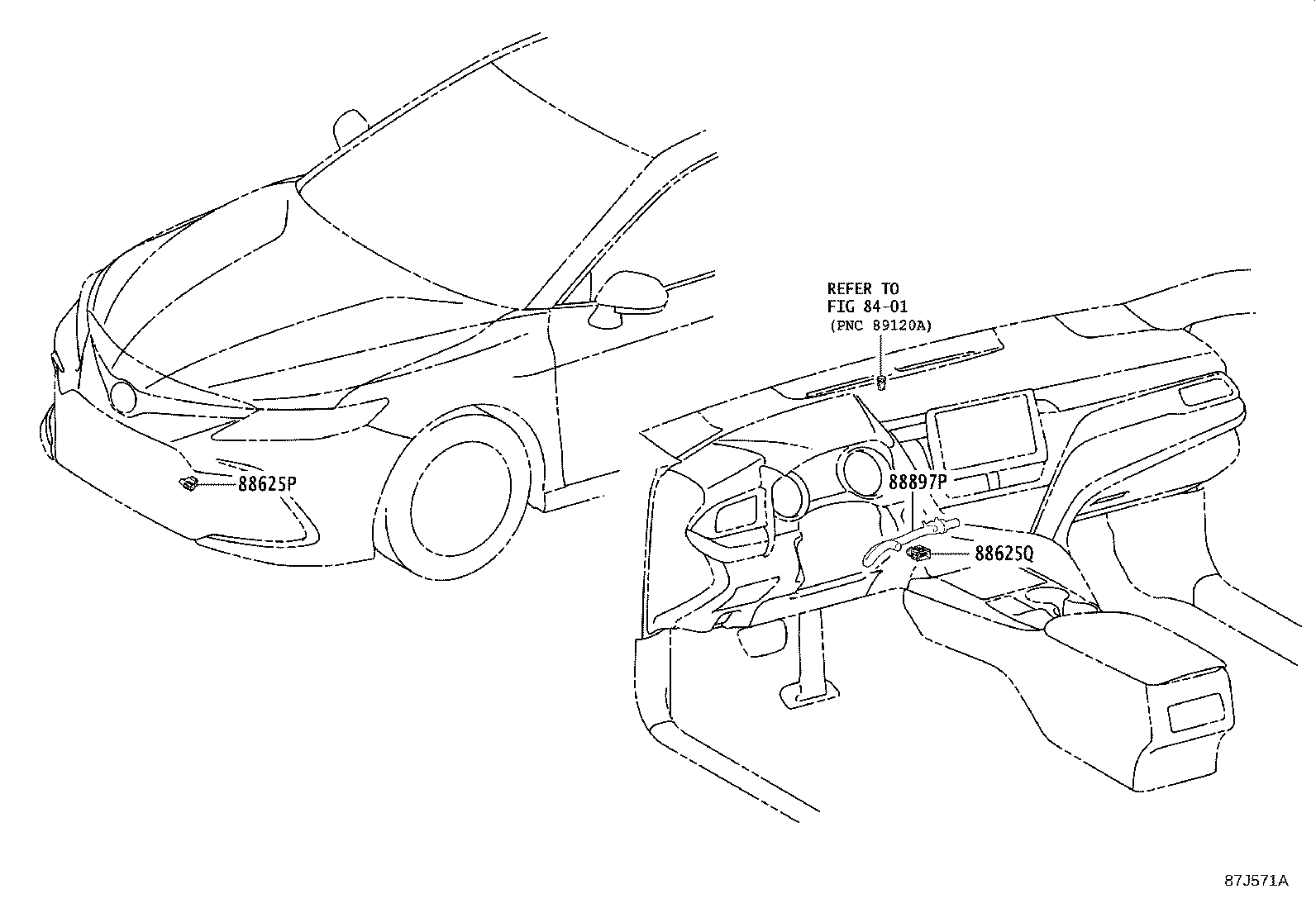

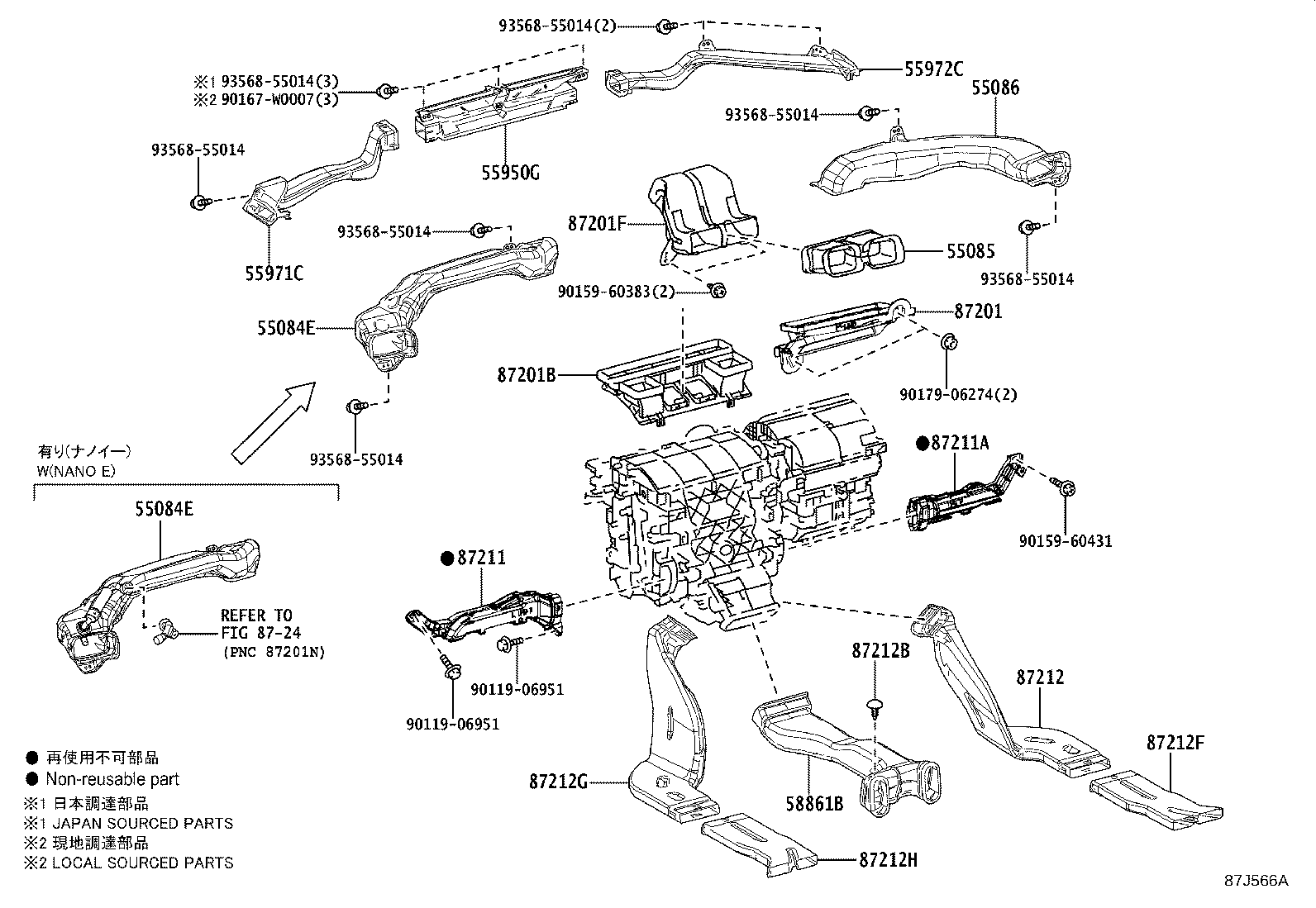

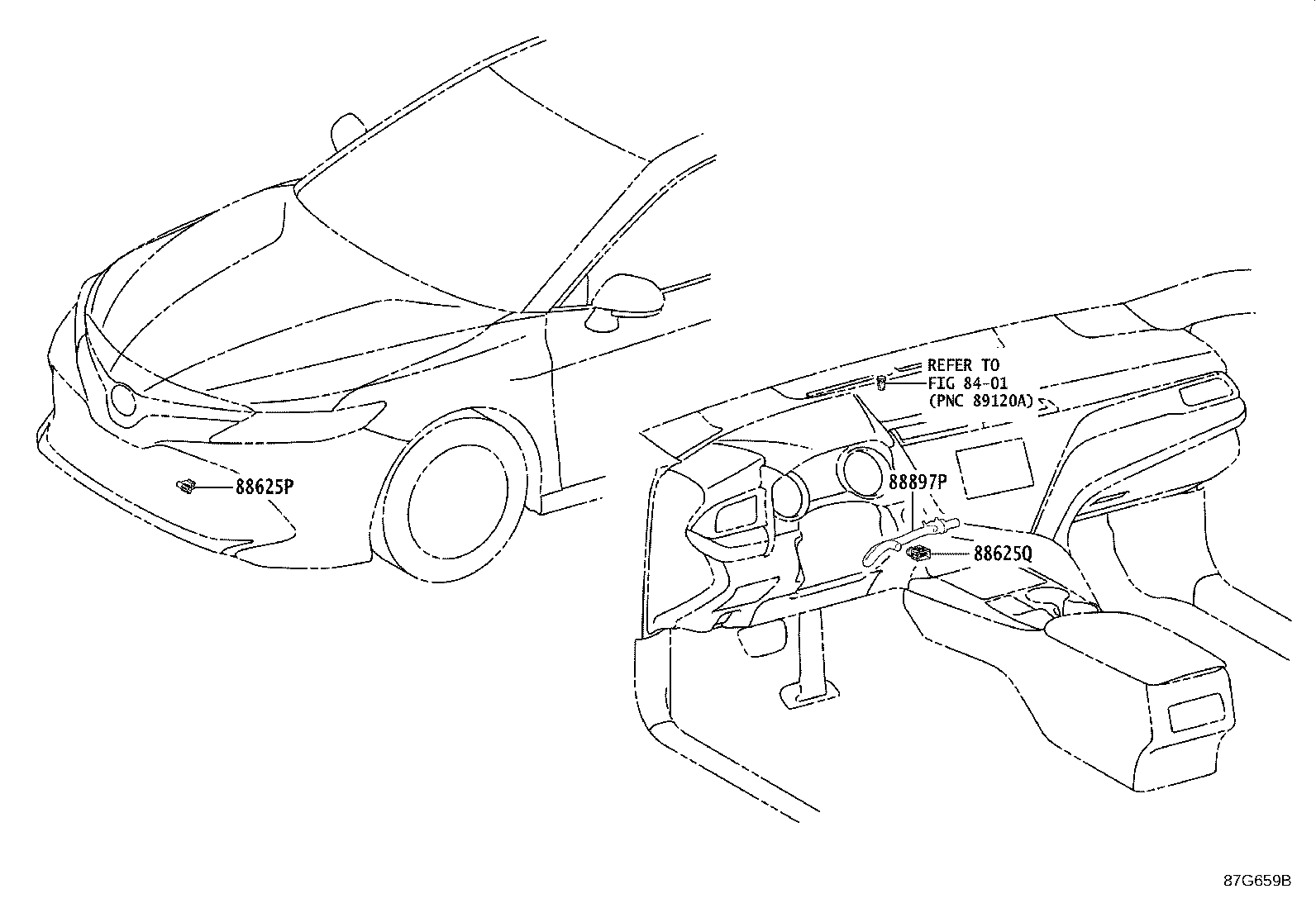

Figure 87G656B 87G656B 2017-09 → 2021-02 Figure 87G656B 87G656B 2021-02 → 2021-04 Figure 87J578 87J578 2021-02 → — Figure 87J578 87J578 2021-04 → — Figure 87G654B 87G654B 2017-09 → 2021-02 Figure 87J579 87J579 2021-02 → — Figure 87G657D 87G657D 2017-09 → 2020-06 Figure 87J336 87J336 2020-07 → 2021-02 Figure 87J566A 87J566A 2021-02 → — Figure 87G344B 87G344B 2017-09 → 2020-06 Figure 87J333 87J333 2020-07 → 2021-02 Figure 87J567A 87J567A 2021-02 → — Figure 87H340A 87H340A 2018-04 → 2020-07 Figure 87J392 87J392 2020-08 → 2021-04 Figure 87J568A 87J568A 2021-04 → — Figure 87G658B 87G658B 2017-09 → 2021-02 Figure 87G658B 87G658B 2021-02 → 2021-04 Figure 87J574A 87J574A 2021-02 → — Figure 87J574A 87J574A 2021-04 → — Figure 87G659B 87G659B 2017-09 → 2021-02 Figure 87J571A 87J571A 2021-02 → — Figure 87G655B 87G655B 2017-09 → 2021-02 Figure 87J575A 87J575A 2021-02 → — Figure 87G647B 87G647B 2017-09 → 2021-02 Figure 87J569A 87J569A 2021-02 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
