Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 11 illustrations

Illustrations

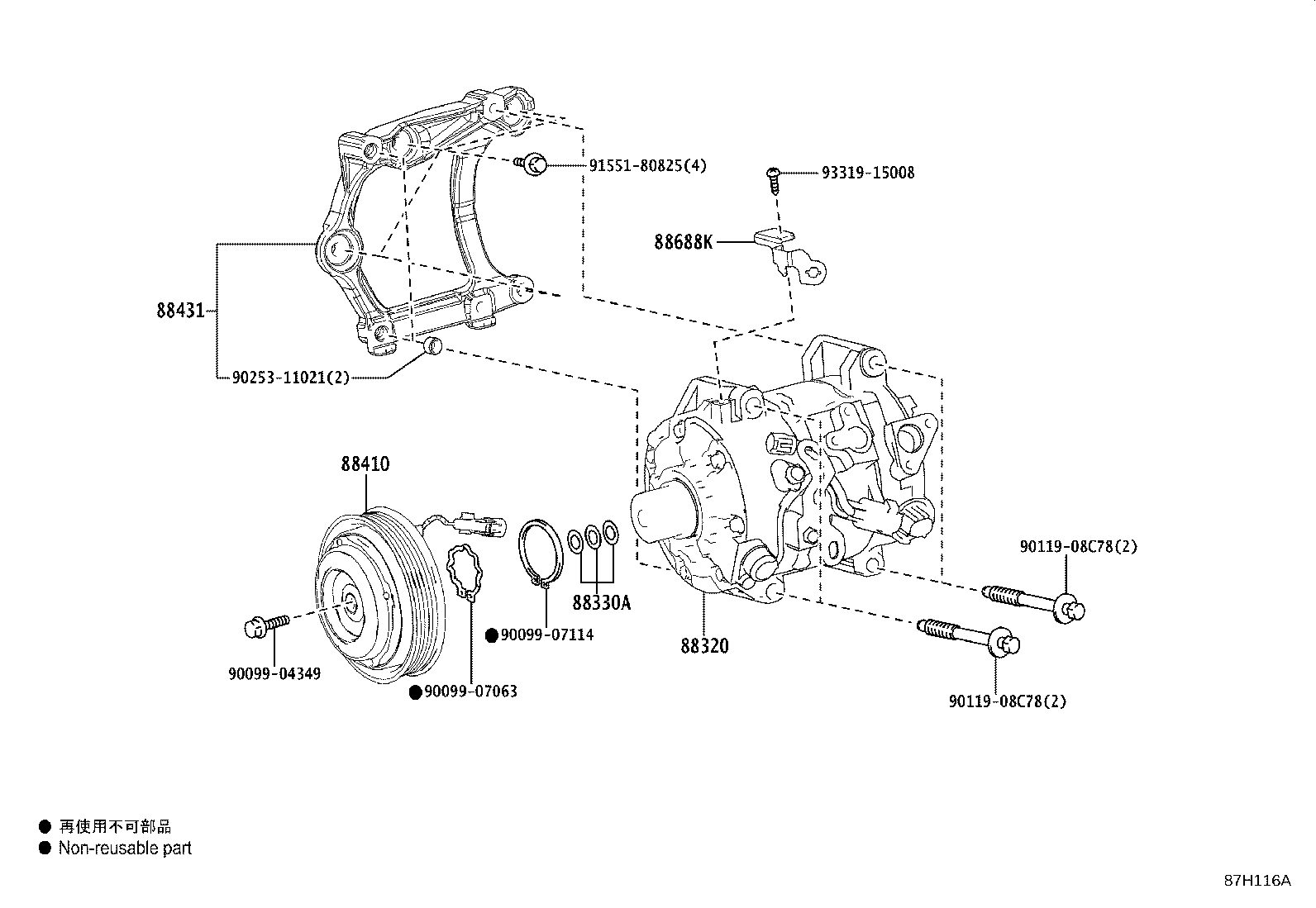

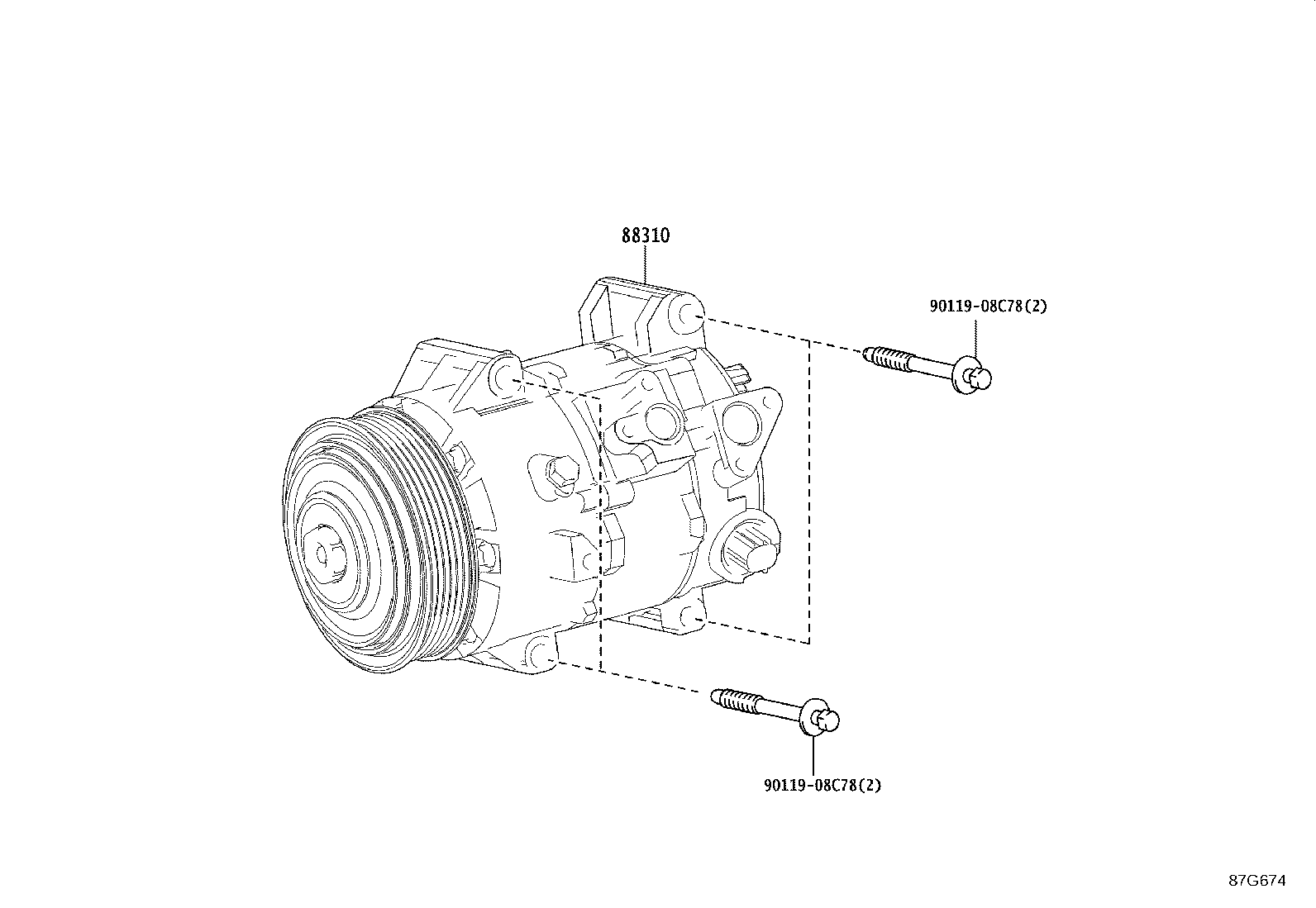

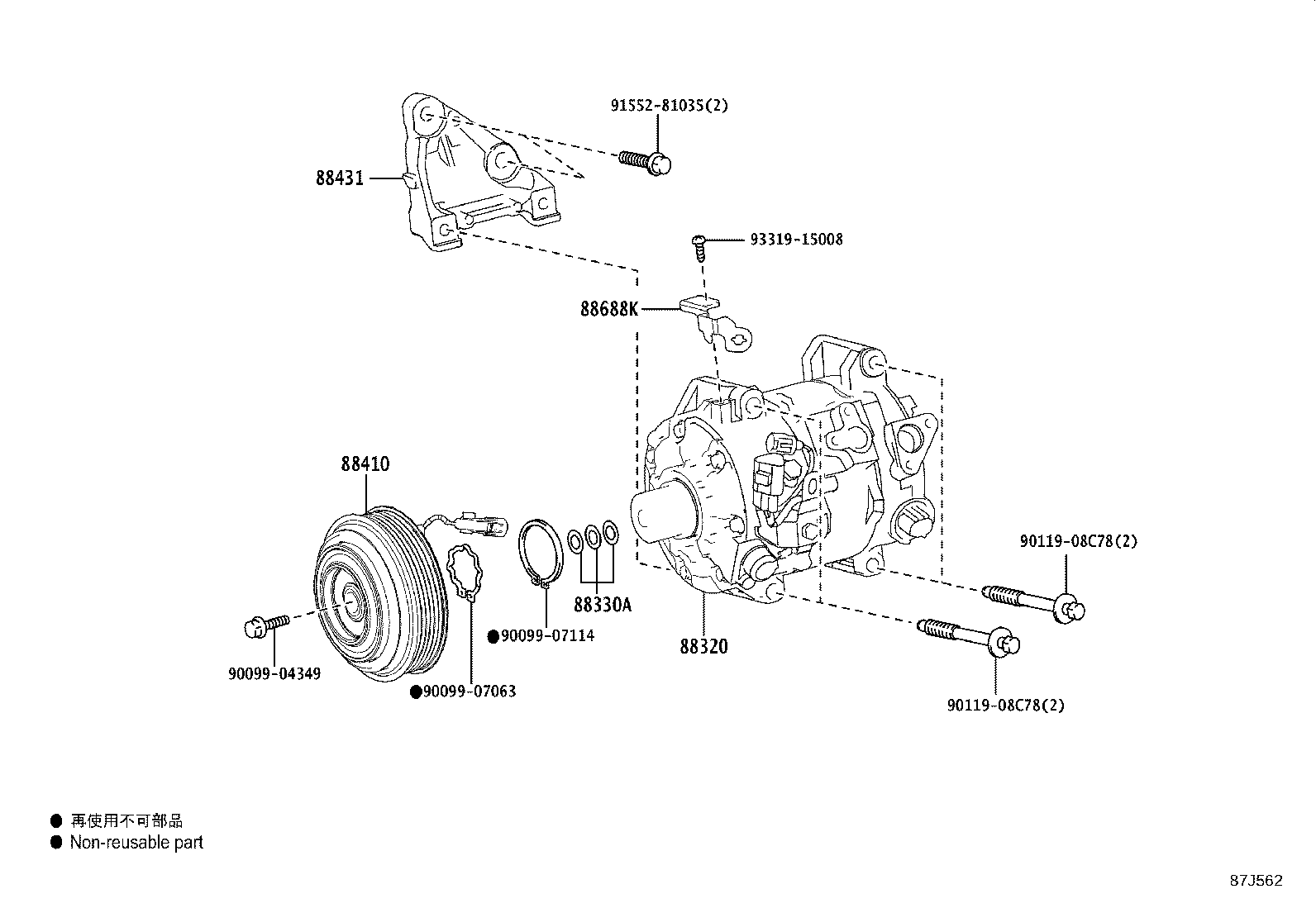

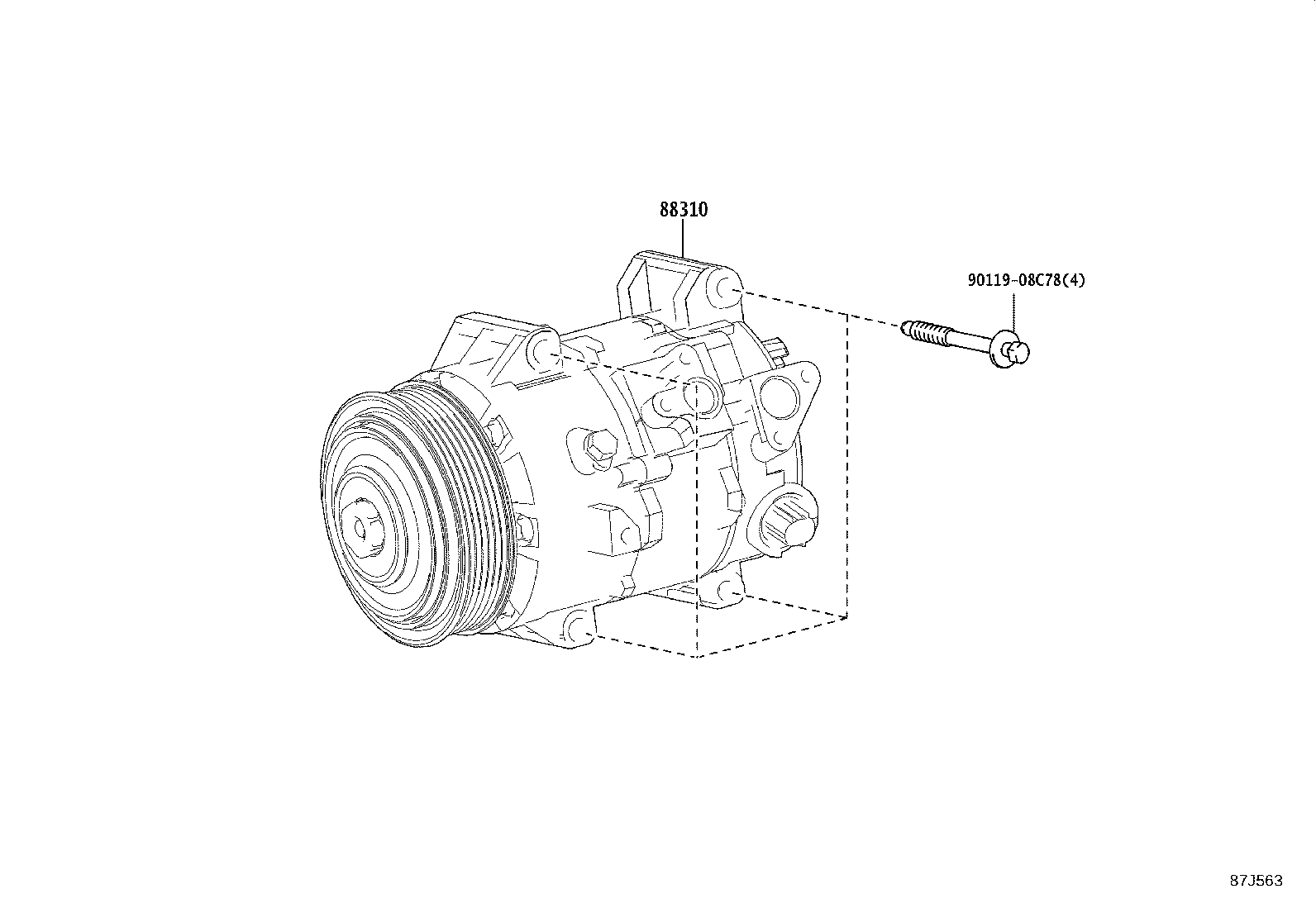

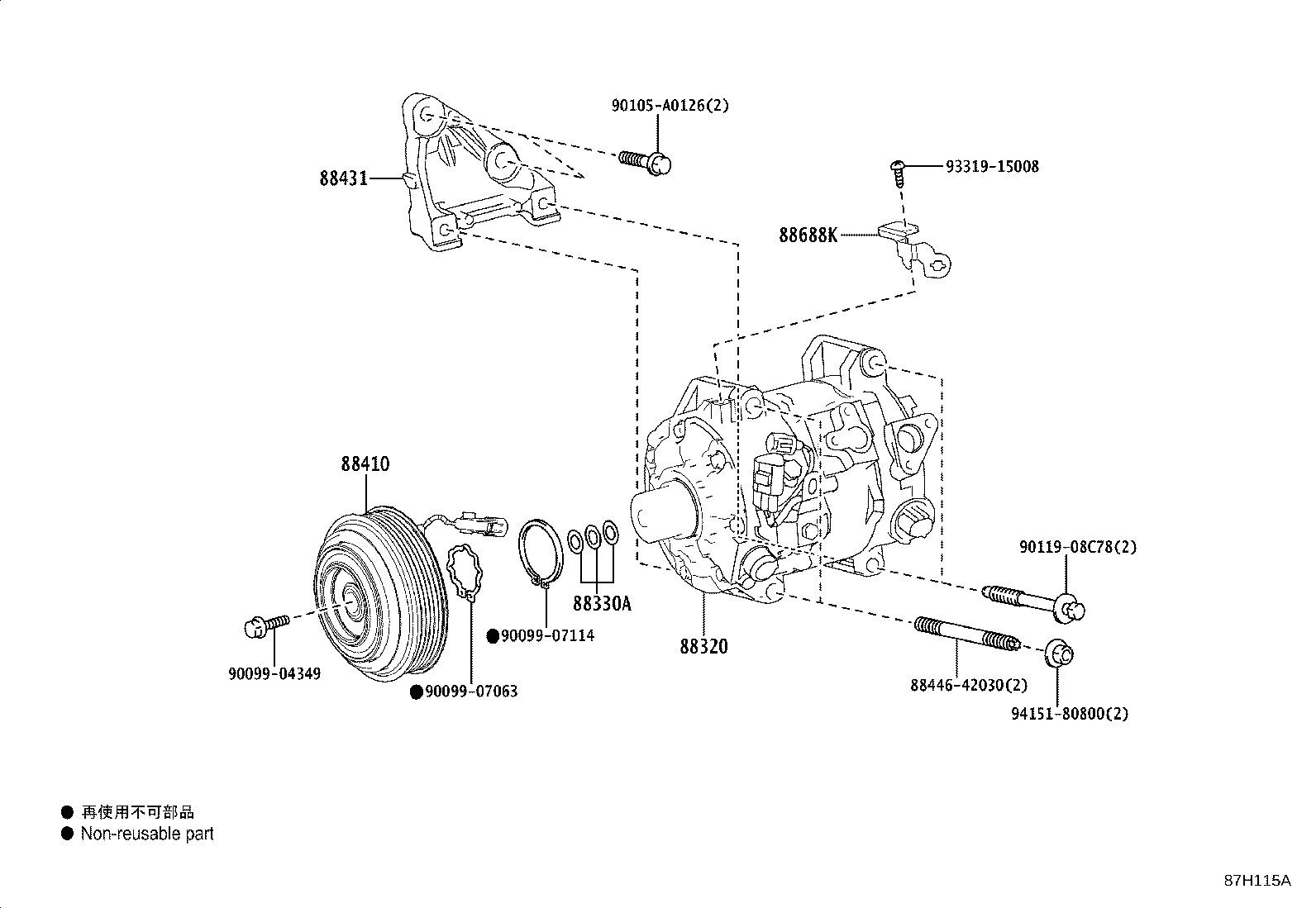

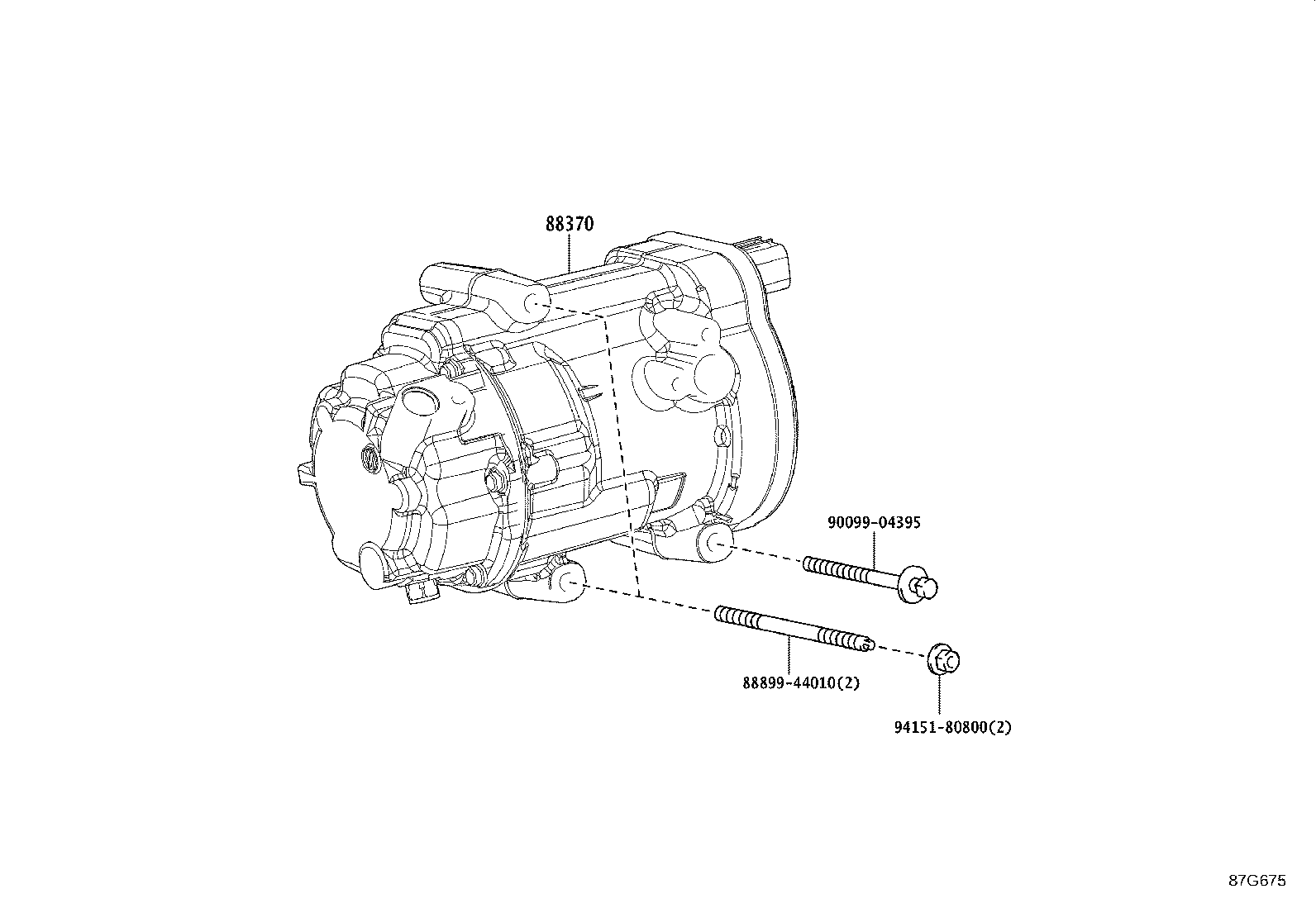

Figure 87G546 87G546 2017-09 → 2021-04 Figure 87G673A 87G673A 2017-09 → 2021-02 Figure 87J562 87J562 2021-02 → — Figure 87G674 87G674 2017-09 → 2021-02 Figure 87G674 87G674 2021-02 → — Figure 87G675 87G675 2017-09 → 2021-02 Figure 87G675 87G675 2021-02 → — Figure 87H116A 87H116A 2018-04 → 2021-04 Figure 87H115A 87H115A 2018-04 → 2021-04 Figure 87H115A 87H115A 2021-04 → — Figure 87J563 87J563 2021-04 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
