Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

3 part groups · 6 illustrations

Illustrations

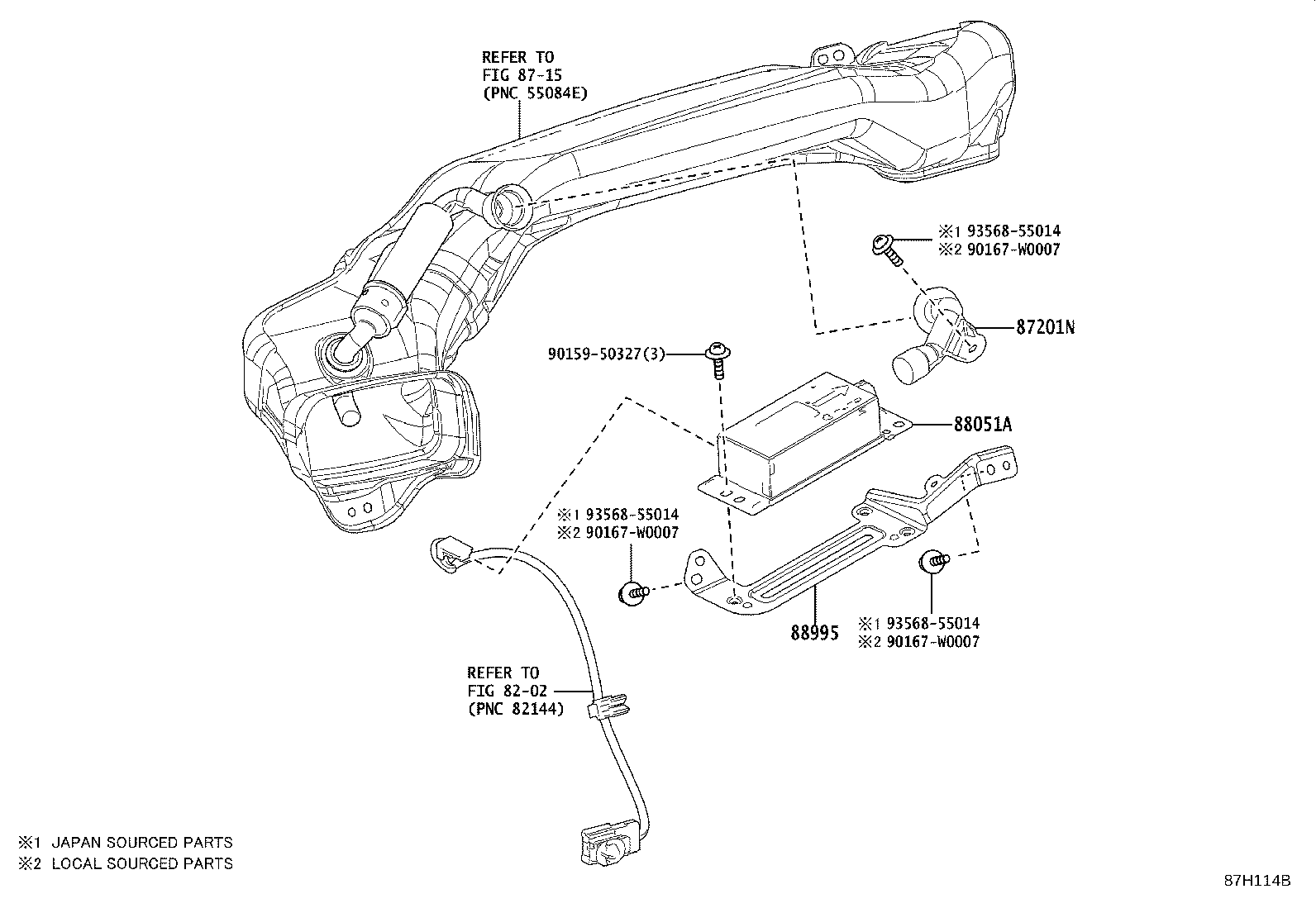

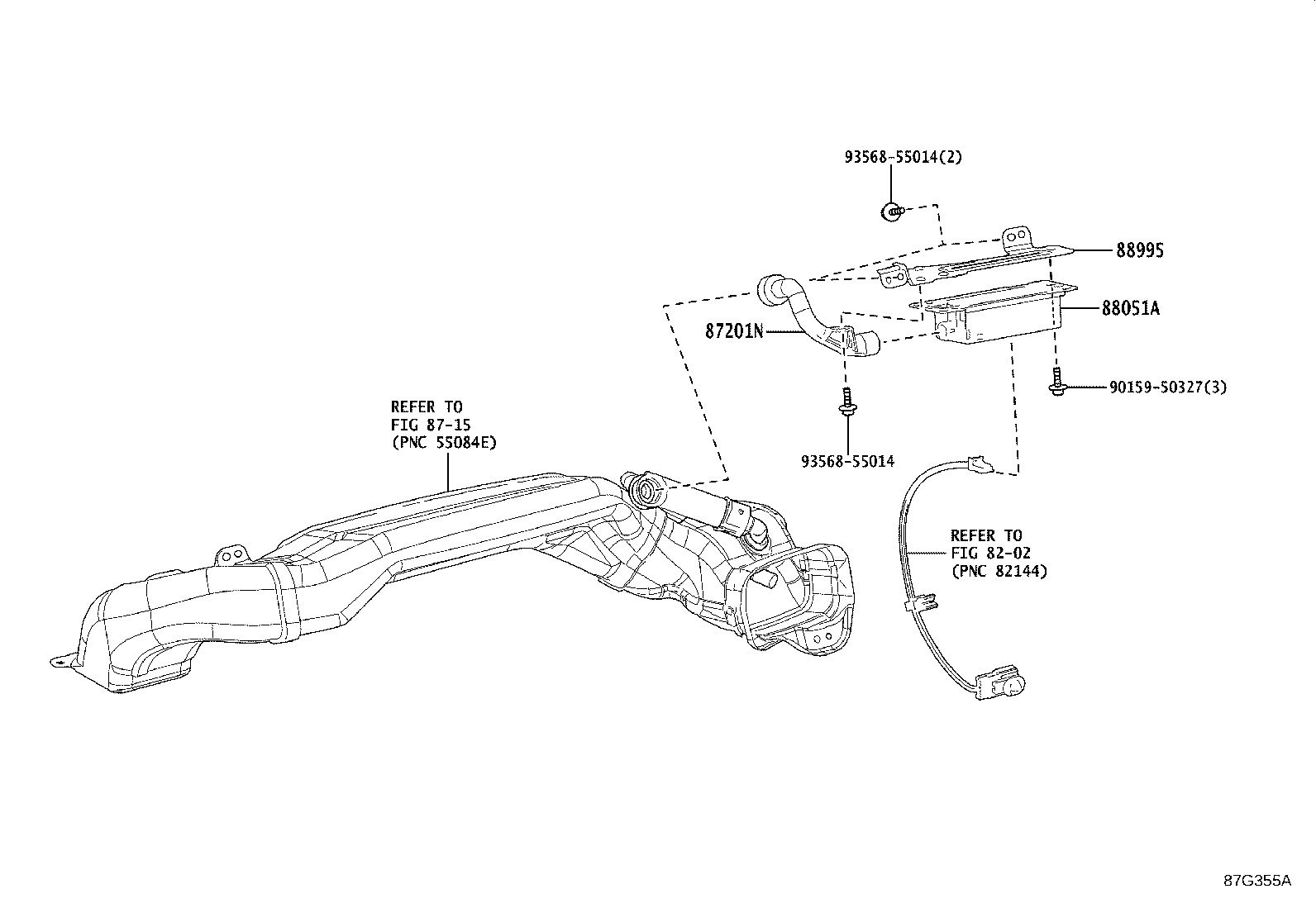

Figure 87G544A 87G544A 2017-09 → 2021-02 Figure 87G544A 87G544A 2021-02 → — Figure 87H114B 87H114B 2018-04 → 2021-04 Figure 87H114B 87H114B 2021-04 → — Figure 87G355A 87G355A 2017-09 → 2021-02 Figure 87G355A 87G355A 2021-02 → —

Part groups

PNCDescription
87201N Duct Sub-assy, Air
88051A Generator Sub-assy,Ion
88995 Bracket,Ion Generator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
