Vacuum Piping

16 part groups · 3 illustrations

Illustrations

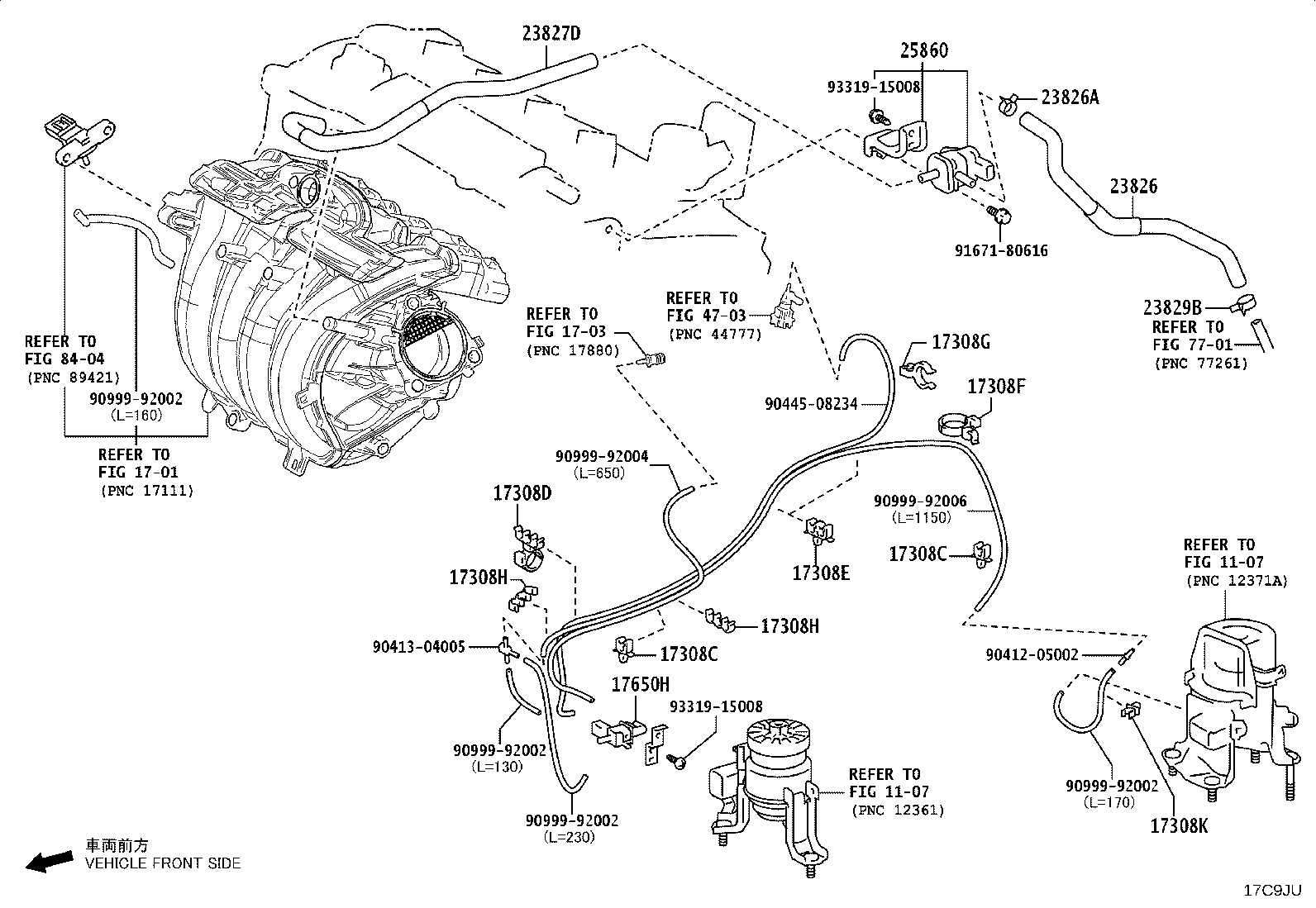

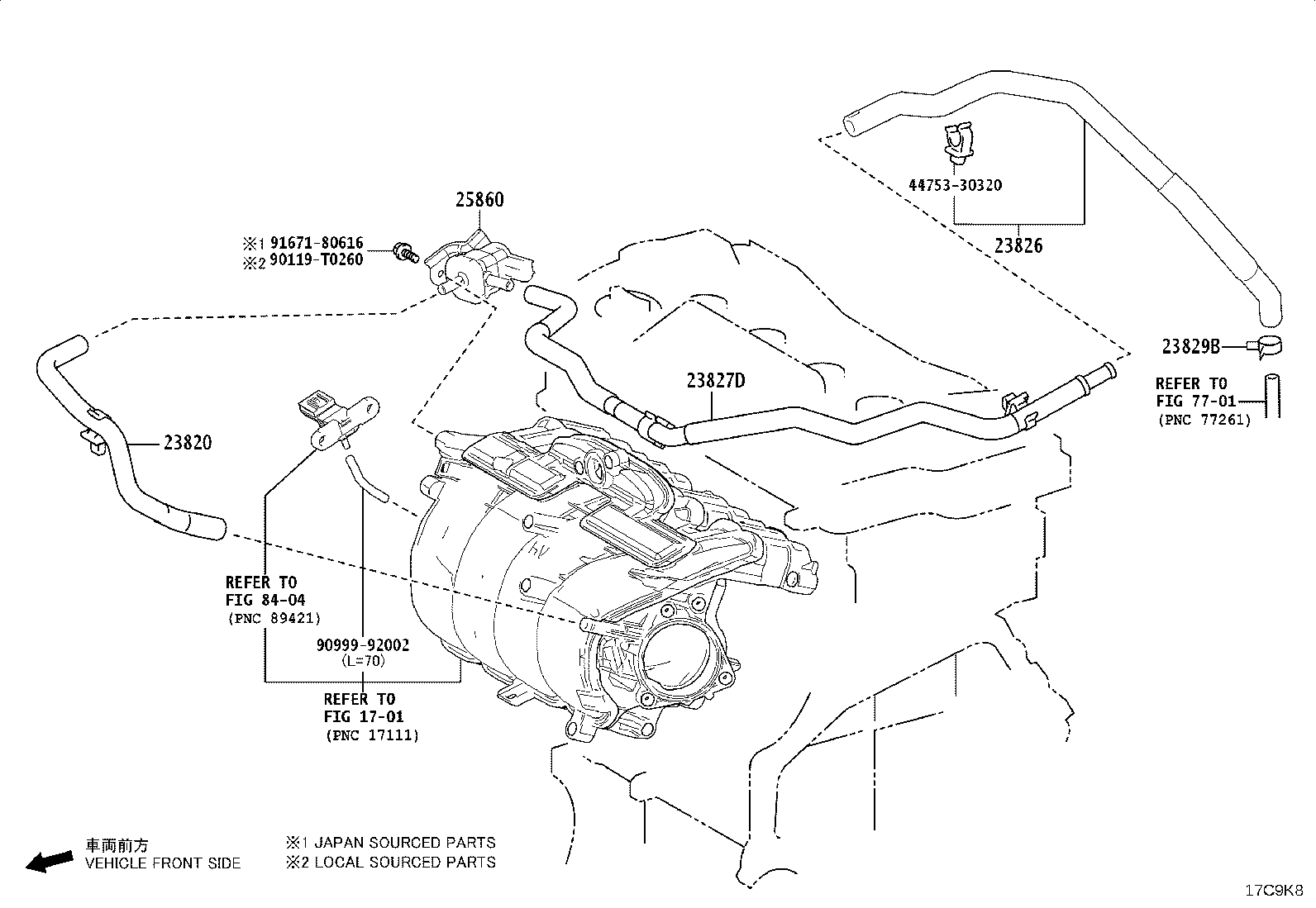

Figure 17C9K7 17C9K7 2024-10 → — Figure 17C9K8 17C9K8 2024-10 → — Figure 17C9JU 17C9JU 2024-10 → —

Part groups

PNCDescription
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17308K Clamp, NO.7(FOR VACUUM HOSE)
17650H Valve, Vacuum Switching
17862B Clamp, Hose
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827D Hose, Fuel Vapor Feed, NO.2
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
