Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

4 part groups · 2 illustrations

Illustrations

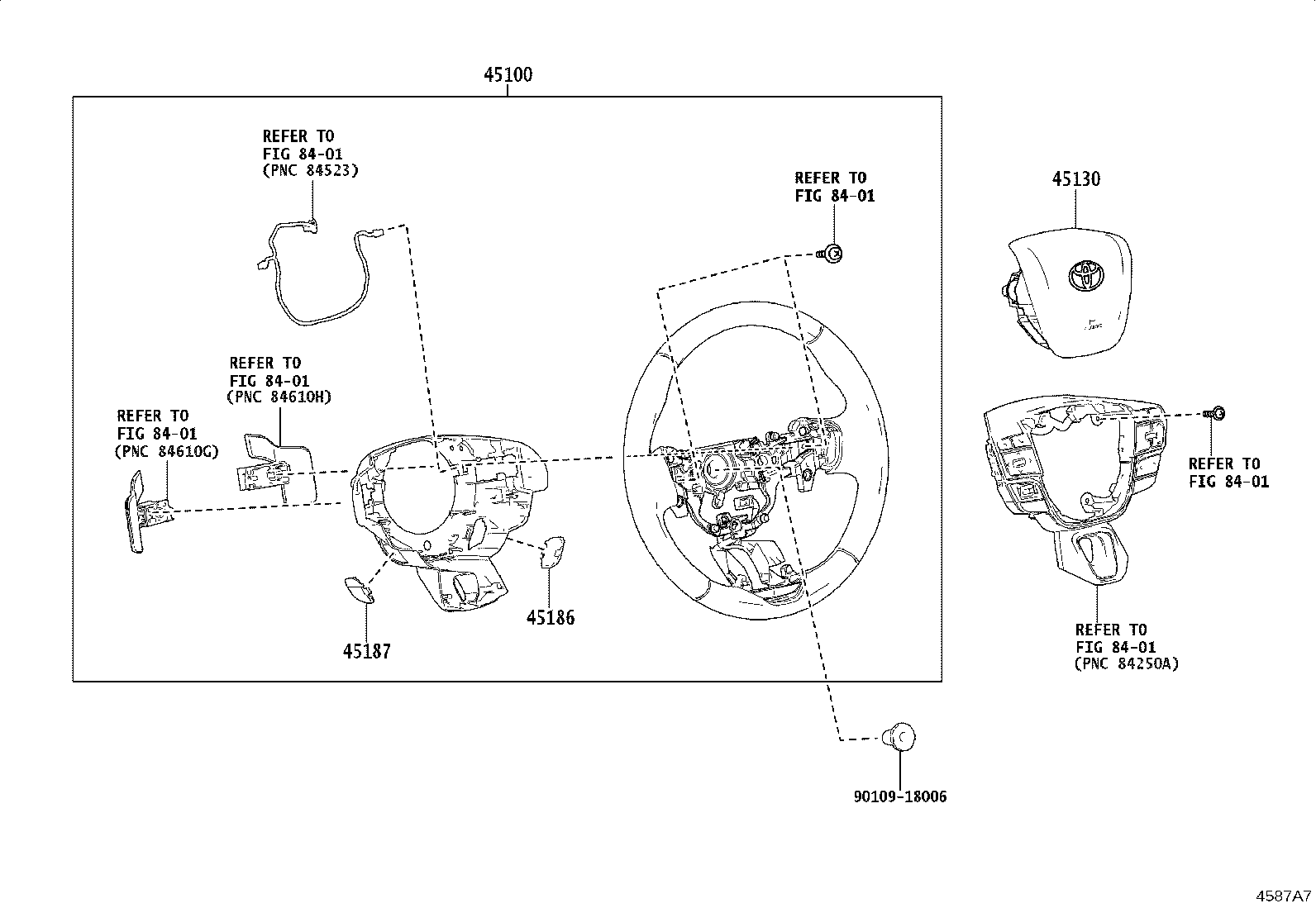

Figure 4587A6 4587A6 2024-10 → — Figure 4587A7 4587A7 2024-12 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
