Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

9 part groups · 2 illustrations

Illustrations

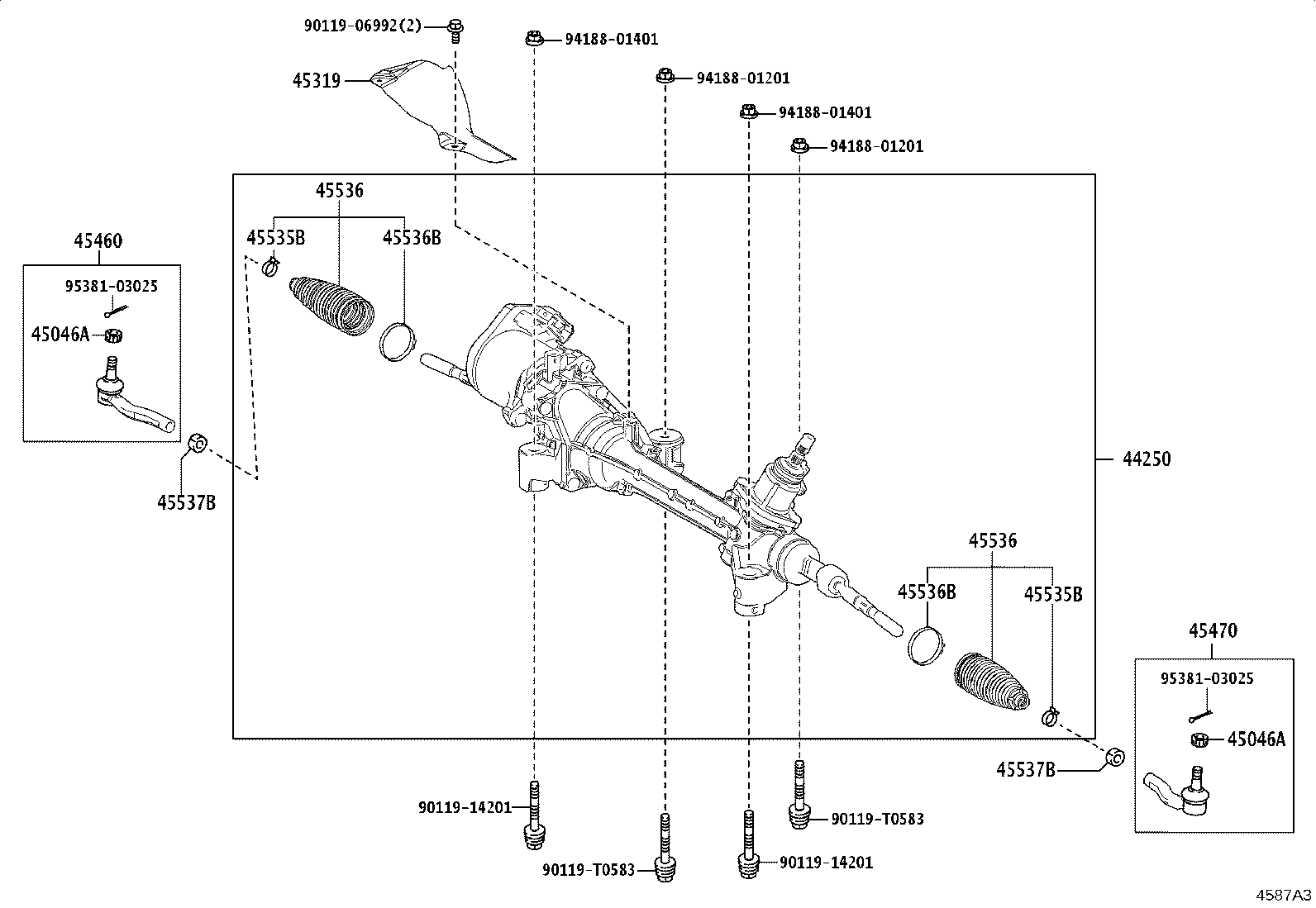

Figure 4587A2 4587A2 2024-10 → — Figure 4587A3 4587A3 2024-10 → —

Part groups

PNCDescription
44250 Gear Assy, Power Steering(FOR RACK & PINION)
45046A Nut, Castle(FOR TIE ROD END)
45319 Insulator, Steering Gear Heat
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45536B Clamp(FOR STEERING RACK BOOT NO.3)
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
