Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 3 illustrations

Illustrations

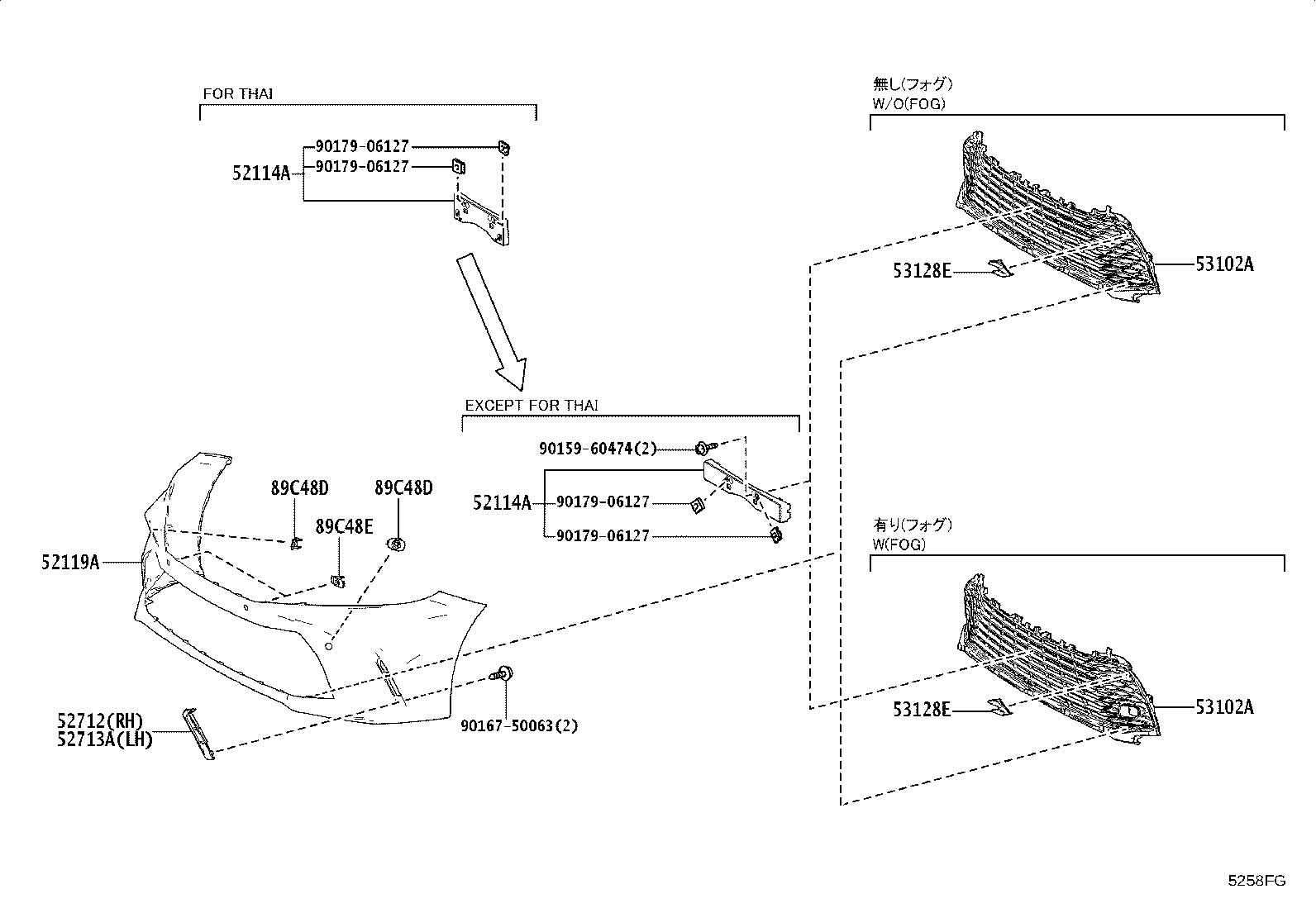

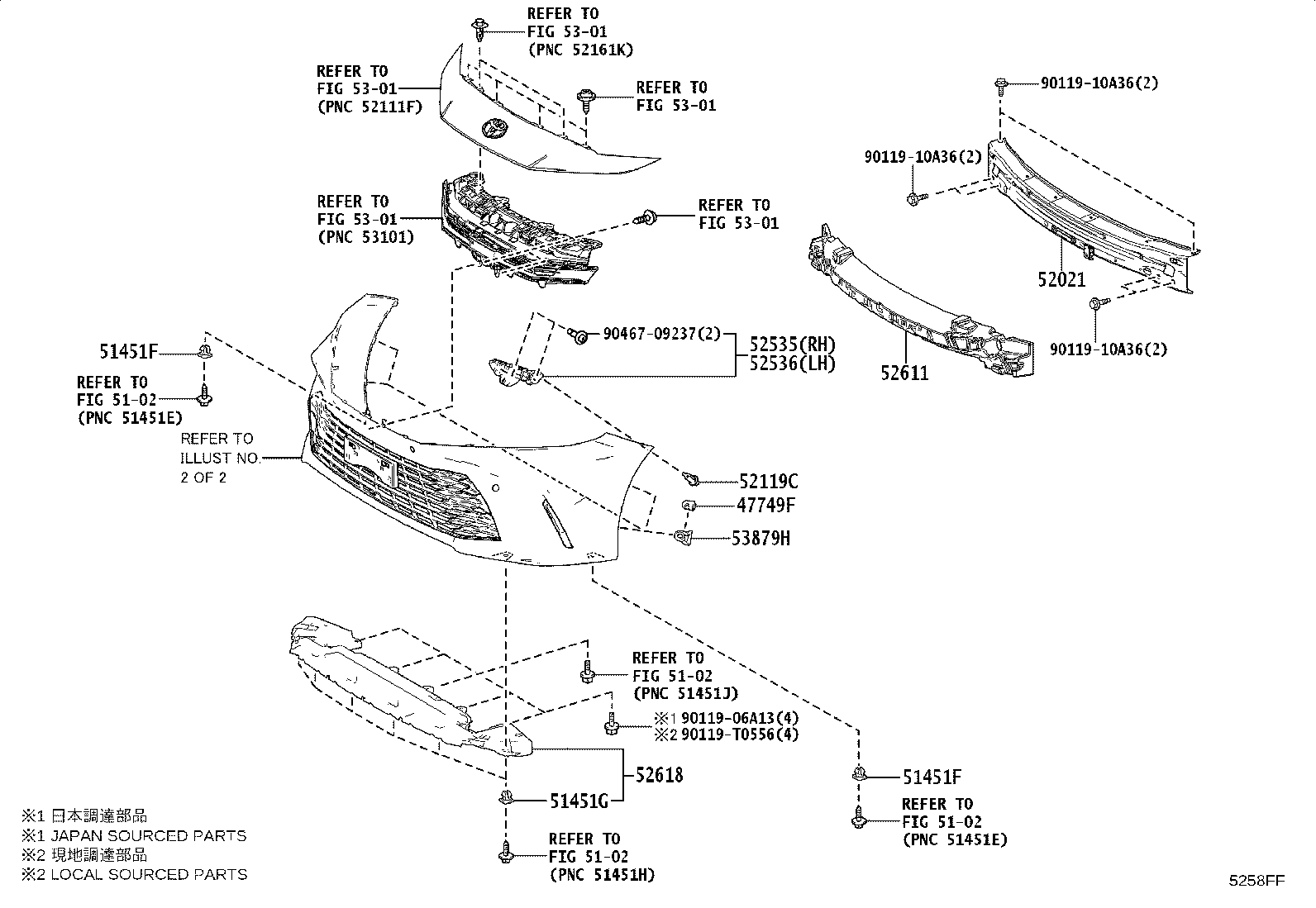

Figure 5258FE 5258FE 2024-10 → — Figure 5258FF 5258FF 2024-10 → — Figure 5258FG 5258FG 2024-10 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52131A Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53128E Grille, Radiator, Lower Side LH
53879H Retainer, Front Fender Liner
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
