Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

21 part groups · 2 illustrations

Illustrations

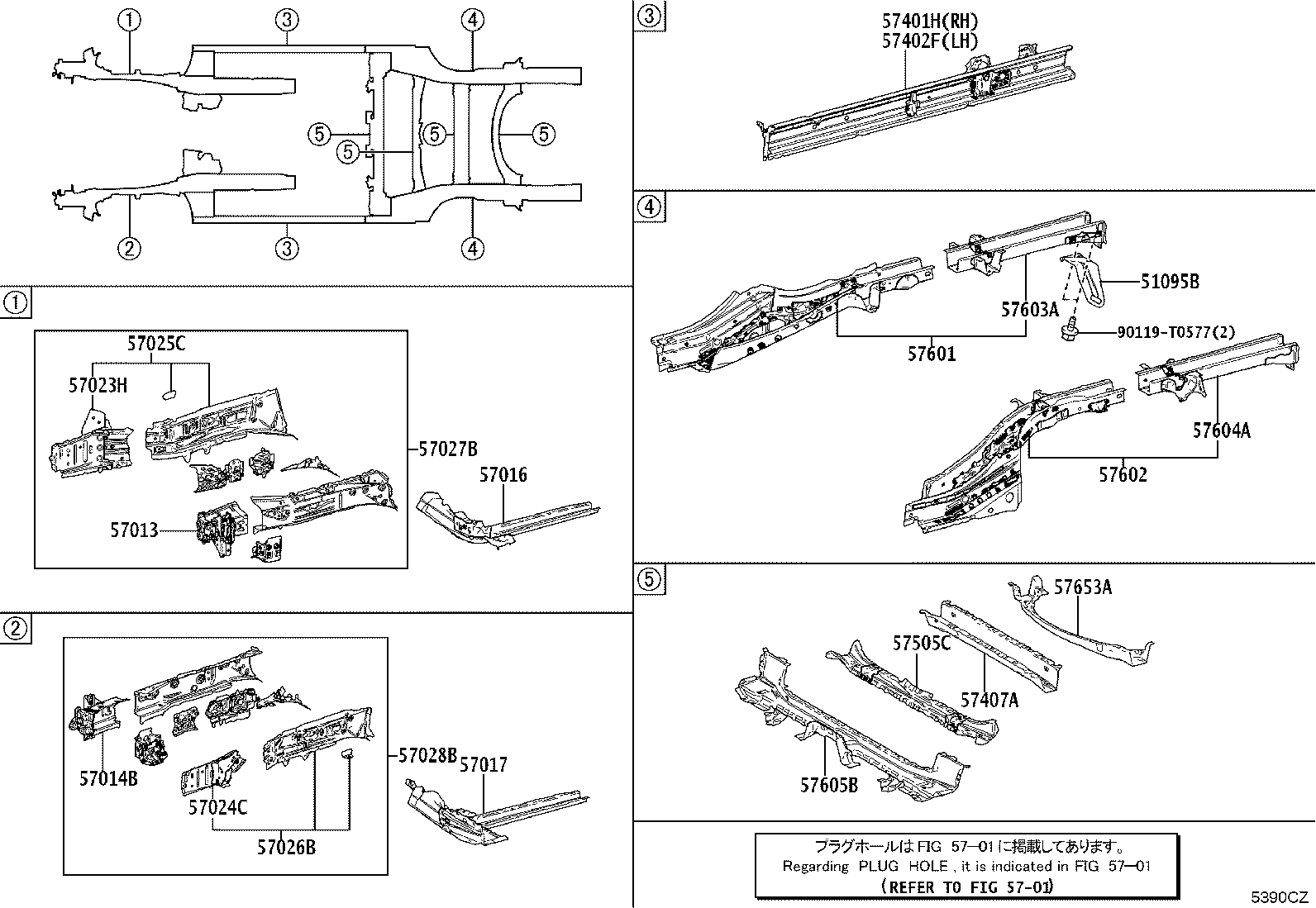

Figure 5390CY 5390CY 2024-10 → — Figure 5390CZ 5390CZ 2024-10 → —

Part groups

PNCDescription
51095B Hook Sub-assy, Transport, Rear RH
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57023H Bracket Sub-assy, Body Mounting, NO.2 RH
57024C Bracket Sub-assy, Body Mounting, NO.2 LH
57025C Member Sub-assy, Front Side, Outer RH
57026B Member Sub-assy, Front Side, Outer LH
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407A Member Sub-assy, Center Floor Cross
57505C Reinforcement Sub-assy, Front Floor Under
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57653A Member, Rear Floor Cross, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
