Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 5 illustrations

Illustrations

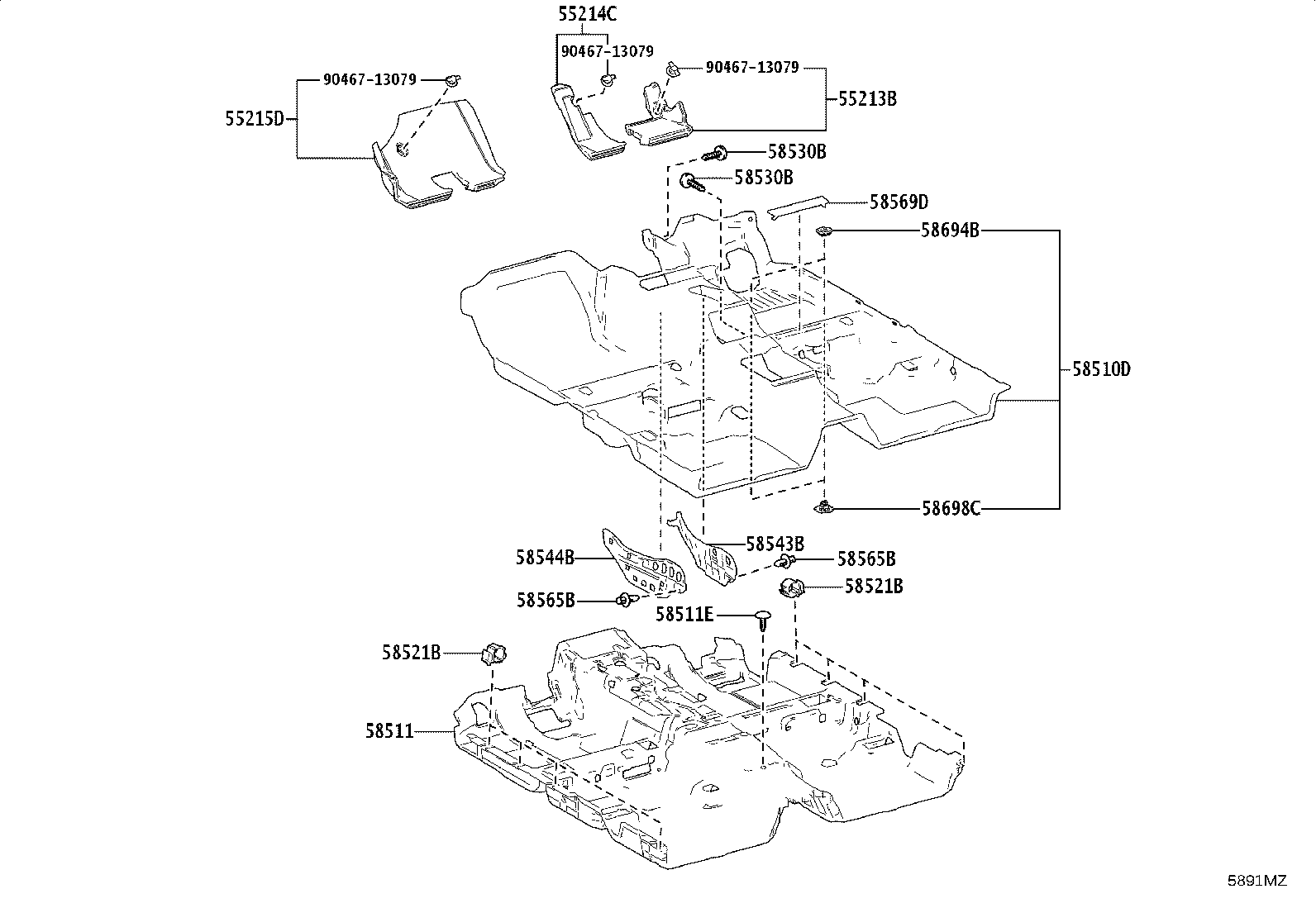

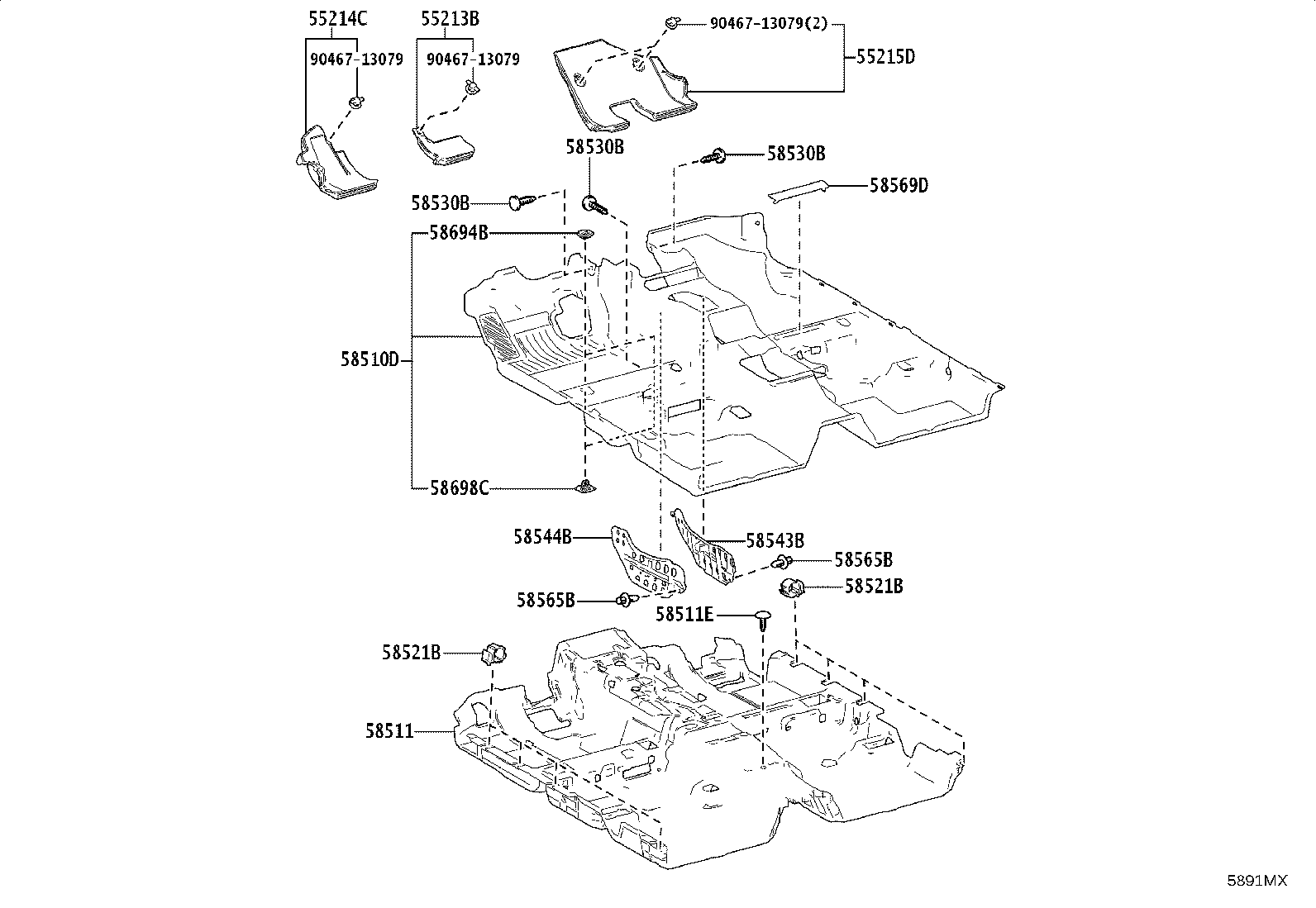

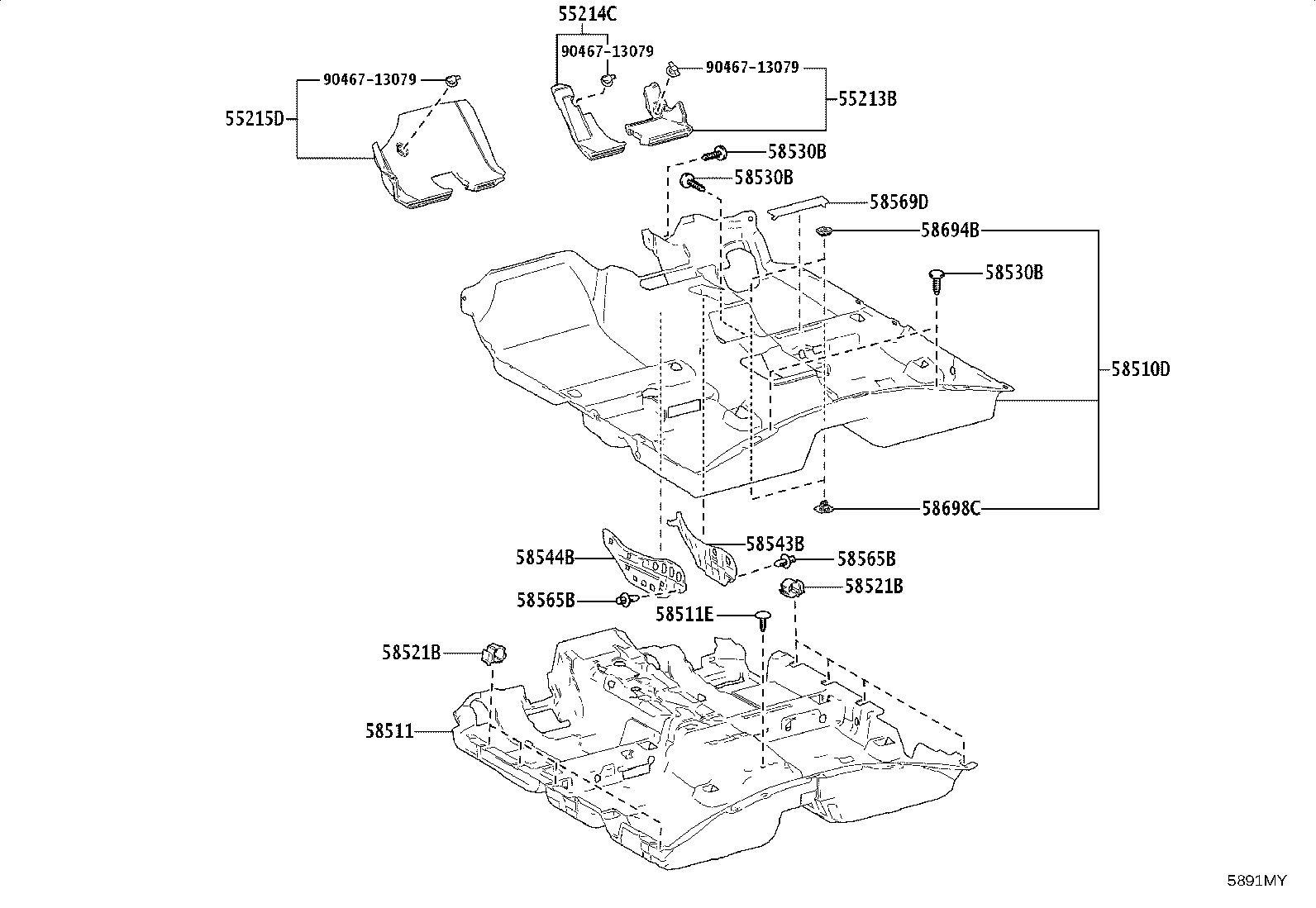

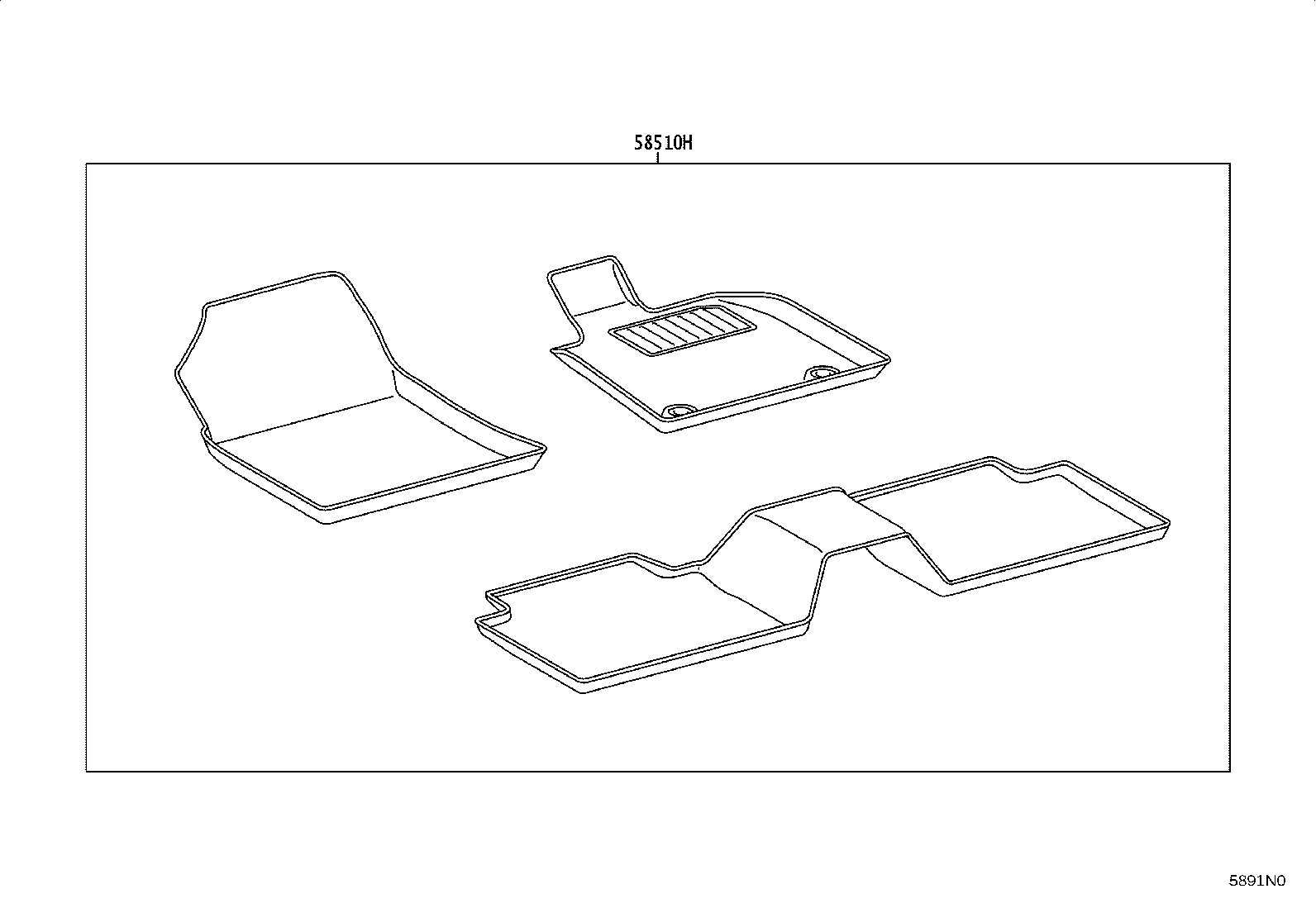

Figure 5891MW 5891MW 2024-10 → — Figure 5891MX 5891MX 2024-10 → — Figure 5891MY 5891MY 2024-10 → — Figure 5891MZ 5891MZ 2024-10 → — Figure 5891N0 5891N0 2024-10 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58543B Bracket, Floor Carpet, RH
58544B Bracket, Floor Carpet, LH
58565B Clip
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
