Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 3 illustrations

Illustrations

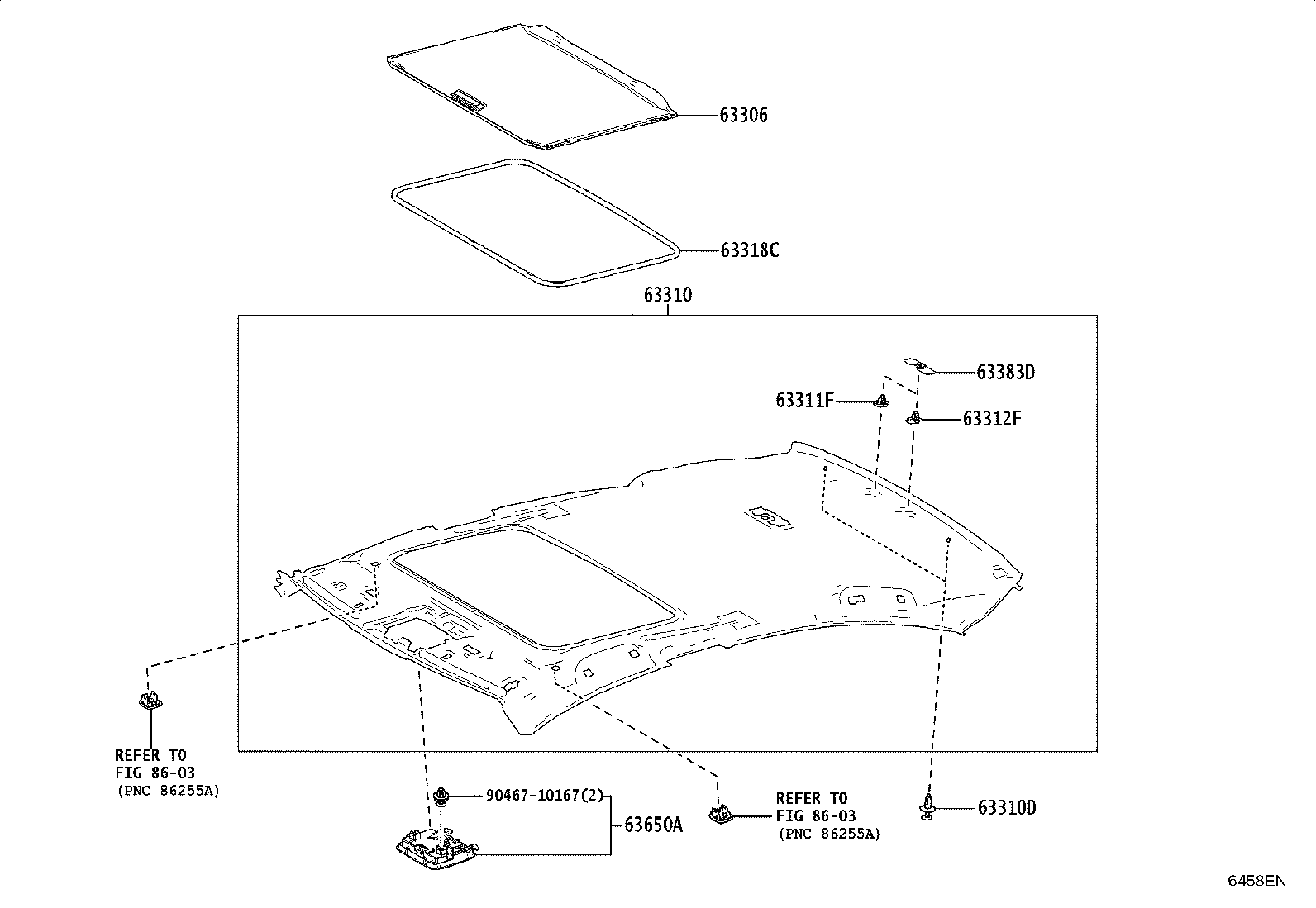

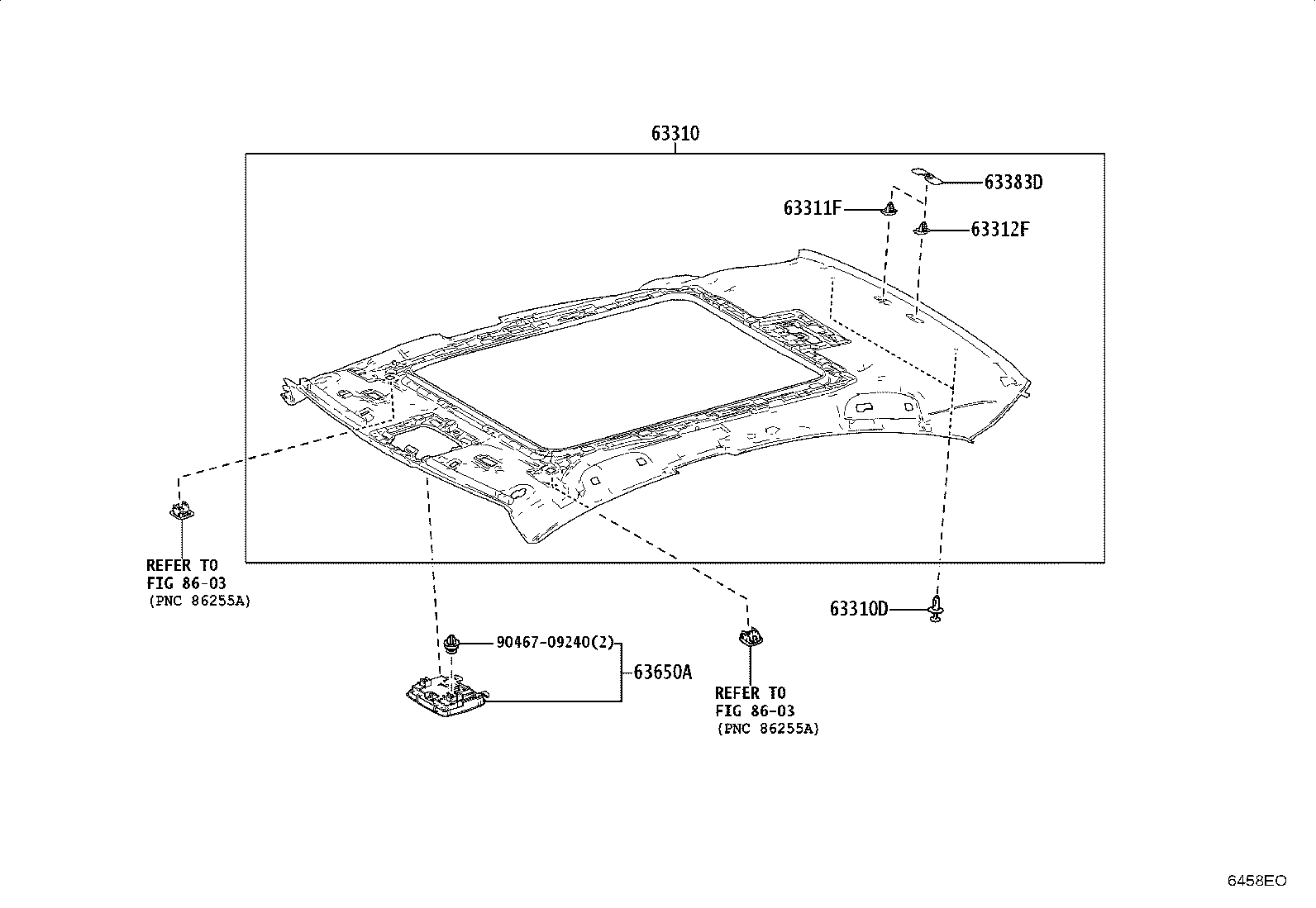

Figure 6458EMB 6458EMB 2024-10 → — Figure 6458EN 6458EN 2024-10 → — Figure 6458EO 6458EO 2024-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63341D Pad, Roof Silencer, Front
63345D Pad, Roof Silencer, Center
63383D Retainer, Roof Headlining, Rear
63388A Cover, Roof Headlining Holder
63650A Box Assy, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
