Toyota Camry (ASIA)
2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe
Supported model
Data version 2024-12

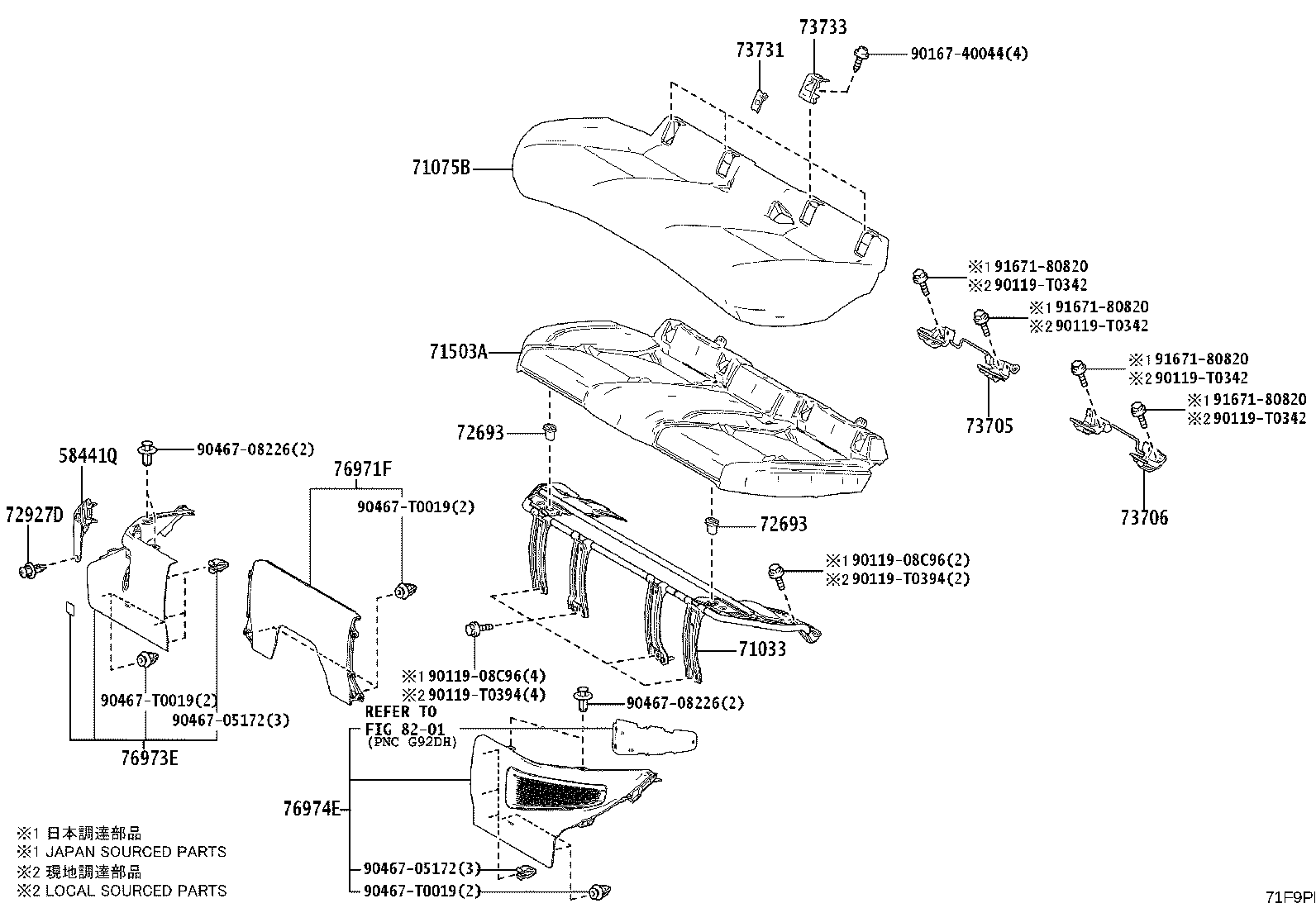

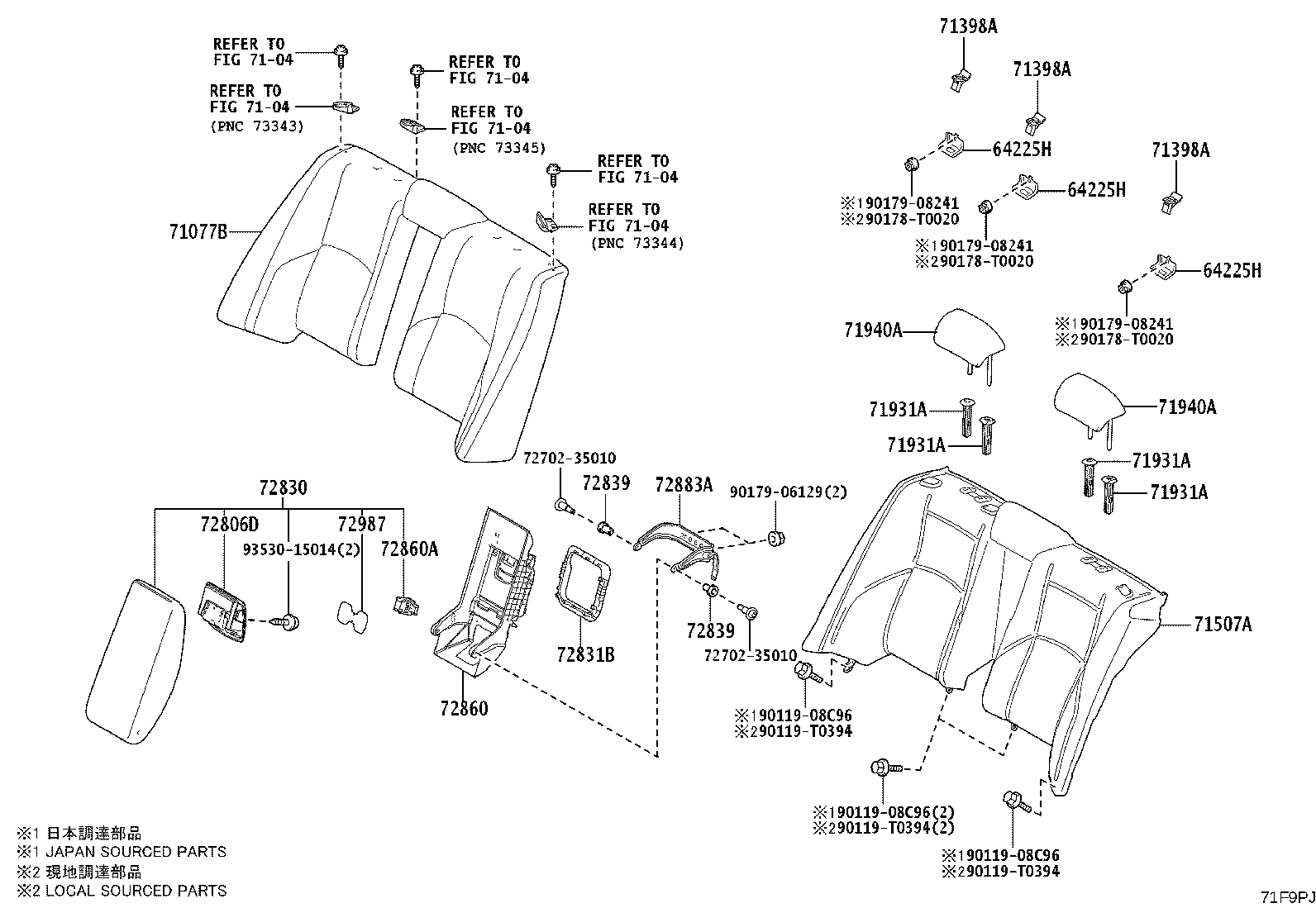

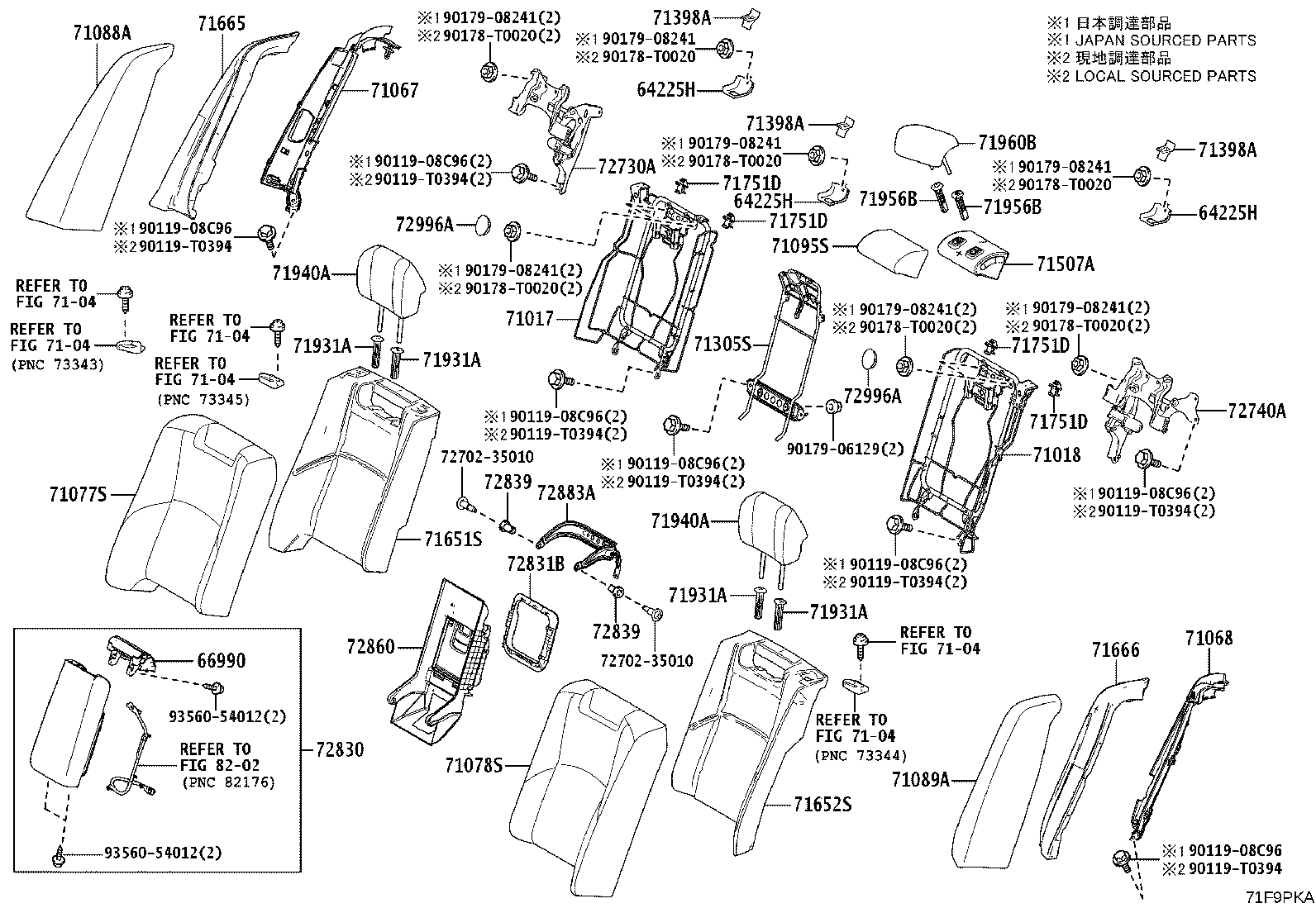

Rear Seat & Seat Track
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58441Q | Cover, Battery Service Hole, RH |
| 64225H | Hanger, Rear Seat Cushion Support |
| 66990 | Holder Assy, Cup |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71067 | Frame Sub-assy, Rear Side Seatback, RH |
| 71068 | Frame Sub-assy, Rear Side Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71088A | Cover Sub-assy, Rear Side Seatback, RH |
| 71089A | Cover Sub-assy, Rear Side Seatback, LH |
| 71095S | Cover Sub-assy, Center Seatback |
| 71305S | Frame Sub-assy, Center Seatback |
| 71398A | Holder, Rear Seatback |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71507A | Pad Sub-assy, Rear Seatback |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71665 | Pad, Rear Seatback Side, RH |
| 71666 | Pad, Rear Seatback Side, LH |
| 71751D | Hanger, Rear Seat Cover |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72806D | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72831B | Plate, Rear Seat Center Armrest, NO.1 |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72860 | Box Assy, Rear Seat Center Armrest |
| 72860A | Box Assy, Rear Seat Center Armrest, NO.2 |
| 72883A | Bracket, Rear Seat Center Armrest, NO.1 |
| 72927D | Clip (FOR REAR SEAT CUSHION UNDER COVER) |
| 72987 | Cover, Rear Seat Center Armrest |
| 72996A | Cover, Rear Seatback |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73731 | Cover, Child Restraint Seat |
| 73733 | Cover, Child Restraint Seat Base |
| 76971F | Cover, Rear Under |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
