Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 2 illustrations

Illustrations

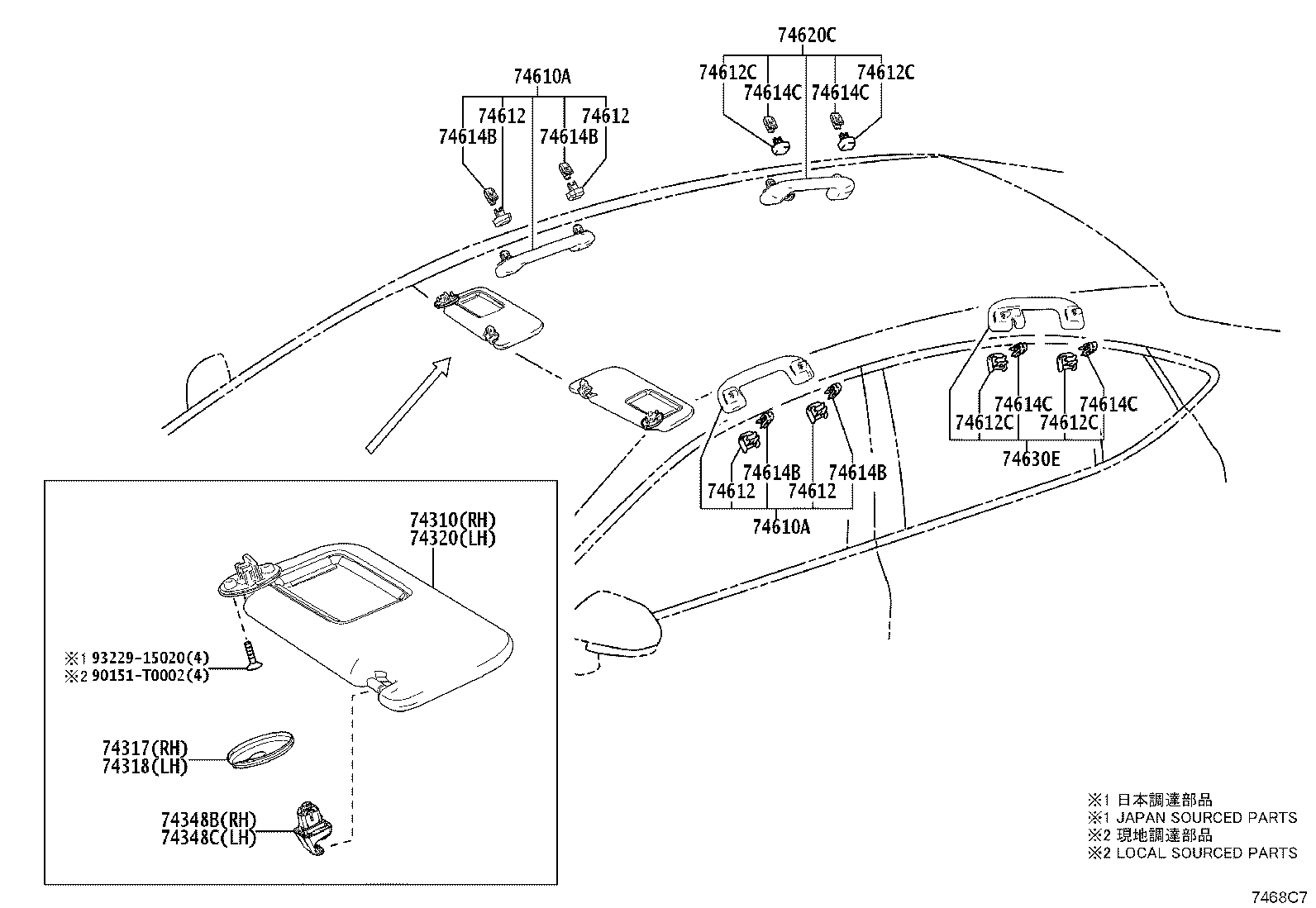

Figure 7468C5 7468C5 2024-10 → — Figure 7468C7 7468C7 2024-10 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74250 Armrest Assy, Rear RH
74260 Armrest Assy, Rear LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74612C Cover, Assist Grip, RH
74614B Plate, Assist Grip Lock
74614C Plate, Assist Grip Lock
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
