Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 2 illustrations

Illustrations

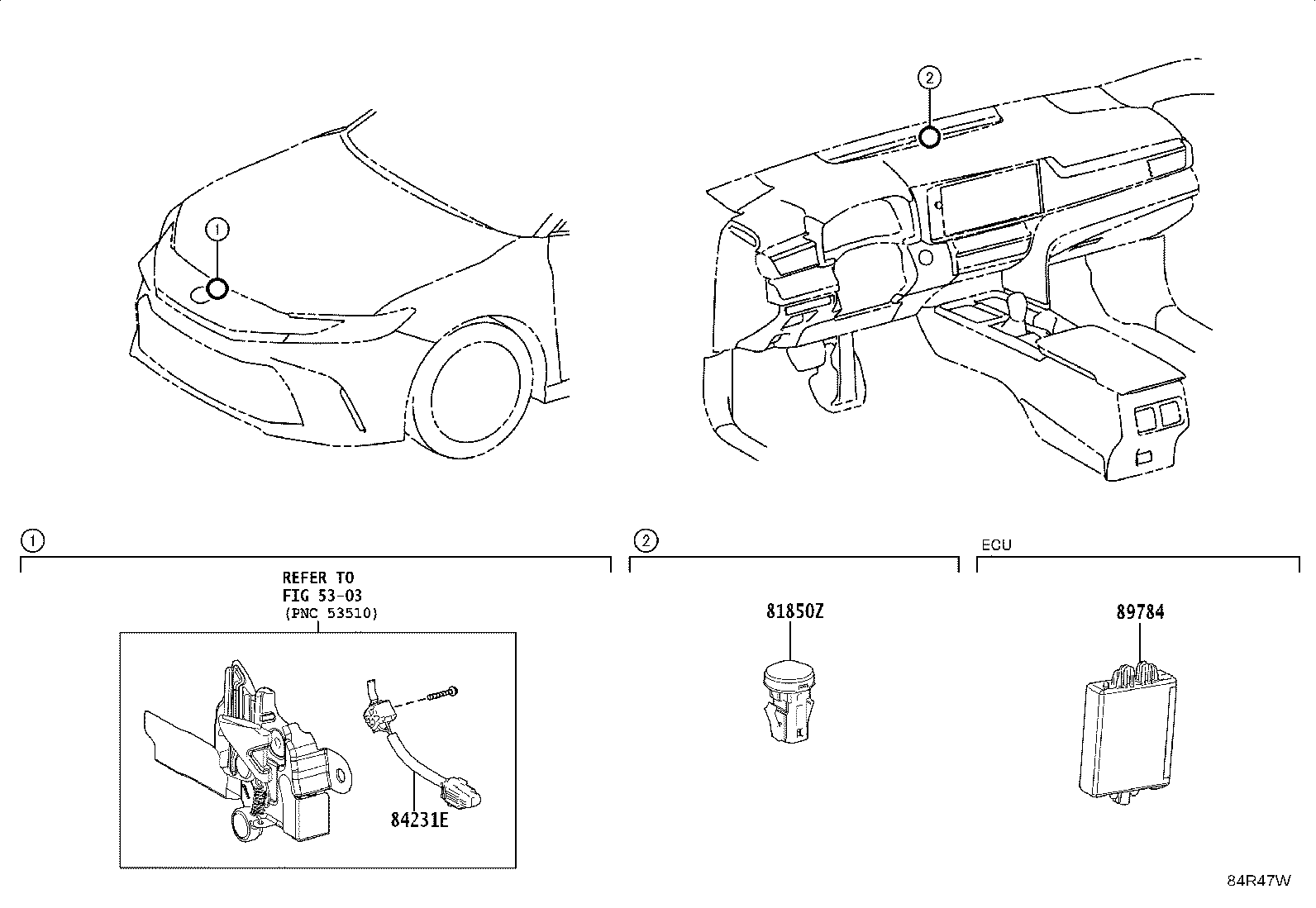

Figure 84R47V 84R47V 2024-10 → — Figure 84R47W 84R47W 2024-10 → —

Part groups

PNCDescription
81850Z Lamp Assy, Theft Warning Indicator
84231E Switch, Courtesy(FOR SECURITY)
89040 Siren Assy, Theft Warning
89732A Sensor, Theft Warning Ultrasonic
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
