Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 2 illustrations

Illustrations

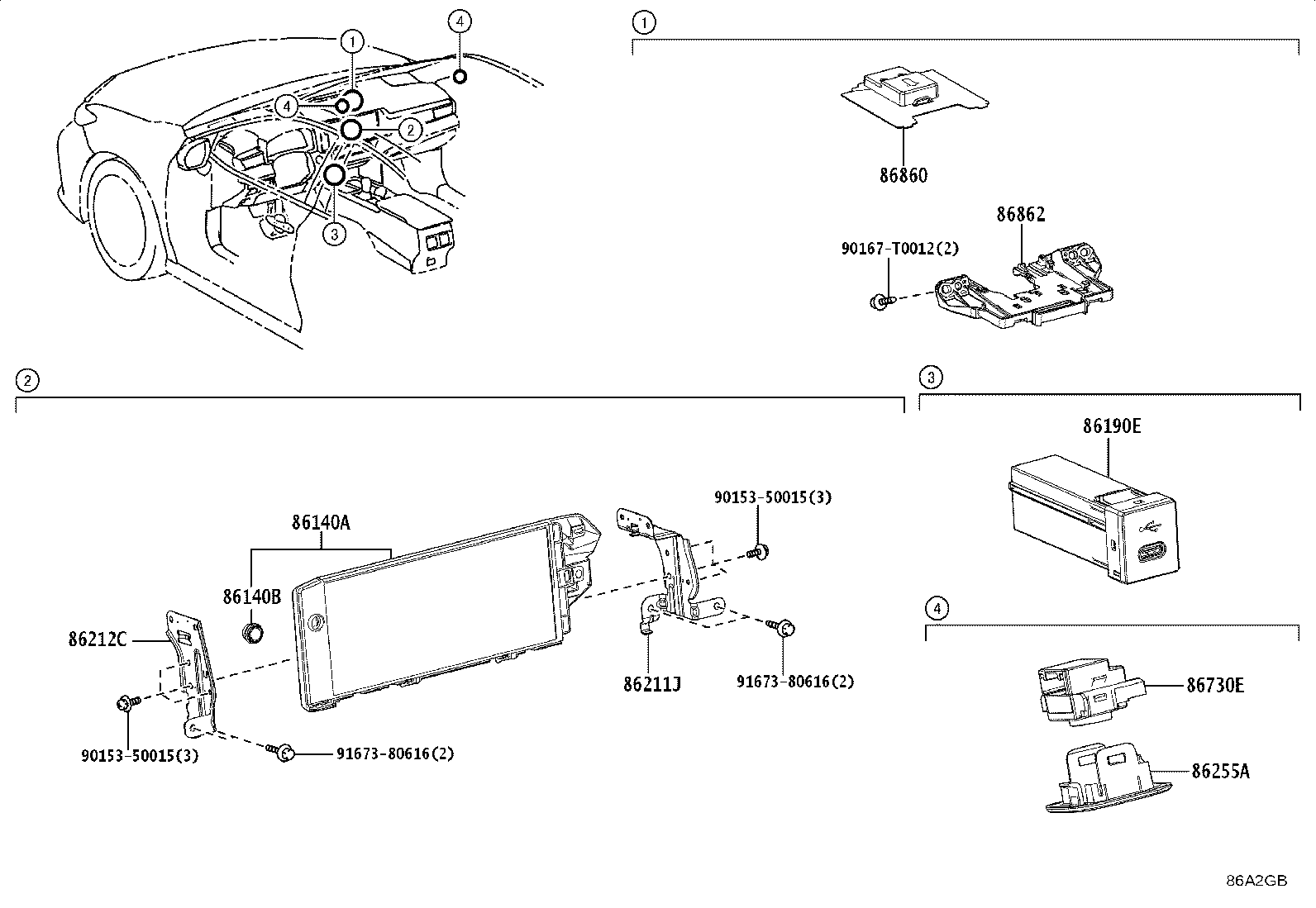

Figure 86A2GA 86A2GA 2024-10 → — Figure 86A2GB 86A2GB 2024-10 → —

Part groups

PNCDescription
86134A Parts, Multi-display
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86190E Adapter Assy, Stereo Jack
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86255A Case, Microphone, NO.1
86681B Divider, Antenna
86730E Microphone Assy
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
