Toyota Camry (ASIA)

2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

9 part groups · 2 illustrations

Illustrations

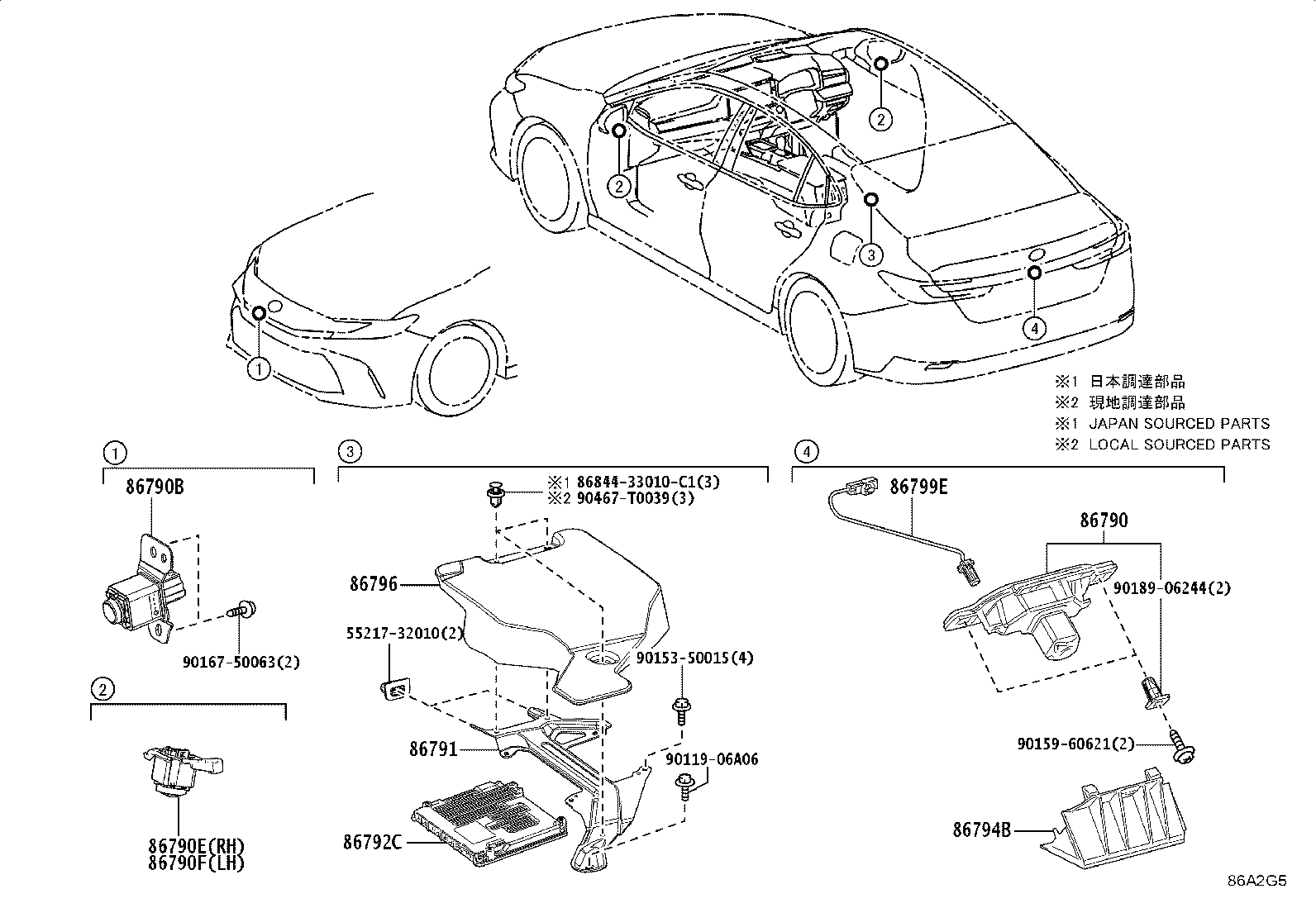

Figure 86A2G4 86A2G4 2024-10 → — Figure 86A2G5 86A2G5 2024-10 → —

Part groups

PNCDescription
86790 Camera Assy, Television
86790B Camera Assy, Television, FR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86791 Bracket, Television Camera
86792C Computer, Parking Assist
86794B Cover, Television Camera
86796 Cover, Computer Parking Assist
86799E Wire, Television Camera, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
