Heating & Air Conditioning - Water Piping

3 part groups · 2 illustrations

Illustrations

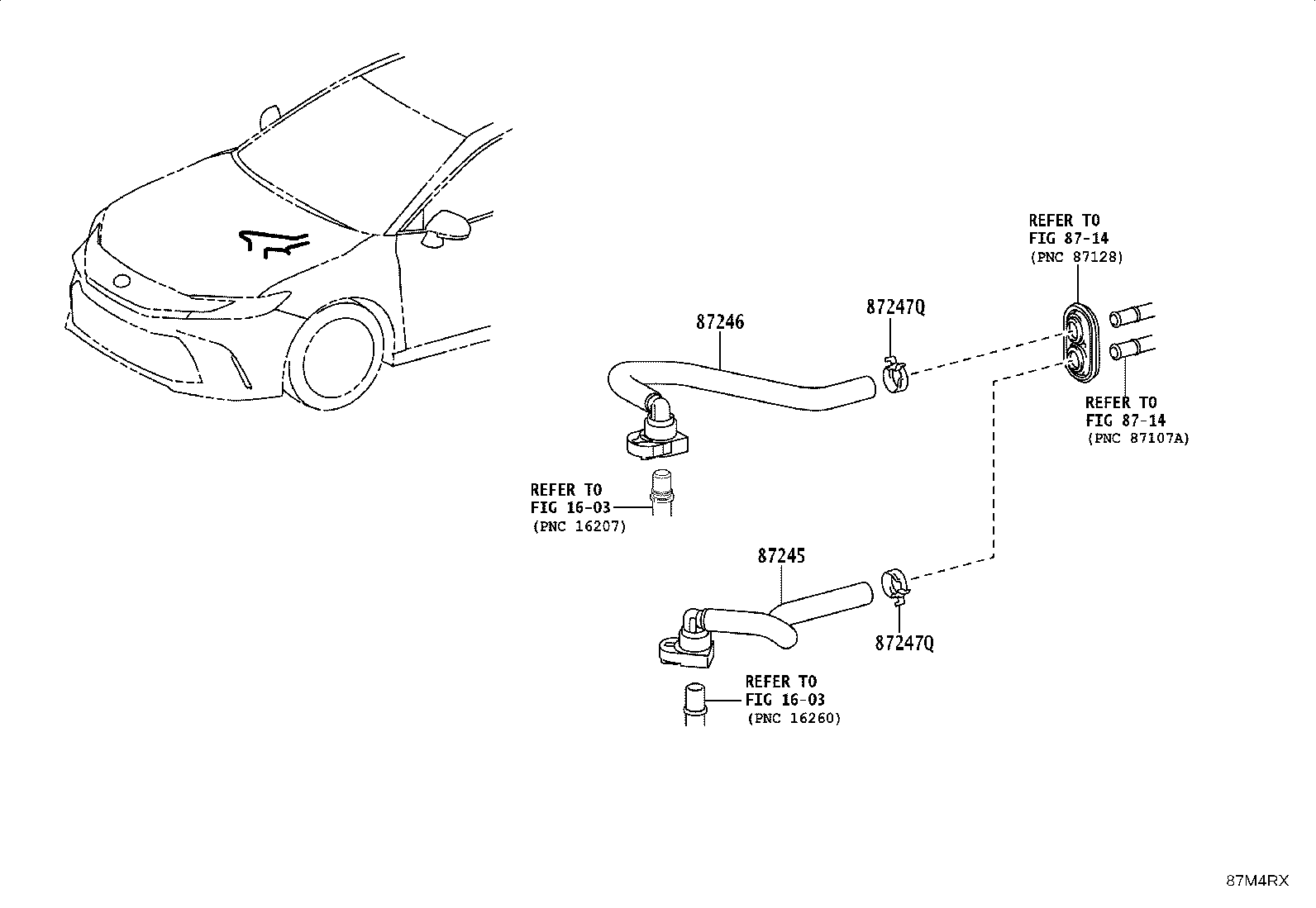

Figure 87M4RW 87M4RW 2024-10 → — Figure 87M4RX 87M4RX 2024-10 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
87247Q Clip, Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
