Heating & Air Conditioning - Cooler Piping

22 part groups · 2 illustrations

Illustrations

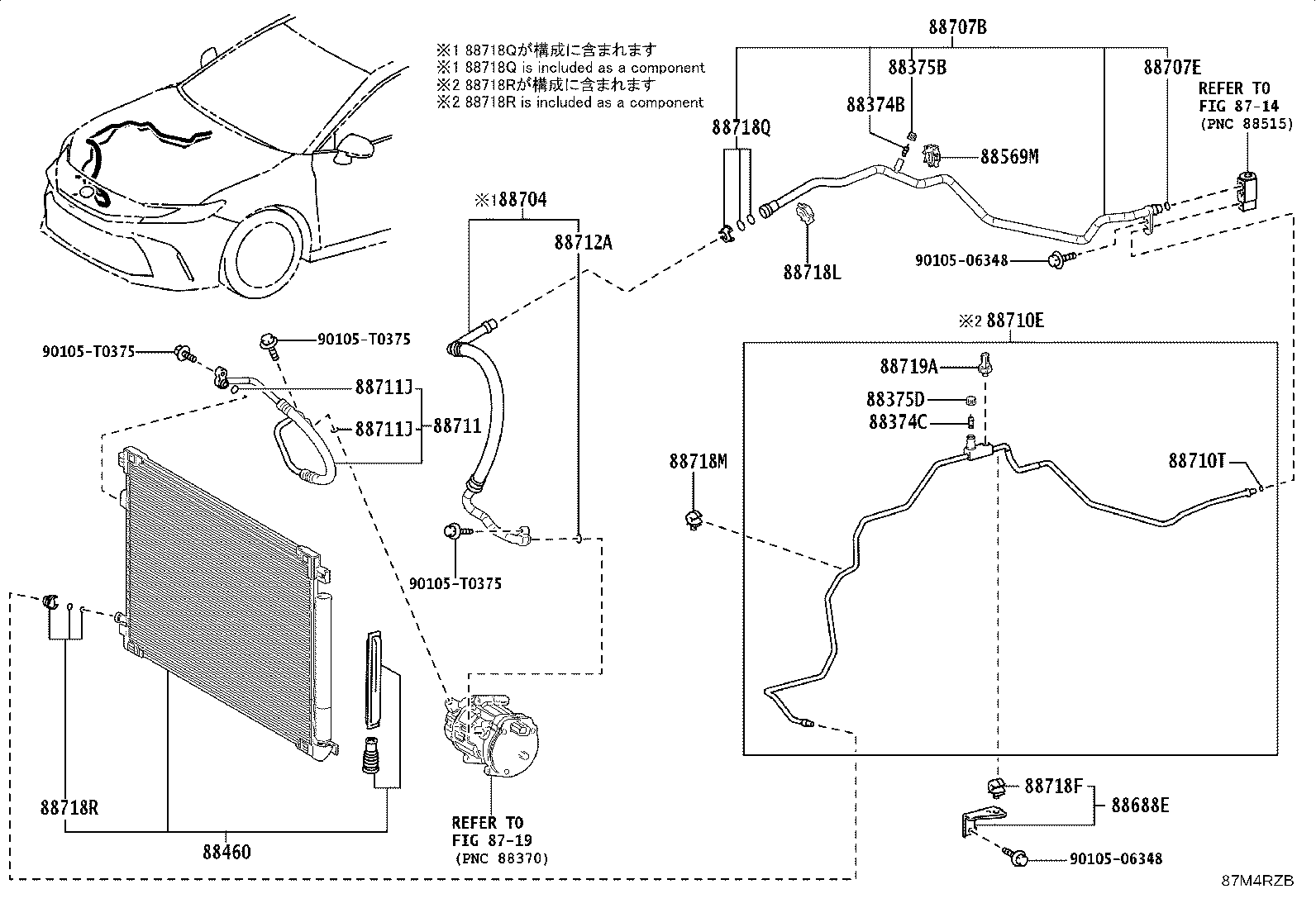

Figure 87M4RYA 87M4RYA 2024-10 → — Figure 87M4RZB 87M4RZB 2024-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88569M Clamp, Piping, NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88704 Hose Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707E Ring, O, NO.2(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88710T Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711J Ring, O, NO.1(FOR DISCHARGE HOSE)
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
