Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B510 · Europe

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

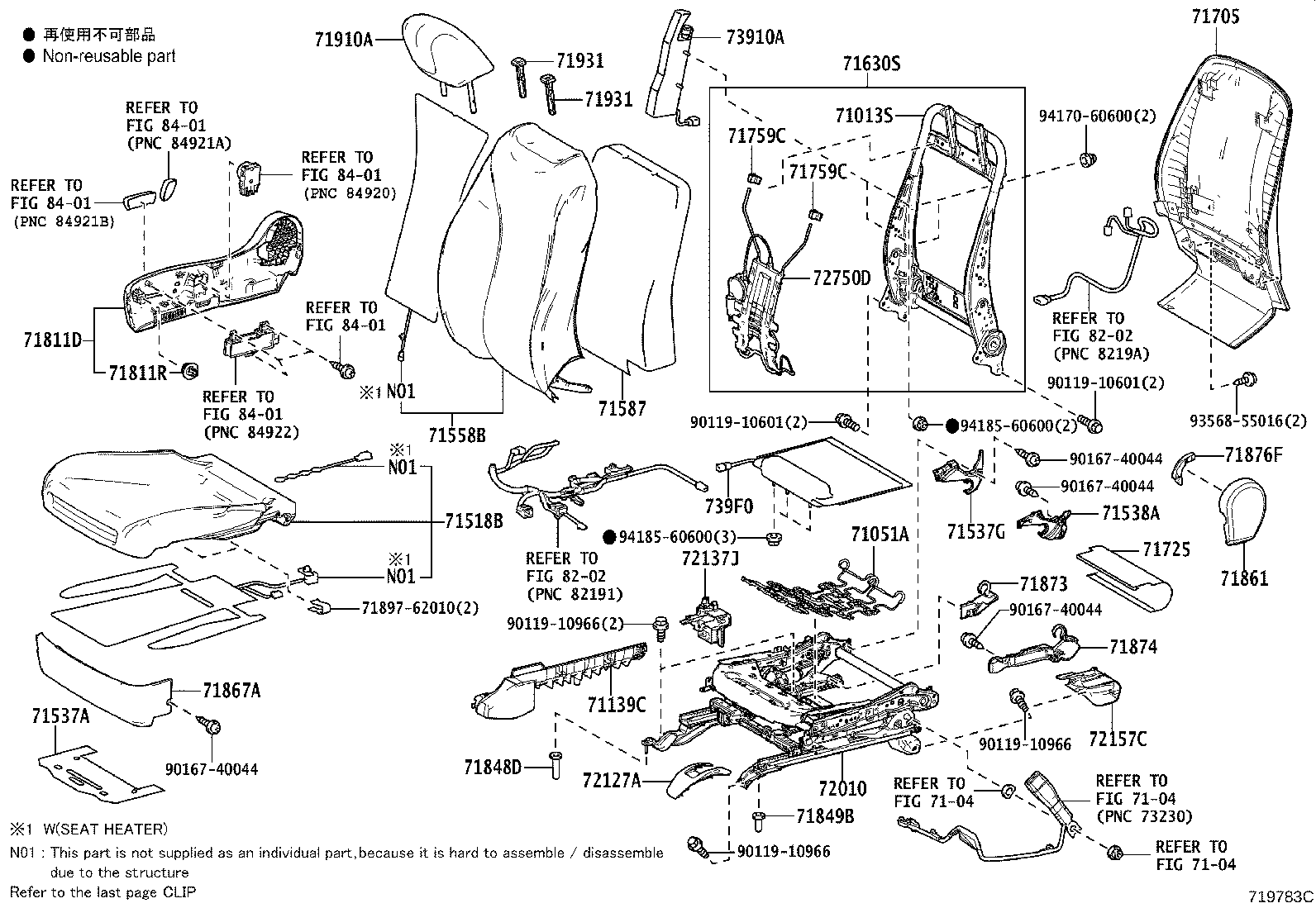

Exploded illustration 719783C 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (2 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (3 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 71518B — PAD, FRONT SEAT CUSHION W/COVER, RH (18 parts) 71558B — PAD, FRONT SEATBACK W/COVER, RH (9 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (1 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (1 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (1 parts) 72157C — COVER, SEAT TRACK BRACKET, INNER RH (1 parts) 71538A — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) (1 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (1 parts) 71725 — CARPET, FRONT SEAT CUSHION (1 parts) 71811R — CLIP, FRONT SEAT CUSHION SHIELD, RH (1 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (1 parts) 71537G — PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) (1 parts) 71139C — COVER, FRONT SEAT LEG, RH (1 parts) 71848D — CAP, SEAT ADJUSTER COVER, RH(FOR RH SEAT) (1 parts) 71849B — CAP, SEAT ADJUSTER COVER, LH(FOR RH SEAT) (1 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (2 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (1 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 8401 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9011910966 — not listed in this catalogue 9011910966 — not listed in this catalogue 9011910966 — not listed in this catalogue 7189762010 — not listed in this catalogue 9418560600 — not listed in this catalogue 9417060600 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9011910601 — not listed in this catalogue 9356855016 — not listed in this catalogue 9011910601 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 739F0 — AIRBAG ASSY, FRONT SEAT CUSHION, RH (1 parts) 9418560600 — not listed in this catalogue 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (1 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue
719783C · 33 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-33220 Frame Sub-assy, Front Seatback, RH
2015-06 → 2020-05 ended
JPD10 LHD —
71013-62010 Frame Sub-assy, Front Seatback, RH
2015-06 → 2020-05 ended
JPD10 RHD —
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-24030 Spring Sub-assy, Front Seat Cushion, RH
2015-06 → 2020-05 ended
JPD10 —
71139C — Cover, Front Seat Leg, RH
71139-62010-C0 note Cover, Front Seat Leg, RH
2015-06 → 2020-05 ended
JPD10 —
71518B — Pad, Front Seat Cushion W/Cover, RH
71101-62010-A2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 RHD —
71101-62010-C1 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 RHD —
71101-62010-J2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 RHD —
71101-62020-A2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 RHD —
71101-62020-A2 note Pad, Front Seat Cushion W/Cover, RH
2018-11 → 2020-05 ended
JPD10 RHD —
71101-62020-C1 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 RHD —
71101-62020-C1 note Pad, Front Seat Cushion W/Cover, RH
2018-11 → 2020-05 ended
JPD10 RHD —
71101-62020-J2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 RHD —
71101-62020-J2 note Pad, Front Seat Cushion W/Cover, RH
2018-11 → 2020-05 ended
JPD10 RHD —
71101-62030-A2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 LHD —
71101-62030-C1 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 LHD —
71101-62030-J2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 LHD —
71101-62040-A2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 LHD —
71101-62040-A2 note Pad, Front Seat Cushion W/Cover, RH
2018-11 → 2020-05 ended
JPD10 LHD —
71101-62040-C1 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 LHD —
71101-62040-C1 note Pad, Front Seat Cushion W/Cover, RH
2018-11 → 2020-05 ended
JPD10 LHD —
71101-62040-J2 note Pad, Front Seat Cushion W/Cover, RH
2015-06 → 2018-11 ended
JPD10 LHD —
71101-62040-J2 note Pad, Front Seat Cushion W/Cover, RH
2018-11 → 2020-05 ended
JPD10 LHD —
71537A — Protector, Front Seat Cushion
71537-62010 Protector, Front Seat Cushion
2015-06 → 2020-05 ended
JPD10 —
71537G — Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537-52100-C0 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2015-06 → 2020-05 ended
JPD10 —
71538A — Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538-47010-C0 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-06 → 2020-05 ended
JPD10 —
71558B — Pad, Front Seatback W/Cover, RH
71401-62010-A2 note Pad, Front Seatback W/Cover, RH
2015-06 → 2018-11 ended
JPD10 —
71401-62010-C1 note Pad, Front Seatback W/Cover, RH
2015-06 → 2018-11 ended
JPD10 —
71401-62010-J2 note Pad, Front Seatback W/Cover, RH
2015-06 → 2018-11 ended
JPD10 —
71401-62020-A2 note Pad, Front Seatback W/Cover, RH
2015-06 → 2018-11 ended
JPD10 —
71401-62020-A2 note Pad, Front Seatback W/Cover, RH
2018-11 → 2020-05 ended
JPD10 —
71401-62020-C1 note Pad, Front Seatback W/Cover, RH
2018-11 → 2020-05 ended
JPD10 —
71401-62020-C1 note Pad, Front Seatback W/Cover, RH
2015-06 → 2018-11 ended
JPD10 —
71401-62020-J2 note Pad, Front Seatback W/Cover, RH
2015-06 → 2018-11 ended
JPD10 —
71401-62020-J2 note Pad, Front Seatback W/Cover, RH
2018-11 → 2020-05 ended
JPD10 —
71587 — Protector, Front Seatback Edge
71587-62010 Protector, Front Seatback Edge
2015-06 → 2020-05 ended
JPD10 —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-62020 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2015-06 → 2020-05 ended
JPD10 LHD —
71705 — Board Sub-assy, Front Seatback, RH
71705-62010-C0 note Board Sub-assy, Front Seatback, RH
2015-06 → 2020-05 ended
JPD10 —
71705-62010-J1 note Board Sub-assy, Front Seatback, RH
2015-06 → 2020-05 ended
JPD10 —
71725 — Carpet, Front Seat Cushion
71725-62010-C1 note Carpet, Front Seat Cushion
2015-06 → 2020-05 ended
JPD10 —
71759C — Hook, Front Seatback, NO.1
71759-47011 Hook, Front Seatback, NO.1
2015-06 → 2020-05 ended
JPD10 —
71811D — Shield, Front Seat Cushion, RH
71811-62010-C0 note Shield, Front Seat Cushion, RH
2015-06 → 2020-05 ended
JPD10 —
71811R — Clip, Front Seat Cushion Shield, RH
71769-47020 Clip, Front Seat Cushion Shield, RH
2015-06 → 2020-05 ended
JPD10 —
71848D — Cap, Seat Adjuster Cover, RH(FOR RH SEAT)
71848-12020 Cap, Seat Adjuster Cover, RH(FOR RH SEAT)
2015-06 → 2020-05 ended
JPD10 —
71849B — Cap, Seat Adjuster Cover, LH(FOR RH SEAT)
71848-33010 Cap, Seat Adjuster Cover, LH(FOR RH SEAT)
2015-06 → 2020-05 ended
JPD10 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-53090-C0 note Shield, Front Seat Cushion, Inner RH
2015-06 → 2020-05 ended
JPD10 —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-60050-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2015-06 → 2020-05 ended
JPD10 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-78020 Shield, Front Seat Cushion, Lower RH
2015-06 → 2020-05 ended
JPD10 —
71874 — Shield, Front Seat Cushion, Lower LH
71874-33110 Shield, Front Seat Cushion, Lower LH
2015-06 → 2020-05 ended
JPD10 —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876-60210-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2015-06 → 2020-05 ended
JPD10 —
71910A — Headrest Assy, Front Seat
71910-62010-A1 note Headrest Assy, Front Seat
2015-06 → 2020-05 ended
JPD10 —
71910-62010-J7 note Headrest Assy, Front Seat
2015-06 → 2020-05 ended
JPD10 —
71910-62010-J8 note Headrest Assy, Front Seat
2015-06 → 2020-05 ended
JPD10 —
71931 — Support, Front Seat Headrest
71930-47020-04 note Support, Front Seat Headrest
2015-06 → 2020-05 ended
JPD10 —
71930-47020-J0 note Support, Front Seat Headrest
2015-06 → 2020-05 ended
JPD10 —
71931-47020-04 note Support, Front Seat Headrest
2015-06 → 2020-05 ended
JPD10 —
71931-47020-J0 note Support, Front Seat Headrest
2015-06 → 2020-05 ended
JPD10 —
72010 — Adjuster Assy, Front Seat, RH
72010-62010 Adjuster Assy, Front Seat, RH
2015-06 → 2020-05 ended
JPD10 RHD —
72010-62020 Adjuster Assy, Front Seat, RH
2015-06 → 2020-05 ended
JPD10 LHD —
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-62010-C0 note Cover, Seat Track Bracket, Inner Front RH
2015-06 → 2020-05 ended
JPD10 —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-62010-C0 note Cover, Front Seat Track, RH Rear Outer
2015-06 → 2020-05 ended
JPD10 —
72157C — Cover, Seat Track Bracket, Inner RH
72157-62010-C0 note Cover, Seat Track Bracket, Inner RH
2015-06 → 2020-05 ended
JPD10 —
72750D — Adjuster Assy, Lumbar Support, RH
72750-62010 Adjuster Assy, Lumbar Support, RH
2015-06 → 2020-05 ended
JPD10 —
73910A — Airbag Assy, Front Seat, RH
73910-62010 Airbag Assy, Front Seat, RH
2015-06 → 2020-05 ended
JPD10 —
739F0 — Airbag Assy, Front Seat Cushion, RH
739F0-62010 Airbag Assy, Front Seat Cushion, RH
2015-06 → 2020-05 ended
JPD10 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
