Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B510 · Europe

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

12 part groups · 2 illustrations

Illustrations

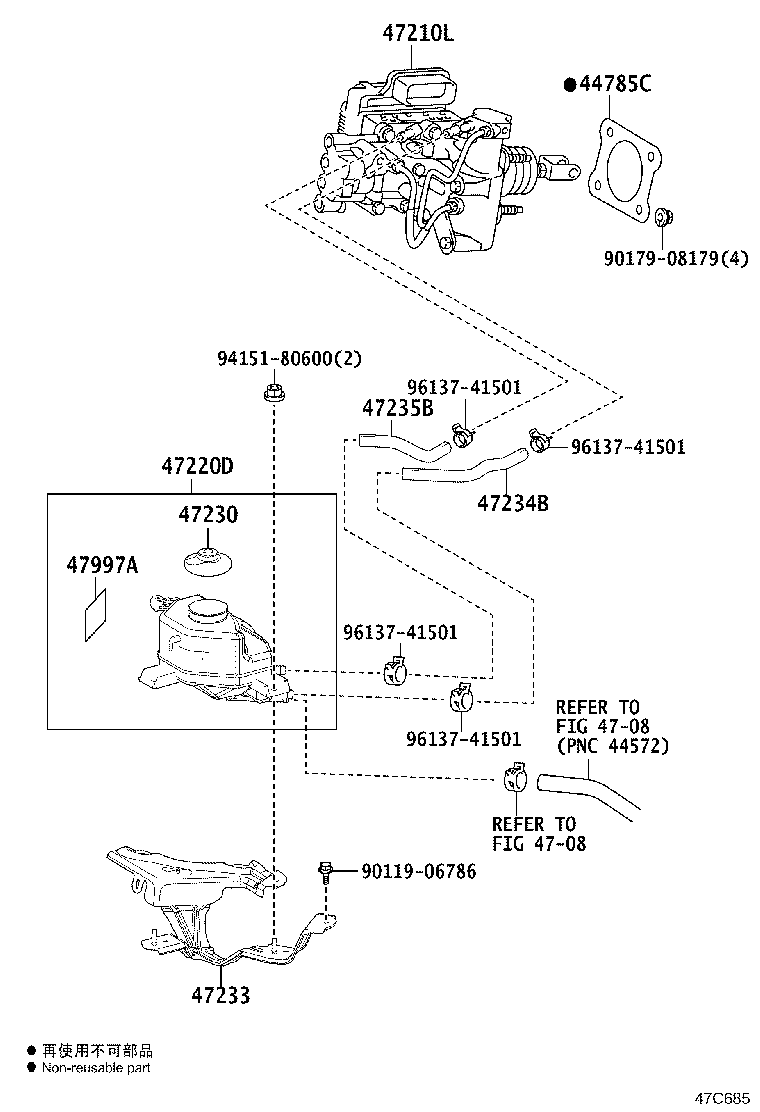

Figure 479860D 479860D 2015-06 → — Figure 47C685 47C685 2015-06 → —

Part groups

PNCDescription
44785C Gasket, Brake Booster
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234B Tube, Reservoir, NO.1
47234L Hose, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47235G Hose, Reservoir, NO.2
47236C Hose, Reservoir Tube
47238C Tube, Reservoir
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
