Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B510 · Europe

Supported model Data version 2020-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

Figure 534425C

534425C 2015-06 → 2018-11

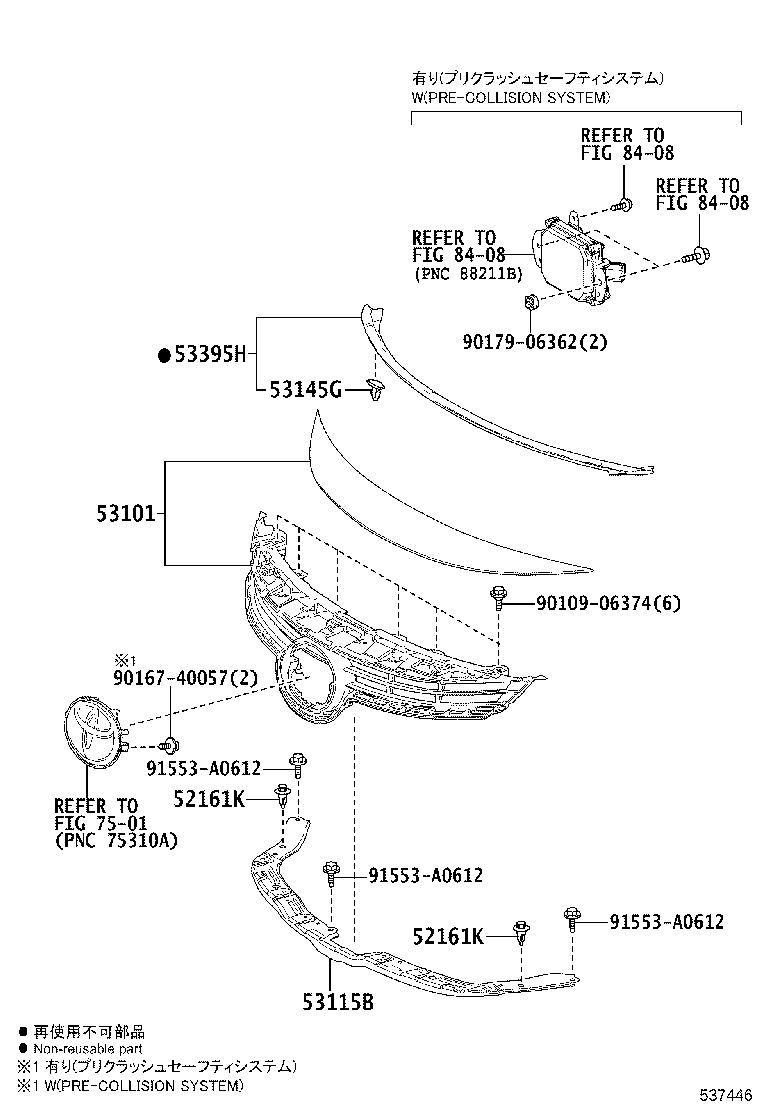

537446 2018-11 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53101	Grille Sub-assy, Radiator
53115B	Bracket, Radiator Grille
53145G	Clip, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
