Toyota Mirai
2015-06 → 2020-05 · chassis JPD10 · catalogue 28B510 · Europe
Supported model
Data version 2020-07

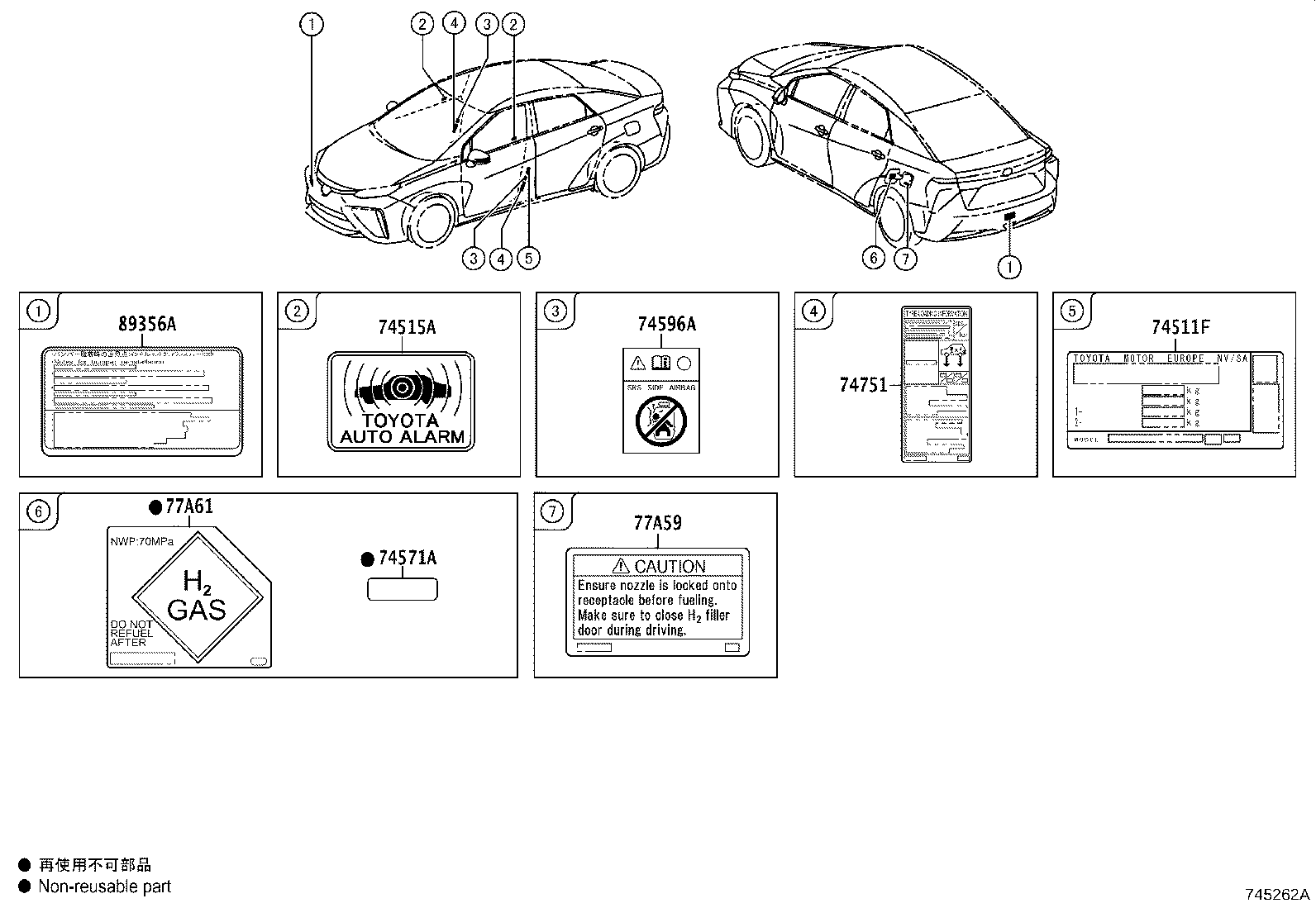

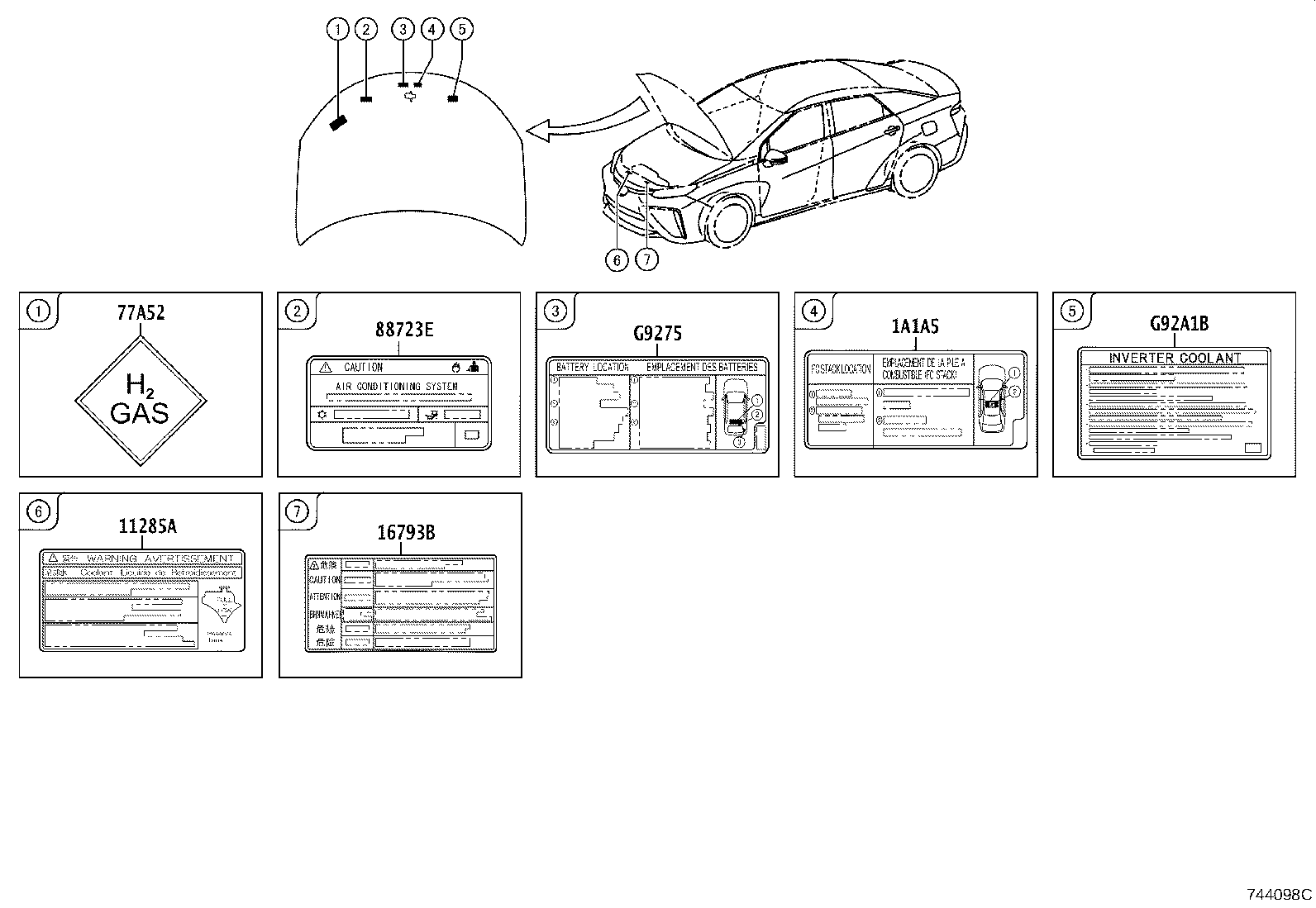

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11285F | Label, Coolant System Caution |
| 16793B | Label, Cooling Fan Information |
| 1A1A5 | Label, FC Stack Caution, NO.2 |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 77A52 | Label, Hydrogen Tank Gas Information |
| 77A59 | Label, Hydrogen Fueling Caution |
| 77A61 | Label, Hydrogen Tank Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723E | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1B | Label, EV Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
