Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B510 · Europe

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

14 part groups · 2 illustrations

Illustrations

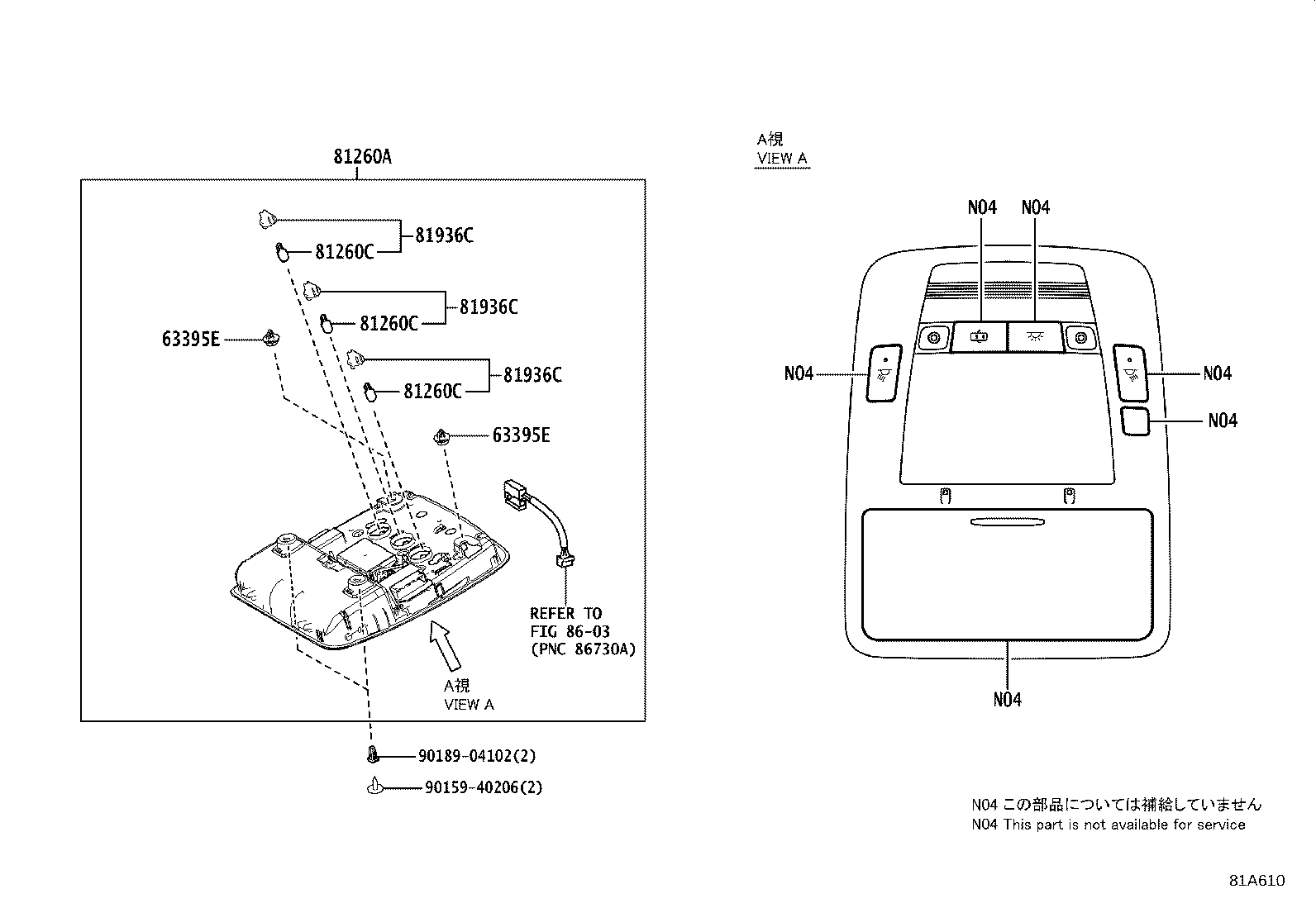

Figure 817423B 817423B 2015-06 → — Figure 81A610 81A610 2015-06 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
