Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

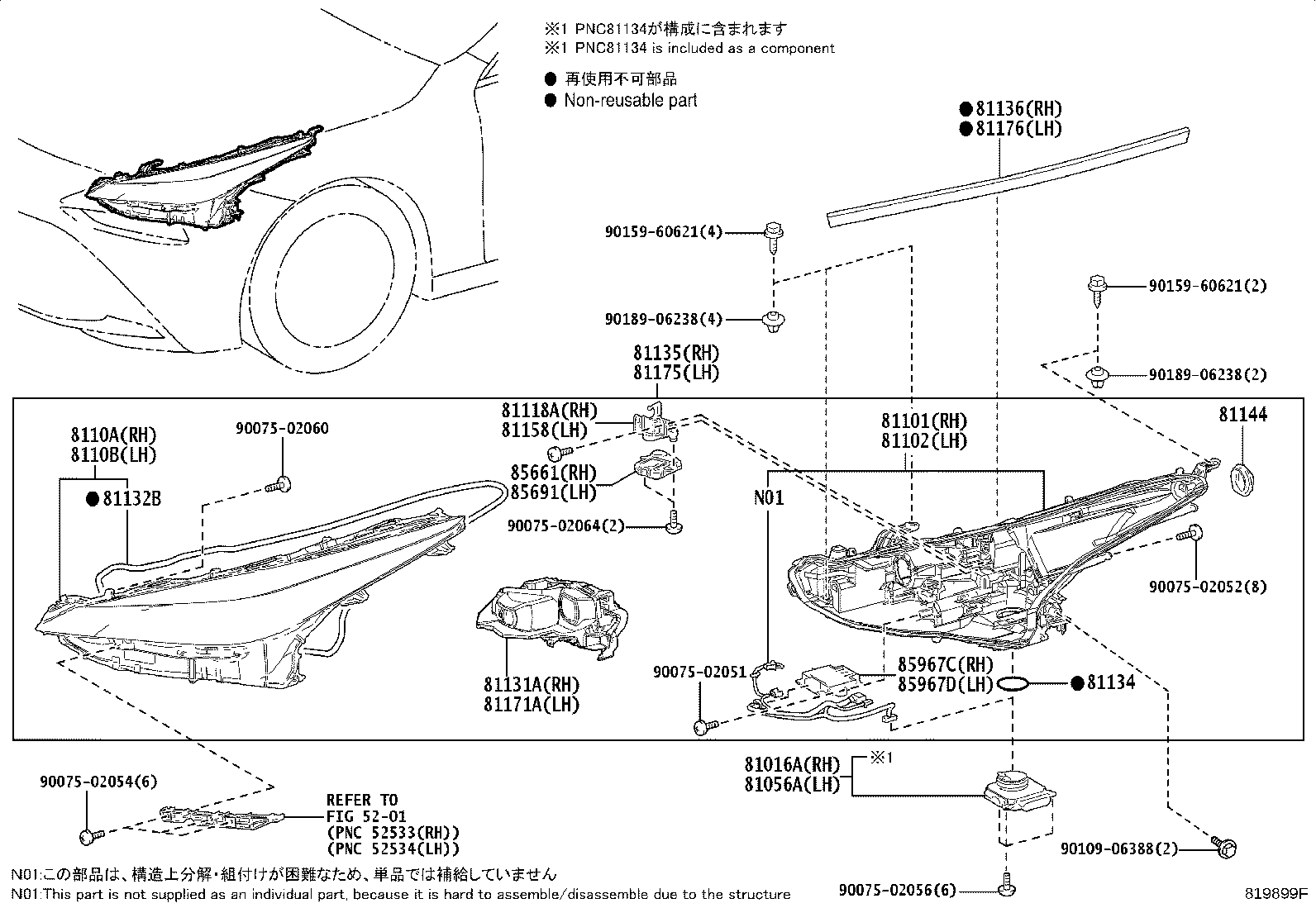

Exploded illustration 819899F 9007502060 — not listed in this catalogue 5201 — not listed in this catalogue 81134 — GASKET, HEADLAMP (3 parts) 9015960621 — not listed in this catalogue 9018906238 — not listed in this catalogue 9015960621 — not listed in this catalogue 9018906238 — not listed in this catalogue 9007502064 — not listed in this catalogue 81136 — PROTECTOR, HEADLAMP, NO.1 RH (3 parts) 81176 — PROTECTOR, HEADLAMP, NO.1 LH (3 parts) 81131A — UNIT, HEADLAMP, RH (12 parts) 81171A — UNIT, HEADLAMP, LH (12 parts) 81118A — BRACKET, HEADLAMP, RH (3 parts) 81158 — BRACKET, HEADLAMP, LH (3 parts) 85661 — MOTOR, HEADLAMP LEVELING, RH (6 parts) 85691 — MOTOR, HEADLAMP LEVELING, LH (6 parts) 85967C — COMPUTER, LIGHT CONTROL LED, RH (1 parts) 85967D — COMPUTER, LIGHT CONTROL LED, LH (1 parts) 81144 — COVER, HEADLAMP, NO.1 (3 parts) 81135 — UNIT ASSY, HEADLAMP, RH (16 parts) 81175 — UNIT ASSY, HEADLAMP, LH (16 parts) 81016A — COMPUTER SUB-ASSY, HEADLAMP, RH (6 parts) 81056A — COMPUTER SUB-ASSY, HEADLAMP, LH (6 parts) 8110A — LENS SUB-ASSY, HEADLAMP, RH (16 parts) 8110B — LENS SUB-ASSY, HEADLAMP, LH (16 parts) 9010906388 — not listed in this catalogue 9007502052 — not listed in this catalogue 9007502056 — not listed in this catalogue 9007502051 — not listed in this catalogue 81132B — GASKET, HEADLAMP LENS (3 parts) 9007502054 — not listed in this catalogue 81101 — HOUSING SUB-ASSY, HEADLAMP, RH (6 parts) 81102 — HOUSING SUB-ASSY, HEADLAMP, LH (6 parts)
819899F · 21 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
147 parts on this figure
Part number Description Fitment Price
81016A — Computer Sub-assy, Headlamp, RH
81016-62210 Computer Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 B,S —
81016-62240 Computer Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 H —
81016-62210 Computer Sub-assy, Headlamp, RH
2024-12 → —
JPD20 B,S —
81016-62240 Computer Sub-assy, Headlamp, RH
2024-12 → —
JPD20 H —
81016-62120 Computer Sub-assy, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 S —
81016-62150 Computer Sub-assy, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 H —
81056A — Computer Sub-assy, Headlamp, LH
81056-62210 Computer Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 B,S —
81056-62240 Computer Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 H —
81056-62210 Computer Sub-assy, Headlamp, LH
2024-12 → —
JPD20 B,S —
81056-62240 Computer Sub-assy, Headlamp, LH
2024-12 → —
JPD20 H —
81056-62120 Computer Sub-assy, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 S —
81056-62150 Computer Sub-assy, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 H —
81101 — Housing Sub-assy, Headlamp, RH
8111B-62210 Housing Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 B,S —
8111B-62240 Housing Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 H —
8111B-62210 Housing Sub-assy, Headlamp, RH
2024-12 → —
JPD20 B,S —
8111B-62240 Housing Sub-assy, Headlamp, RH
2024-12 → —
JPD20 H —
8111B-62120 Housing Sub-assy, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 S —
8111B-62150 Housing Sub-assy, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 H —
81102 — Housing Sub-assy, Headlamp, LH
8115B-62210 Housing Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 B,S —
8115B-62240 Housing Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 H —
8115B-62210 Housing Sub-assy, Headlamp, LH
2024-12 → —
JPD20 B,S —
8115B-62240 Housing Sub-assy, Headlamp, LH
2024-12 → —
JPD20 H —
8115B-62120 Housing Sub-assy, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 S —
8115B-62150 Housing Sub-assy, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 H —
8110A — Lens Sub-assy, Headlamp, RH
8110A-62210 Lens Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 RHD (B,S) —
8110A-62220 Lens Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 LHD S —
8110A-62230 Lens Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 RHD H —
8110A-62240 Lens Sub-assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 LHD H —
8110A-62210 Lens Sub-assy, Headlamp, RH
2024-12 → —
JPD20 RHD (B,S) —
8110A-62220 Lens Sub-assy, Headlamp, RH
2024-12 → —
JPD20 LHD S —
8110A-62230 Lens Sub-assy, Headlamp, RH
2024-12 → —
JPD20 RHD H —
8110A-62240 Lens Sub-assy, Headlamp, RH
2024-12 → —
JPD20 LHD H —
8110A-62120 Lens Sub-assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 RHD S —
8110A-62121 Lens Sub-assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 RHD S —
8110A-62130 Lens Sub-assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 LHD S —
8110A-62131 Lens Sub-assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 LHD S —
8110A-62140 Lens Sub-assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 RHD H —
8110A-62141 Lens Sub-assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 RHD H —
8110A-62150 Lens Sub-assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 LHD H —
8110A-62151 Lens Sub-assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 LHD H —
8110B — Lens Sub-assy, Headlamp, LH
8110B-62210 Lens Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 RHD (B,S) —
8110B-62220 Lens Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 LHD S —
8110B-62230 Lens Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 RHD H —
8110B-62240 Lens Sub-assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 LHD H —
8110B-62210 Lens Sub-assy, Headlamp, LH
2024-12 → —
JPD20 RHD (B,S) —
8110B-62220 Lens Sub-assy, Headlamp, LH
2024-12 → —
JPD20 LHD S —
8110B-62230 Lens Sub-assy, Headlamp, LH
2024-12 → —
JPD20 RHD H —
8110B-62240 Lens Sub-assy, Headlamp, LH
2024-12 → —
JPD20 LHD H —
8110B-62120 Lens Sub-assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 RHD S —
8110B-62121 Lens Sub-assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 RHD S —
8110B-62130 Lens Sub-assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 LHD S —
8110B-62131 Lens Sub-assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 LHD S —
8110B-62140 Lens Sub-assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 RHD H —
8110B-62141 Lens Sub-assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 RHD H —
8110B-62150 Lens Sub-assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 LHD H —
8110B-62151 Lens Sub-assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 LHD H —
81118A — Bracket, Headlamp, RH
81118-62150 Bracket, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 H —
81118-62150 Bracket, Headlamp, RH
2024-12 → —
JPD20 H —
81118-62150 Bracket, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 H —
81131A — Unit, Headlamp, RH
81130-62120 Unit, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 RHD (B,S) —
81130-62130 Unit, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 LHD S —
81130-62230 Unit, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 RHD H —
81130-62240 Unit, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 LHD H —
81130-62120 Unit, Headlamp, RH
2024-12 → —
JPD20 RHD (B,S) —
81130-62130 Unit, Headlamp, RH
2024-12 → —
JPD20 LHD S —
81130-62230 Unit, Headlamp, RH
2024-12 → —
JPD20 RHD H —
81130-62240 Unit, Headlamp, RH
2024-12 → —
JPD20 LHD H —
81130-62120 Unit, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 RHD S —
81130-62130 Unit, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 LHD S —
81130-62140 Unit, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 RHD H —
81130-62150 Unit, Headlamp, RH
2020-11 → 2023-12 ended
JPD20 LHD H —
81132B — Gasket, Headlamp Lens
81132-60K80 Gasket, Headlamp Lens
2023-12 → 2024-11 ended
JPD20 —
81132-60K80 Gasket, Headlamp Lens
2024-12 → —
JPD20 —
81132-60K80 Gasket, Headlamp Lens
2020-11 → 2023-12 ended
JPD20 —
81134 — Gasket, Headlamp
90075-23003 Gasket, Headlamp
2023-12 → 2024-11 ended
JPD20 —
90075-23003 Gasket, Headlamp
2024-12 → —
JPD20 —
90075-23003 Gasket, Headlamp
2020-11 → 2023-12 ended
JPD20 —
81135 — Unit Assy, Headlamp, RH
81145-62210 Unit Assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 RHD (B,S) —
81145-62220 Unit Assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 LHD S —
81145-62230 Unit Assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 RHD H —
81145-62240 Unit Assy, Headlamp, RH
2023-12 → 2024-11 ended
JPD20 LHD H —
81145-62210 Unit Assy, Headlamp, RH
2024-12 → —
JPD20 RHD (B,S) —
81145-62220 Unit Assy, Headlamp, RH
2024-12 → —
JPD20 LHD S —
81145-62230 Unit Assy, Headlamp, RH
2024-12 → —
JPD20 RHD H —
81145-62240 Unit Assy, Headlamp, RH
2024-12 → —
JPD20 LHD H —
81145-62120 Unit Assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 RHD S —
81145-62121 Unit Assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 RHD S —
81145-62130 Unit Assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 LHD S —
81145-62131 Unit Assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 LHD S —
81145-62140 Unit Assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 RHD H —
81145-62141 Unit Assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 RHD H —
81145-62150 Unit Assy, Headlamp, RH
2020-11 → 2022-06 ended
JPD20 LHD H —
81145-62151 Unit Assy, Headlamp, RH
2022-06 → 2023-12 ended
JPD20 LHD H —
81136 — Protector, Headlamp, NO.1 RH
81117-62150 Protector, Headlamp, NO.1 RH
2023-12 → 2024-11 ended
JPD20 —
81117-62150 Protector, Headlamp, NO.1 RH
2024-12 → —
JPD20 —
81117-62150 Protector, Headlamp, NO.1 RH
2020-11 → 2023-12 ended
JPD20 —
81144 — Cover, Headlamp, NO.1
90075-66016 Cover, Headlamp, NO.1
2023-12 → 2024-11 ended
JPD20 —
90075-66016 Cover, Headlamp, NO.1
2024-12 → —
JPD20 —
90075-66016 Cover, Headlamp, NO.1
2020-11 → 2023-12 ended
JPD20 —
81158 — Bracket, Headlamp, LH
81158-62150 Bracket, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 H —
81158-62150 Bracket, Headlamp, LH
2024-12 → —
JPD20 H —
81158-62150 Bracket, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 H —
81171A — Unit, Headlamp, LH
81170-62120 Unit, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 RHD (B,S) —
81170-62130 Unit, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 LHD S —
81170-62230 Unit, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 RHD H —
81170-62240 Unit, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 LHD H —
81170-62120 Unit, Headlamp, LH
2024-12 → —
JPD20 RHD (B,S) —
81170-62130 Unit, Headlamp, LH
2024-12 → —
JPD20 LHD S —
81170-62230 Unit, Headlamp, LH
2024-12 → —
JPD20 RHD H —
81170-62240 Unit, Headlamp, LH
2024-12 → —
JPD20 LHD H —
81170-62120 Unit, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 RHD S —
81170-62130 Unit, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 LHD S —
81170-62140 Unit, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 RHD H —
81170-62150 Unit, Headlamp, LH
2020-11 → 2023-12 ended
JPD20 LHD H —
81175 — Unit Assy, Headlamp, LH
81185-62210 Unit Assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 RHD (B,S) —
81185-62220 Unit Assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 LHD S —
81185-62230 Unit Assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 RHD H —
81185-62240 Unit Assy, Headlamp, LH
2023-12 → 2024-11 ended
JPD20 LHD H —
81185-62210 Unit Assy, Headlamp, LH
2024-12 → —
JPD20 RHD (B,S) —
81185-62220 Unit Assy, Headlamp, LH
2024-12 → —
JPD20 LHD S —
81185-62230 Unit Assy, Headlamp, LH
2024-12 → —
JPD20 RHD H —
81185-62240 Unit Assy, Headlamp, LH
2024-12 → —
JPD20 LHD H —
81185-62120 Unit Assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 RHD S —
81185-62121 Unit Assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 RHD S —
81185-62130 Unit Assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 LHD S —
81185-62131 Unit Assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 LHD S —
81185-62140 Unit Assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 RHD H —
81185-62141 Unit Assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 RHD H —
81185-62150 Unit Assy, Headlamp, LH
2020-11 → 2022-06 ended
JPD20 LHD H —
81185-62151 Unit Assy, Headlamp, LH
2022-06 → 2023-12 ended
JPD20 LHD H —
81176 — Protector, Headlamp, NO.1 LH
81157-62150 Protector, Headlamp, NO.1 LH
2023-12 → 2024-11 ended
JPD20 —
81157-62150 Protector, Headlamp, NO.1 LH
2024-12 → —
JPD20 —
81157-62150 Protector, Headlamp, NO.1 LH
2020-11 → 2023-12 ended
JPD20 —
85661 — Motor, Headlamp Leveling, RH
85661-48050 Motor, Headlamp Leveling, RH
2023-12 → 2024-11 ended
JPD20 B,S —
85661-48060 Motor, Headlamp Leveling, RH
2023-12 → 2024-11 ended
JPD20 H —
85661-48050 Motor, Headlamp Leveling, RH
2024-12 → —
JPD20 B,S —
85661-48060 Motor, Headlamp Leveling, RH
2024-12 → —
JPD20 H —
85661-48050 Motor, Headlamp Leveling, RH
2020-11 → 2023-12 ended
JPD20 S —
85661-48060 Motor, Headlamp Leveling, RH
2020-11 → 2023-12 ended
JPD20 H —
85691 — Motor, Headlamp Leveling, LH
85661-48050 Motor, Headlamp Leveling, LH
2023-12 → 2024-11 ended
JPD20 B,S —
85691-48010 Motor, Headlamp Leveling, LH
2023-12 → 2024-11 ended
JPD20 H —
85661-48050 Motor, Headlamp Leveling, LH
2024-12 → —
JPD20 B,S —
85691-48010 Motor, Headlamp Leveling, LH
2024-12 → —
JPD20 H —
85661-48050 Motor, Headlamp Leveling, LH
2020-11 → 2023-12 ended
JPD20 S —
85691-48010 Motor, Headlamp Leveling, LH
2020-11 → 2023-12 ended
JPD20 H —
85967C — Computer, Light Control Led, RH
85967-48100 Computer, Light Control Led, RH
2020-11 → 2023-12 ended
JPD20 H —
85967D — Computer, Light Control Led, LH
85967-48090 Computer, Light Control Led, LH
2020-11 → 2023-12 ended
JPD20 H —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
