Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe
Supported model
Data version 2024-11

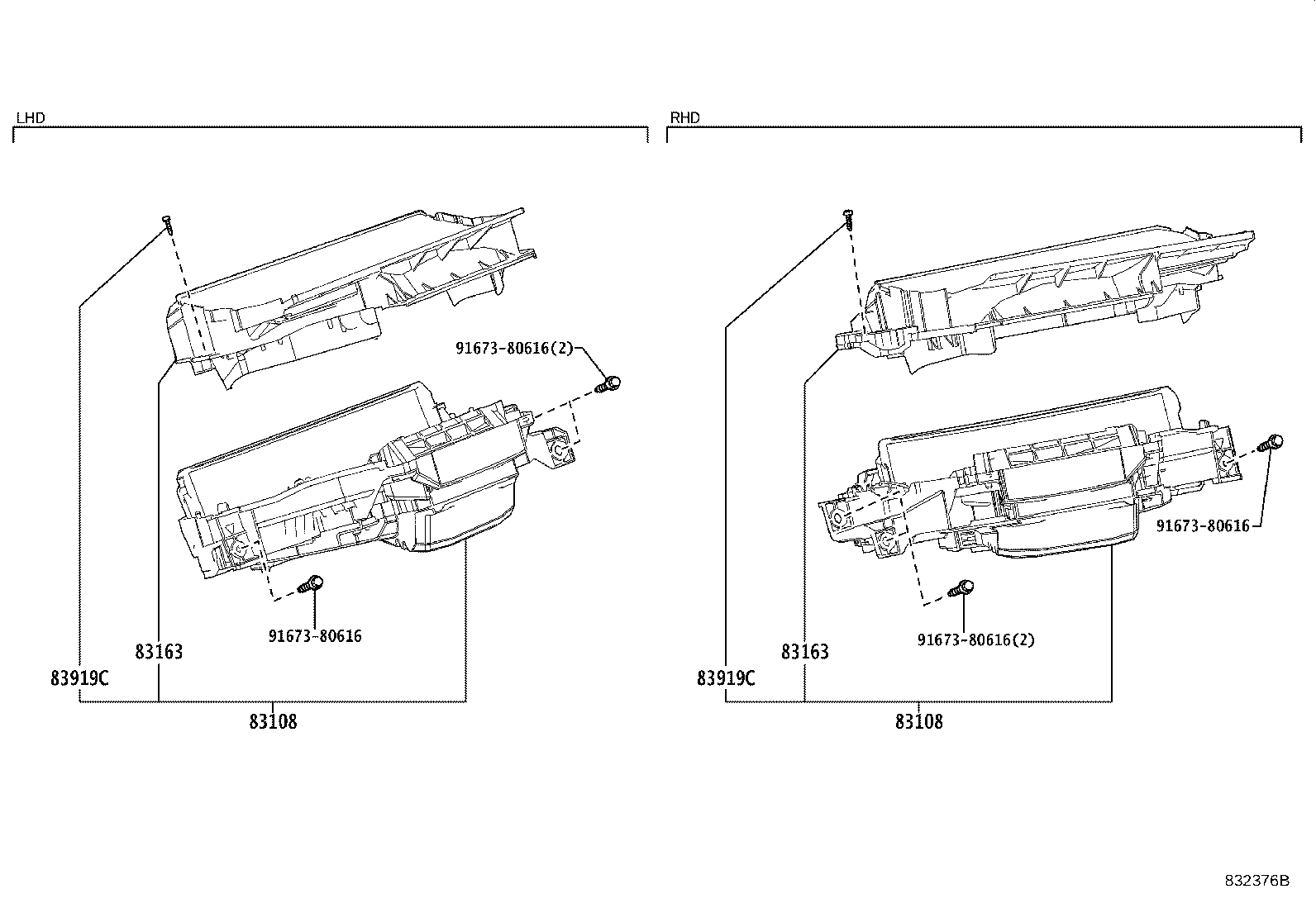

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-62090 note |
Mirror Sub-assy, Meter
2023-12 → 2024-06
ended
|
JPD20 RHD H | — | |
| 83108-62091 note |
Mirror Sub-assy, Meter
2024-07 → 2024-11
ended
|
JPD20 RHD H | — | |
| 83108-62100 note |
Mirror Sub-assy, Meter
2023-12 → 2024-06
ended
|
JPD20 LHD H | — | |
| 83108-62101 note |
Mirror Sub-assy, Meter
2024-07 → 2024-11
ended
|
JPD20 LHD H | — | |
| 83108-62091 |
Mirror Sub-assy, Meter
2024-12 → —
|
JPD20 RHD H | — | |
| 83108-62101 |
Mirror Sub-assy, Meter
2024-12 → —
|
JPD20 LHD H | — | |
| 83108-62010 note |
Mirror Sub-assy, Meter
2020-11 → 2021-01
ended
|
JPD20 RHD H | — | |
| 83108-62011 note |
Mirror Sub-assy, Meter
2021-02 → 2021-08
ended
|
JPD20 RHD H | — | |
| 83108-62020 note |
Mirror Sub-assy, Meter
2020-11 → 2021-01
ended
|
JPD20 LHD H | — | |
| 83108-62021 note |
Mirror Sub-assy, Meter
2021-02 → 2021-08
ended
|
JPD20 LHD H | — | |
| 83108-62051 note |
Mirror Sub-assy, Meter
2021-08 → 2022-12
ended
|
JPD20 RHD H | — | |
| 83108-62061 note |
Mirror Sub-assy, Meter
2021-08 → 2022-12
ended
|
JPD20 LHD H | — | |
| 83108-62070 note |
Mirror Sub-assy, Meter
2022-12 → 2023-12
ended
|
JPD20 RHD H | — | |
| 83108-62080 note |
Mirror Sub-assy, Meter
2022-12 → 2023-12
ended
|
JPD20 LHD H | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-62090 note |
Plate, Combination Meter Mirror, NO.1
2023-12 → 2024-11
ended
|
JPD20 RHD H | — | |
| 83163-62100 note |
Plate, Combination Meter Mirror, NO.1
2023-12 → 2024-11
ended
|
JPD20 LHD H | — | |
| 83163-62090 |
Plate, Combination Meter Mirror, NO.1
2024-12 → —
|
JPD20 RHD H | — | |
| 83163-62100 |
Plate, Combination Meter Mirror, NO.1
2024-12 → —
|
JPD20 LHD H | — | |
| 83163-62010 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2021-02
ended
|
JPD20 RHD H | — | |
| 83163-62011 note |
Plate, Combination Meter Mirror, NO.1
2021-02 → 2021-08
ended
|
JPD20 RHD H | — | |
| 83163-62020 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2021-02
ended
|
JPD20 LHD H | — | |
| 83163-62021 note |
Plate, Combination Meter Mirror, NO.1
2021-02 → 2021-08
ended
|
JPD20 LHD H | — | |
| 83163-62051 note |
Plate, Combination Meter Mirror, NO.1
2021-08 → 2023-12
ended
|
JPD20 RHD H | — | |
| 83163-62061 note |
Plate, Combination Meter Mirror, NO.1
2021-08 → 2023-12
ended
|
JPD20 LHD H | — | |
| 83919C — Screw (FOR COMBINATION METER) | ||||
| 90099-00262 note |
Screw (FOR COMBINATION METER)
2023-12 → 2024-11
ended
|
JPD20 H | — | |
| 90099-00262 |
Screw (FOR COMBINATION METER)
2024-12 → —
|
JPD20 H | — | |
| 90099-00262 note |
Screw (FOR COMBINATION METER)
2020-11 → 2023-12
ended
|
JPD20 H | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
