Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe
Supported model
Data version 2024-11

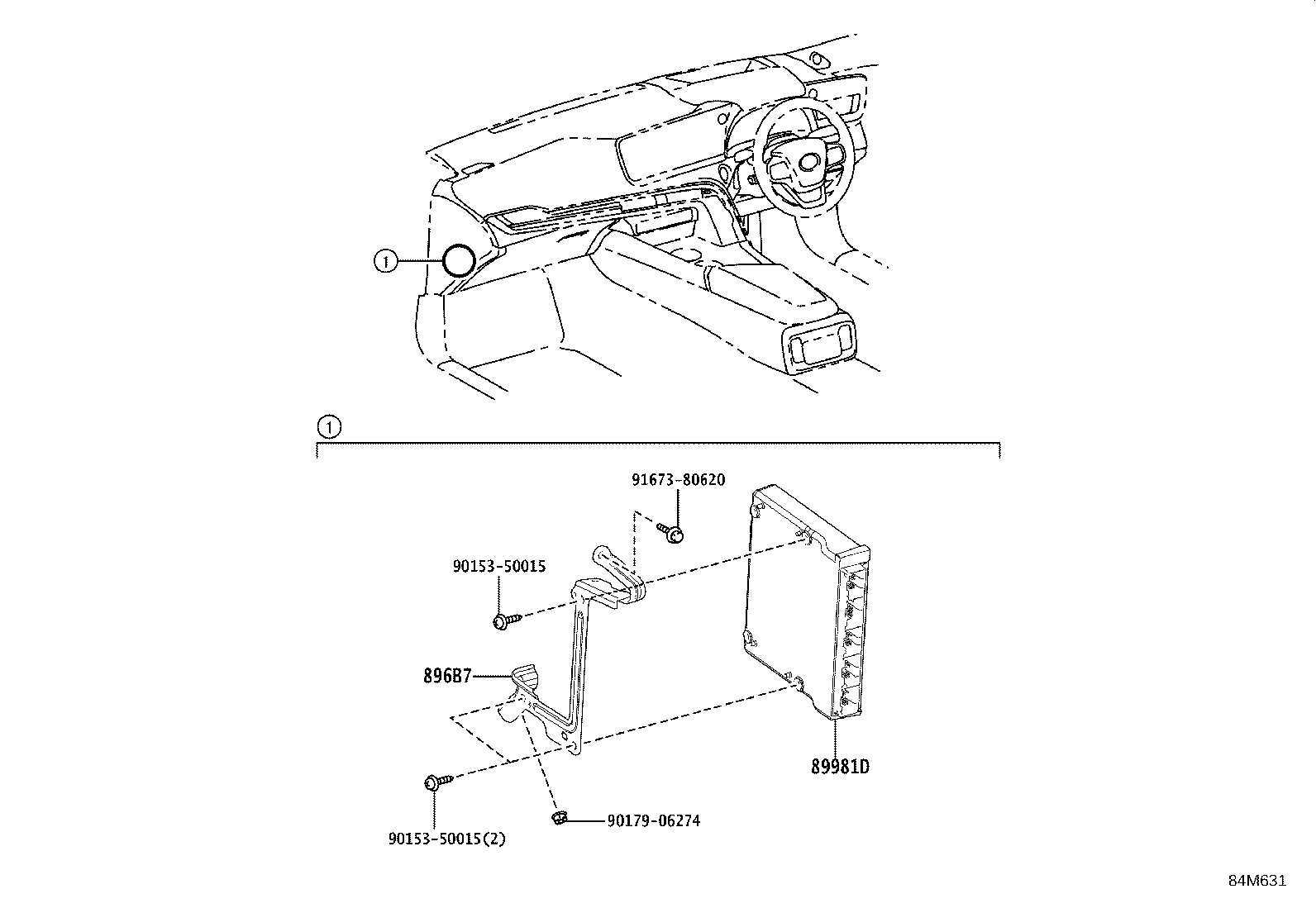

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 896B7 — Bracket, EV Control Computer, NO.1 | ||||
| 896B7-62010 |
Bracket, EV Control Computer, NO.1
2023-12 → 2024-11
ended
|
JPD20 RHD | — | |
| 896B7-62020 |
Bracket, EV Control Computer, NO.1
2023-12 → 2024-11
ended
|
JPD20 LHD | — | |
| 896B7-62010 |
Bracket, EV Control Computer, NO.1
2024-12 → —
|
JPD20 RHD | — | |
| 896B7-62020 |
Bracket, EV Control Computer, NO.1
2024-12 → —
|
JPD20 LHD | — | |
| 896B7-62010 |
Bracket, EV Control Computer, NO.1
2020-11 → 2023-12
ended
|
JPD20 RHD | — | |
| 896B7-62020 |
Bracket, EV Control Computer, NO.1
2020-11 → 2023-12
ended
|
JPD20 LHD | — | |
| 89981D — Computer, EV Control | ||||
| 89981-62390 note |
Computer, EV Control
2023-12 → 2024-11
ended
|
JPD20 H,S | — | |
| 89981-62400 note |
Computer, EV Control
2023-12 → 2024-11
ended
|
JPD20 H,S | — | |
| 89981-62420 note |
Computer, EV Control
2023-12 → 2024-11
ended
|
JPD20 B | — | |
| 89981-62390 note |
Computer, EV Control
2024-12 → —
|
JPD20 H,S | — | |
| 89981-62400 note |
Computer, EV Control
2024-12 → —
|
JPD20 H,S | — | |
| 89981-62420 note |
Computer, EV Control
2024-12 → —
|
JPD20 B | — | |
| 89981-62180 note |
Computer, EV Control
2020-11 → 2022-12
ended
|
JPD20 | — | |
| 89981-62310 note |
Computer, EV Control
2022-12 → 2023-12
ended
|
JPD20 | — | |
| 89981-62320 note |
Computer, EV Control
2022-12 → 2023-12
ended
|
JPD20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
