Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

16 part groups · 2 illustrations

Illustrations

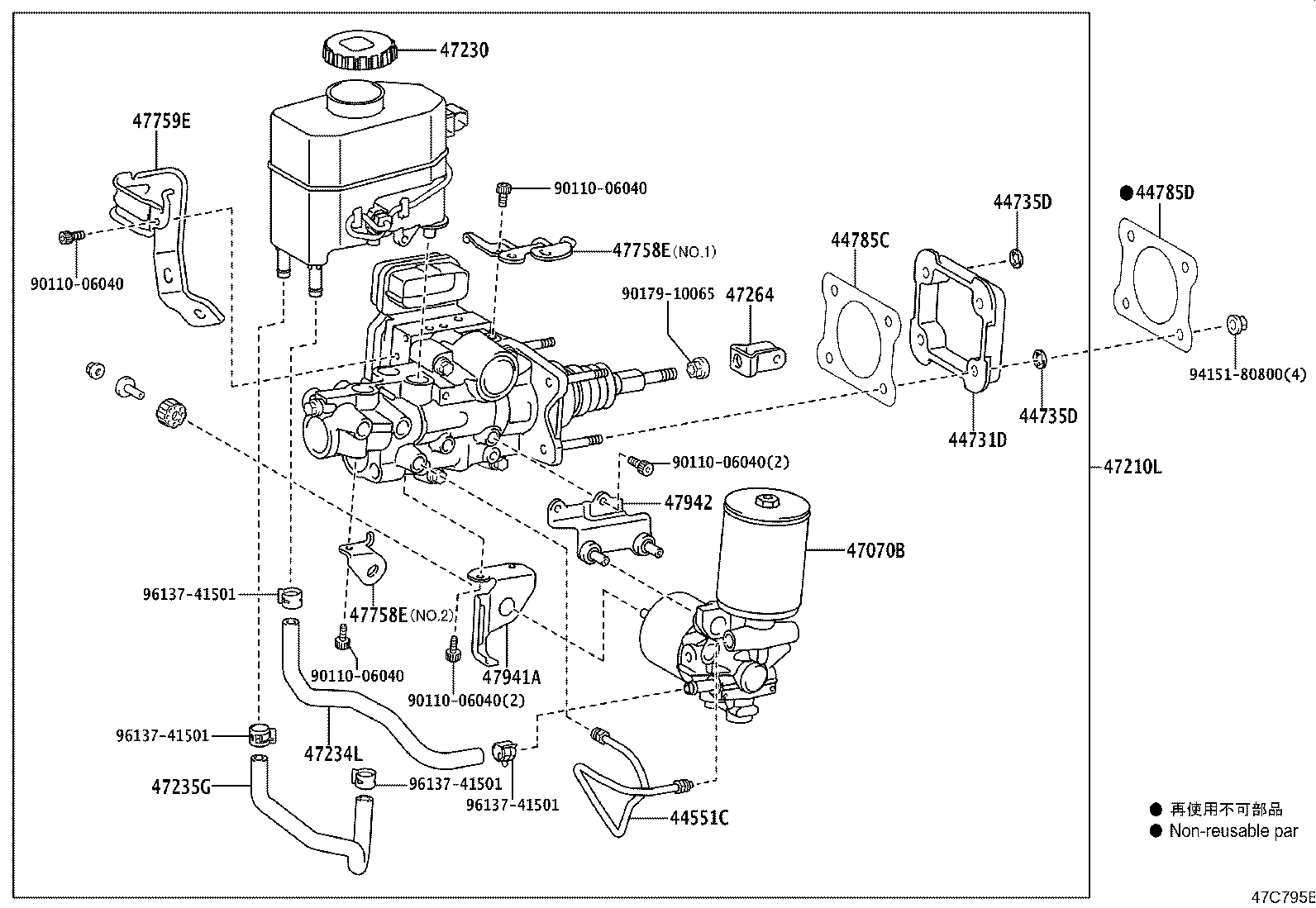

Figure 47C797D 47C797D 2020-11 → — Figure 47C795B 47C795B 2020-11 → —

Part groups

PNCDescription
44551C Tube, Brake Actuator, NO.1
44731D Bracket, Brake Booster
44735D Ring, Booster Bracket Stopper
44785C Gasket, Brake Booster
44785D Gasket, Brake Master Cylinder
47070B Pump Assy, Brake Booster W/Accumulator
47210L Brake Booster Assy, W/Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234L Hose, Reservoir, NO.1
47235G Hose, Reservoir, NO.2
47264 Clevis, Master Cylinder Push Rod
47288A Label, Brake Fluid Notice
47758E Bracket, Wire Clamp, NO.1
47759E Bracket, Wire Clamp, NO.2
47941A Bracket, Brake Power Supply, NO.1
47942 Bracket, Brake Power Supply, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
