Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe
Supported model
Data version 2024-11

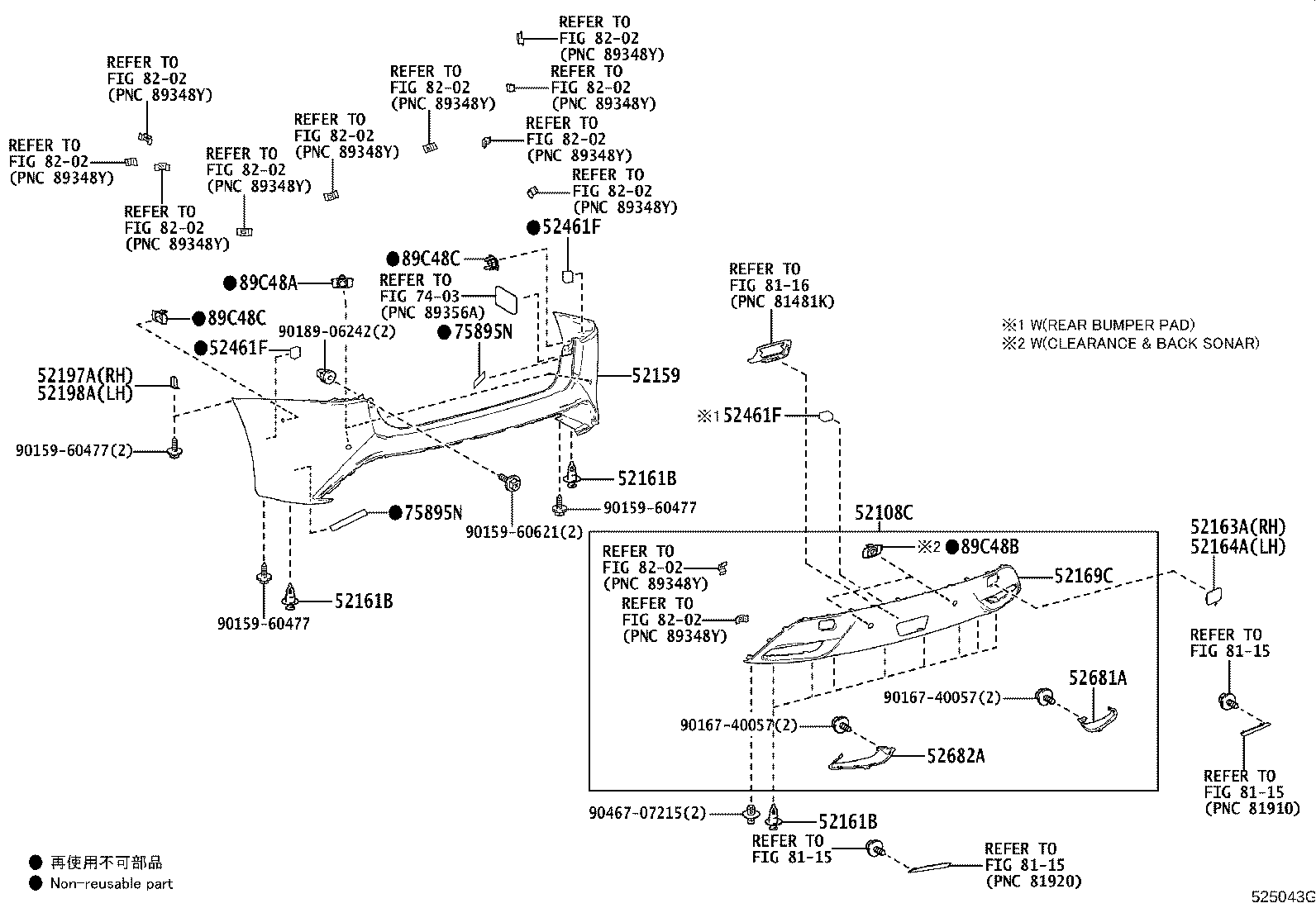

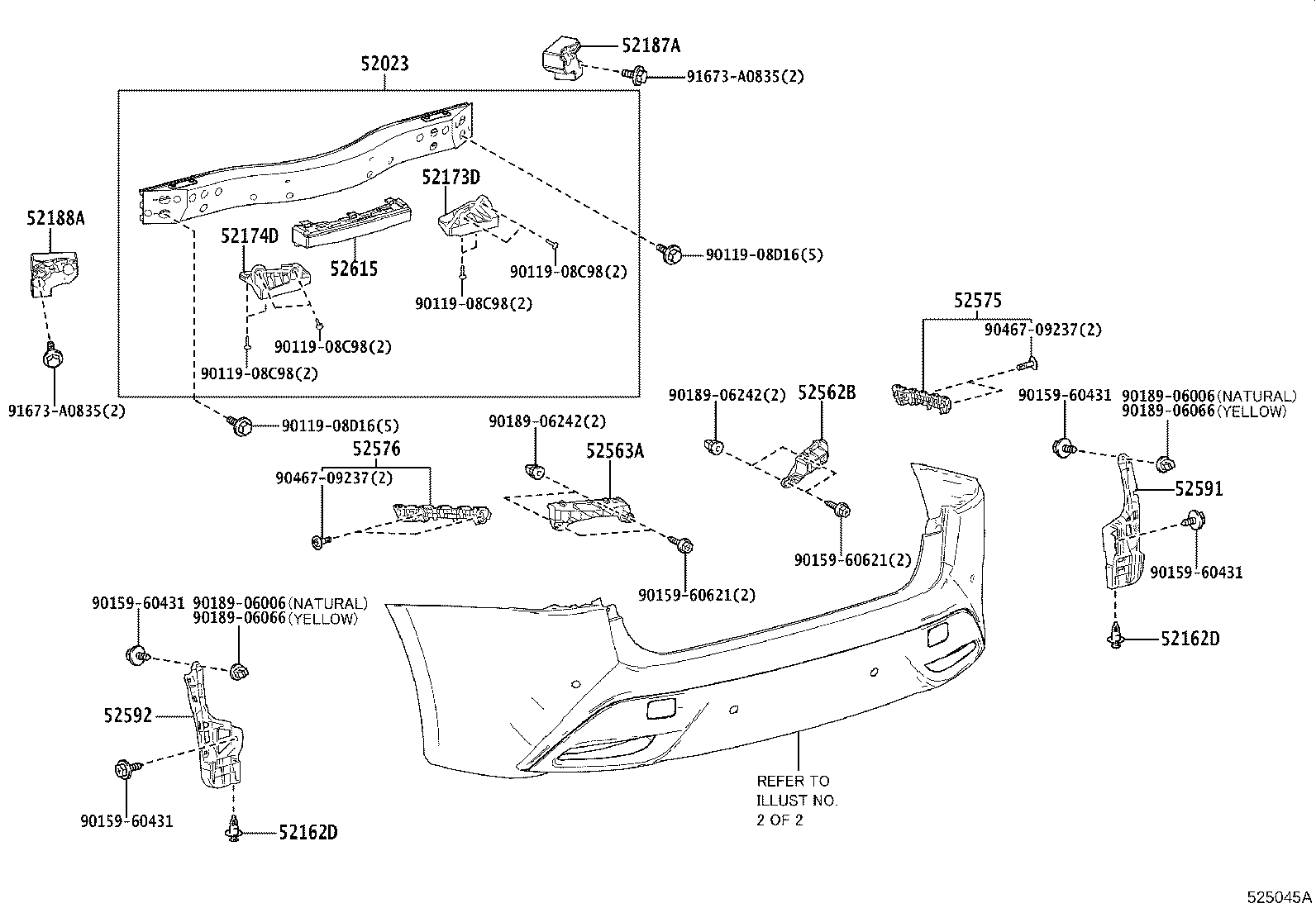

Rear Bumper & Bumper Stay
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52108C | Extension Sub-assy, Rear Bumper, Center |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52173D | Reinforcement, Rear Bumper Bar, RH |
| 52174D | Reinforcement, Rear Bumper Bar, LH |
| 52187A | Reinforcement, Rear Bumper Arm, RH |
| 52188A | Reinforcement, Rear Bumper Arm, LH |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52198A | Bracket, Rear Bumper Seal, LH |
| 52461F | Pad, Rear Bumper |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 52681A | Extension, Rear Bumper Arm, RH |
| 52682A | Extension, Rear Bumper Arm, LH |
| 75895N | Tape, Moulding, NO.1 |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
| 89C48C | Retainer, Ultrasonic Sensor, Rear Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
