Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe
Supported model
Data version 2024-11

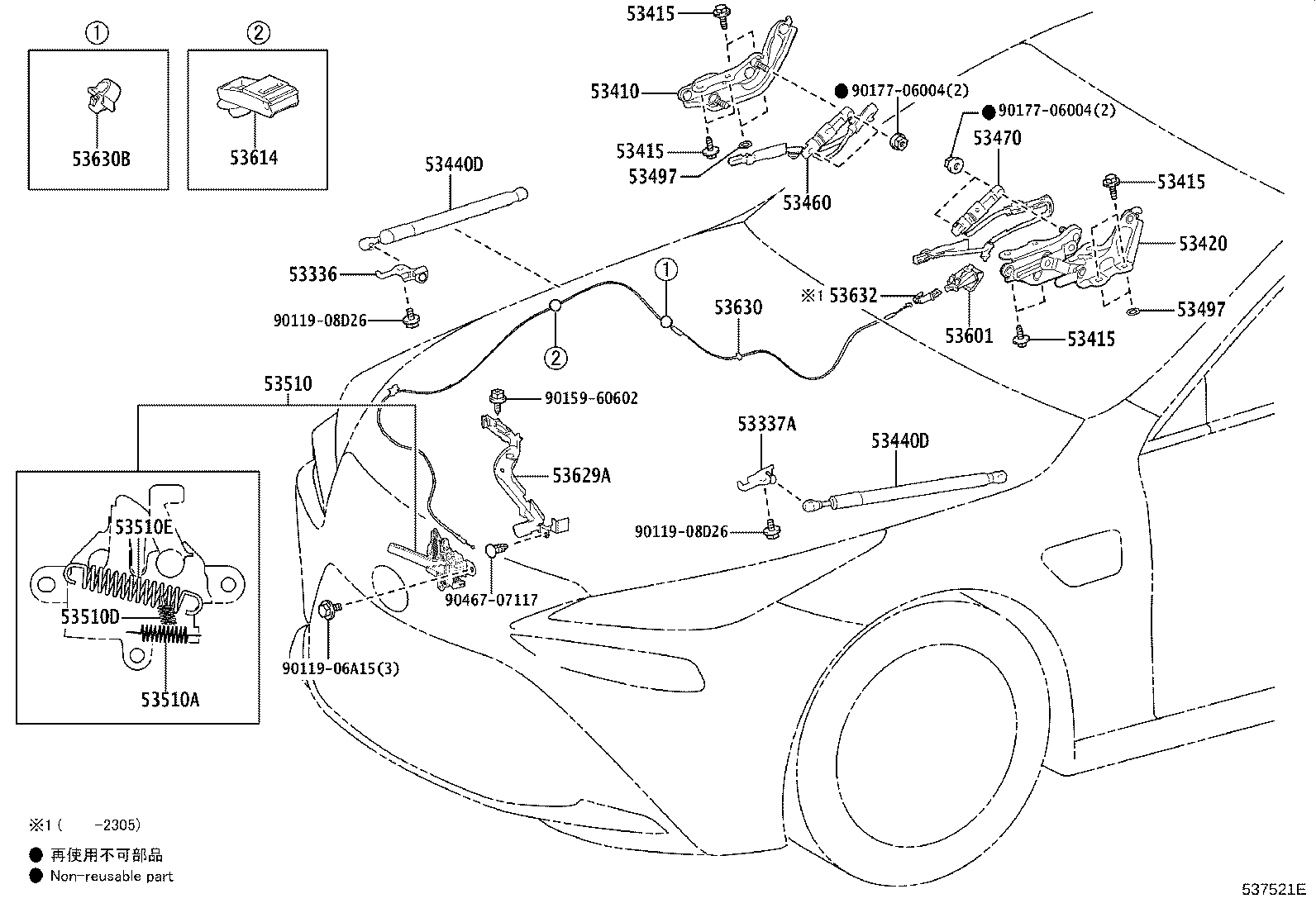

Hood Lock & Hinge
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53336 | Bracket, Hood Stay, RH |
| 53337A | Bracket, Hood Stay, LH |
| 53410 | Hinge Assy, Hood, RH |
| 53415 | Bolt, Hood Hinge |
| 53420 | Hinge Assy, Hood, LH |
| 53440D | Support Assy, Hood |
| 53460 | Lifter Assy, Pop UP Hood, RH |
| 53470 | Lifter Assy, Pop UP Hood, LH |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53510D | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53614 | Clamp, Hood Lock Control Cable |
| 53629A | Cover, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
| 53632 | Holder, Hood Lock Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
