Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

21 part groups · 2 illustrations

Illustrations

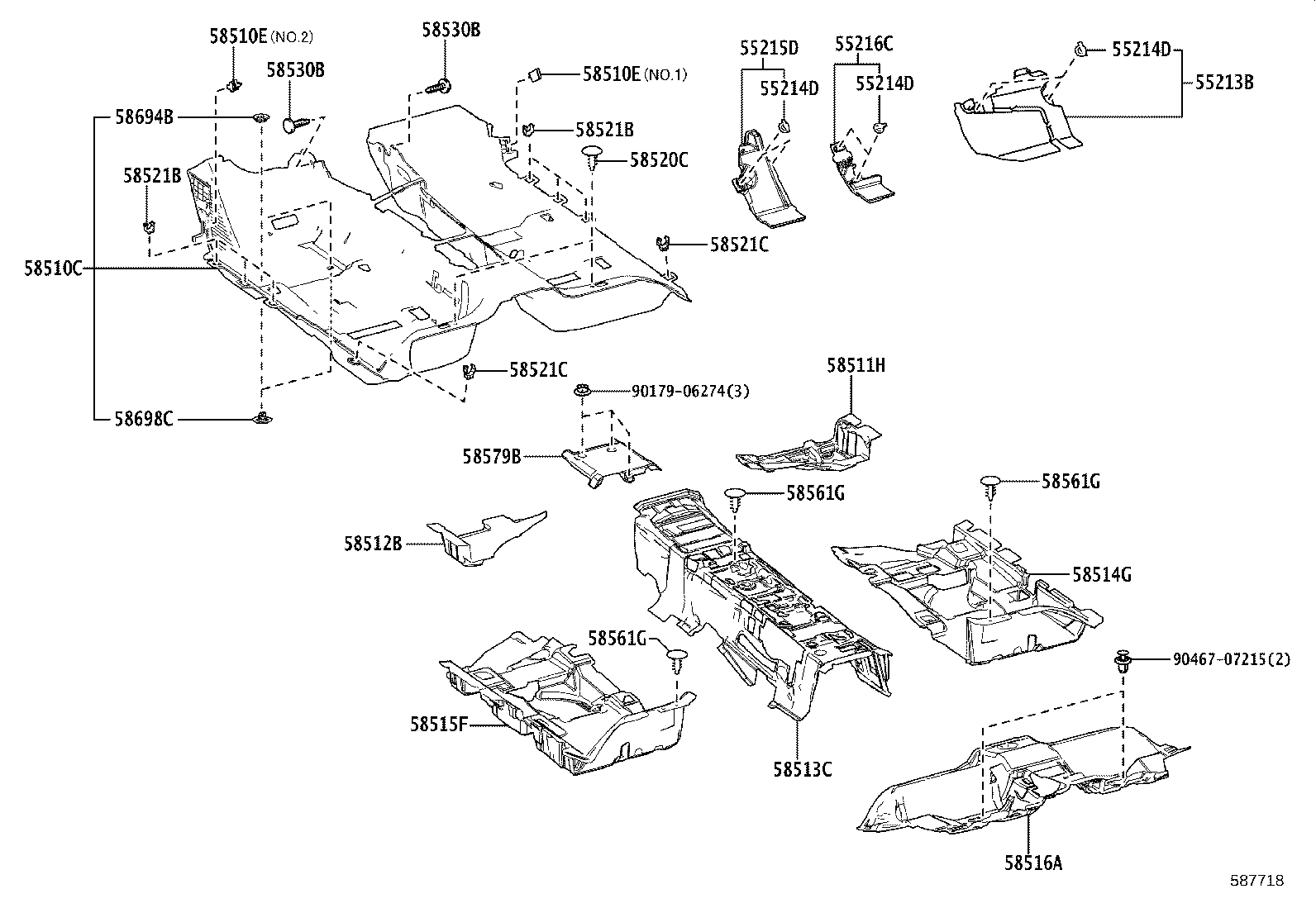

Figure 587717 587717 2020-11 → — Figure 587718 587718 2020-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55215D Pad, Dash Panel Insulator, NO.3
55216C Pad, Dash Panel Insulator, NO.4
58510C Carpet Assy, Front Floor, Front
58510E Retainer, Floor Carpet
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58513C Mat, Floor, Front Center
58514G Mat, Floor, Rear RH
58515F Mat, Floor, Rear LH
58516A Mat, Floor, NO.6
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58521C Hook, Floor Carpet NO.2
58530B Clip(FOR FRONT FLOOR CARPET)
58561G Clip(FOR FRONT FLOOR SILENCER)
58579B Pad, Rear Floor
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
