Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

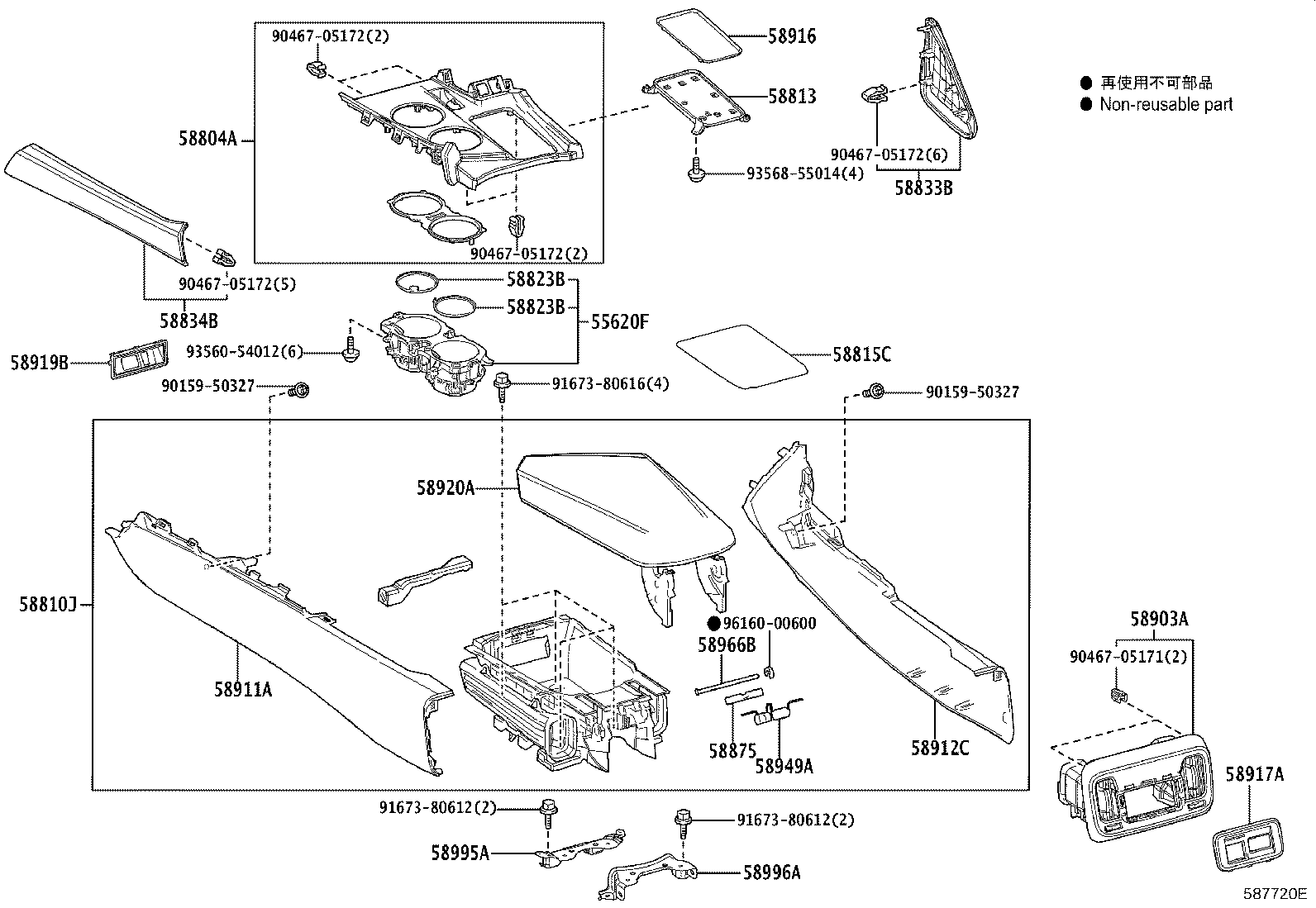

Figure 587721G 587721G 2020-11 → — Figure 587720E 587720E 2020-11 → —

Part groups

PNCDescription
55620F Holder Assy, Console Box Cup
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58813 Box, Console, Upper
58815C Carpet, Console Box
58823B Box, Console Compartment
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58875 Spacer, Console Box
58903A Panel Sub-assy, Console Rear End
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58916 Mat, Box Bottom
58917A Cover, Console Box, Rear
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58949A Spring, Console Box Mounting Bracket
58966B Pin, Console Compartment Door Stopper
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
