Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

21 part groups · 2 illustrations

Illustrations

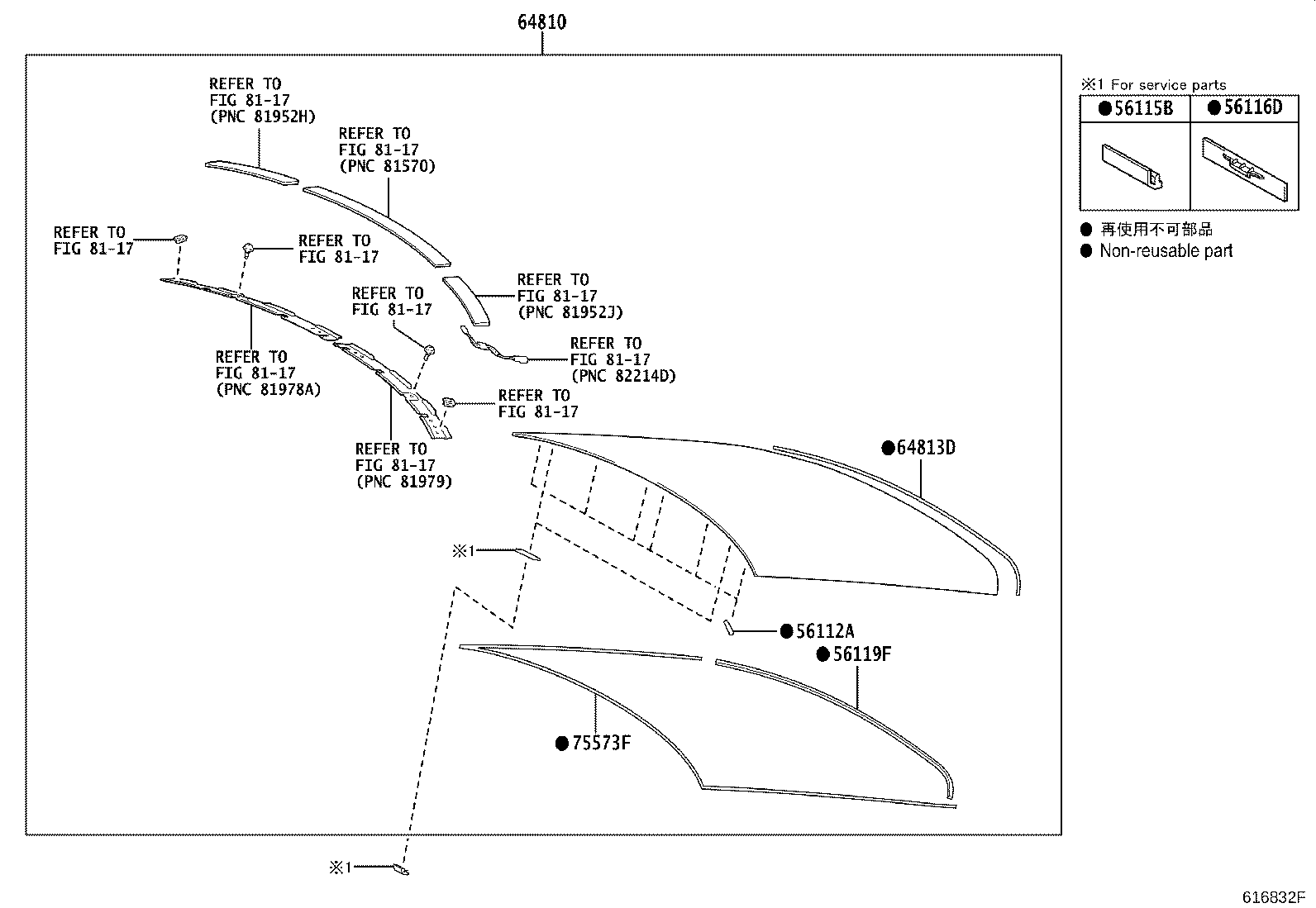

Figure 616833B 616833B 2020-11 → — Figure 616832F 616832F 2020-11 → —

Part groups

PNCDescription
56112A Dam, Window Glass Adhesive
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
56119F Seal, Windshield Glass
63102A Panel Sub-assy, Windshield Header
63107E Reinforcement Sub-assy, Roof Panel, NO.5
63111 Panel, Roof
63113B Panel, Roof, Rear
63128 Reinforcement, Roof Panel, NO.6
63133B Frame, Back Window
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63201M Glass Sub-assy, Roof Window, NO.1
63203A Housing Sub-assy, Sliding Roof OR Removable Roof
63260A Gear Sub-assy, Sliding Roof Drive
64101 Panel Sub-assy, Upper Back
64810 Window Assy, Back
64813D Dam, Back Window Glass Adhesive
75573F Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
