Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 2 illustrations

Illustrations

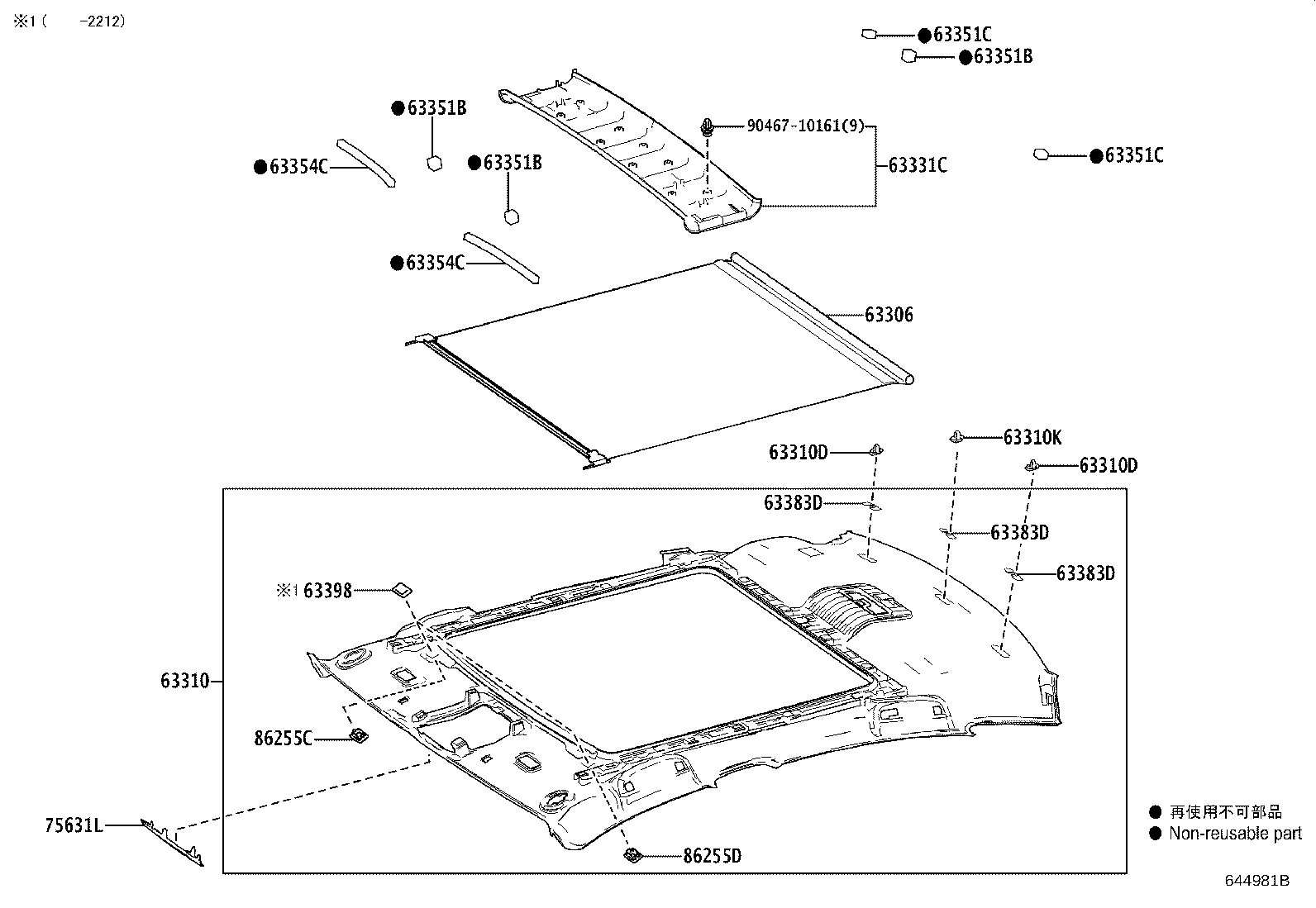

Figure 644980B 644980B 2020-11 → — Figure 644981B 644981B 2020-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310K Clip
63331C Protector, Roof Center Reinforcement
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63383D Retainer, Roof Headlining, Rear
63398 Plate, Roof Headlining Support
75631L Garnish, Roof Top, Front
86255C Case, Microphone, RH
86255D Case, Microphone, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
