Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

4 part groups · 2 illustrations

Illustrations

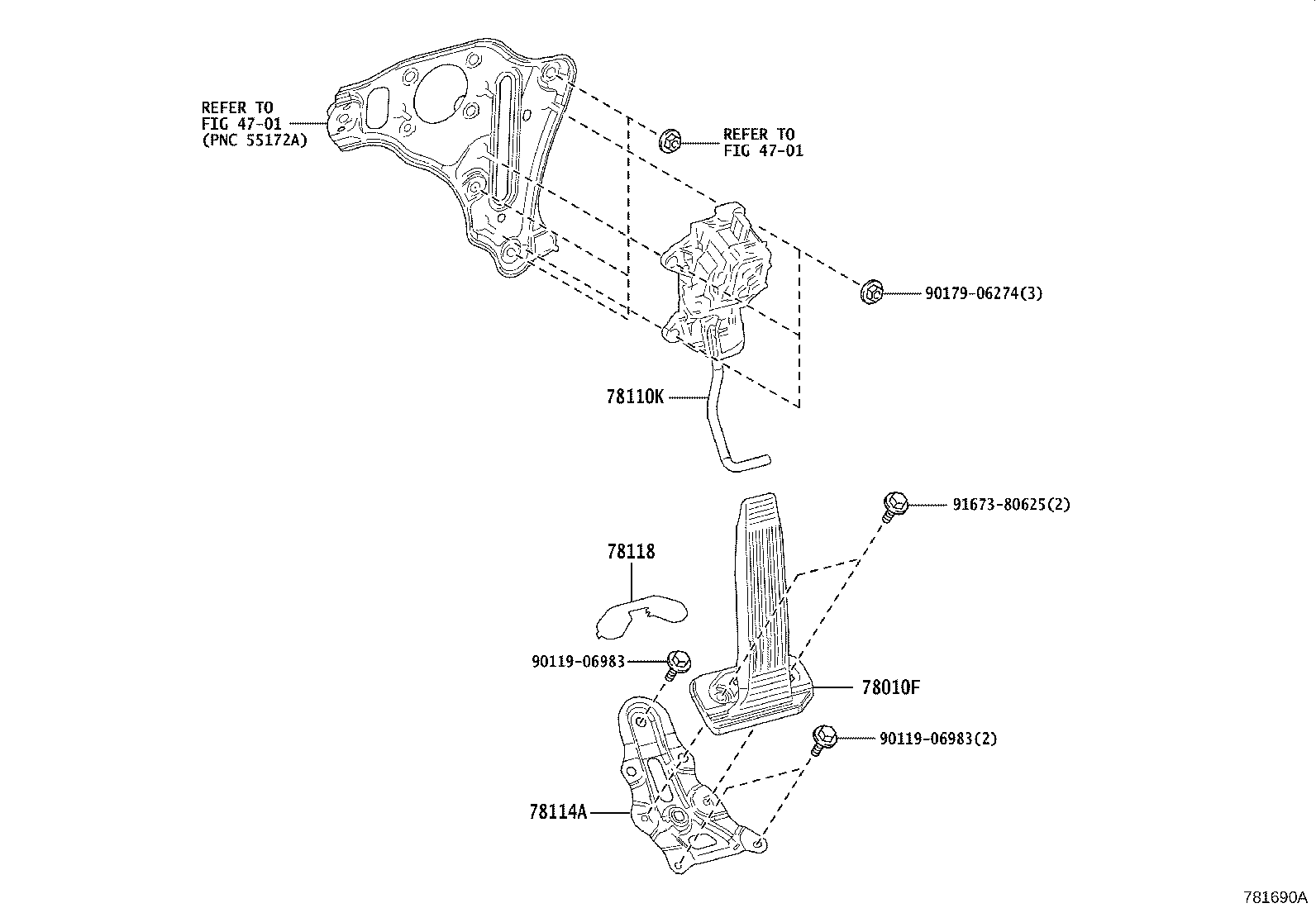

Figure 781691A 781691A 2020-11 → — Figure 781690A 781690A 2020-11 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78114A Bracket, Accelerator Pedal Support
78118 Pad, Accelerator Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
