Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

83 part groups · 19 illustrations

Illustrations

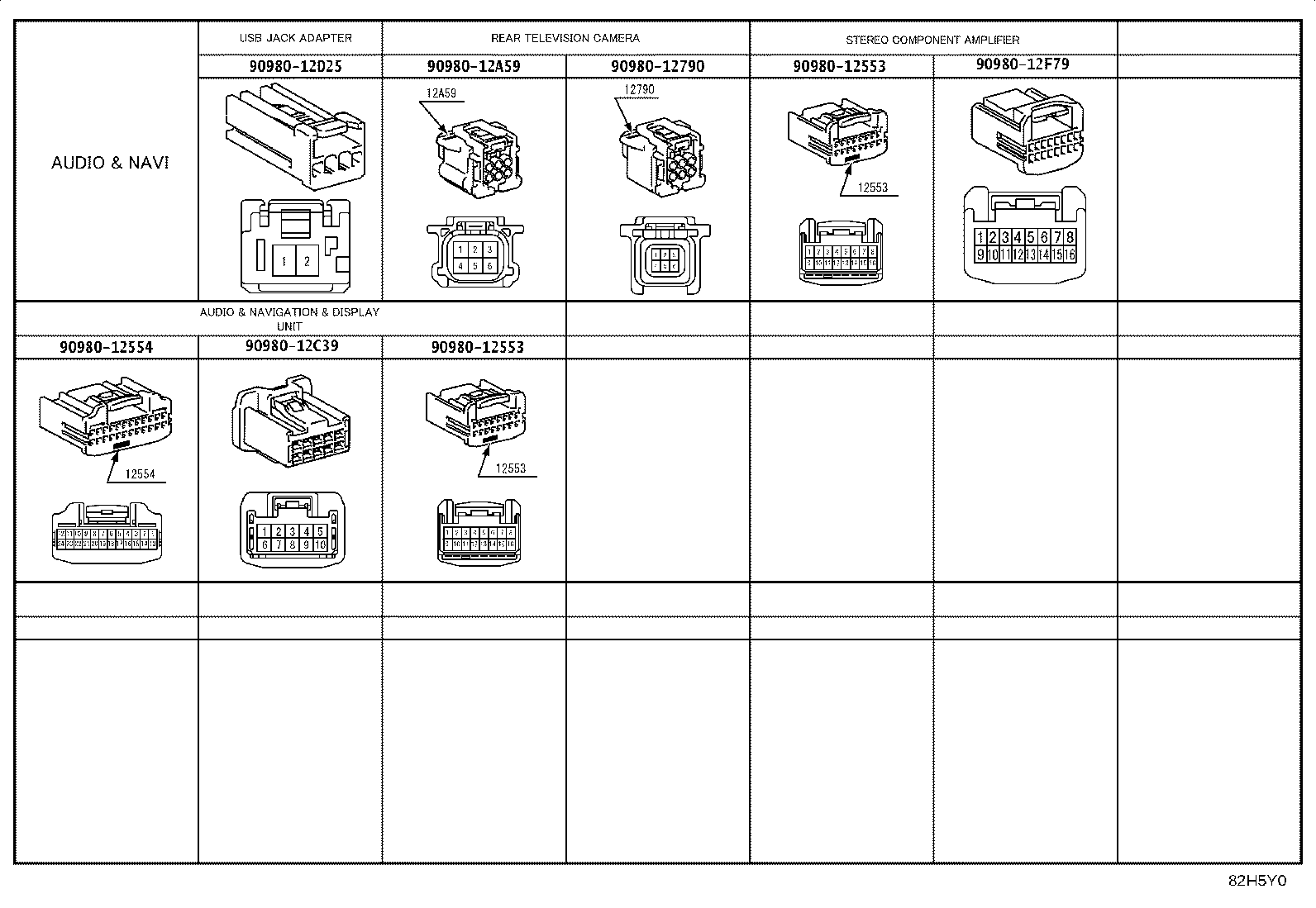

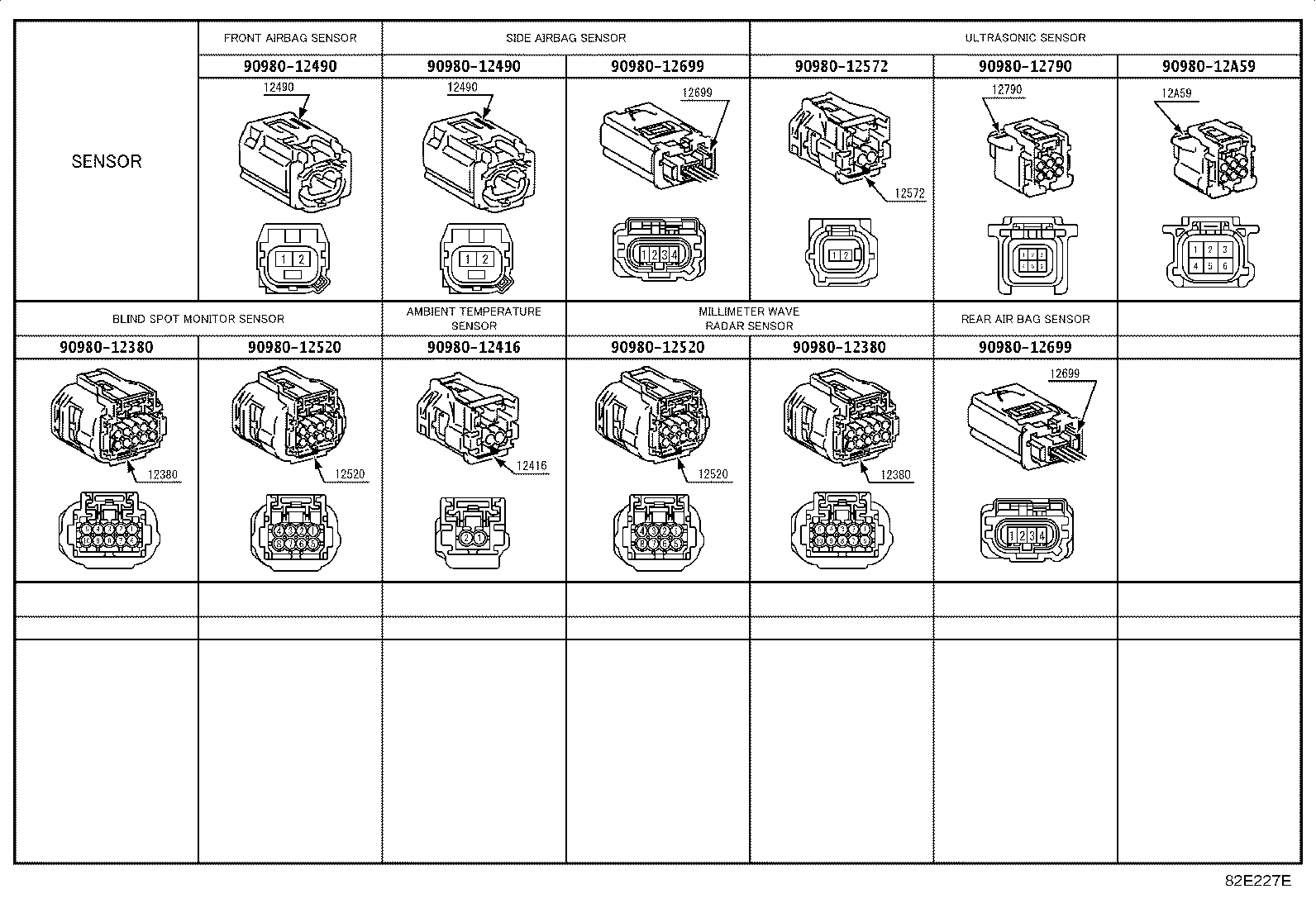

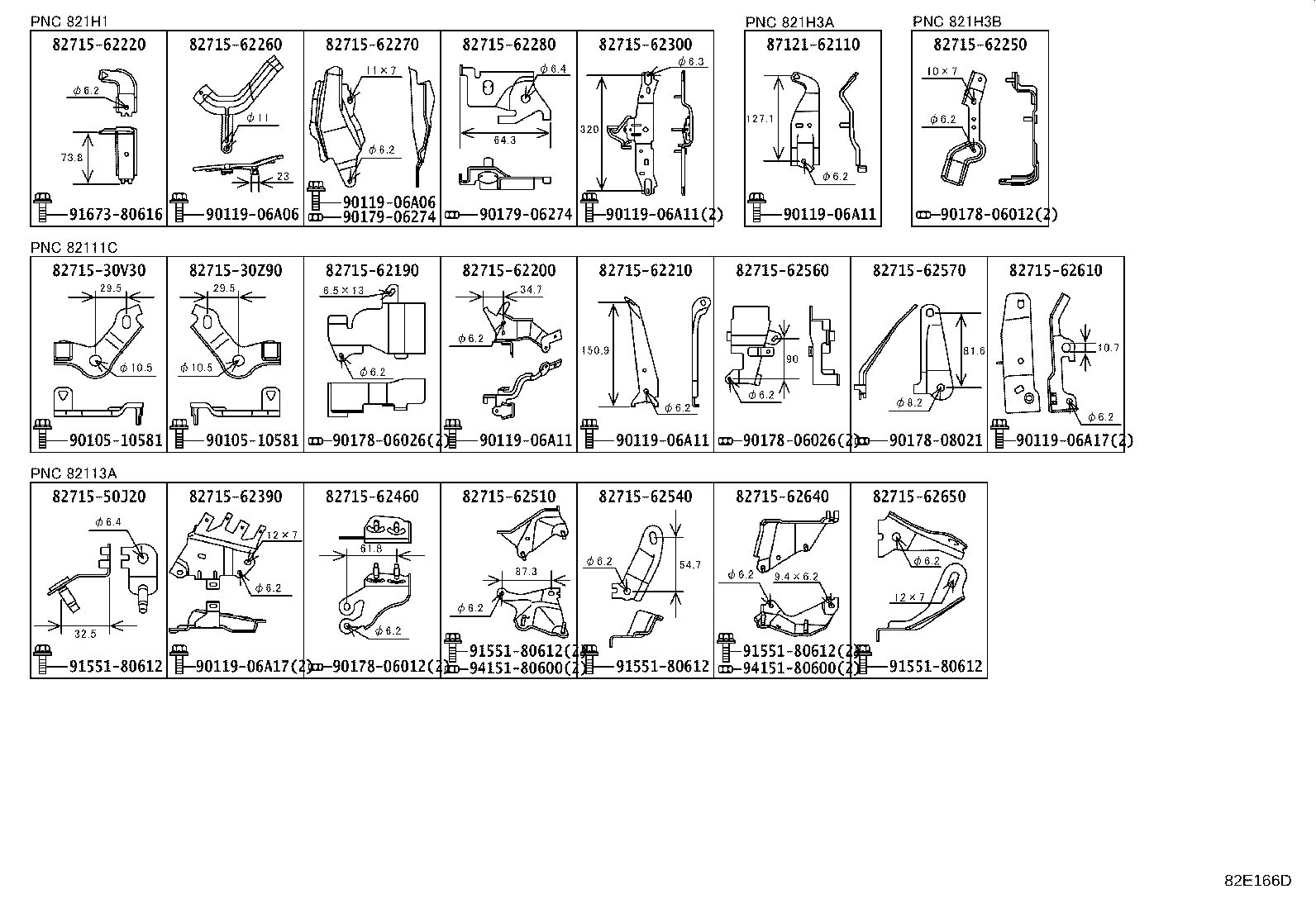

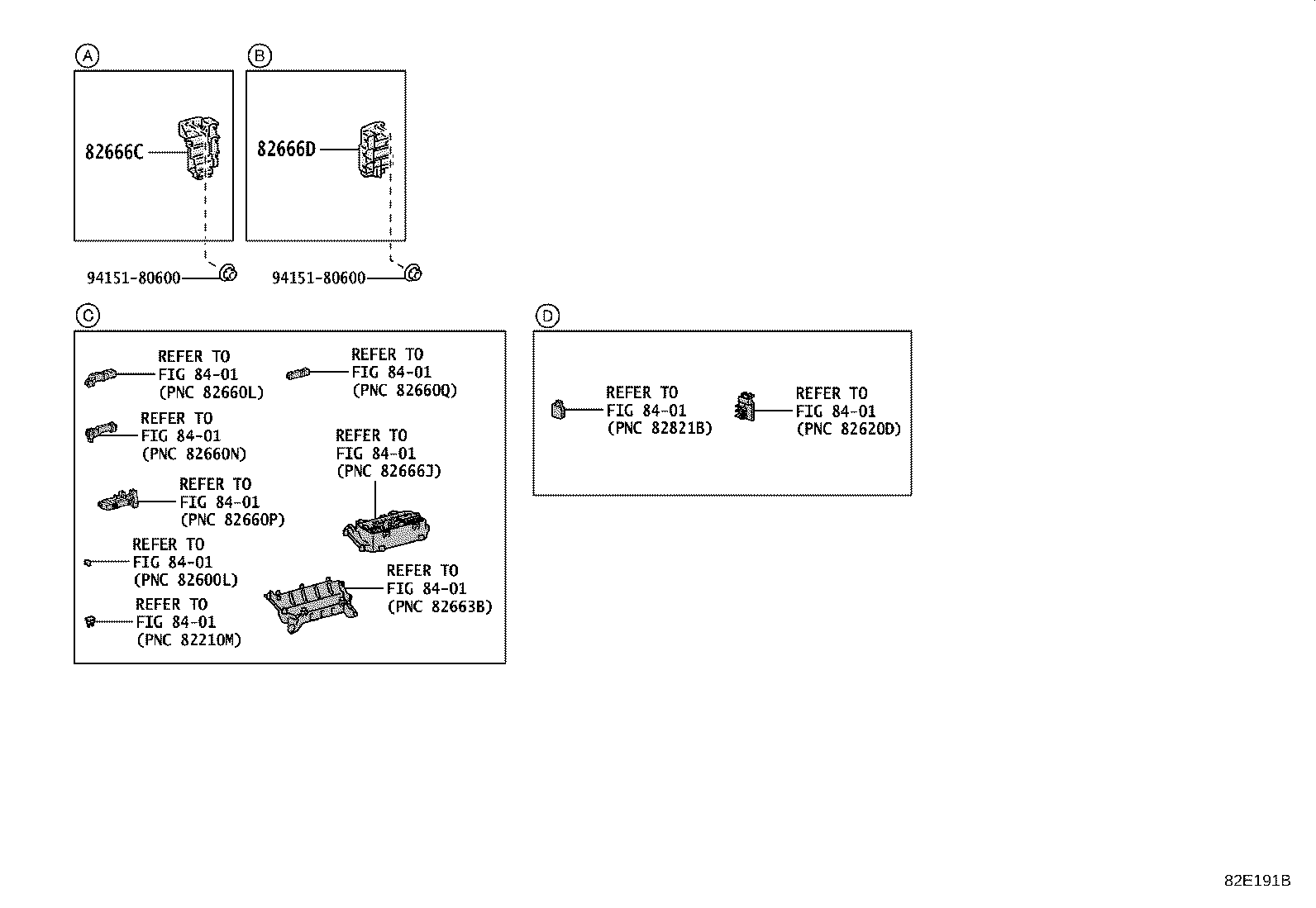

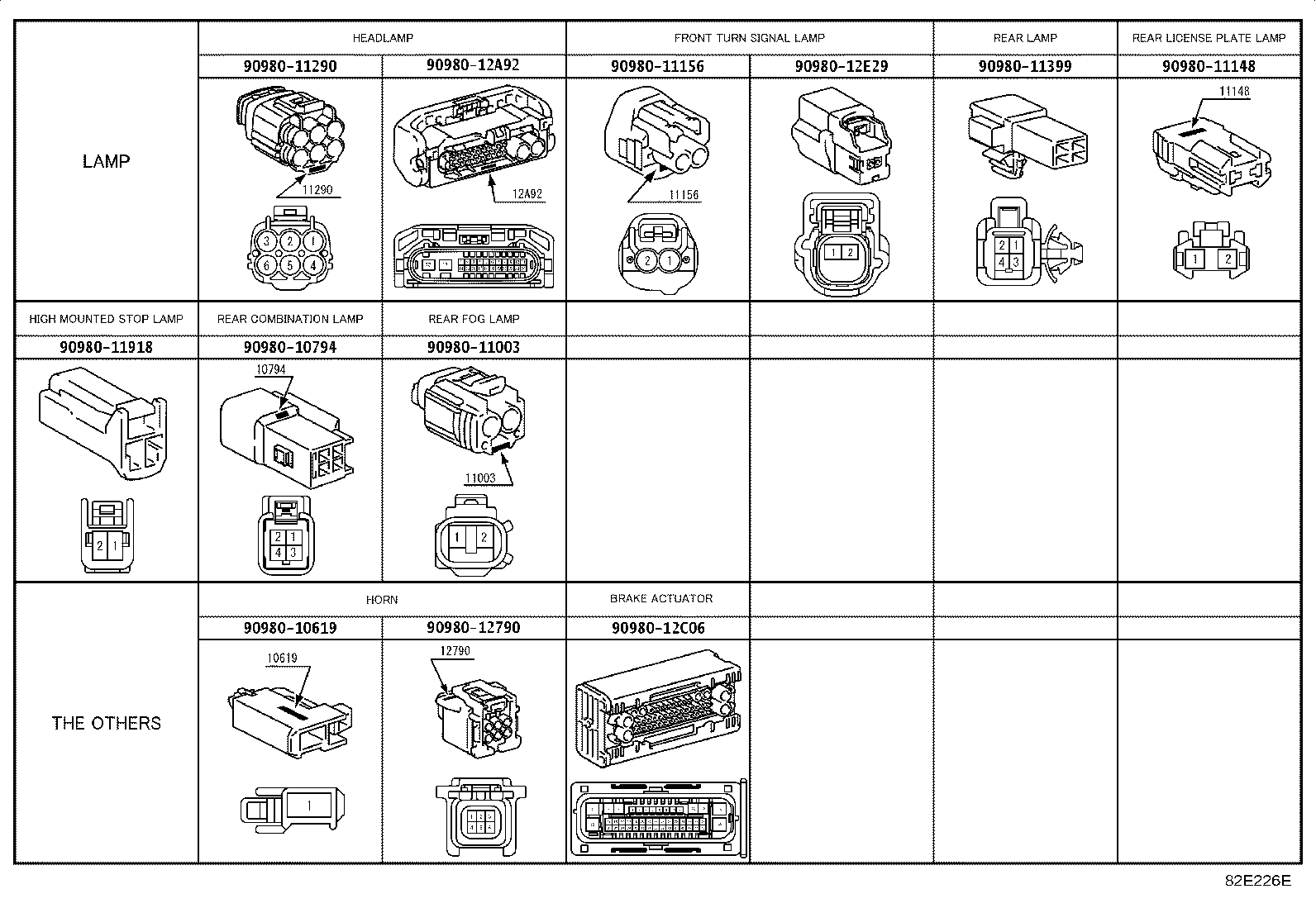

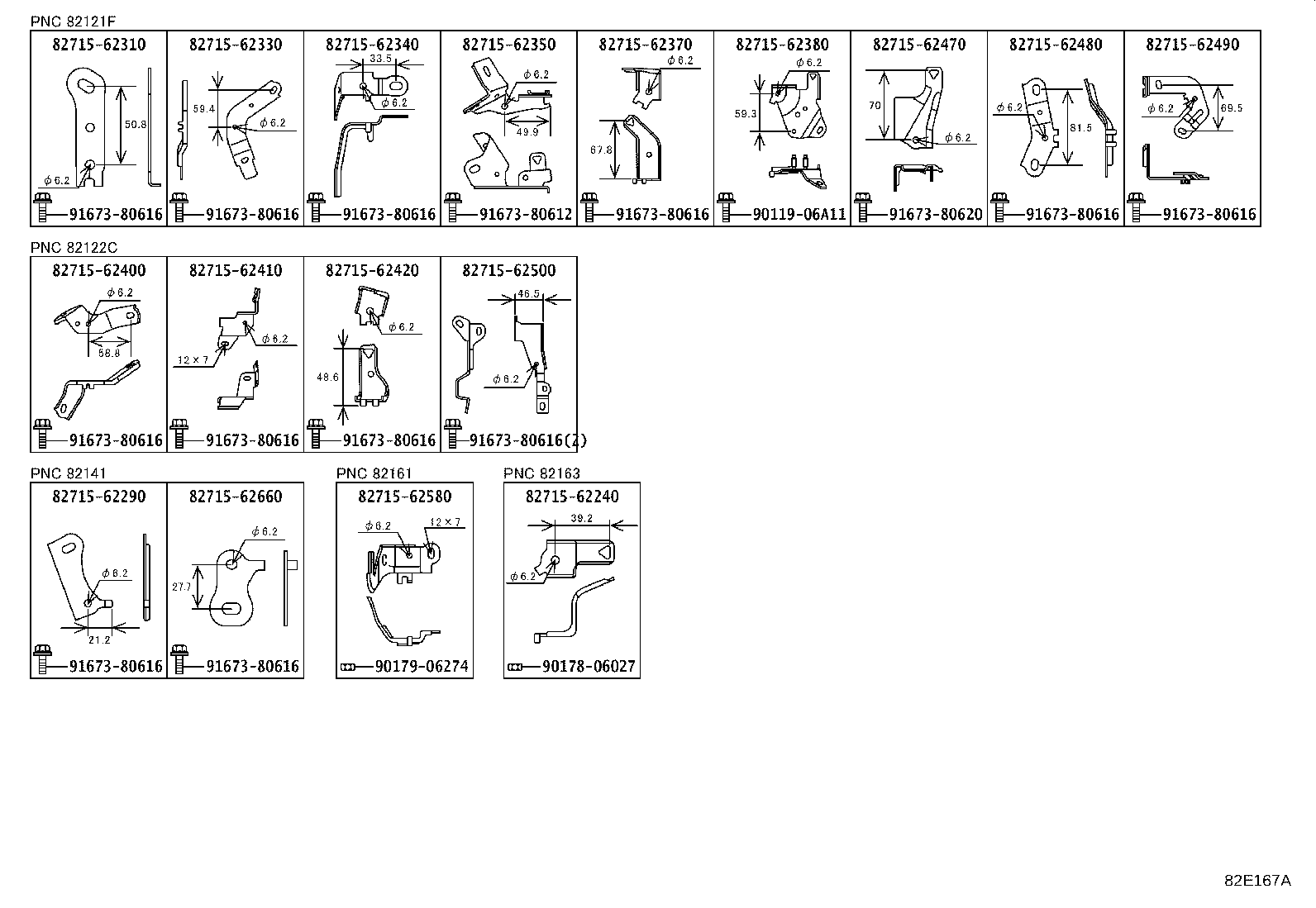

Figure 82H5E5A 82H5E5A 2020-11 → — Figure 82H5E6A 82H5E6A 2020-11 → — Figure 82E140C 82E140C 2020-11 → — Figure 82E141C 82E141C 2020-11 → — Figure 82E142 82E142 2020-11 → — Figure 82E143 82E143 2020-11 → — Figure 82E144 82E144 2020-11 → — Figure 82E145G 82E145G 2020-11 → — Figure 82E191B 82E191B 2020-11 → — Figure 82E146B 82E146B 2020-11 → — Figure 82E147B 82E147B 2020-11 → — Figure 82E148 82E148 2020-11 → — Figure 82E149 82E149 2020-11 → — Figure 82E166D 82E166D 2020-11 → — Figure 82E167A 82E167A 2020-11 → — Figure 82E161 82E161 2020-11 → — Figure 82E226E 82E226E 2020-11 → — Figure 82E227E 82E227E 2020-11 → — Figure 82H5Y0 82H5Y0 2020-11 → —

Part groups

PNCDescription
77AAA Wire, Hydrogen Tank Valve

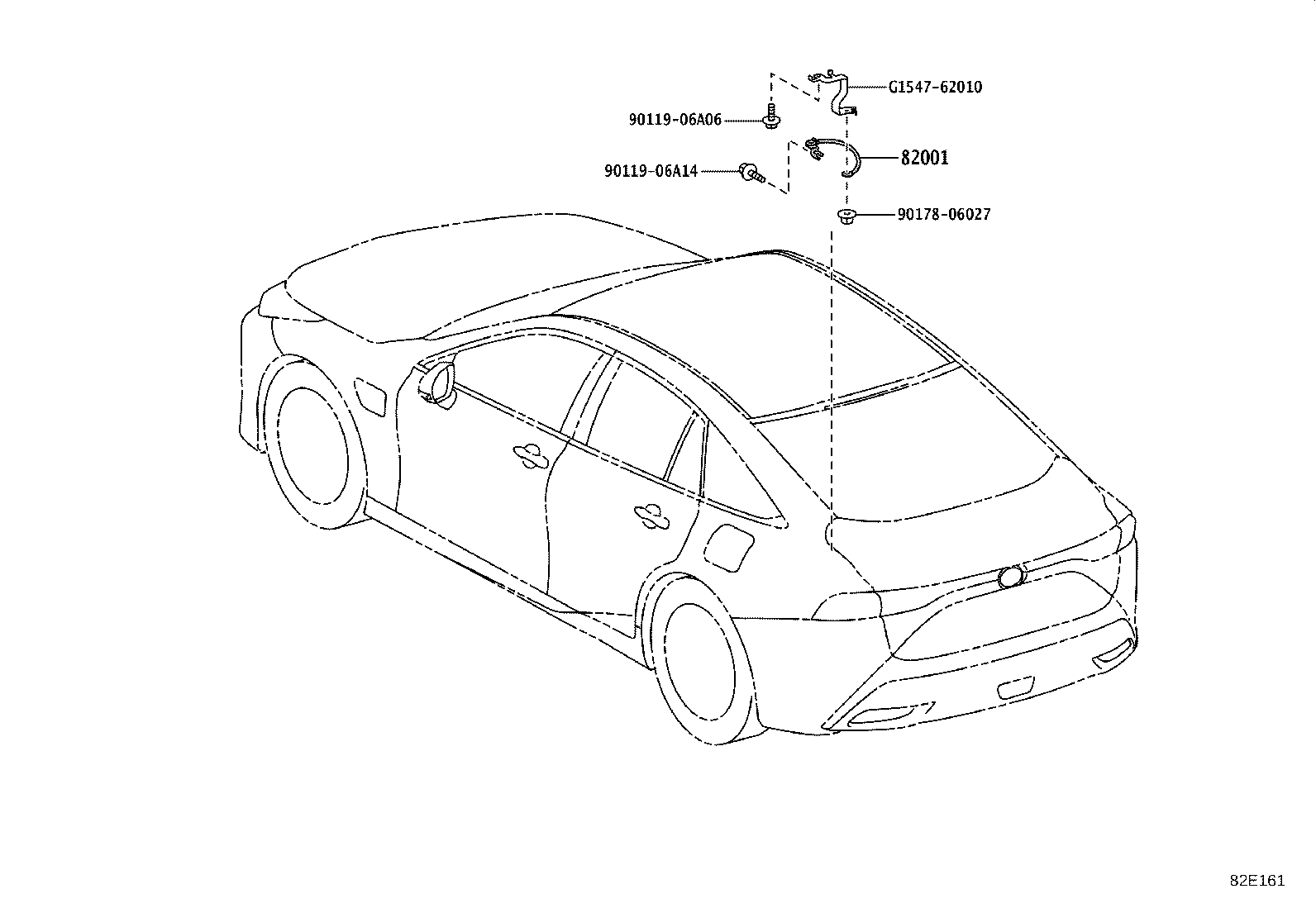

82001 Cable, Bond, NO.1

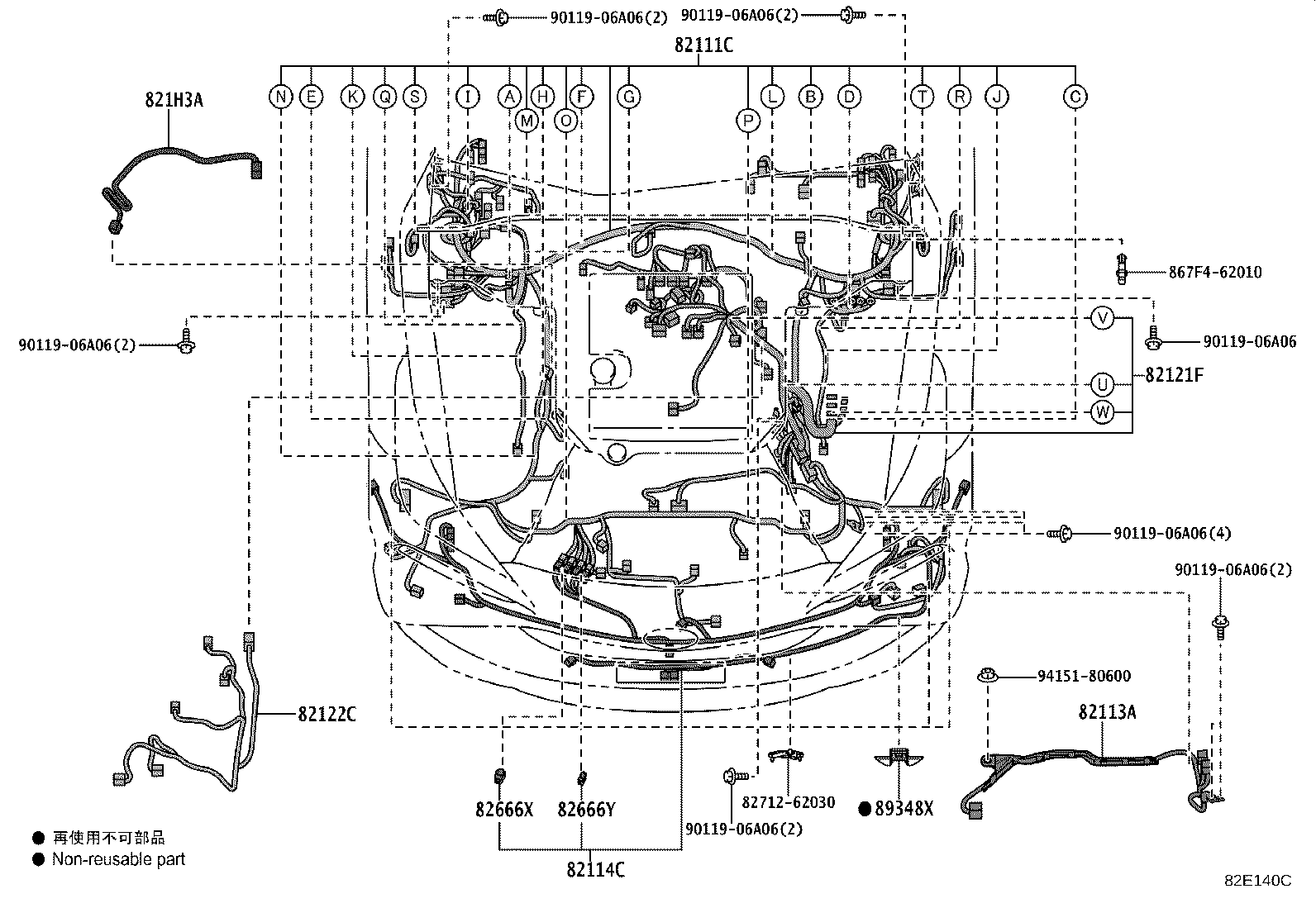

82111C Wire, Front Compartment, Main
82113A Wire, Front Compartment, NO.3
82114C Wire, Front Compartment, NO.4
82121F Wire, Stack
82122C Wire, Stack, NO.2

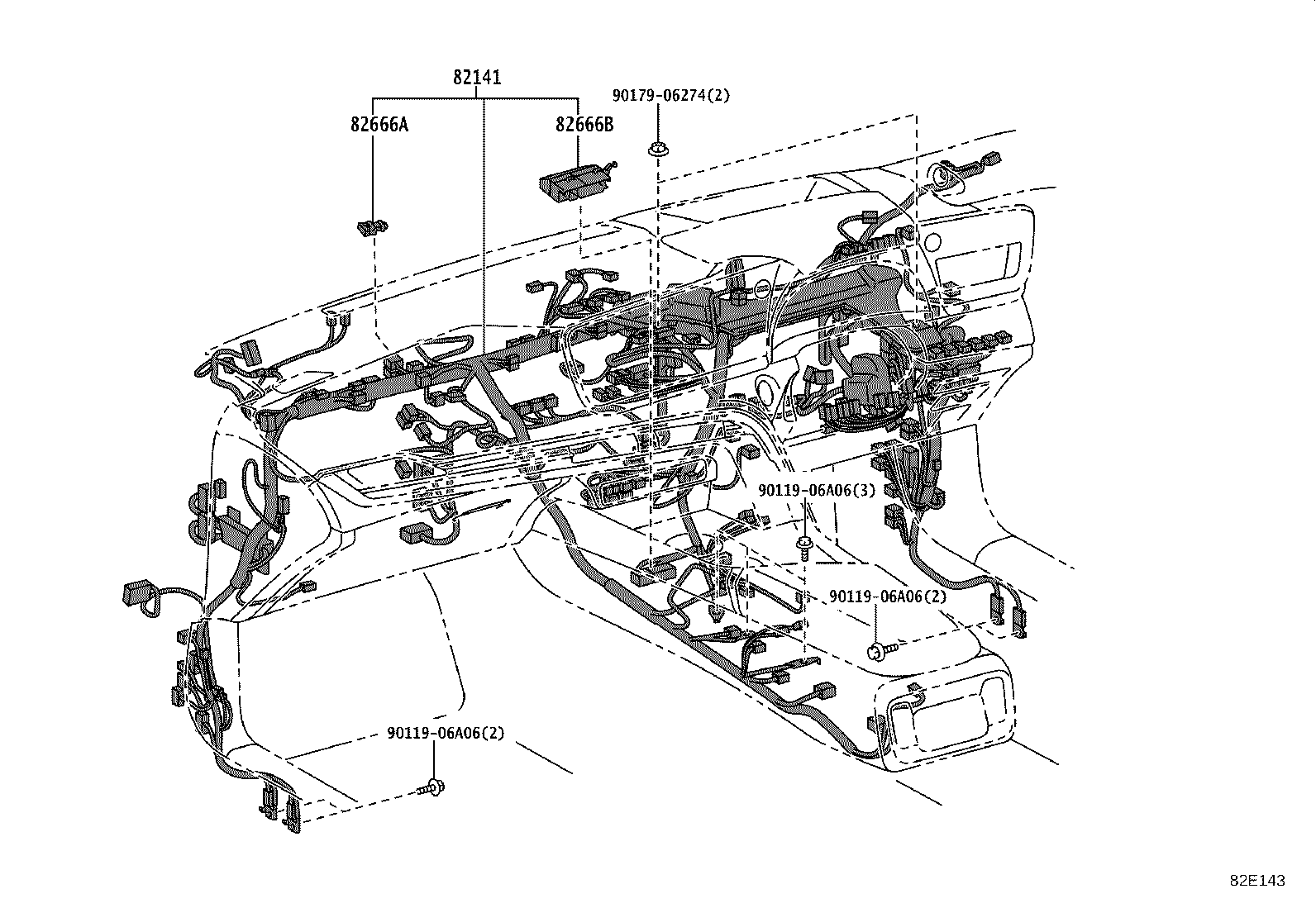

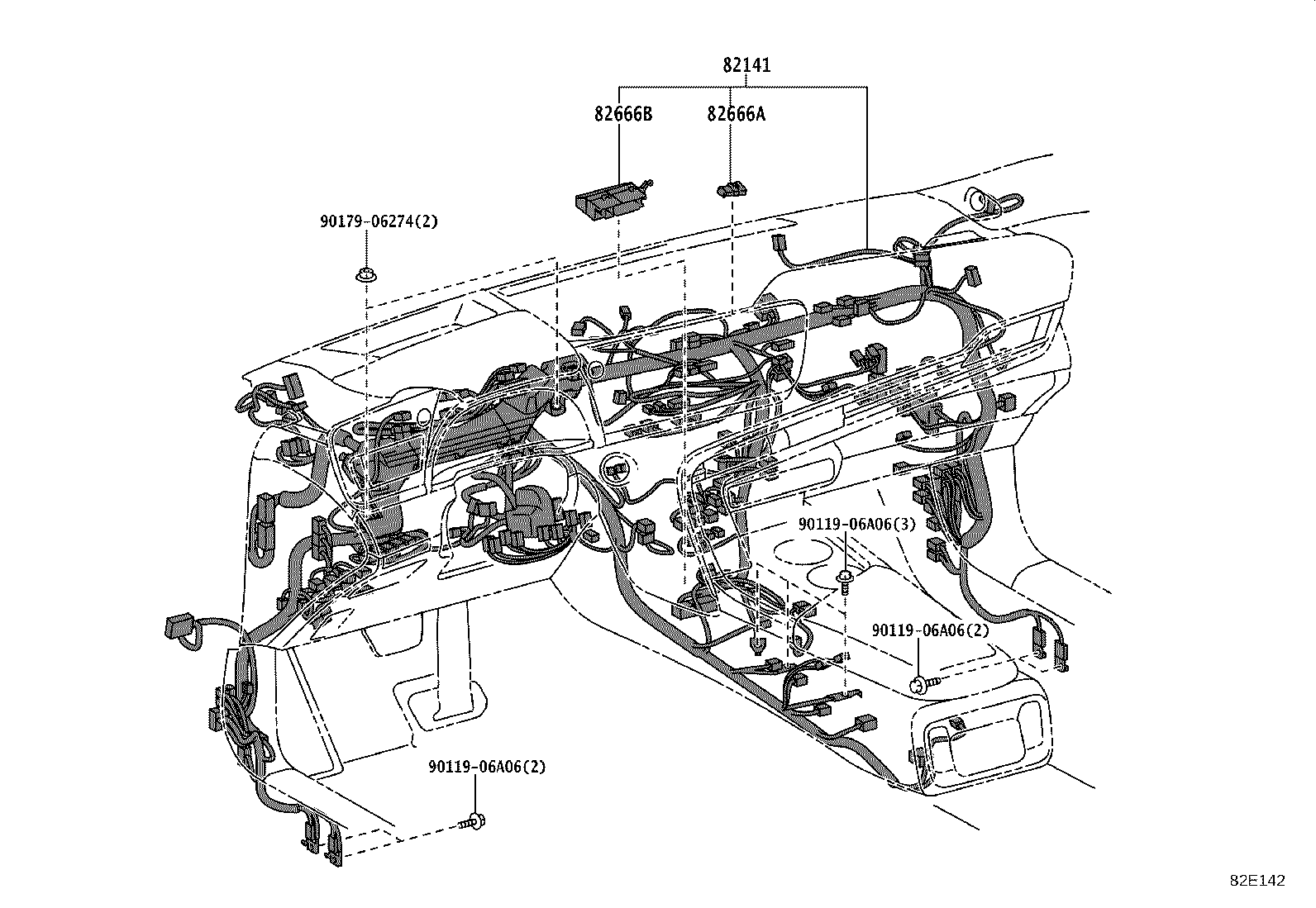

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

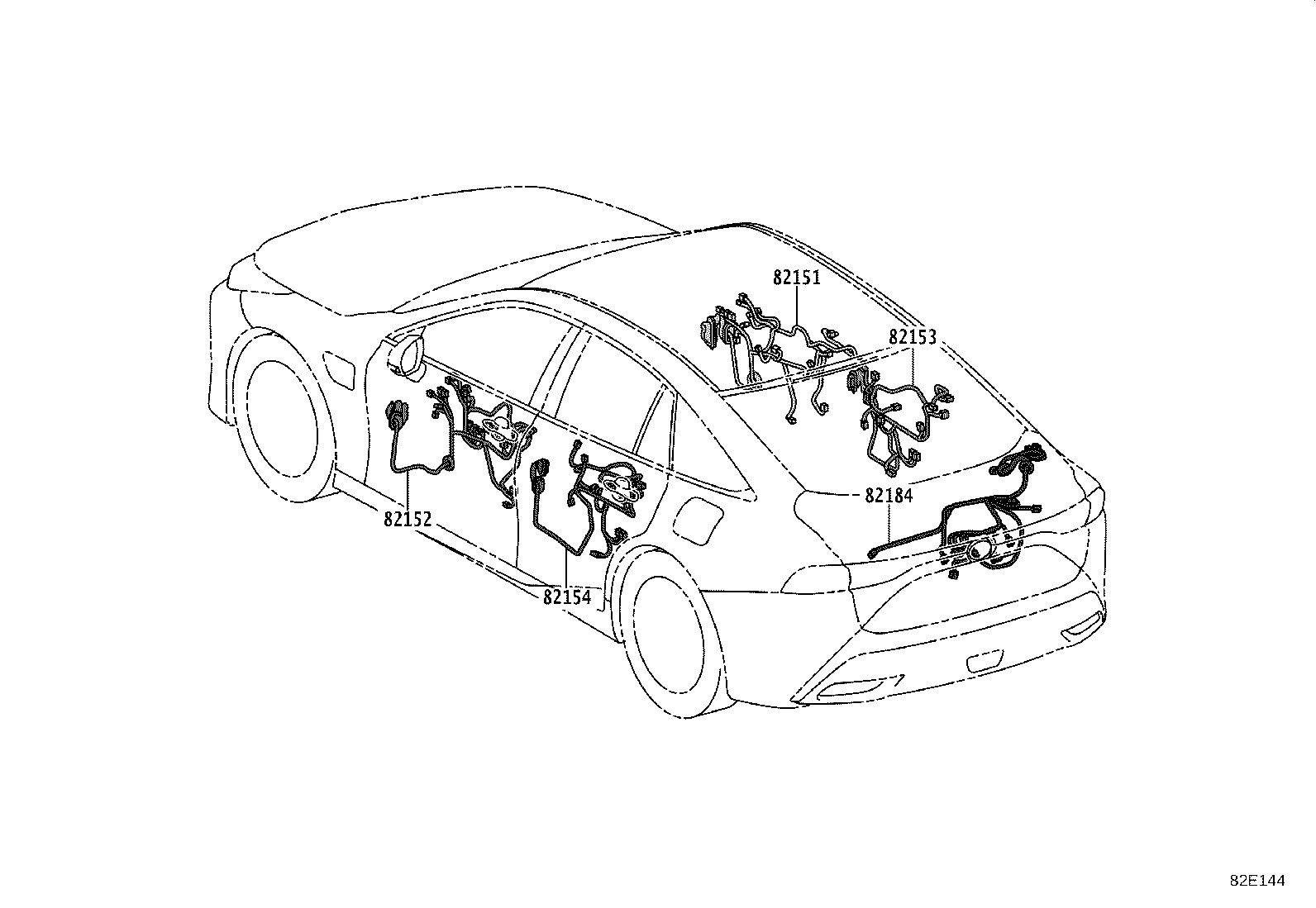

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1

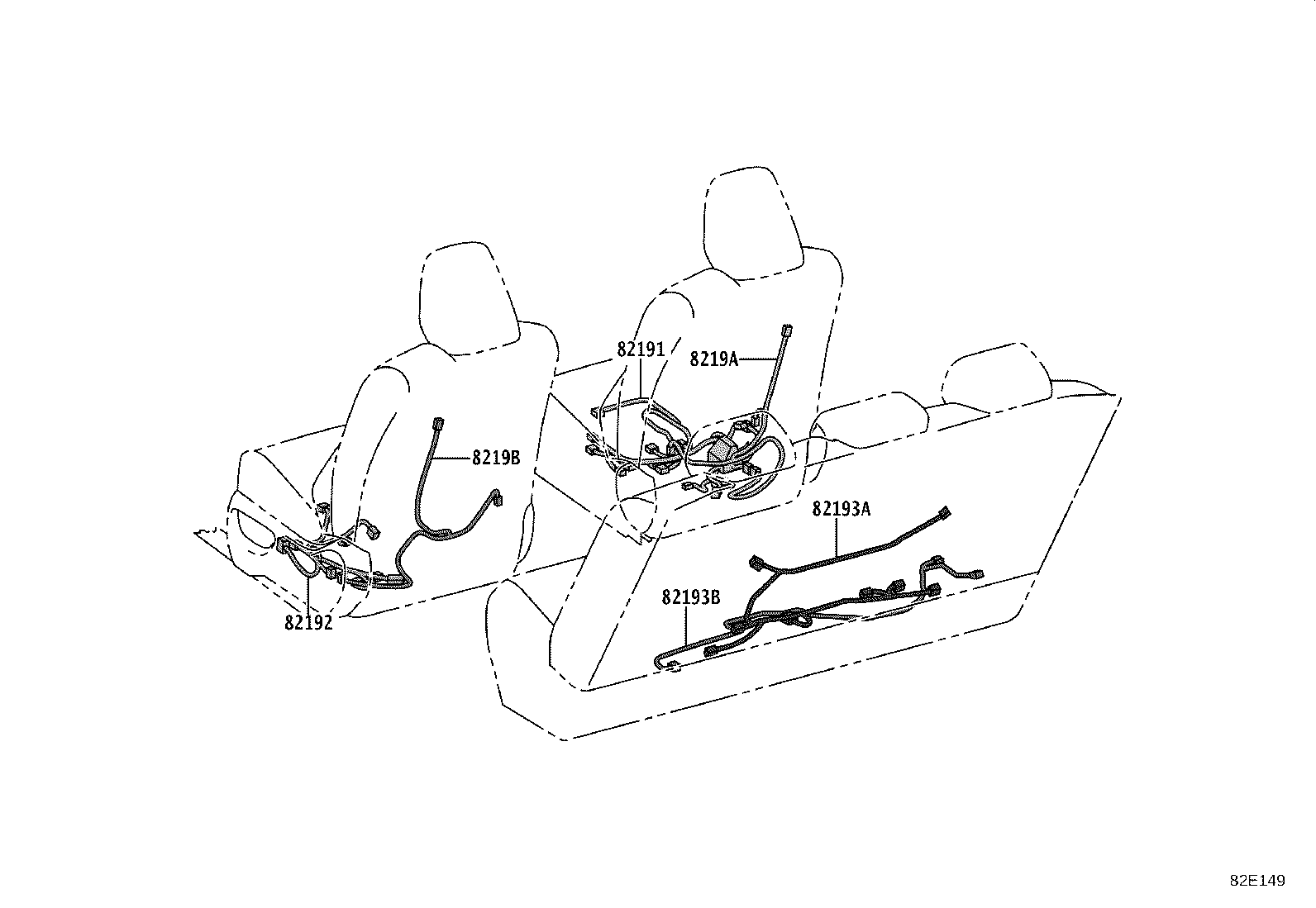

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH

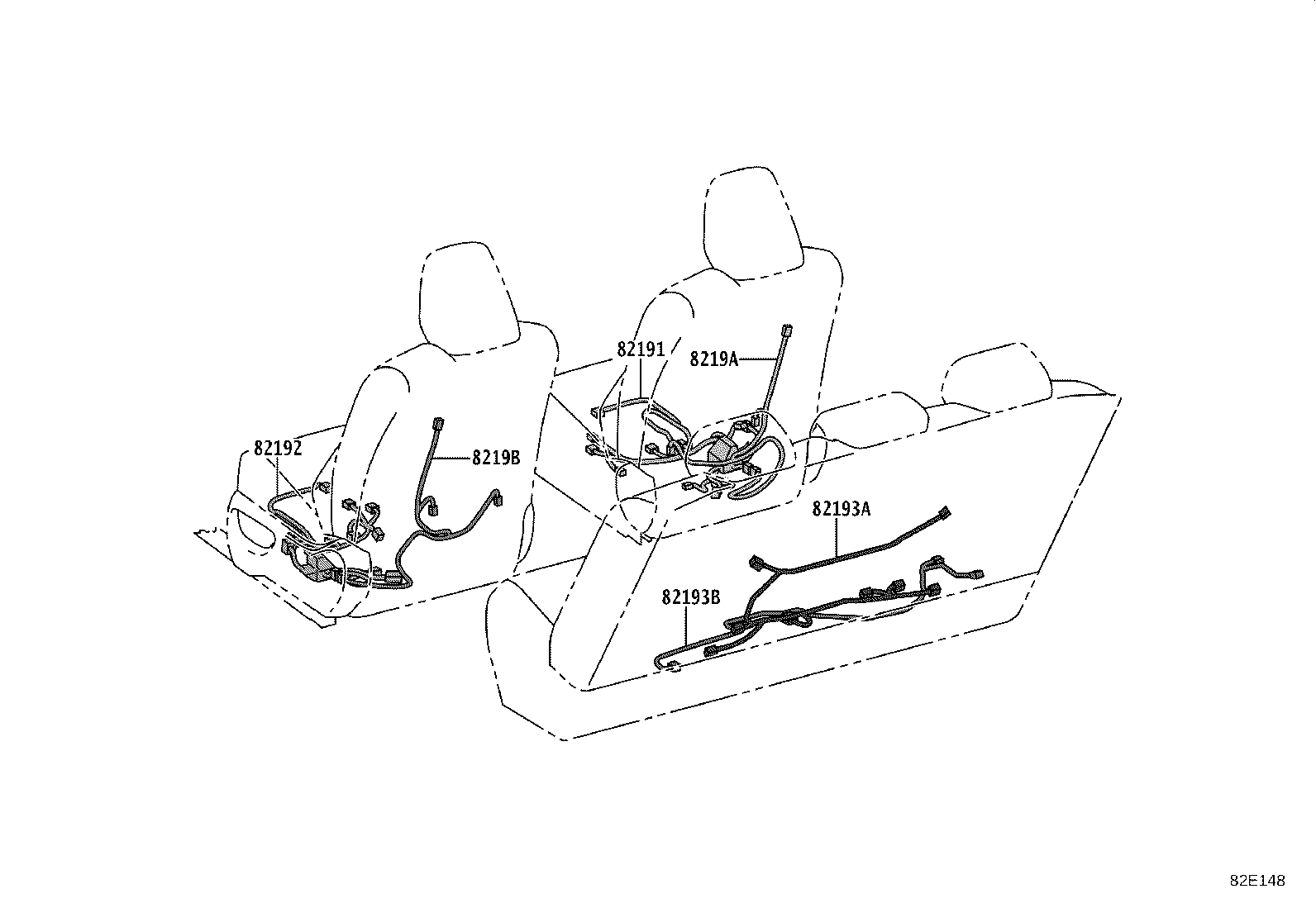

82193A Wire, Rear Seat, NO.1
82193B Wire, Rear Seat, NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2

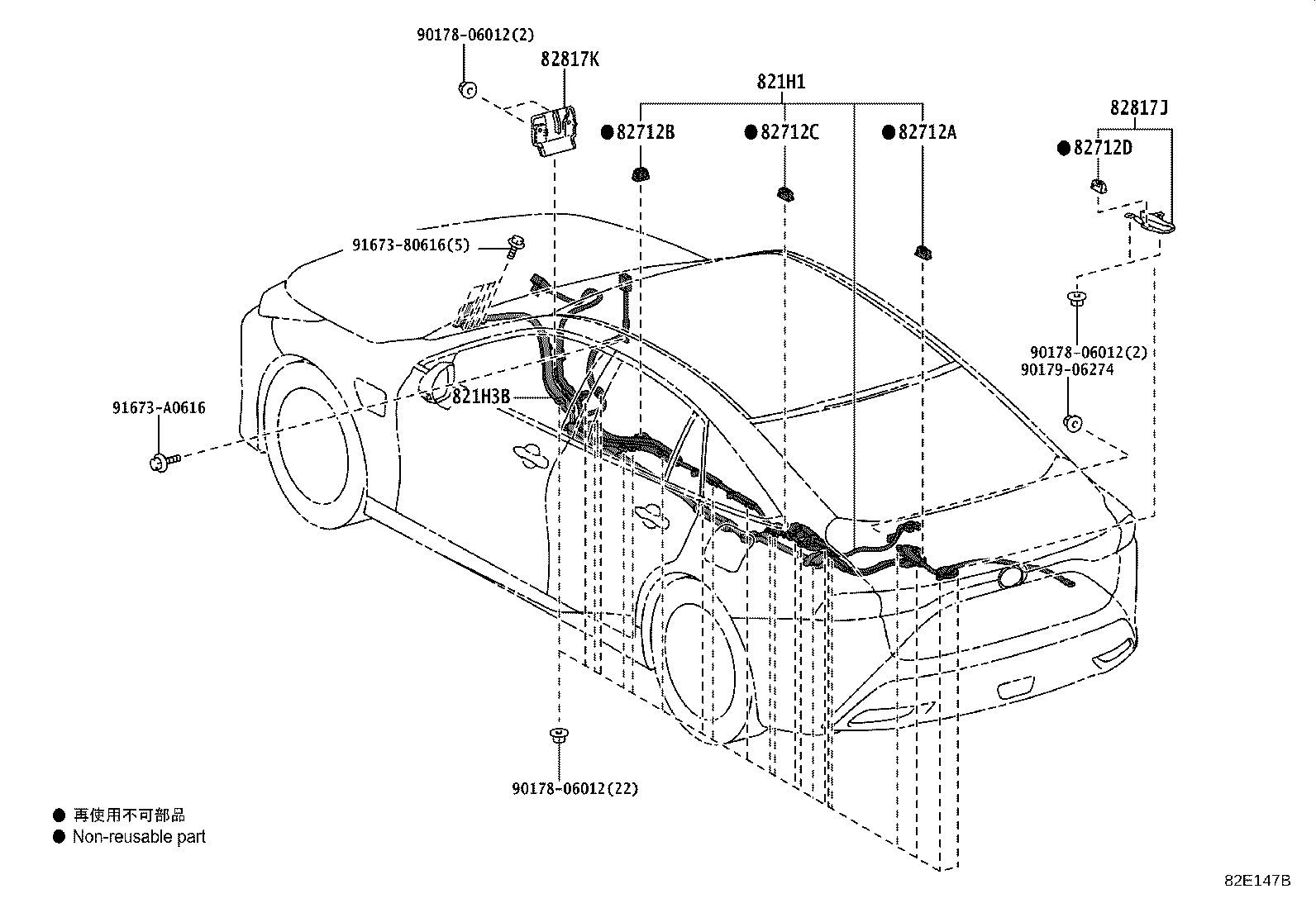

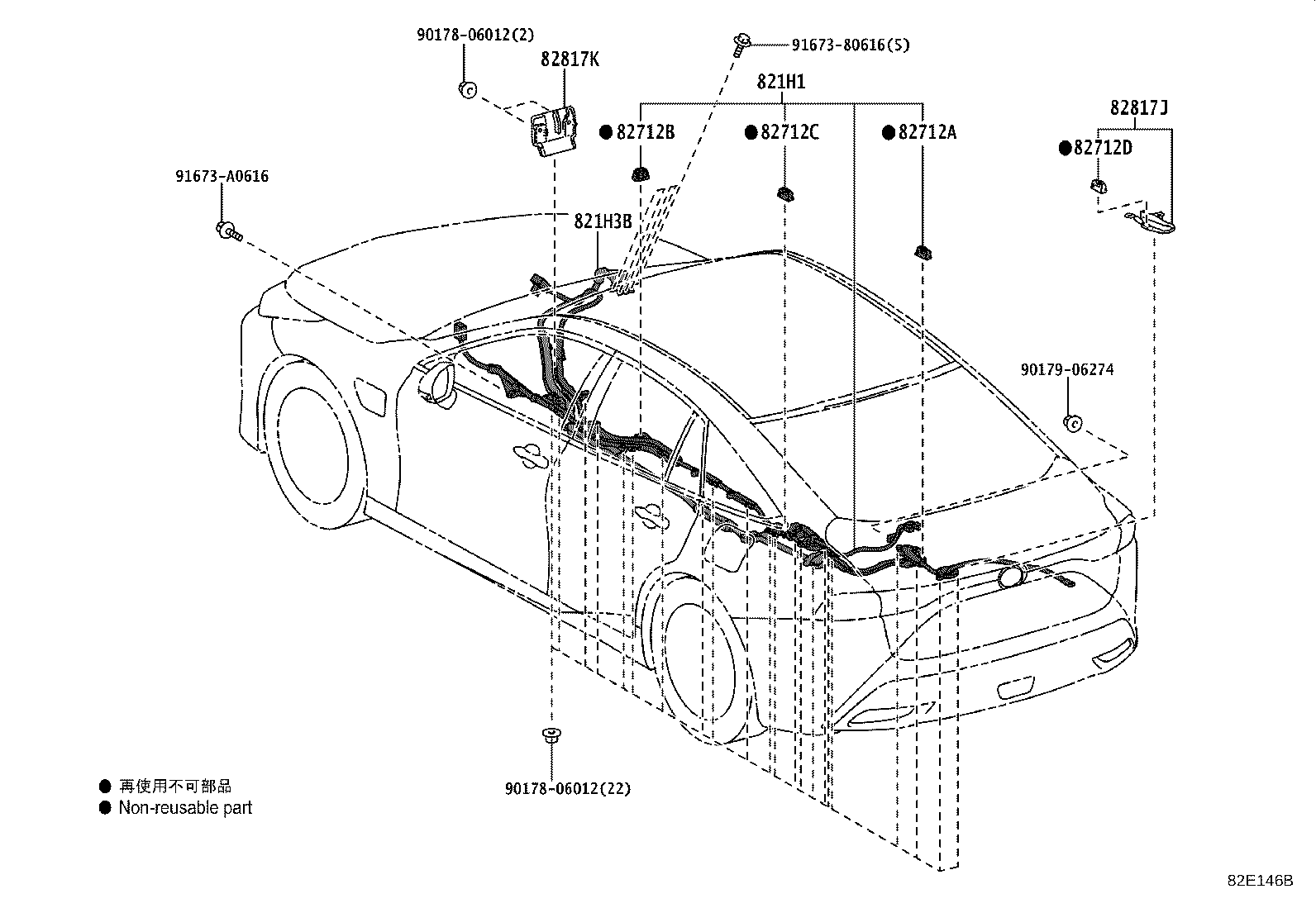

821H1 Wire, Floor Under
821H3A Wire, Battery Pack, NO.1
821H3B Wire, Battery Pack, NO.2
82284 Wire, Earth

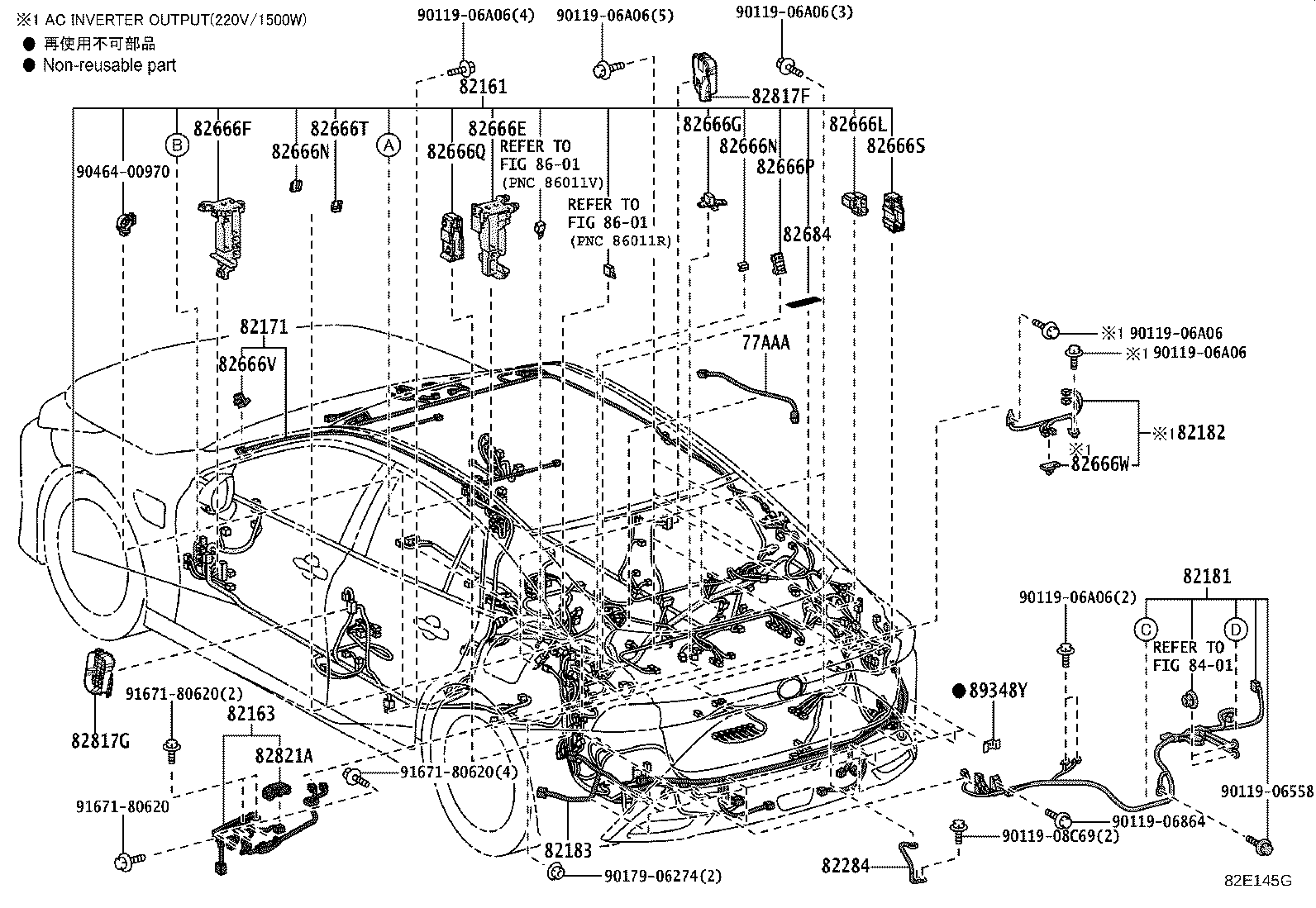

82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82667E Holder, Connector, NO.20
82667G Holder, Connector, NO.22
82684 Label, Cut High Voltage Electricity
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712D Support, Wiring Harness

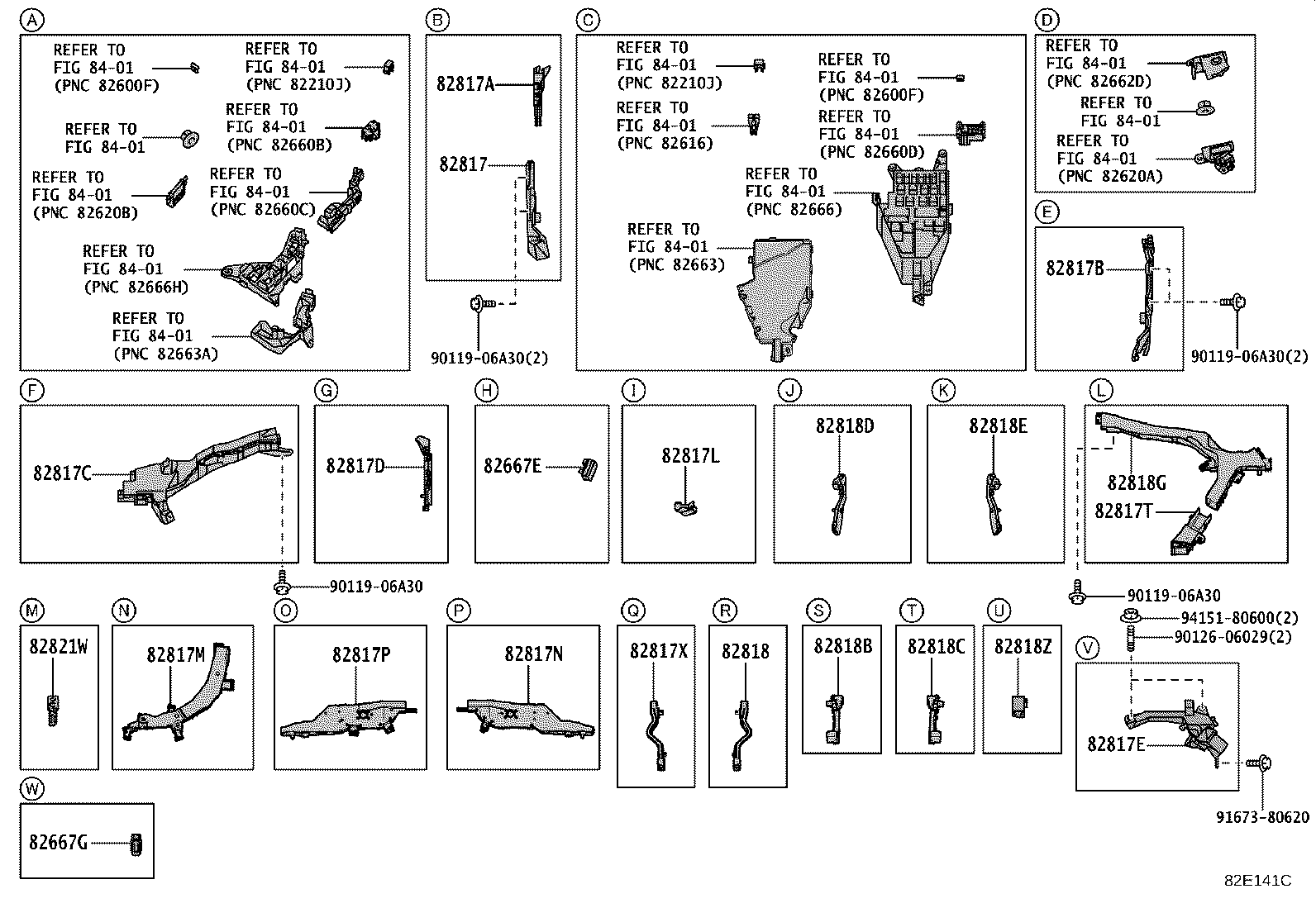

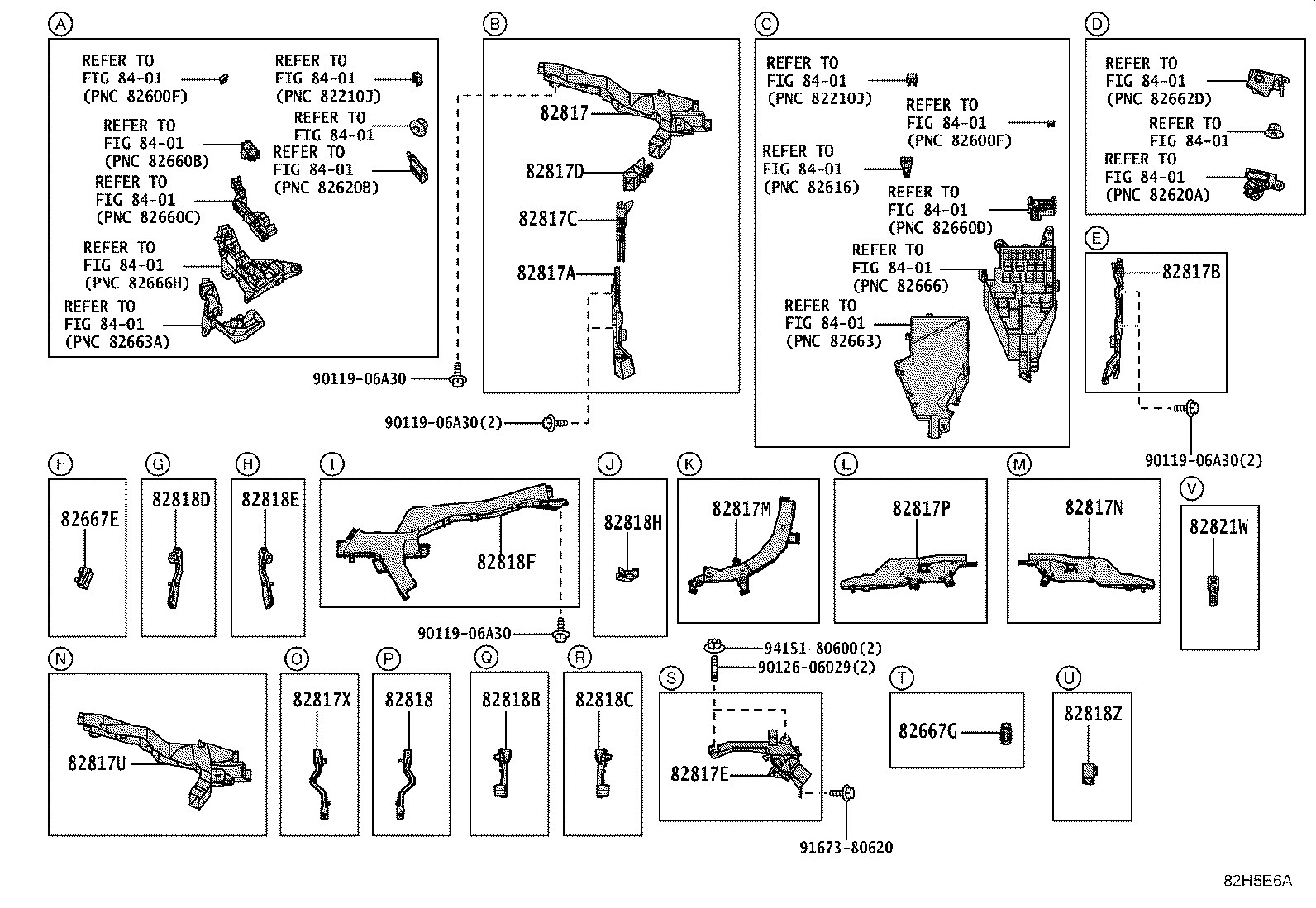

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818Z Protector, Wiring Harness, NO.22
82821A Cover, Connector
82821W Cover, Connector
89348X Clip, Ultrasonic Sensor, Front
89348Y Clip, Ultrasonic Sensor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
