Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fcev Cooling

109 part groups · 6 illustrations

Illustrations

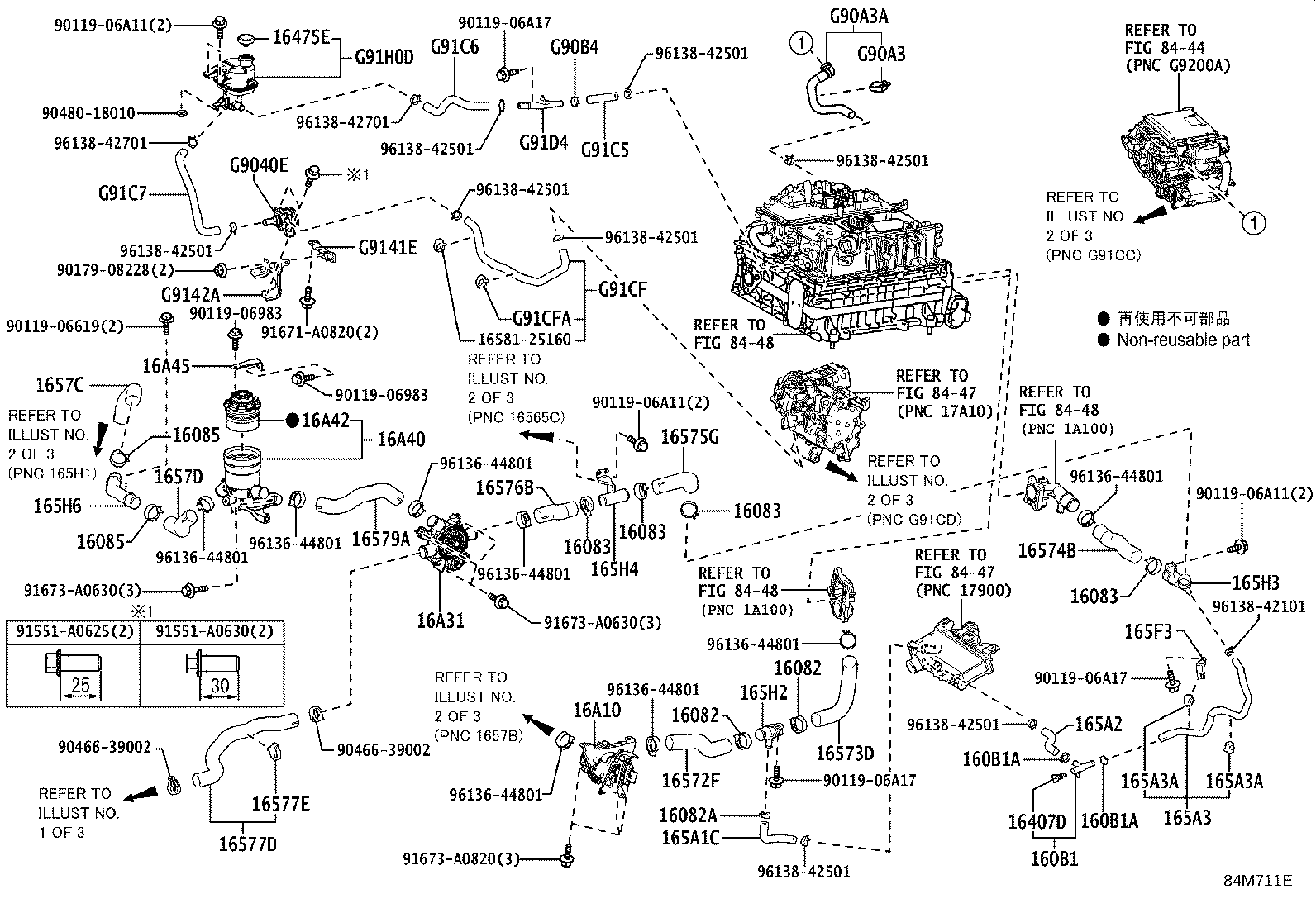

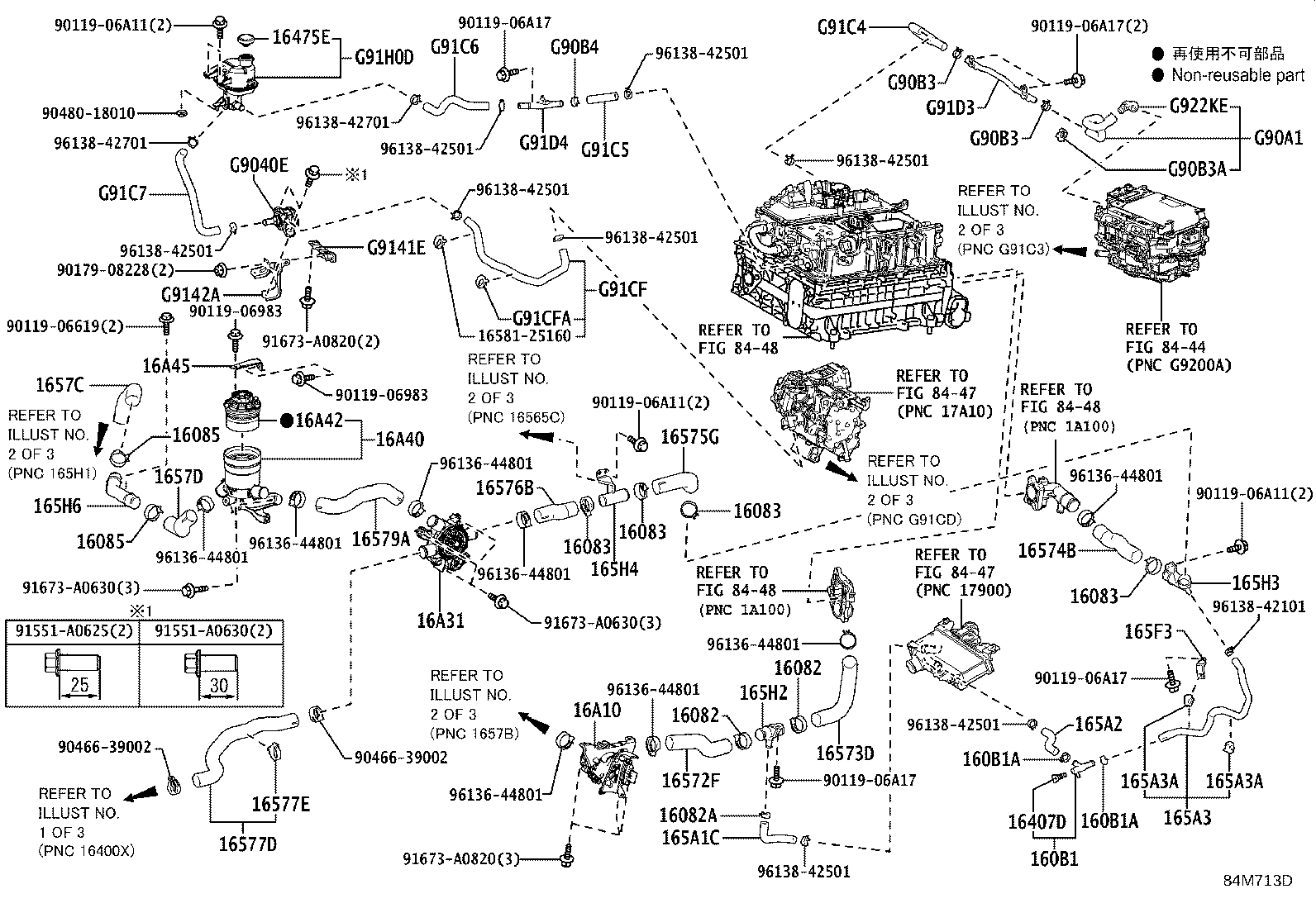

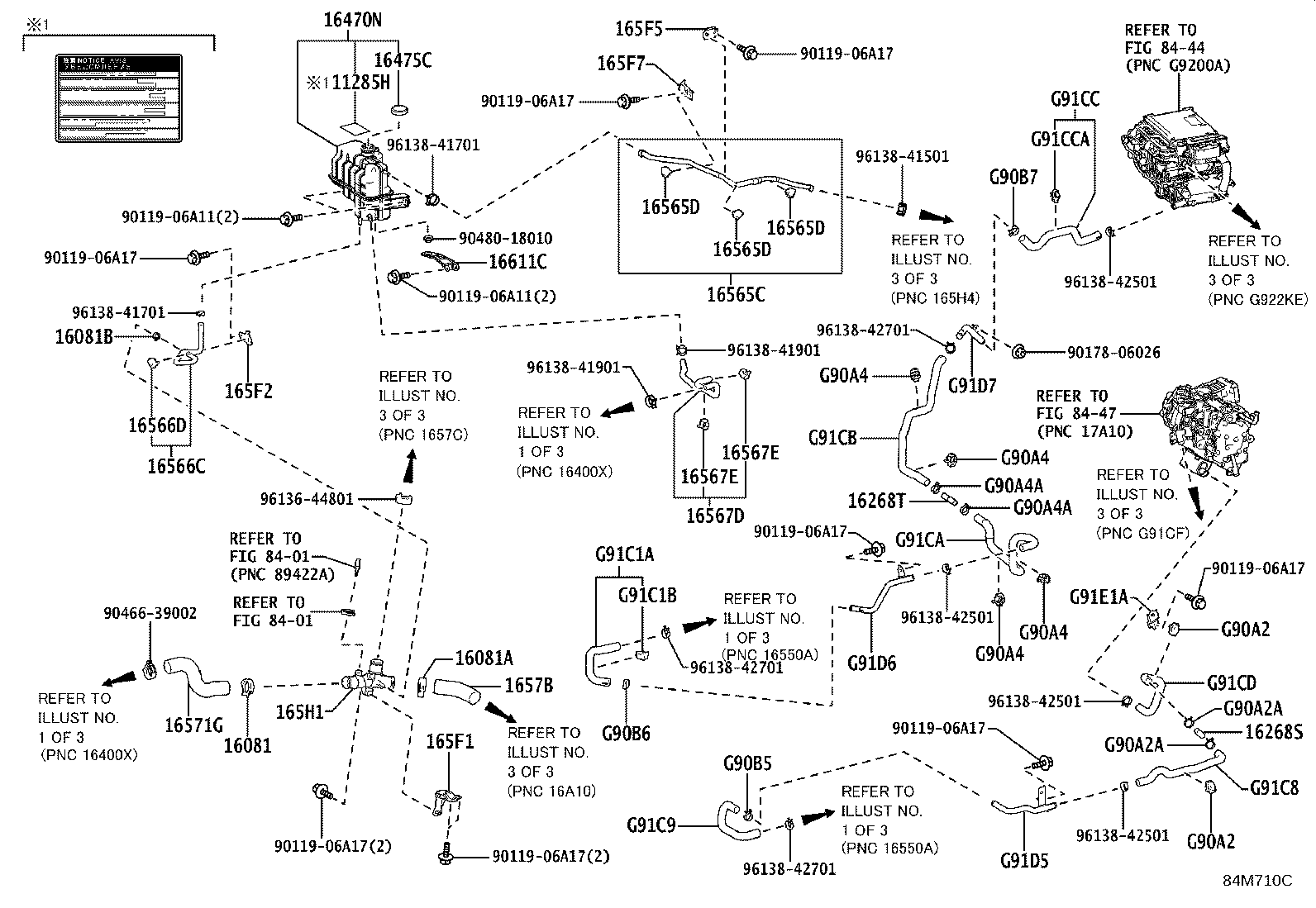

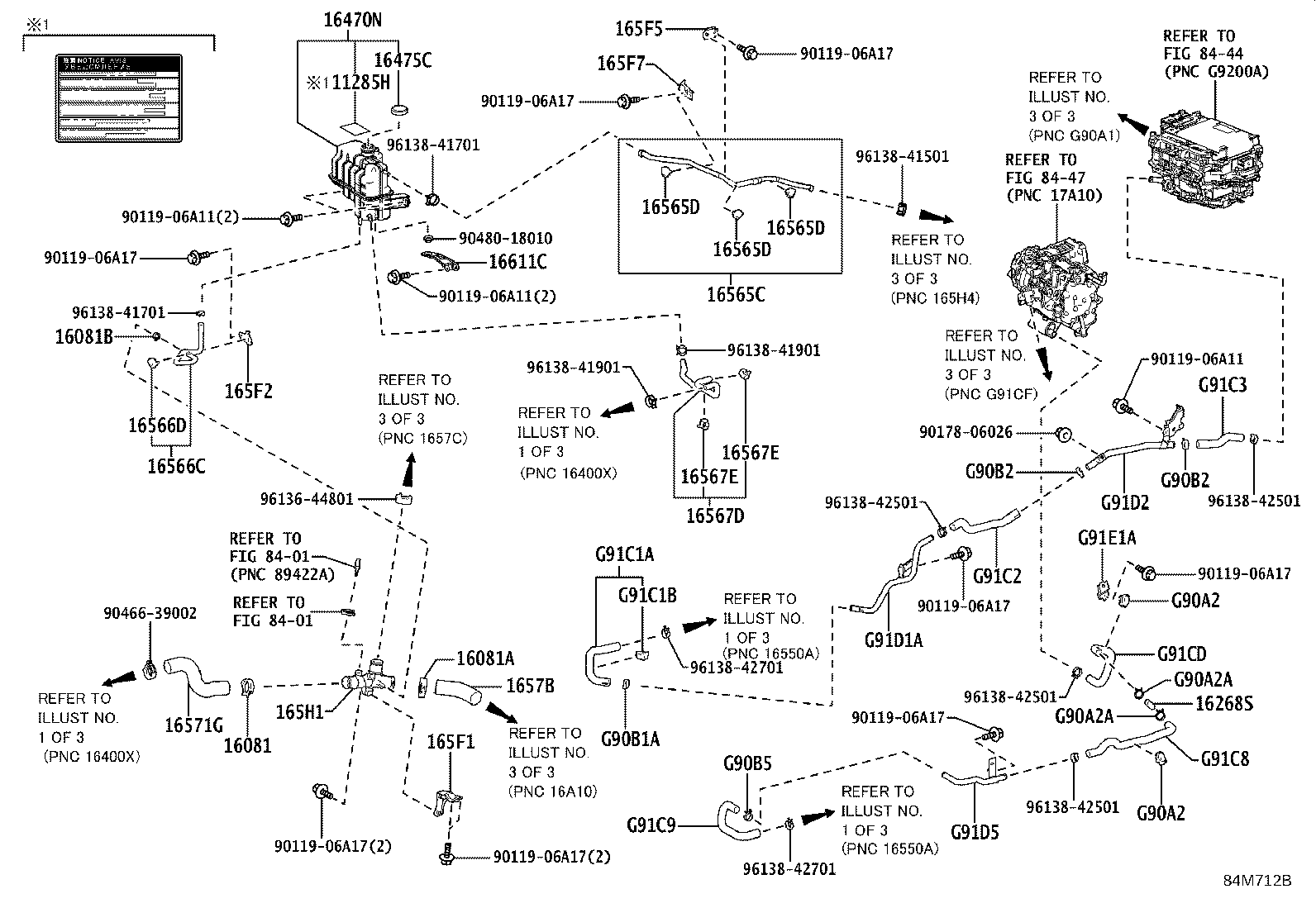

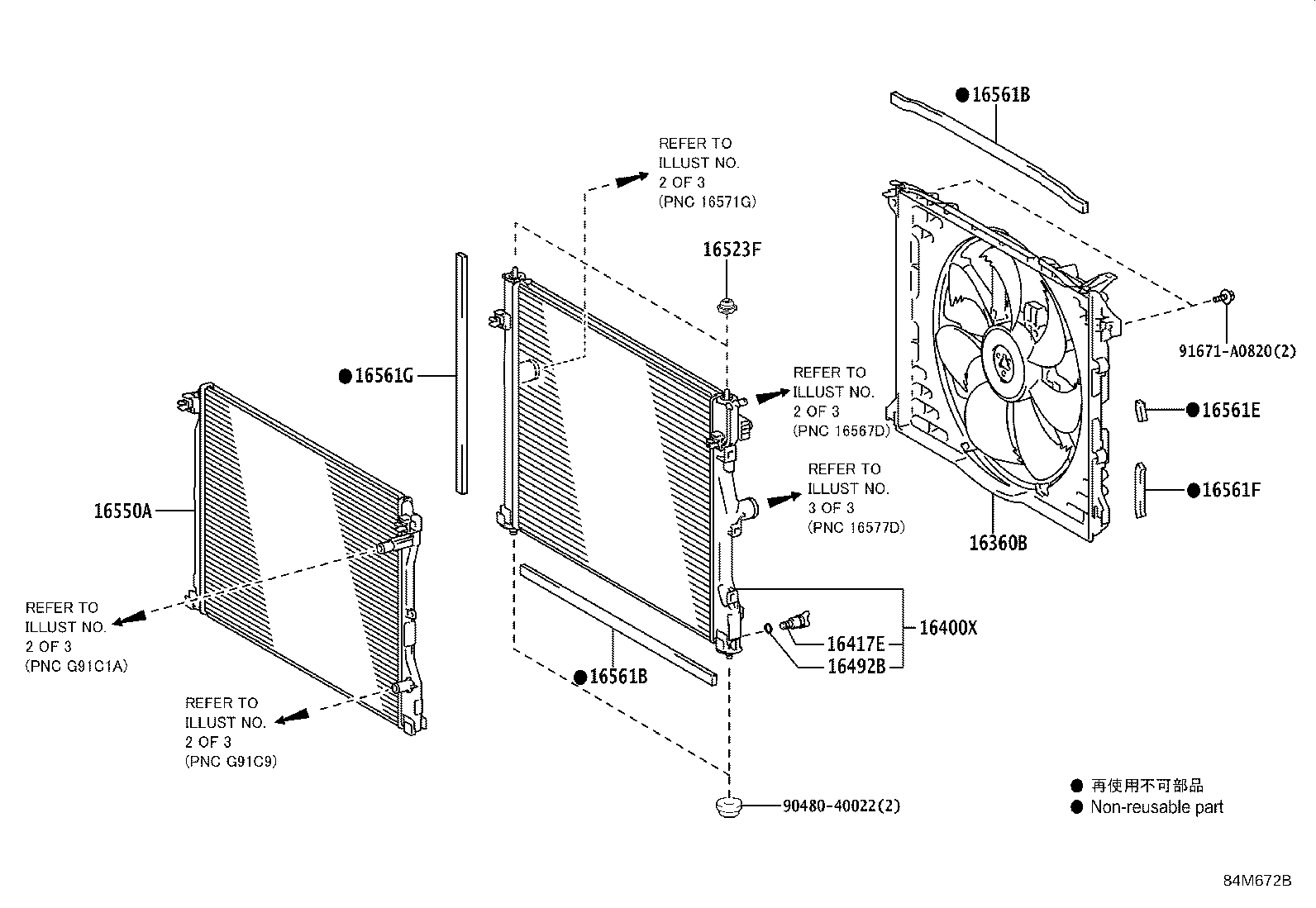

Figure 84M671B 84M671B 2020-11 → — Figure 84M710C 84M710C 2020-11 → — Figure 84M711E 84M711E 2020-11 → — Figure 84M672B 84M672B 2020-11 → — Figure 84M712B 84M712B 2020-11 → — Figure 84M713D 84M713D 2020-11 → —

Part groups

PNCDescription
11285H Label, Coolant System Notice
16081 Clip, NO.1(FOR FC RADIATOR HOSE, NO.1)
16081A Clip, NO.2(FOR FC RADIATOR HOSE, NO.1)
16081B Clip, NO.3(FOR FC RADIATOR HOSE, NO.1)
16082 Clip, NO.1(FOR FC RADIATOR HOSE, NO.2)
16082A Clip, NO.2(FOR FC RADIATOR HOSE, NO.2)
16083 Clip(FOR FC RADIATOR HOSE, NO.3)
16085 Clip, NO.1(FOR FC RADIATOR HOSE, NO.5)
160B1 Cock Assy, Drain
160B1A Clip(FOR FC INTERCOOLER HOSE)
16268S Pipe, Water By-pass
16268T Pipe, Water By-pass, NO.2
16360B Fan Assy, W/Motor
16400X Radiator Assy, FC
16407D Cock Sub-assy, Radiator Drain
16417E Cock, Radiator Drain
16470N Tank Assy, FC Radiator Reserve
16475C Cap, Reserve Tank
16475E Cap, EV Reserve Tank
16492B Ring, O(FOR RADIATOR DRAIN COCK)
16523F Cushion, Radiator Support
16550A Radiator Assy, EV
16561B Seal, Radiator TO Support, NO.1
16561E Seal, Radiator TO Support, NO.2
16561F Seal, Radiator TO Support, NO.3
16561G Seal, Radiator TO Support, NO.4
16565C Hose, Reserve Tank Inlet
16565D Clamp(FOR RESERVE TANK INLET HOSE)
16566C Hose, Reserve Tank Outlet
16566D Clamp(FOR RESERVE TANK OUTLET)
16567D Hose, Radiator TO Reserve Tank
16567E Clamp(FOR RADIATOR TO RESERVE TANK HOSE)
16571G Hose, FC Radiator, NO.1
16572F Hose, FC Radiator, NO.2
16573D Hose, FC Radiator, NO.3
16574B Hose, FC Radiator, NO.4
16575G Hose, FC Radiator, NO.5
16576B Hose, FC Radiator, NO.6
16577D Hose, FC Radiator, NO.7
16577E Clamp(FOR FC RADIATOR HOSE NO.7)
16579A Hose, FC Radiator, NO.9
1657B Hose, FC Radiator, NO.11
1657C Hose, FC Radiator, NO.12
1657D Hose, FC Radiator, NO.13
165A1C Hose, FC Intercooler, NO.1
165A2 Hose, FC Intercooler, NO.2
165A3 Hose, FC Intercooler, NO.3
165A3A Clamp(FOR FC INTERCOOLER HOSE NO.3)
165F1 Bracket, Radiator Hose, NO.1
165F2 Bracket, Radiator Hose, NO.2
165F3 Bracket, Radiator Hose, NO.3
165F5 Bracket, Radiator Hose, NO.5
165F7 Bracket, Radiator Hose, NO.7
165H1 Pipe, FC Radiator, NO.1
165H2 Pipe, FC Radiator, NO.2
165H3 Pipe, FC Radiator, NO.3
165H4 Pipe, FC Radiator, NO.4
165H6 Pipe, FC Radiator, NO.6
16611C Bracket, Radiator Reserve Tank
16A10 Pump Assy, FC Cooling Water
16A31 Valve, FC Cooling Water Temperature Control
16A40 Exchanger Assy, FC Cooling Water Ion
16A42 Element, FC Cooling Water Ion Exchanger
16A45 Bracket, FC Cooling Water Ion Exchanger
G9040E Pump Assy, Water W/Motor
G90A1 Hose Sub-assy, FC Inverter Cooling, NO.1
G90A2 Clamp(FOR FC INVERTER COOLING HOSE NO.2)
G90A2A Clip(FOR FC INVERTER COOLING HOSE NO.2)
G90A3 Clamp(FOR FC INVERTER COOLING HOSE NO.3)
G90A3A Hose Sub-assy, FC Inverter Cooling, NO.3
G90A4 Clamp(FOR FC INVERTER COOLING HOSE NO.4)
G90A4A Clip(FOR FC INVERTER COOLING HOSE NO.4)
G90B1A Clamp(FOR FC INVERTER COOLING HOSE NO.1)
G90B2 Clip(FOR FC INVERTER COOLING PIPE NO.2)
G90B3 Clip(FOR FC INVERTER COOLING PIPE NO.3)
G90B3A Clamp(FOR FC INVERTER COOLING PIPE NO.3)
G90B4 Clip(FOR FC INVERTER COOLING PIPE NO.4)
G90B5 Clip(FOR FC INVERTER COOLING PIPE NO.5)
G90B6 Clip(FOR FC INVERTER COOLING PIPE NO.6)
G90B7 Clip(FOR FC INVERTER COOLING PIPE NO.7)
G9141E Bracket, Water Pump, NO.1
G9142A Bracket, Water Pump, NO.2
G91C1A Hose, FC Inverter Cooling, NO.1
G91C1B Clamp(FOR FC INVERTER COOLING HOSE NO.1)
G91C2 Hose, FC Inverter Cooling, NO.2
G91C3 Hose, FC Inverter Cooling, NO.3
G91C4 Hose, FC Inverter Cooling, NO.4
G91C5 Hose, FC Inverter Cooling, NO.5
G91C6 Hose, FC Inverter Cooling, NO.6
G91C7 Hose, FC Inverter Cooling, NO.7
G91C8 Hose, FC Inverter Cooling, NO.8
G91C9 Hose, FC Inverter Cooling, NO.9
G91CA Hose, FC Inverter Cooling, NO.10
G91CB Hose, FC Inverter Cooling, NO.11
G91CC Hose, FC Inverter Cooling, NO.12
G91CCA Clamp(FOR FC INVERTER COOLING HOSE NO.12)
G91CD Hose, FC Inverter Cooling, NO.13
G91CF Hose, FC Inverter Cooling, NO.15
G91CFA Clamp(FOR FC INVERTER COOLING HOSE NO.15)
G91D1A Pipe, FC Inverter Cooling, NO.1
G91D2 Pipe, FC Inverter Cooling, NO.2
G91D3 Pipe, FC Inverter Cooling, NO.3
G91D4 Pipe, FC Inverter Cooling, NO.4
G91D5 Pipe, FC Inverter Cooling, NO.5
G91D6 Pipe, FC Inverter Cooling, NO.6
G91D7 Pipe, FC Inverter Cooling, NO.7
G91E1A Bracket, FC Inverter Cooling, NO.1
G91H0D Tank Assy, EV Reserve
G922KE Connector, FC Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
