Windshield Washer

33 part groups · 6 illustrations

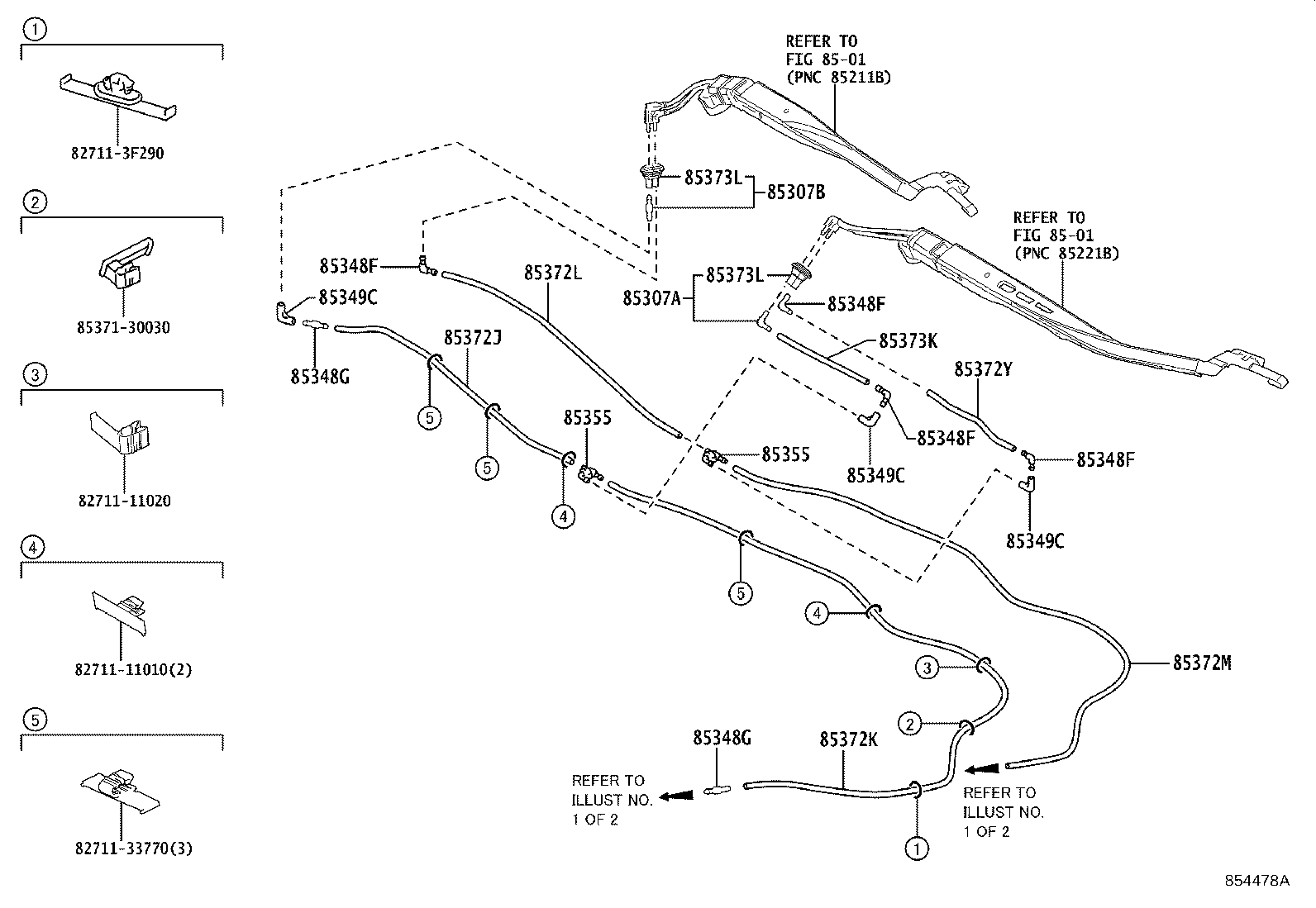

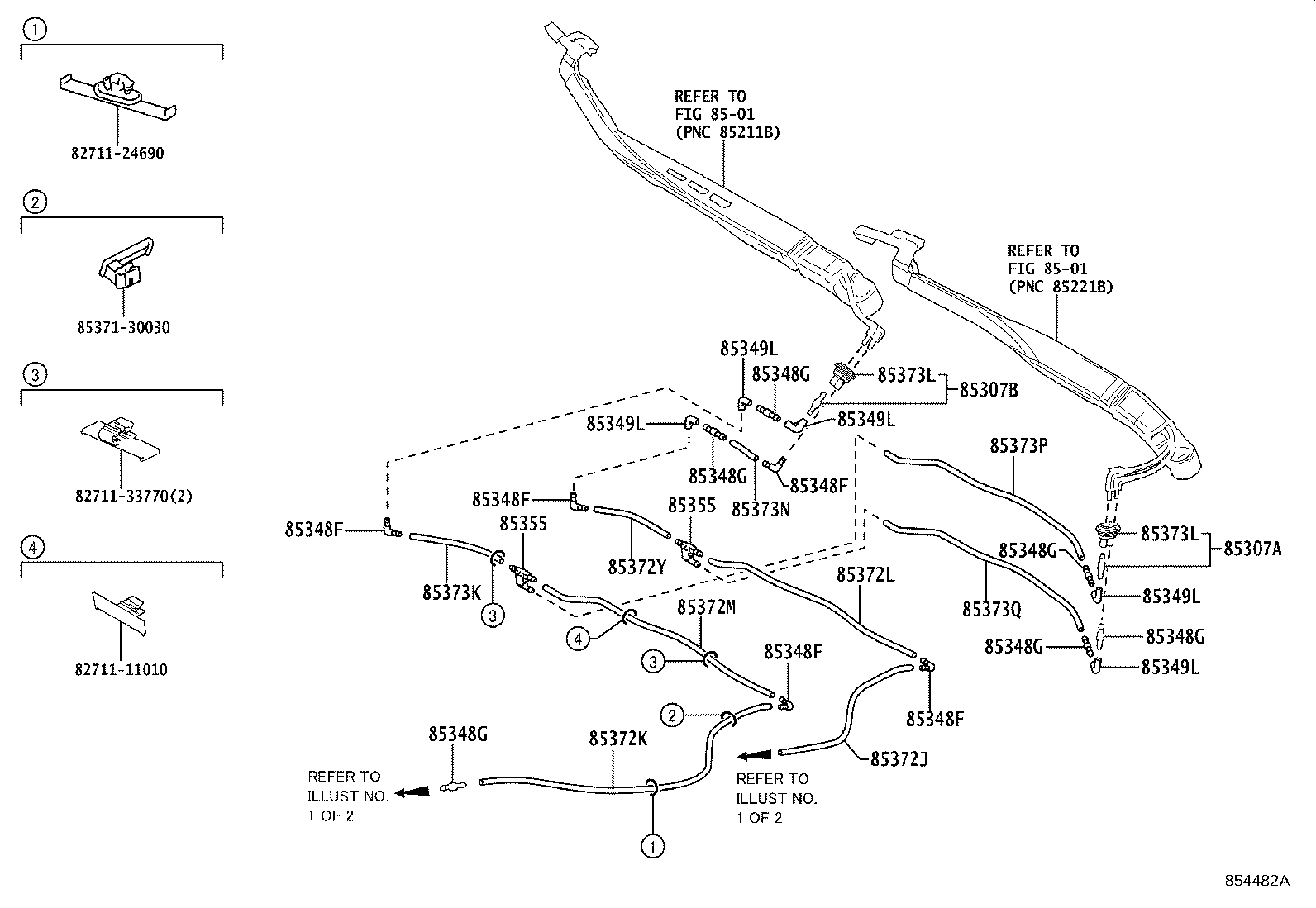

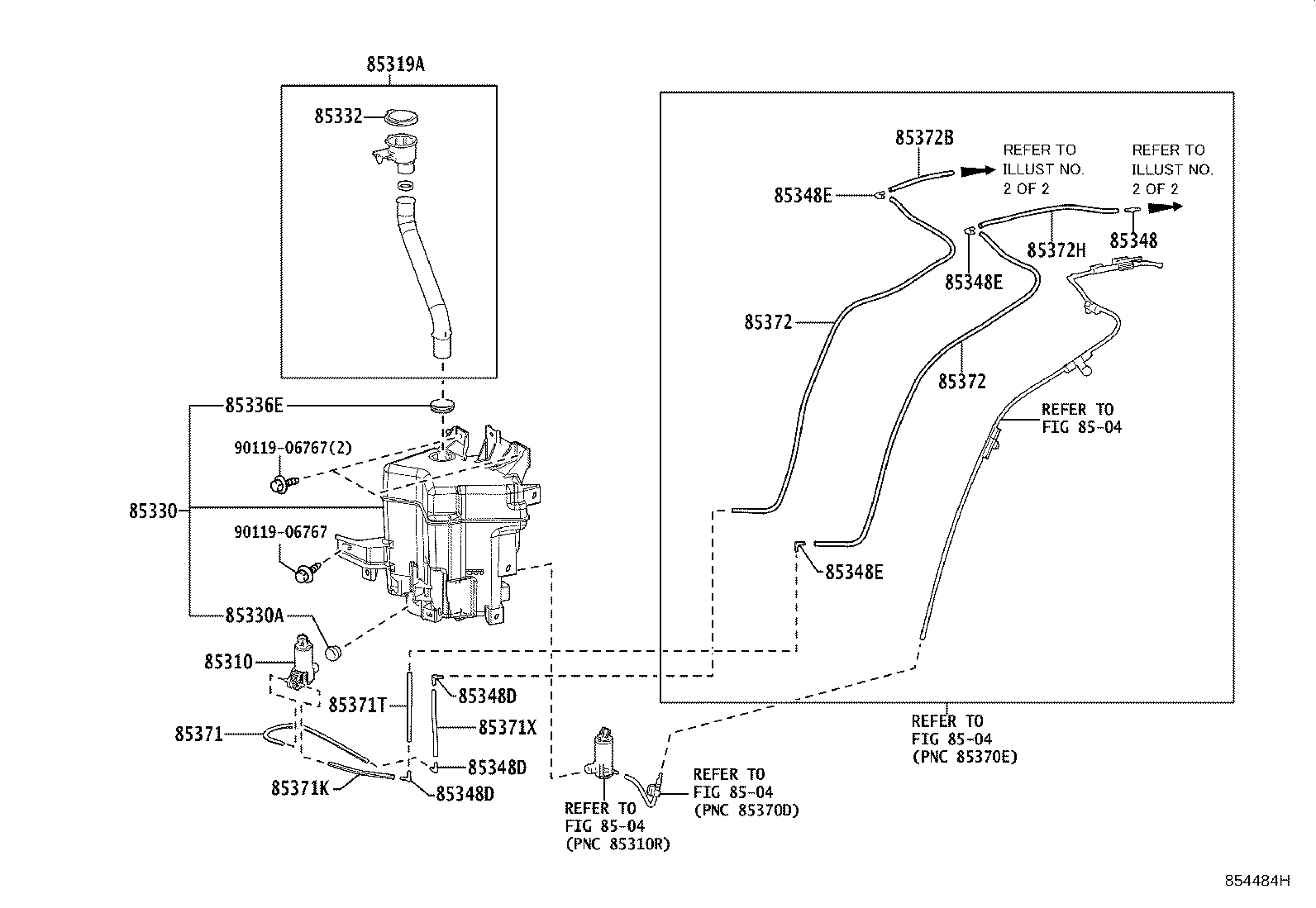

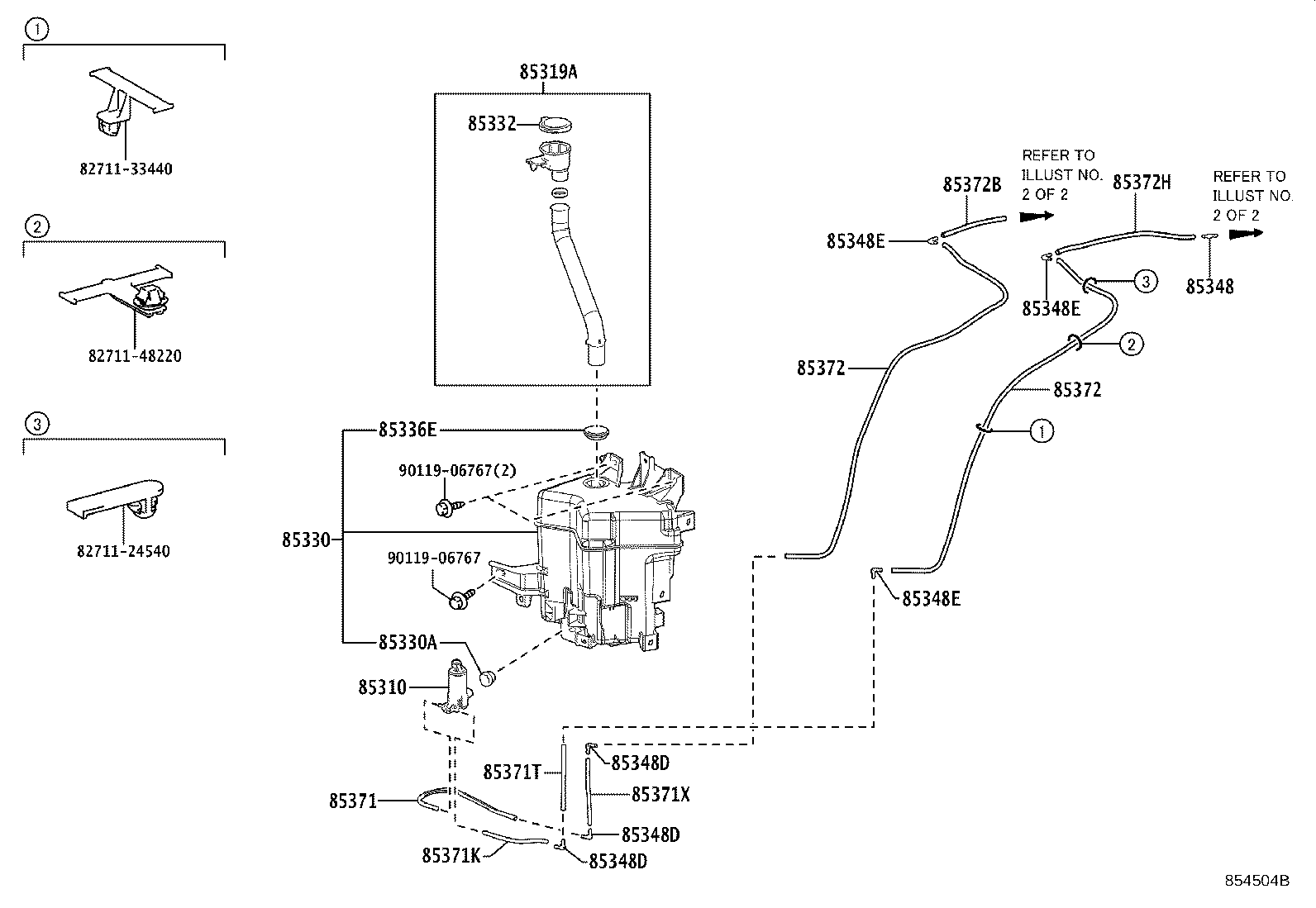

Illustrations

Part groups

PNC	Description
85307A	Grommet Sub-assy, Washer, NO.1
85307B	Grommet Sub-assy, Washer, NO.2
85310	Motor And Pump Assy, Windshield Washer
85319A	Hose, Inlet
85330	Jar Assy, Windshield Washer
85330A	Bush, Windshield Washer Jar
85332	Cap, Windshield Washer Jar
85336E	Packing, Windshield Washer Inlet Hose
85348	Joint, Windshield Washer Hose, NO.1
85348D	Joint, Windshield Washer Elbow, NO.1
85348E	Joint, Windshield Washer Elbow, NO.2
85348F	Joint, Windshield Washer Elbow, NO.3
85348G	Joint, Windshield Washer Hose, NO.2
85349C	Joint, Windshield Washer Elbow, NO.4
85349L	Joint, Windshield Washer Elbow, NO.1
85355	Valve, Windshield Washer Hose
85371	Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371K	Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371T	Hose, Windshield Washer (FROM JOINT TO JOINT)
85371X	Hose, Windshield Washer(FROM JOINT TO TOINT)
85372	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85372L	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6
85372M	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7
85372Y	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.8
85373K	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.9
85373L	Grommet, Washer
85373N	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.11
85373P	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.12
85373Q	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.13

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
