Toyota Mirai

2020-11 → present · chassis JPD20 · catalogue 28B520 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 2 illustrations

Illustrations

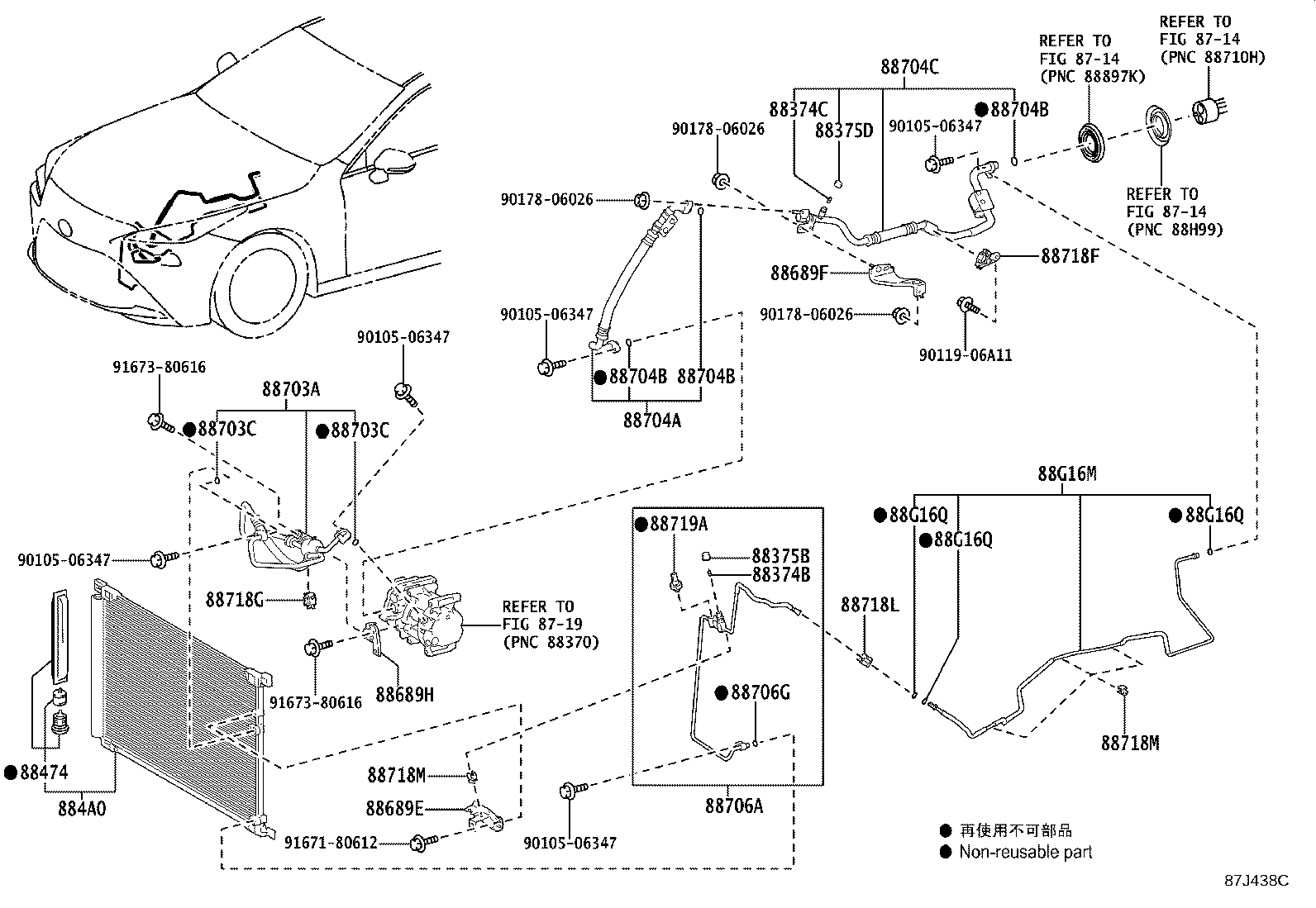

Figure 87J437C 87J437C 2020-11 → — Figure 87J438C 87J438C 2020-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88703A Hose Sub-assy, Discharge, NO.1
88703C Ring, O(FOR DISCHARGE HOSE)
88704A Hose Sub-assy, Suction, A
88704B Ring, O(FOR SUCTION HOSE)
88704C Hose Sub-assy, Suction, B
88706A Tube Sub-assy, Liquid, A
88706G Ring, O(FOR LIQUID TUBE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88718M Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88G16M Tube, Liquid, NO.1
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
