Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

5 part groups · 2 illustrations

Illustrations

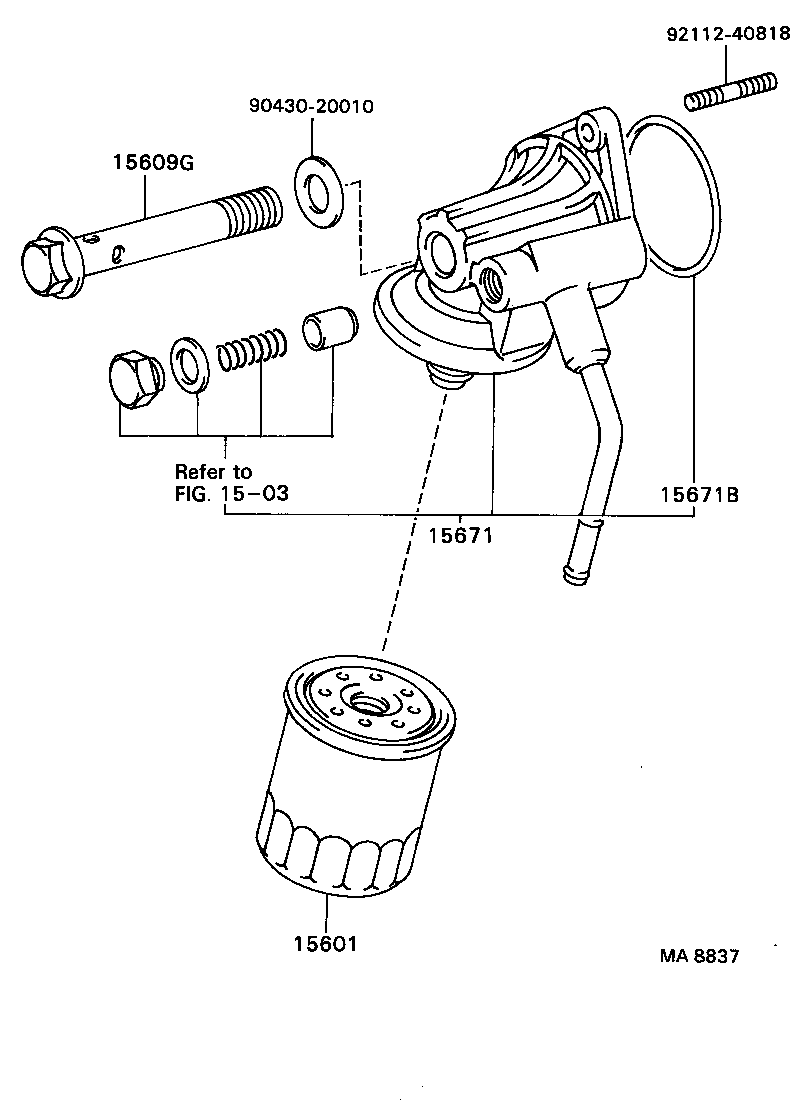

Figure MA6093A MA6093A 1986-01 → — Figure MA8837 MA8837 1987-08 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15671 Bracket, Oil Filter
15671B Gasket, Oil Filter Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
