Toyota Supra
1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe
Discontinued model
Data version 1988-08
Valve Body & Oil Strainer (ATM)
98 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35212 | Valve, Lock UP Relay |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213D | Plunger, Lock UP Relay Valve |
| 35215 | Sleeve, Lock UP Relay Valve |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339A | Gasket, Oil Strainer, NO.1 |
| 35339B | Gasket, Oil Strainer, NO.2 |
| 35396 | Strainer, Throttle Oil |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410D | Valve, Check |
| 35410F | Ball (FOR CHECK VALVE) |
| 35415F | Valve, Primary Regulator |
| 35415H | Spring, Compression (FOR PRIMARY REGULATOR VALVE) |
| 35415J | Washer (FOR PRIMARY REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417A | Sleeve, Primary Regulator Valve |
| 35418 | Valve, Manual |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420 | Body Assy, Lower Valve |
| 35420D | Ball (FOR LOWER VALVE BODY) |
| 35422F | Stopper, Valve Vibrating |
| 35423 | Piston, B-2 Accumulator |
| 35423A | Spring, Compression (FOR B-2 ACCUMULATOR PISTON) |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35423C | Pin, Straight (FOR B-2 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35425E | Pin, Straight (FOR C-2 ACCUMULATOR PISTON) |
| 35426A | Piston, C-0 Accumulator |
| 35426B | Ring, O (FOR C-0 ACCUMULATOR PISTON) |
| 35426C | Spring, Compression (FOR C-0 ACCUMULATOR PISTON) |
| 35427E | Piston, B-0 Accumulator |
| 35427F | Spring, Compression (FOR B-0 ACCUMULATOR PISTON) |
| 35427G | Ring, O (FOR B-0 ACCUMULATOR PISTON) |
| 35428C | Plug, Pressure Reducing |
| 35428D | Clip (FOR PRESSURE REDUCING PLUG) |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35438D | Seat, Accumulator Control Valve Spring |
| 35438E | Seat, Lock UP Relay Valve Spring |
| 35441C | Strainer, Solenoid Oil |
| 35444D | Valve, Release Control |
| 35444E | Plug (FOR RELEASE CONTROL VALVE) |
| 35445H | Valve, 2ND Coast Modulator |
| 35445J | Plug (FOR 2ND COAST MODULATOR VALVE) |
| 35445P | Spring, Compression (FOR 2ND COAST MODULATOR VALVE) |
| 35445Q | Valve, Low Coast Modulator |
| 35445R | Spring, Compression (FOR LOW COAST MODULATOR VALVE) |
| 35445V | Plug (FOR LOW COAST MODULATOR VALVE) |
| 35449B | Valve, Pressure Relief |
| 35449C | Spring, Compression (FOR VALVE PRESSURE RELIEF) |

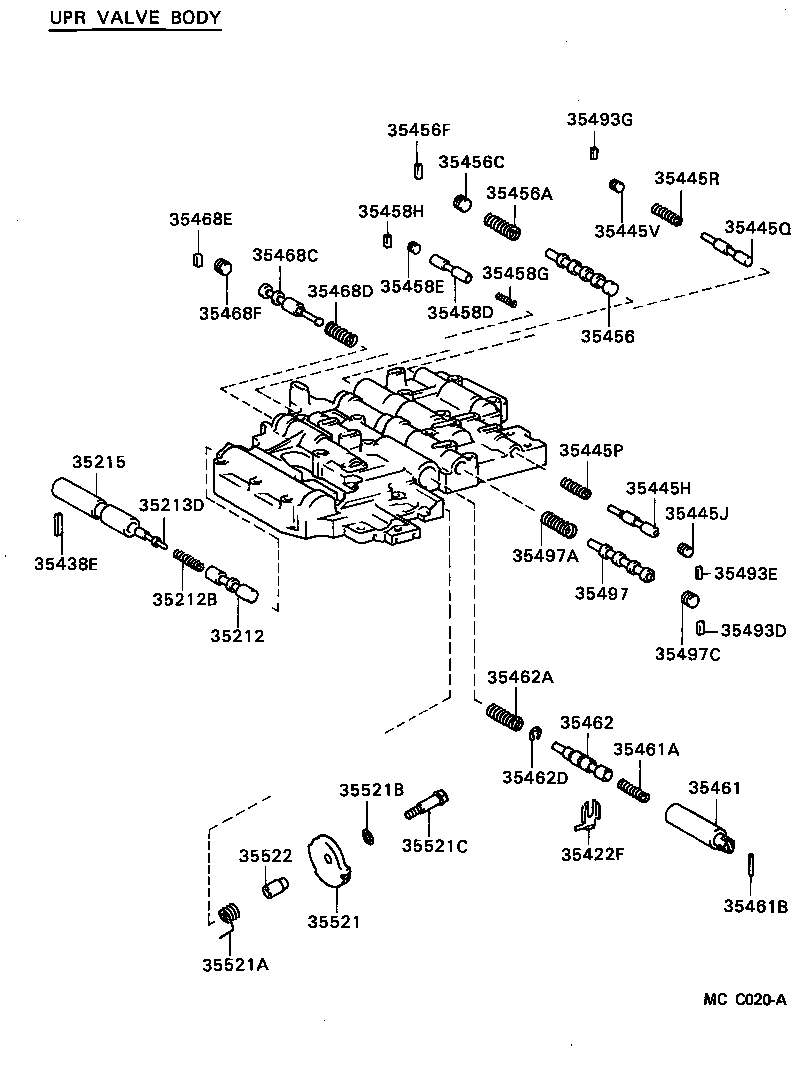

| 35450D | Body Assy, Upper Valve |
| 35450E | Ball (FOR UPPER VALVE BODY) |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456C | Plug (FOR 2-3 SHIFT VALVE) |
| 35456F | Key, Straight (FOR 2-3 SHIFT VALVE) |
| 35458D | Valve, Cut Back |
| 35458E | Plug (FOR CUT BACK VALVE) |
| 35458G | Spring, Compression (FOR CUT BACK VALVE) |
| 35458H | Key, Straight (FOR CUT BACK VALVE) |
| 35461 | Plug, Down Shift |
| 35461A | Spring, Compression (FOR DOWN SHIFT PLUG) |
| 35461B | Pin, Straight (FOR DOWN SHIFT PLUG) |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464E | Plug (FOR 1-2 SHIFT VALVE) |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35468E | Key, Straight (FOR SECONDARY REGULATOR VALVE) |
| 35468F | Plug (FOR SECONDARY REGULATOR VALVE) |
| 35491A | Valve, Accumulator Control, NO.1 |
| 35491B | Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35492E | Sleeve, Accumulator Control Valve |
| 35493A | Seat, Primary Regulator Valve Plug |
| 35493B | Seat, 1-2 Shift Valve Plug |
| 35493C | Seat, Release Control Valve Plug |
| 35493D | Seat, 3-4 Shift Valve Plug |
| 35493E | Seat, 2ND Coast Modulator Valve Plug |
| 35493G | Seat, Low Coast Modulator Valve Plug |
| 35497 | Valve, 3-4 Shift |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497C | Plug (FOR 3-4 SHIFT VALVE) |
| 35521 | Cam, Throttle Valve |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35521C | Bolt (FOR THROTTLE VALVE CAM SET) |
| 35522 | Pin, Throttle Valve Cam |
| 35599 | Cover, Manual Detent Spring |
| 35897 | Tube, 1ST & Reverse Brake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
