Toyota Supra
1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe
Discontinued model
Data version 1988-08
Front Steering Gear & Link

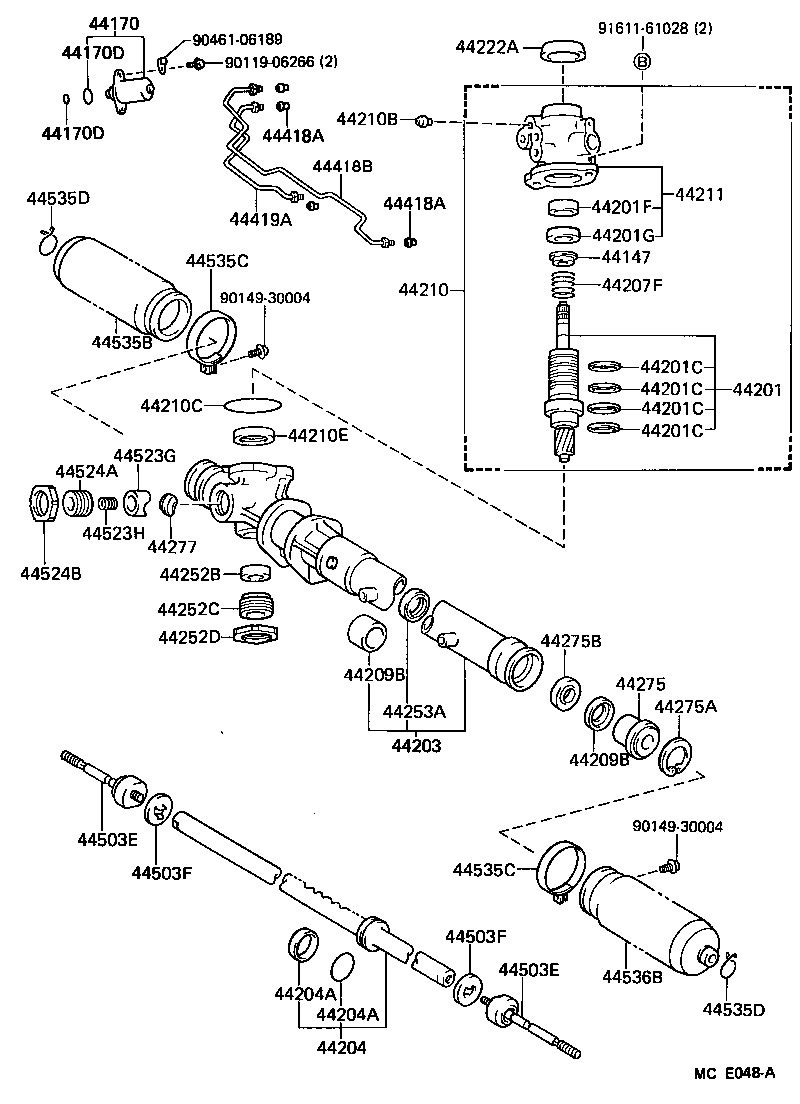

52 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44147 | Seat, Spool Valve Spring |
| 44170 | Valve Assy, Solenoid(FOR POWER STEERING) |
| 44170D | Ring, O(FOR POWER STEERING SOLENOID VALVE) |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44201F | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44201G | Bearing(FOR POWER STEERING CONTROL VALVE) |
| 44203 | Housing Sub-assy, Power Steering Rack |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44207F | Spring, Conical(FOR VALVE CAP SUB-ASSY) |
| 44209B | Spacer(FOR POWER STEERING CYLINDER HOUSING) |
| 44210 | Valve Assy, Power Steering Control |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44210C | Ring, O(FOR POWER STEERING CONTROL VALVE) |
| 44210E | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44252B | Bearing(FOR POWER STEERING PINION) |
| 44252C | Cap(FOR POWER STEERING PINION) |
| 44252D | Nut(FOR POWER STEERING PINION CAP) |
| 44253A | Seal, Oil(FOR POWER STEERING RACK HOUSING) |
| 44275 | Stopper, Cylinder End |
| 44275A | Ring, Hole Snap(FOR CYLINDER END STOPPER) |
| 44275B | Seal, Oil(FOR CYLINDER END STOPPER) |
| 44277 | Seat, Rack Guide |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418B | Seat, Union(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 44503E | End Sub-assy, Steering Rack(FOR POWER STEERING) |
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 44523G | Guide, Rack(FOR POWER STEERING) |
| 44523H | Spring(FOR POWER STEERING RACK GUIDE) |
| 44524A | Cap, Rack Guide Spring(FOR POWER STEERING) |
| 44524B | Nut(FOR POWER STEERING RACK GUIDE CAP) |
| 44535B | Boot, Steering Rack NO.1(FOR POWER STEERING) |
| 44535C | Clamp(FOR POWER STEERING RACK BOOT) |
| 44535D | Clip(FOR POWER STEERING RACK BOOT) |
| 44536B | Boot, Steering Rack NO.2(FOR POWER STEERING) |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45460 | Rod Assy, Tie, RH |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45700 | Damper Assy, Steering |
| 45721A | Bracket, Steering Damper, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
