Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe

Discontinued model Data version 1988-08

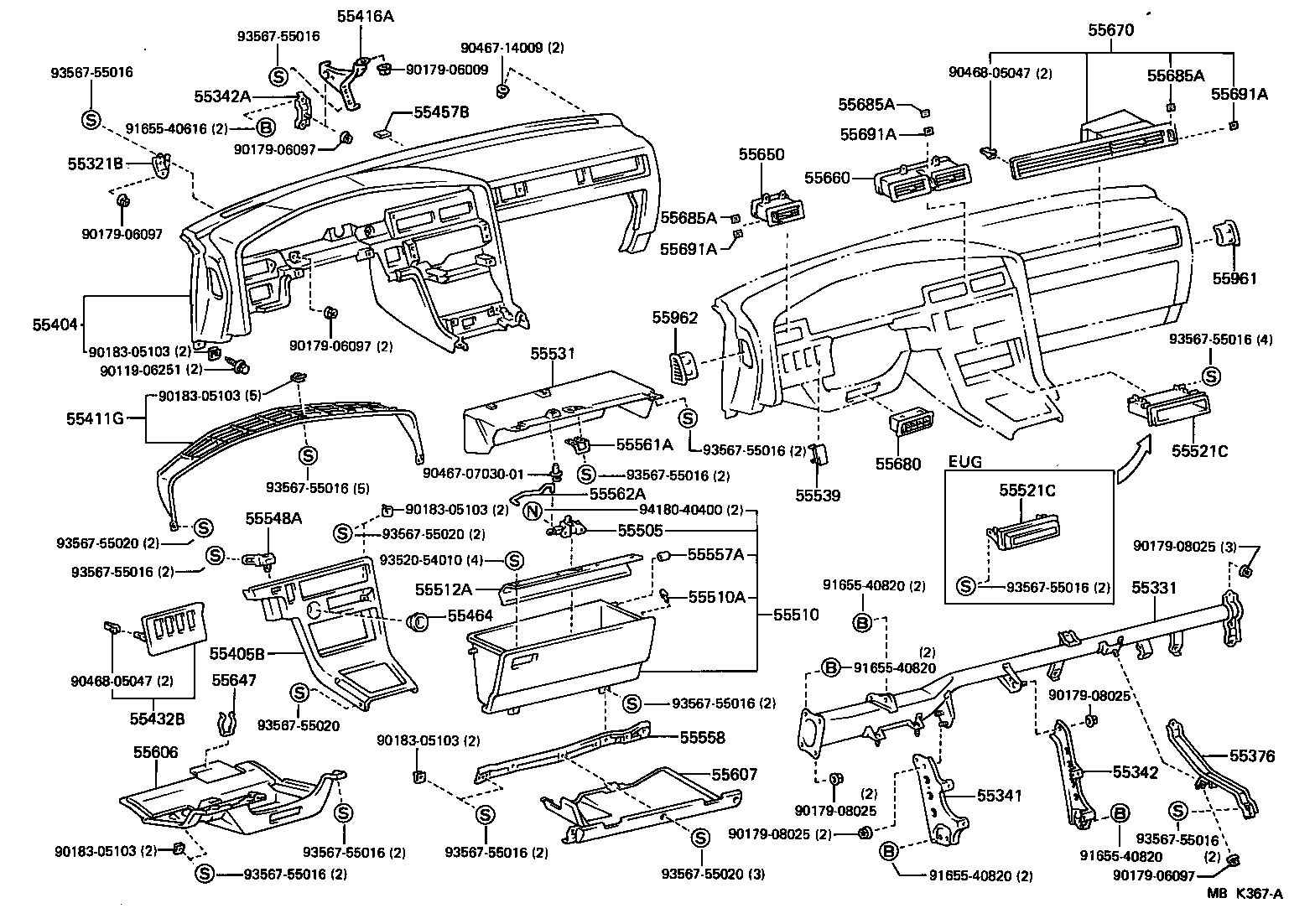

Instrument Panel & Glove Compartment

37 part groups · 2 illustrations

PNC	Description
55321B	Bracket, Instrument Panel, NO.1
55331	Reinforcement, Instrument Panel
55341	Brace, Instrument Panel, NO.1
55342	Brace, Instrument Panel, NO.2
55342A	Brace, Instrument Panel TO Cowl, NO.2
55376	Bracket, Instrument Panel Mounting, NO.1
55404	Safety Pad Sub-assy, Instrument Panel, Upper
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55411G	Panel, Instrument Cluster Finish, NO.1
55416A	Retainer, Meter Hood, NO.1
55432B	Panel, Instrument Panel Finish, Lower
55457B	Spacer, Instrument Panel Safety Pad
55464	Base, Cigarette Lighter
55505	Lock Sub-assy, Glove Compartment Door
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55512A	Plate, Glove Compartment
55521C	Cover, Stereo Opening
55522C	Cover, Radio Receiver Opening
55531	Panel, Glove Compartment
55539	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55557A	Cushion, Glove Compartment Door Check
55558	Reinforcement, Glove Compartment Door
55561A	Striker, Glove Compartment Door Lock
55562A	Link, Glove Compartment Door Lock
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55647	Clamp, Instrument Panel Under Cover
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680	Register Assy, Instrument Panel, Lower NO.1
55685A	Plate, Air Damper Control Name, NO.4
55691A	Plate, Air Damper Control Name, NO.1
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
