Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe

Discontinued model Data version 1988-08

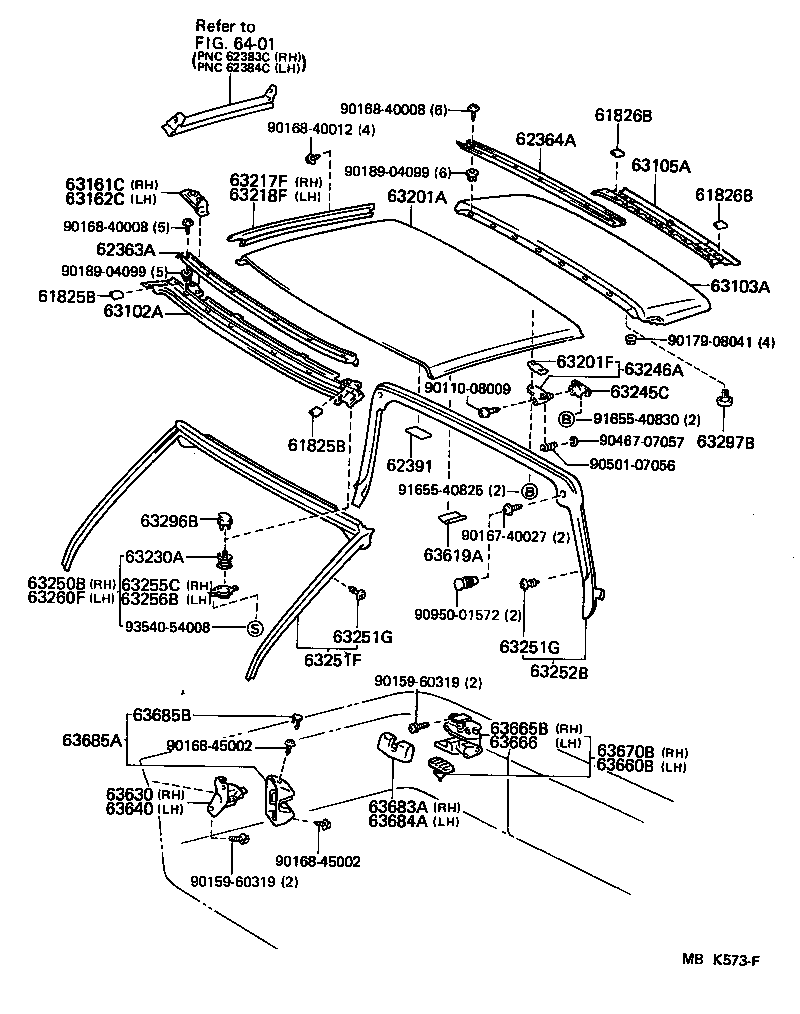

Roof Panel & Back Window Glass

38 part groups · 2 illustrations

PNC	Description
61825B	Plate, Noise Control, NO.2
61826B	Plate, Noise Control, NO.3
62363A	Retainer, Roof Side Rail Weatherstrip, NO.3
62364A	Retainer, Roof Side Rail Weatherstrip, NO.4
62391	Seal, Roof Side Rail TO Retainer
63102A	Panel Sub-assy, Windshield Header
63103A	Reinforcement Sub-assy, Roof Panel
63104	Reinforcement Sub-assy, Roof Panel, Center
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63161C	Protector, Windshield Header, RH
63162C	Protector, Windshield Header, LH
63201A	Panel Sub-assy, Sliding Roof OR Removable Roof
63201F	Shim(FOR REMOVABLE ROOF PANEL)
63217F	Moulding, Removable Roof, RH
63230A	Bolt Assy, Removable Roof
63245C	Bracket, Removable Roof, NO.1
63246A	Bracket, Removable Roof, NO.2
63250B	Cover Assy, Removable Roof Bolt, RH
63251F	Weatherstrip, Removable Roof, Front
63251G	Clip,(FOR REMOVABLE ROOF WEATHERSTRIP)
63252B	Weatherstrip, Removable Roof, Rear
63255C	Cover, Removable Roof Bolt, RH
63256B	Cover, Removable Roof Bolt, LH
63260F	Cover Assy, Removable Roof Bolt, LH
63296B	Cap, Removable Roof Side
63297B	Cap, Removable Roof Side, Rear
63619A	Protector, Removable Roof Panel, Inner
63630	Holder Assy, Removable Roof, RH
63640	Holder Assy, Removable Roof, LH
63660B	Stay Assy, Removable Roof, LH
63665B	Cushion, Removable Roof Stay, RH
63666	Cushion, Removable Roof Stay, LH
63670B	Stay Assy, Removable Roof, RH
63683A	Cover, Removable Roof Stay Support, RH
63684A	Cover, Removable Roof Stay Support, LH
63685A	Garnish, Removable Roof Holder
63685B	Plug, Hole(FOR REMOVABLE ROOF HOLDER GARNISH)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
