Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 2 illustrations

Illustrations

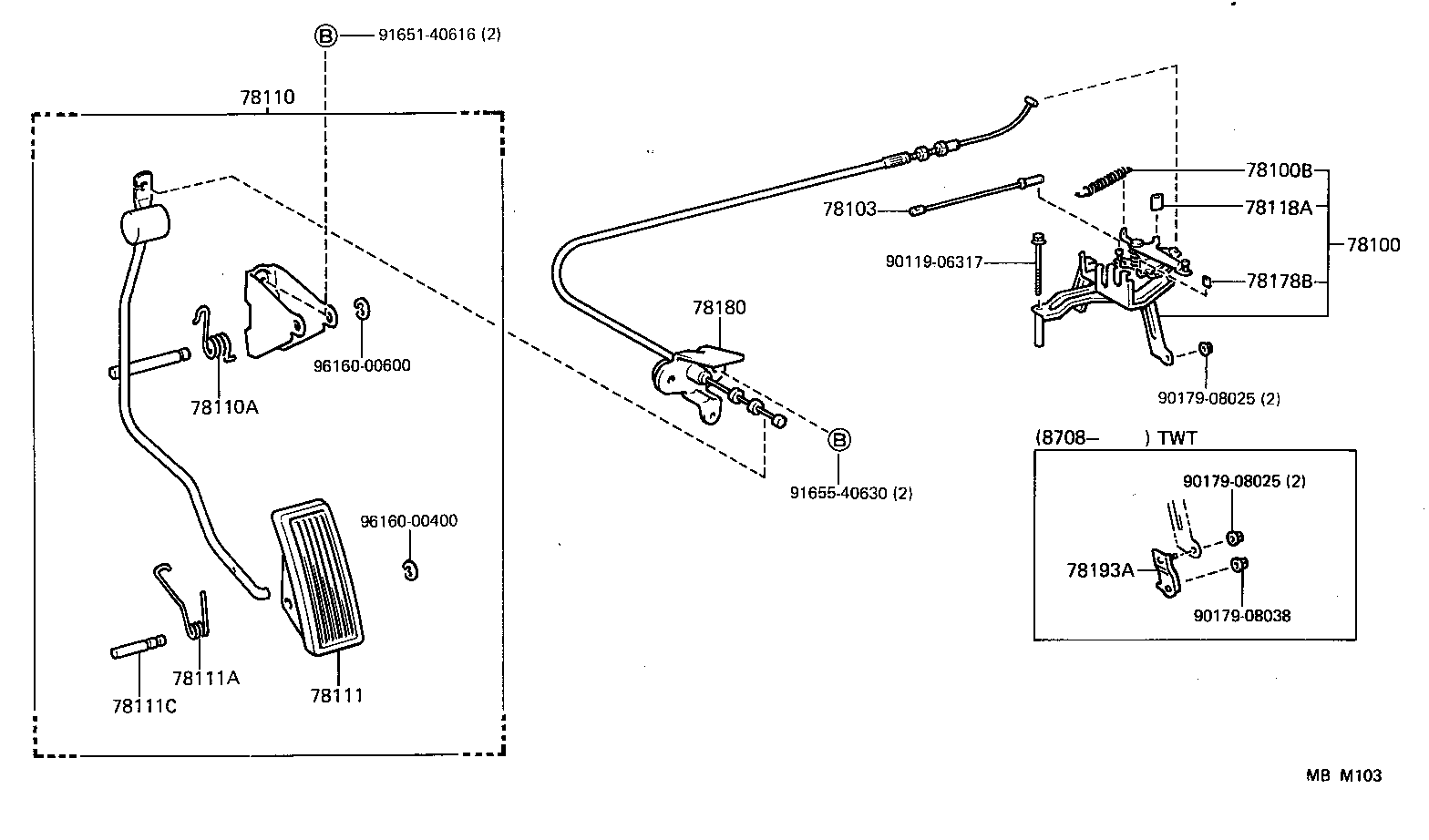

Figure MBK448C MBK448C 1986-01 → — Figure MBM103 MBM103 1986-01 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78100B Spring (FOR ACCELERATOR LINK)
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78118A Stopper, Accelerator Pedal
78178B Damper, Accel Control NO.4 Rod Bracket
78180 Wire Assy, Accelerator
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
