Toyota Supra
1986-01 → 1988-08 · chassis MA70 · catalogue 291210 · Europe
Discontinued model
Data version 1988-08
Heating & Air Conditioning - Cooler Piping

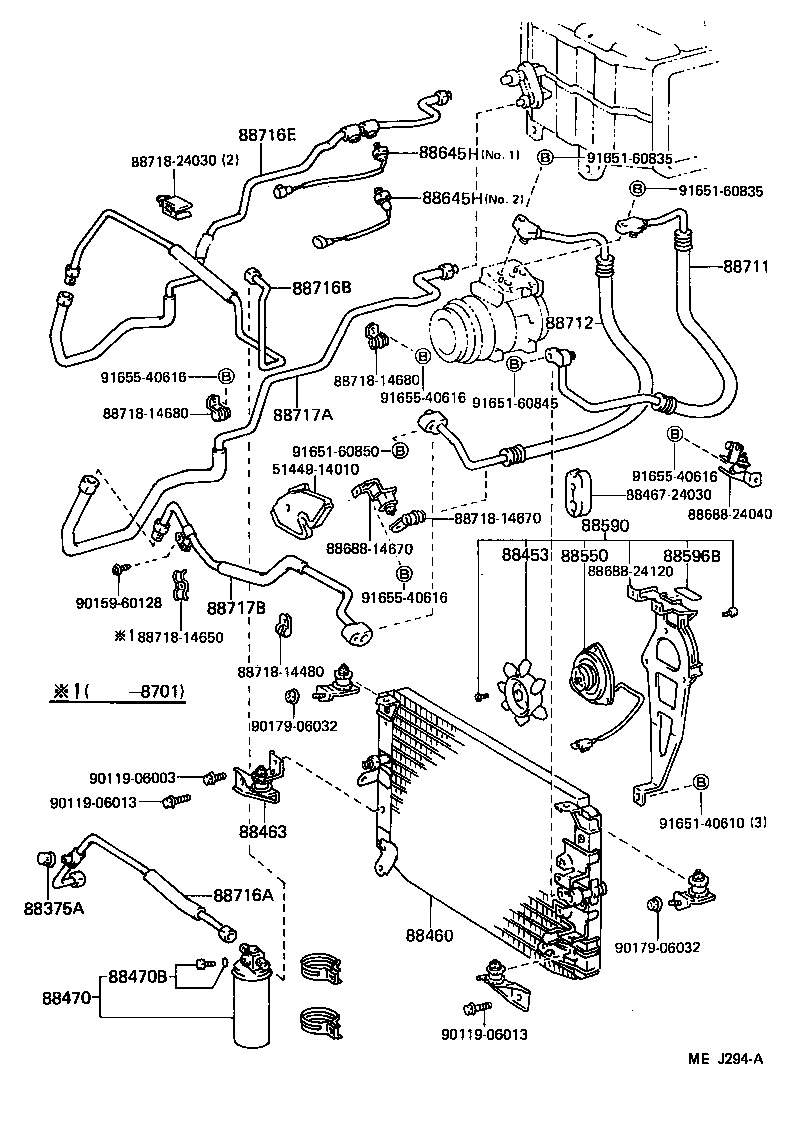

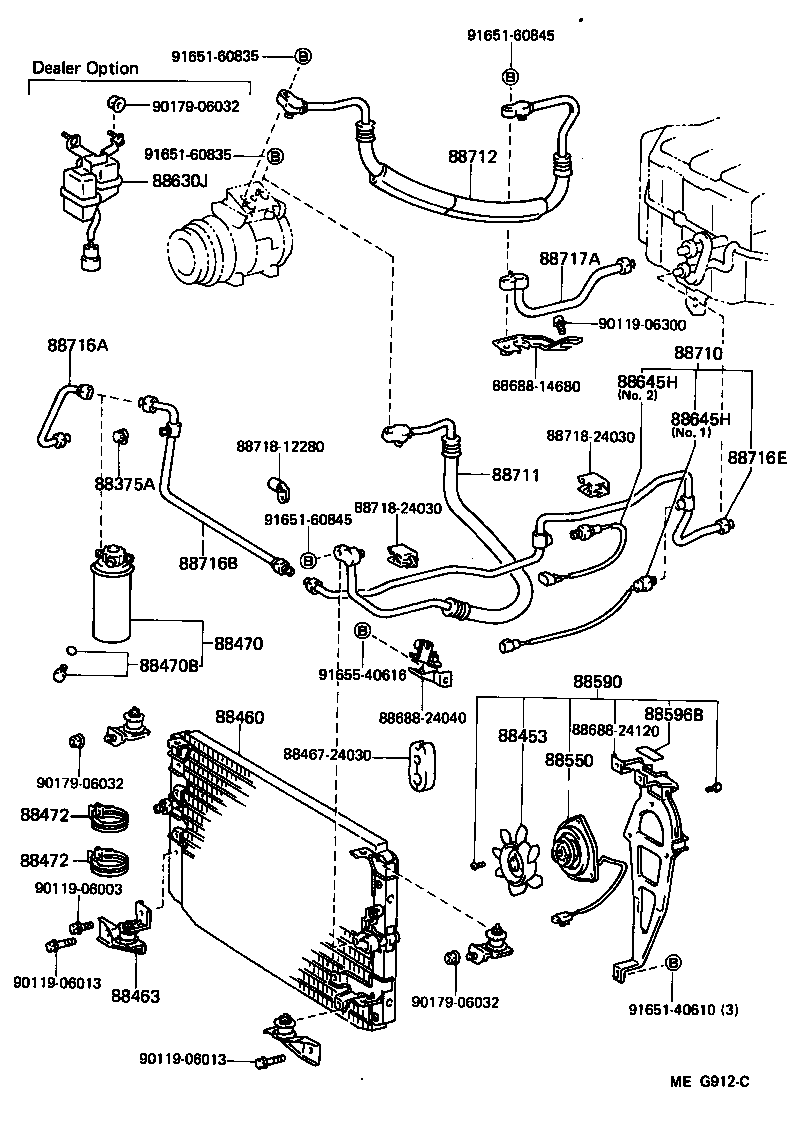

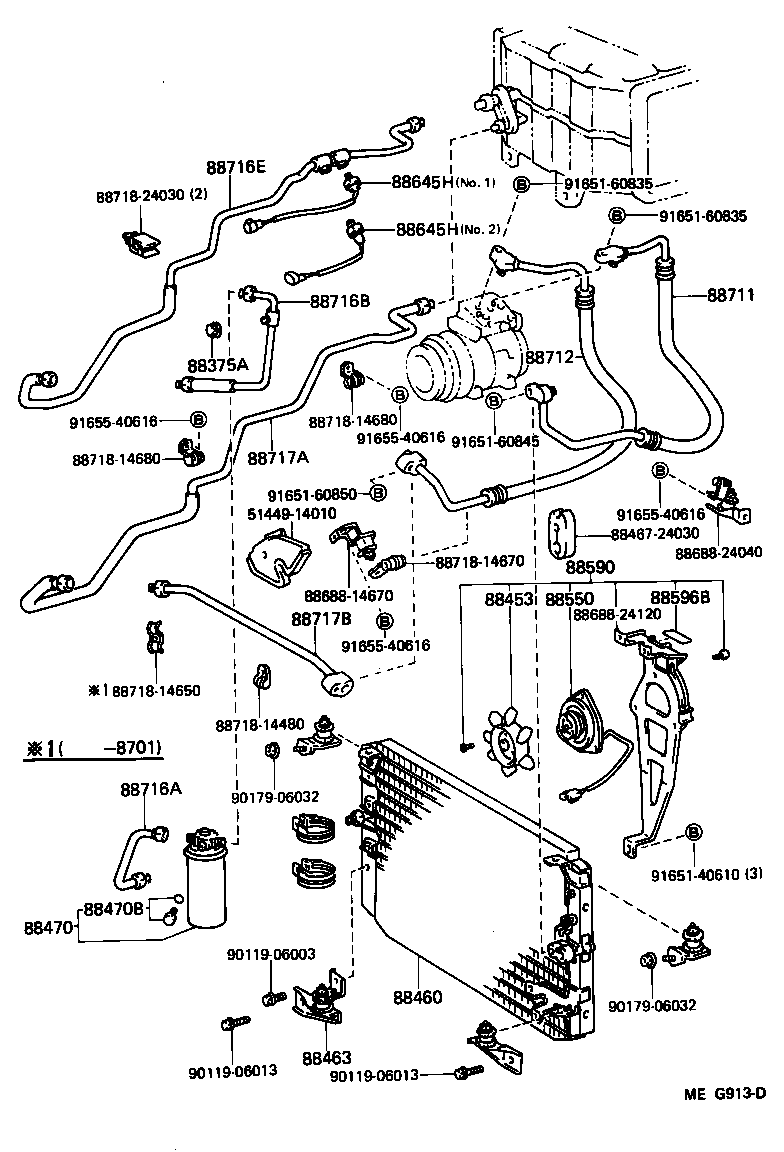

22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88460 | Condenser Assy, Cooler |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88596B | Plate, Caution, NO.1 |
| 88630J | Relay Assy (FOR CONDENSER MOTOR) |
| 88645H | Switch, Pressure NO.1 |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
