Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

28 part groups · 2 illustrations

Illustrations

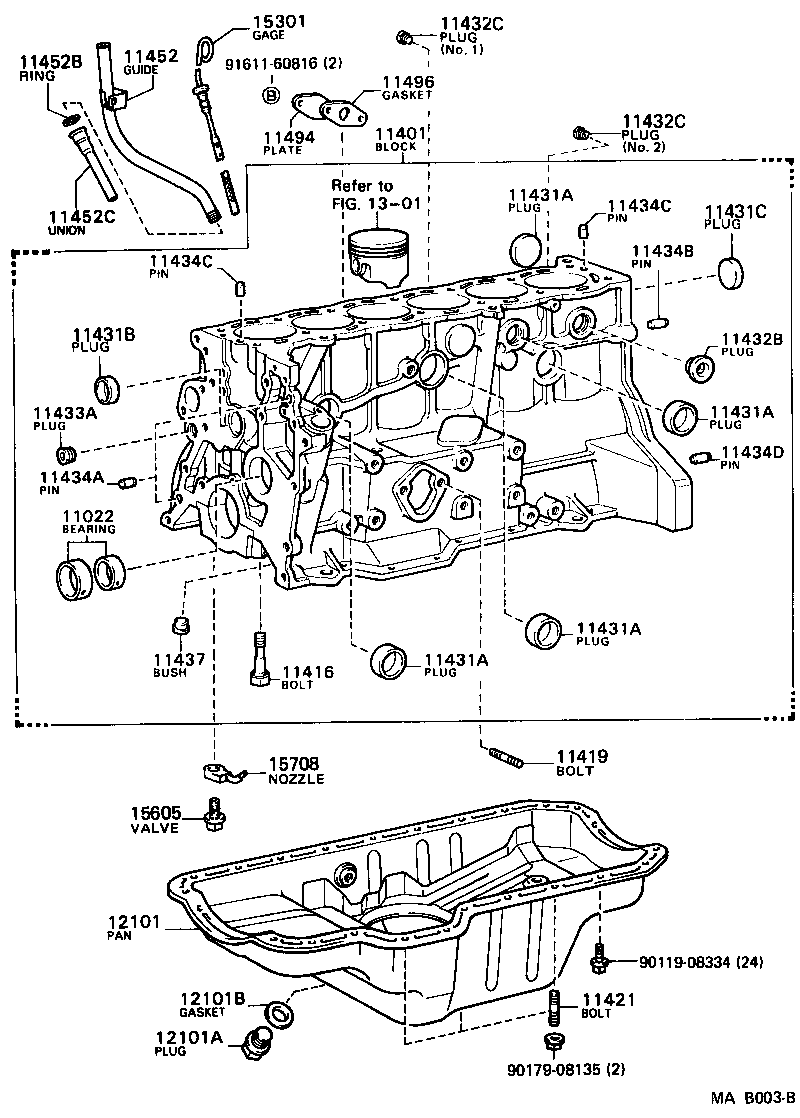

Figure MAB004D MAB004D 1988-08 → — Figure MAB003B MAB003B 1988-08 → —

Part groups

PNCDescription
11022 Bearing Set, Pump Drive Shaft
11401 Block Sub-assy, Cylinder
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11419 Bolt, Stud(FOR FUEL PUMP)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11433A Plug, Straight, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11437 Bush, Oil Pump Shaft Guide
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11452C Union(FOR OIL LEVEL GAGE GUIDE)
11494 Plate, Oil Hole Cover
11496 Gasket, Oil Hole Cover Plate
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101F Gasket(FOR OIL COOLER)
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
