Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 2 illustrations

Illustrations

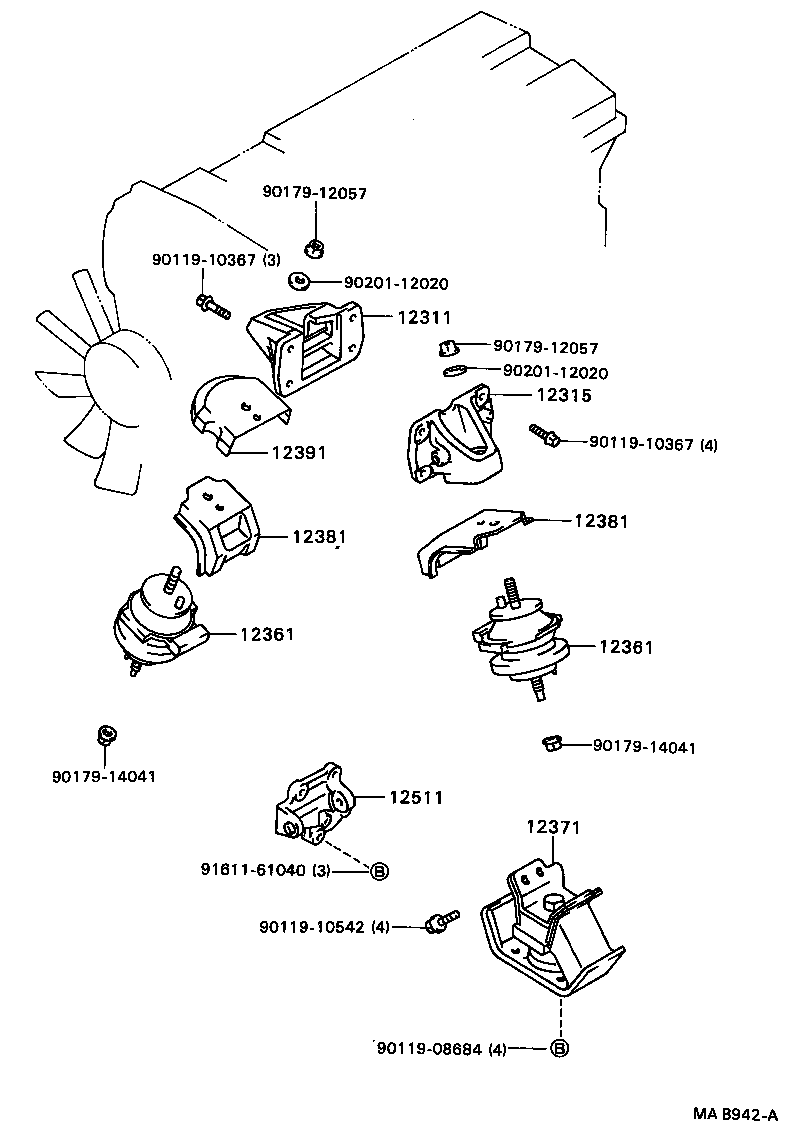

Figure MA8812A MA8812A 1988-08 → 1989-01 Figure MAB942A MAB942A 1989-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12323 Bracket, Engine Mounting Absorber
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
