Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 6 illustrations

Illustrations

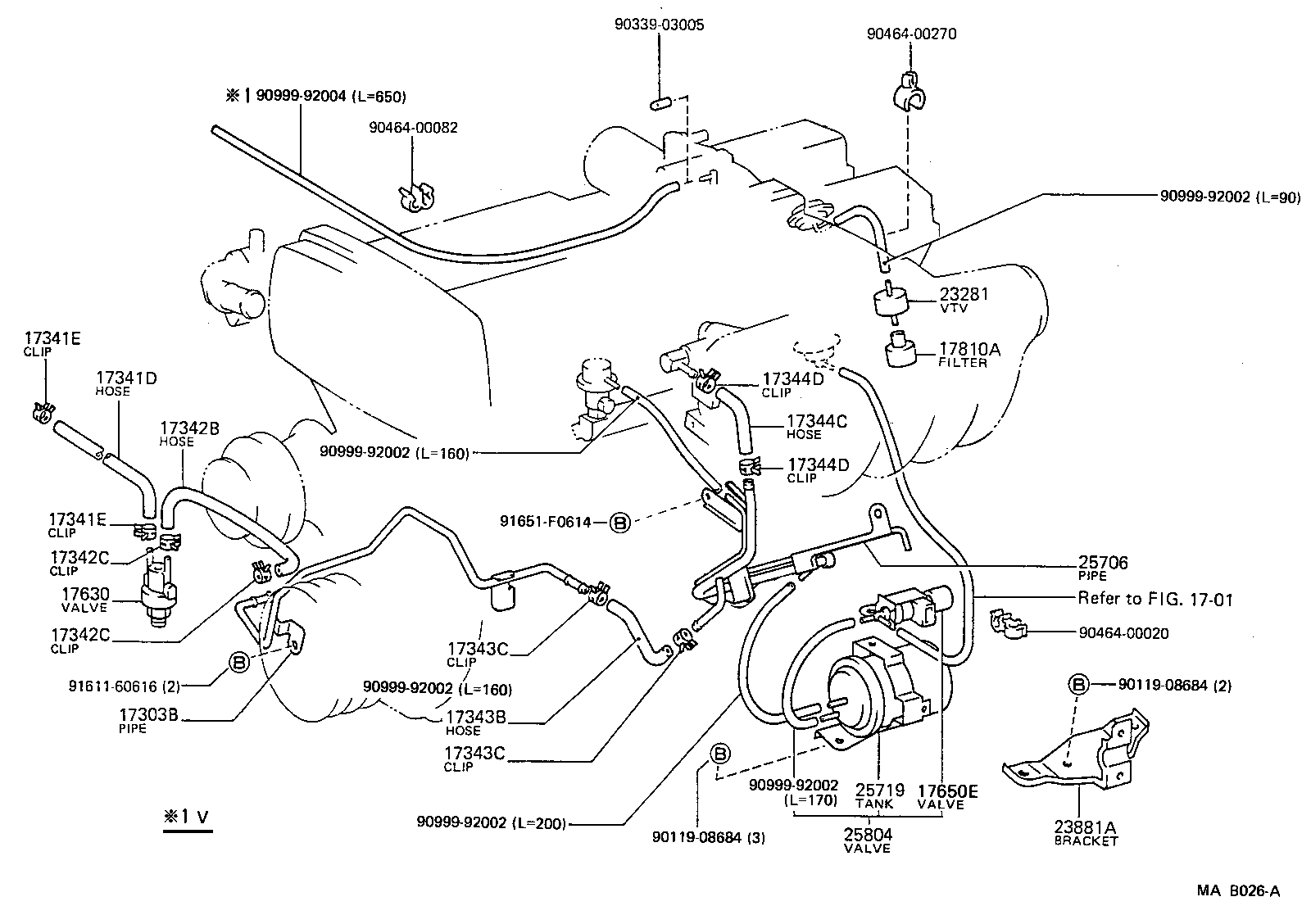

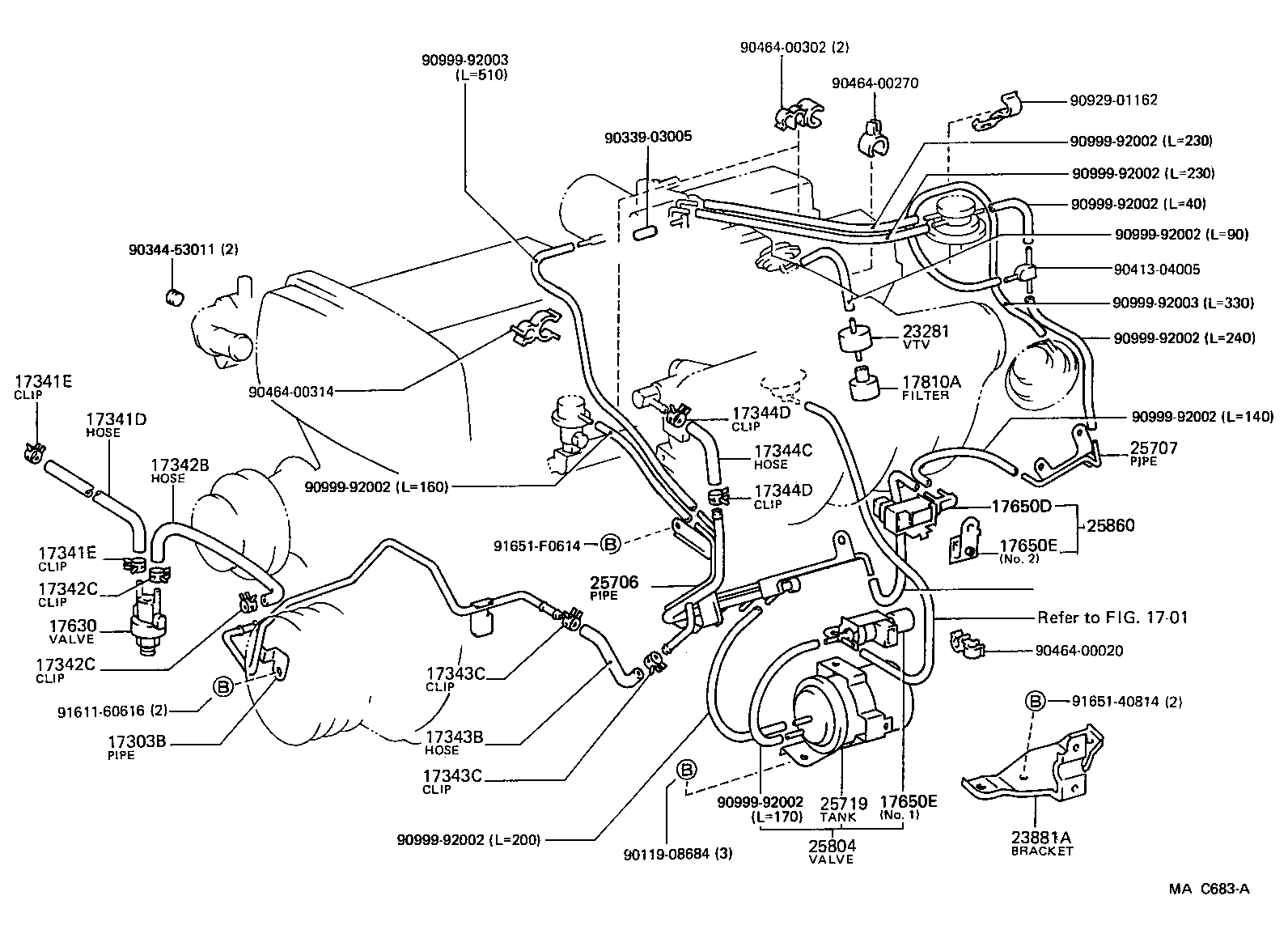

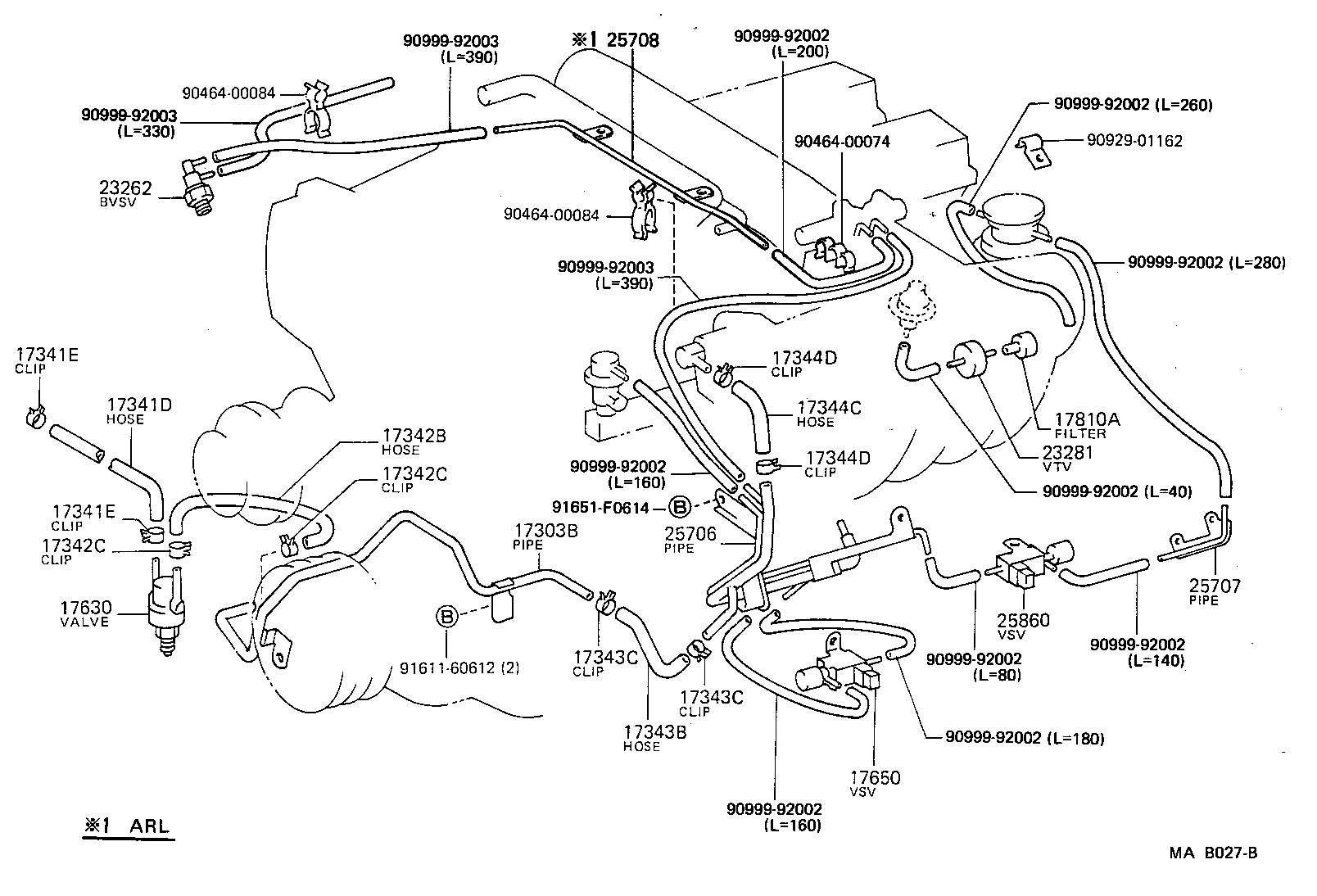

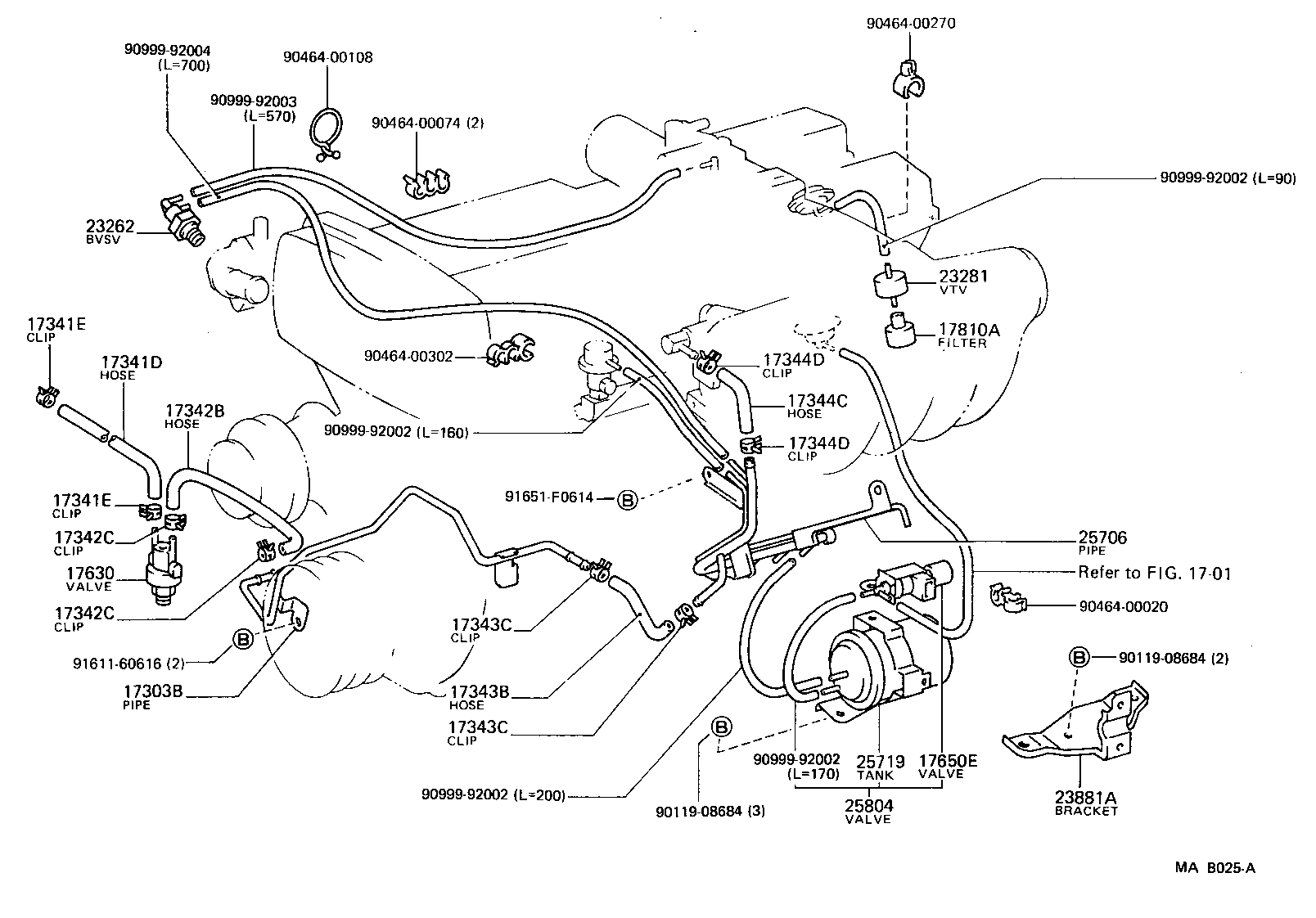

Figure MA9504B MA9504B 1988-08 → — Figure MAB025A MAB025A 1988-08 → 1989-08 Figure MAB026A MAB026A 1988-08 → 1989-08 Figure MAB026A MAB026A 1989-08 → — Figure MAC683A MAC683A 1989-08 → — Figure MAB027B MAB027B 1988-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17650E Valve, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23881A Bracket, Vacuum Control Valve Set
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25719 Tank, Vacuum Surge
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
