Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

16 part groups · 4 illustrations

Illustrations

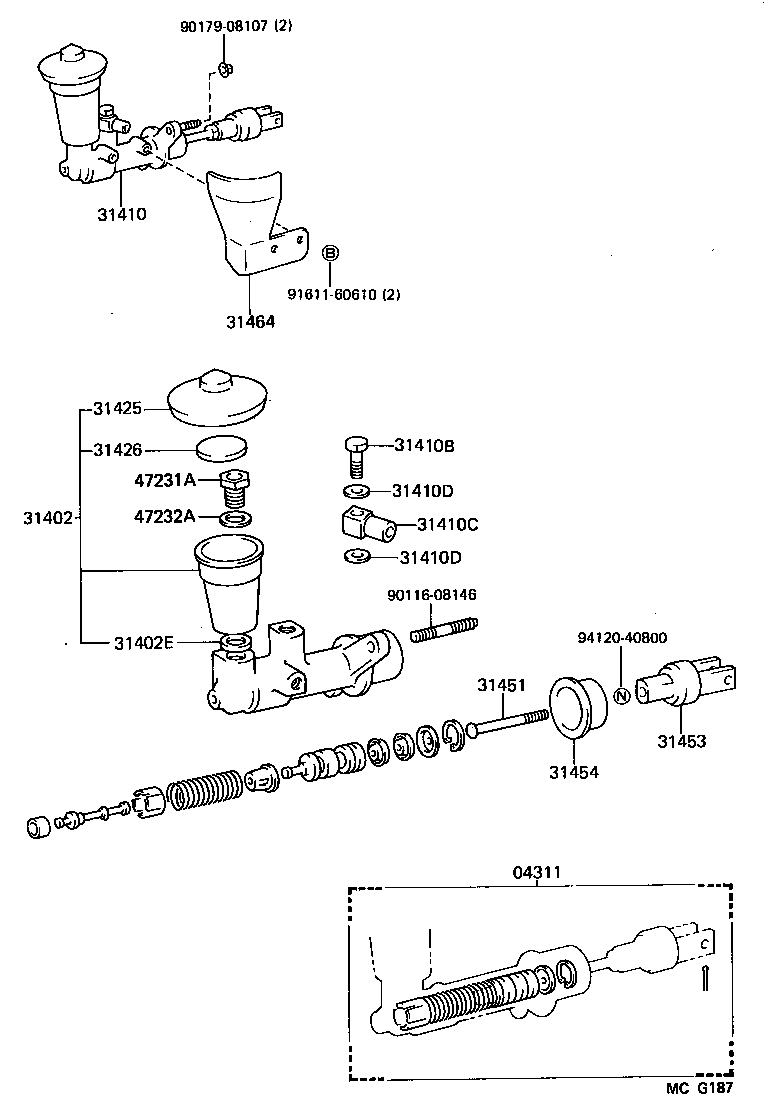

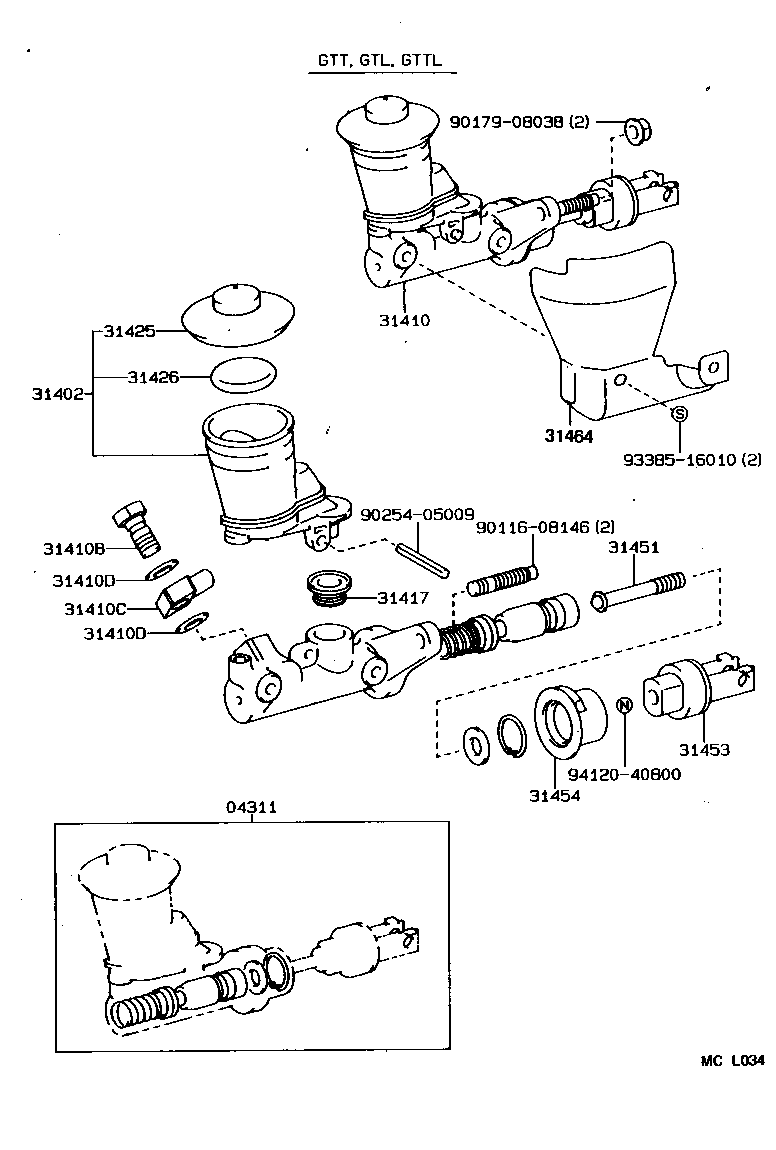

Figure MCG254 MCG254 1988-08 → 1990-08 Figure MCG255A MCG255A 1988-08 → 1990-08 Figure MCG187 MCG187 1988-08 → 1990-08 Figure MCL034 MCL034 1990-08 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31402E Ring(FOR CLUTCH MASTER CYLINDER RESERVOIR)
31410 Cylinder Assy, Clutch Master
31410B Bolt, Union(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)
31410C Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31410D Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31417 Grommet, Clutch Reservoir
31425 Cap, Clutch Master Cylinder Reservoir Filler
31426 Float, Clutch Master Cylinder Reservoir
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31464 Insulator, Clutch Master Cylinder Heat
47231A Bolt, Clutch Master Cylinder Reservoir Set
47232A Washer, Clutch Master Cylinder Reservoir Set Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
