Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

18 part groups · 2 illustrations

Illustrations

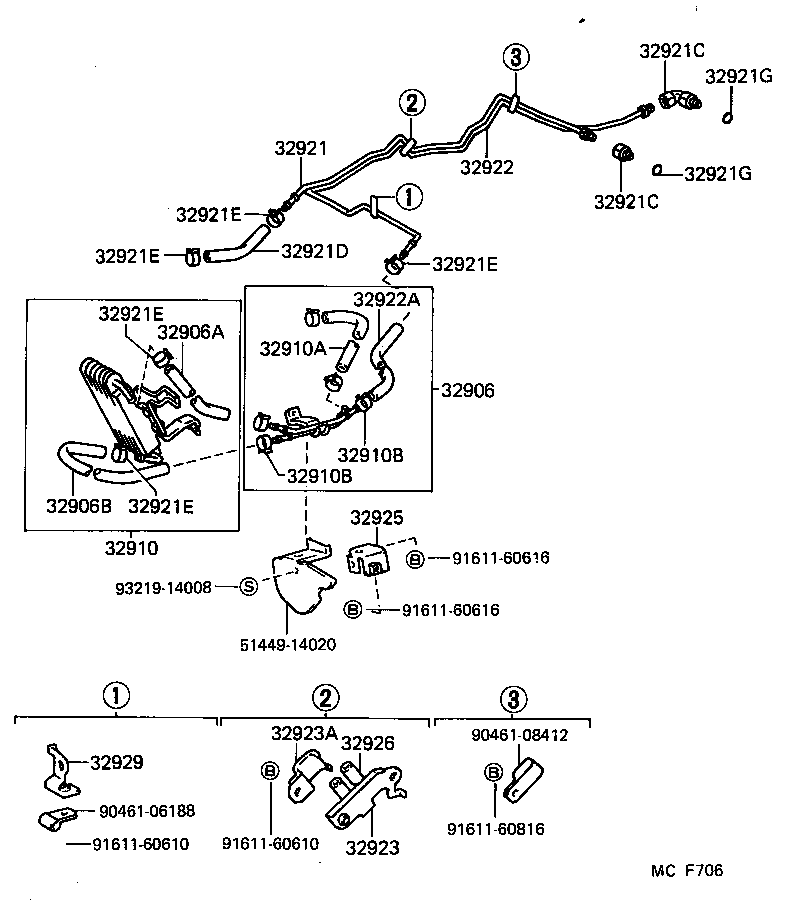

Figure MCD064 MCD064 1988-08 → — Figure MCF706 MCF706 1988-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32906A Hose, Oil Cooler Tube(FOR INLET)
32906B Hose, Oil Cooler Tube(FOR OUTLET)
32910 Cooler Assy, Oil
32910A Hose, Oil Cooler Water Outlet
32910B Clamp(FOR OIL COOLER WATER OUTLET HOSE)
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921E Clamp, Hose(FOR OIL COOLER)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32929 Clamp, Flexible Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
