Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe
Discontinued model
Data version 1993-11

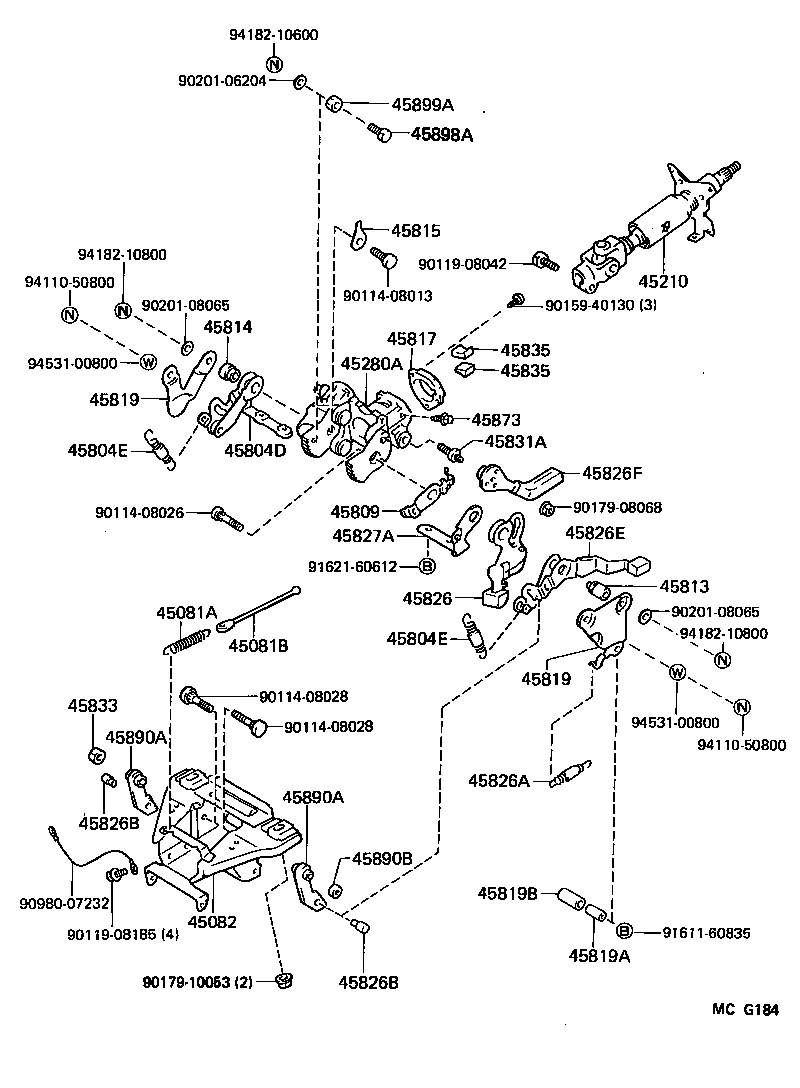

Steering Column & Shaft
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45081A | Spring, Tension(FOR TILT STEERING) |
| 45081B | Cord(FOR TILT STEERING) |
| 45082 | Bracket Sub-assy, Break Away W/Capsule |
| 45201D | Ring(FOR STEERING MAIN SHAFT) |
| 45210 | Shaft Assy, Steering Main |
| 45220 | Shaft Assy, Steering Intermediate |
| 45254 | Shield, Steering Column Hole |
| 45255 | Plate, Steering Column Hole Cover |
| 45255D | Ring, O(FOR STEERING COLUMN HOLE COVER PLATE) |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45291 | Seal, Main Shaft Upper Dust |
| 45297 | Insulator, Steering Yoke Heat |
| 45804D | Lever Sub-assy, Steering Tilt(FOR TILT UP CONTROL) |
| 45804E | Spring, Tension(FOR STEERING TILT LEVER) |
| 45808 | Stopper Sub-assy, Steering Shaft Thrust |
| 45809 | Cover Sub-assy, Adjuster Memory |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45814 | Collar, Tilt Steering Support, NO.2 |
| 45815 | Shim, Tilt Steering Support |
| 45817 | Stopper, Steering Shaft Thrust |
| 45817A | Ring, O(FOR STEERING SHAFT THRUST STOPPER) |
| 45819 | Retainer, Tilt Lever |
| 45819A | Collar(FOR TILT LEVER RETAINER) |
| 45819B | Cushion(FOR TILT LEVER RETAINER) |
| 45826 | Lever, Steering Tilt |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45826B | Pin(FOR STEERING TILT LEVER) |
| 45826E | Lever, Steering Tilt(FOR TILT ADJUST) |
| 45826F | Lever, Steering Telescopic |
| 45827A | Lever, Steering Tilt Sub |
| 45831A | Bolt, Telescope Lever Lock |
| 45833 | Nut, Tilt Steering Adjusting, NO.1 |
| 45835 | Wedge, Lock |
| 45867 | Retainer, Steering Main Shaft Stopper |
| 45870 | Tube Assy, Steering Column |
| 45873 | Stopper, Steering Column Tube |
| 45890A | Pawl Assy, Tilt Steering |
| 45890B | Spacer(FOR TILT STEERING PAWL) |
| 45895A | Plate, Tilt Steering Caution |
| 45898A | Bolt, Return Spring Set |
| 45899A | Cover, Tilt Steering Support Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
